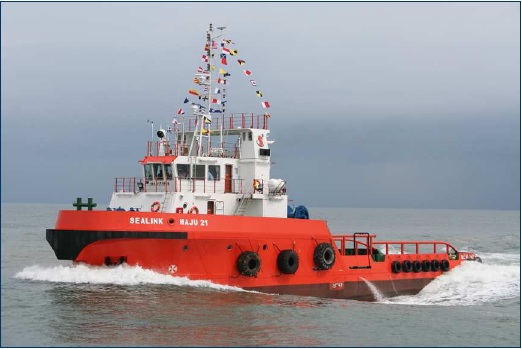

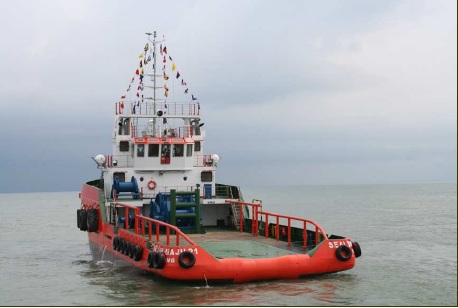

41.25mt Bollard Pull Anchor Handling Tug


Listing ID - 431461


Description41.25mt Bollard Pull Anchor Handling Tug
Date Launched
2005
Length38.00m
Beam11.80m
Draft3.8m
BrokerPeter Cookson
peter.cookson@seaboatsbrokers.com
+61 429 543 180
PricePOA
View As PDF

General

Official No./Call Sign: 330669 / 9WGK2

Flag: Malaysia

GRT: 499/149

Year Built: 2005



Principal Particulars

Length Overall: 38.00m

Length BP: 33.40m

Breadth Moulded: 11.80m

Depth Moulded: 4.8m

Draft (Max): 3.8m

Class: ABS + A1 (E) AHT + AMS



Performance

Speed: 13 knots free running at trail

Type of Fuel: Marine Gas Oil

Endurance: 28 days

Range: 5,500 nautical miles @ 10 knots (Approx)



Cargo Capacities (Approx) & Pumps

Deadweight: 414.68t

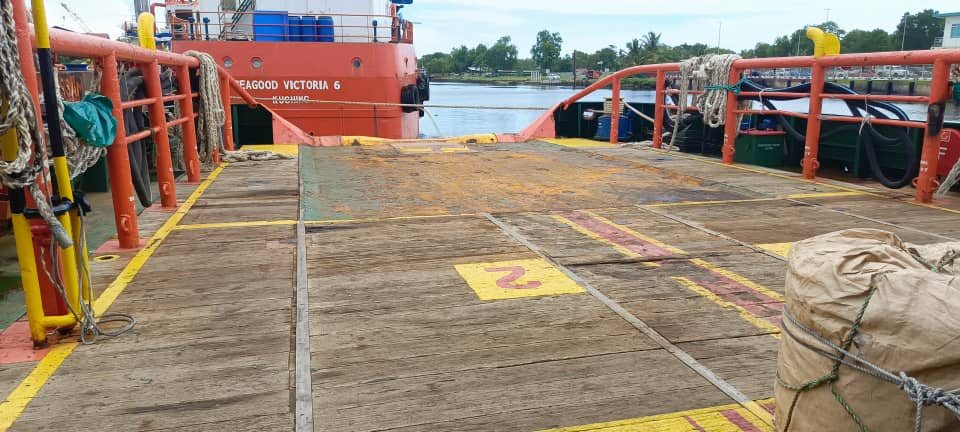

Deck Strength: 5 tons/m2

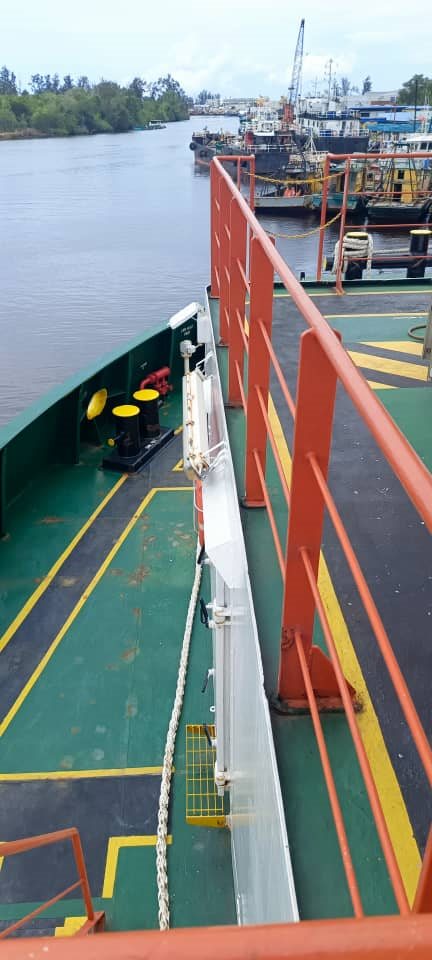

Clear Deck Area: 150m2

Fresh Water: 157.18m3

Fuel Oil: 323m3

Lube Oil: 7.1m3

FO pump: 1x50m3/hr @ 50m head

FW pump: 1 x 50m3/hr @ 50m head

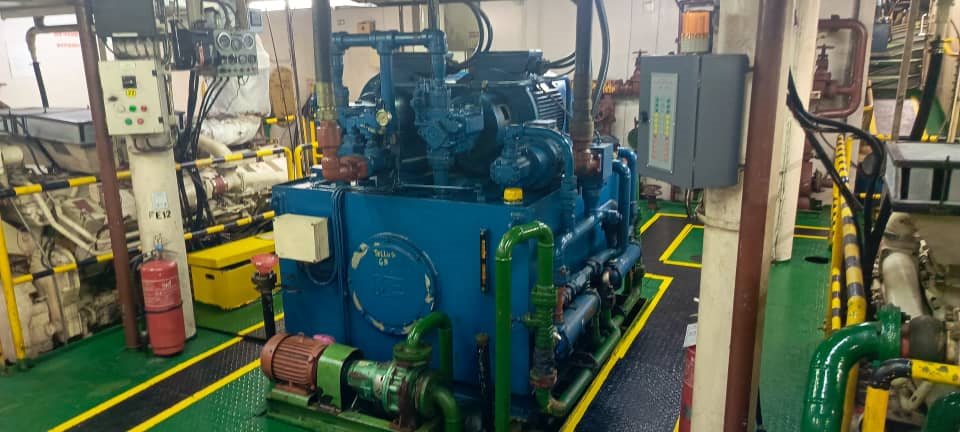

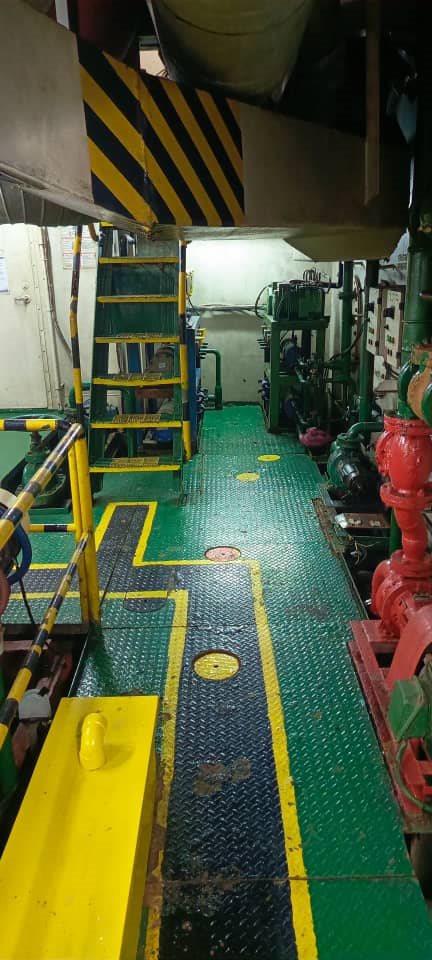

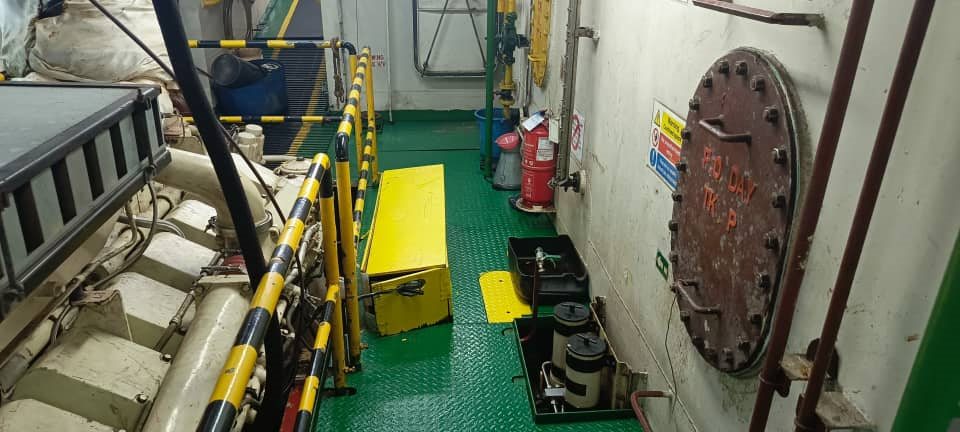

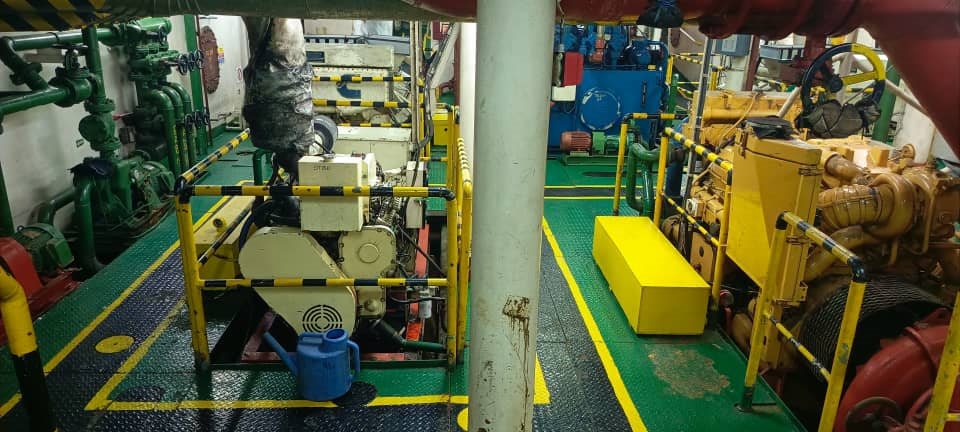

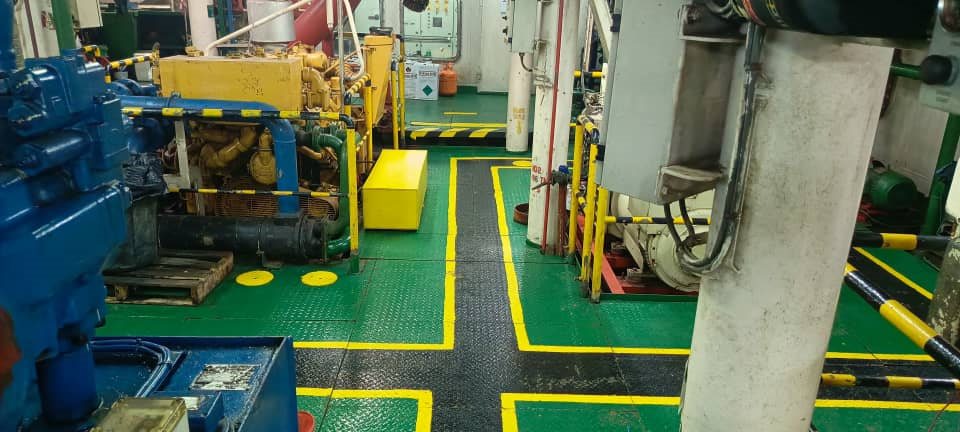

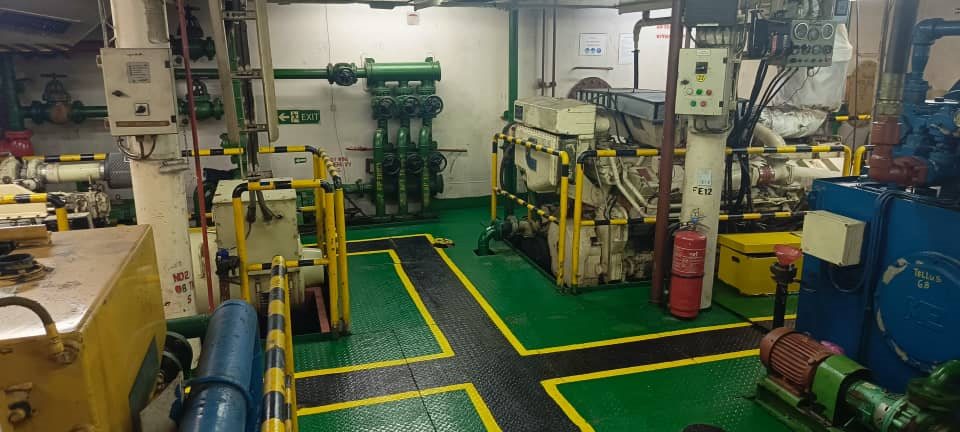

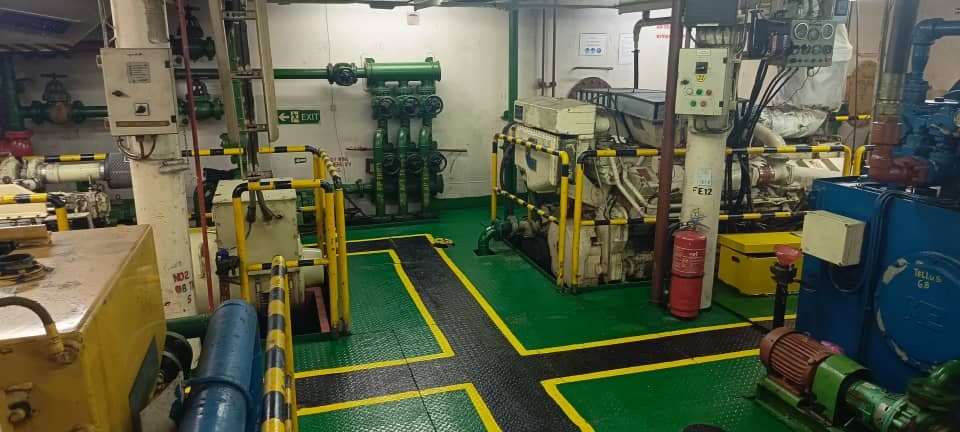

Machinery & Propulsion System

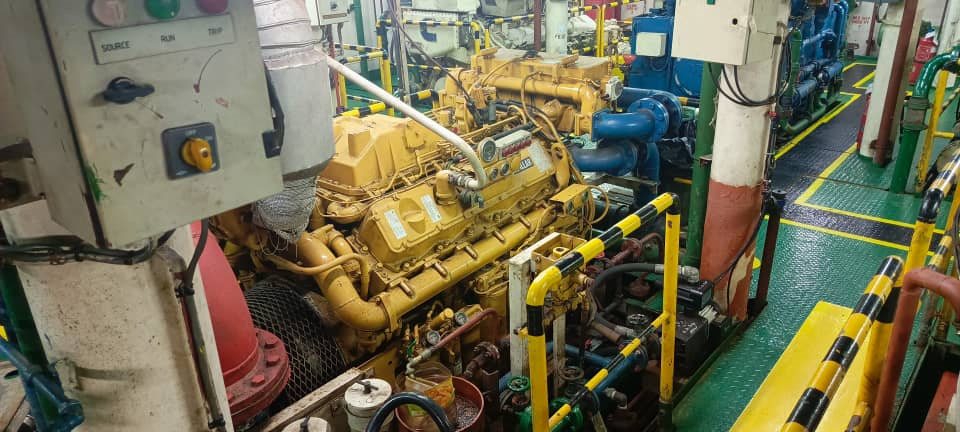

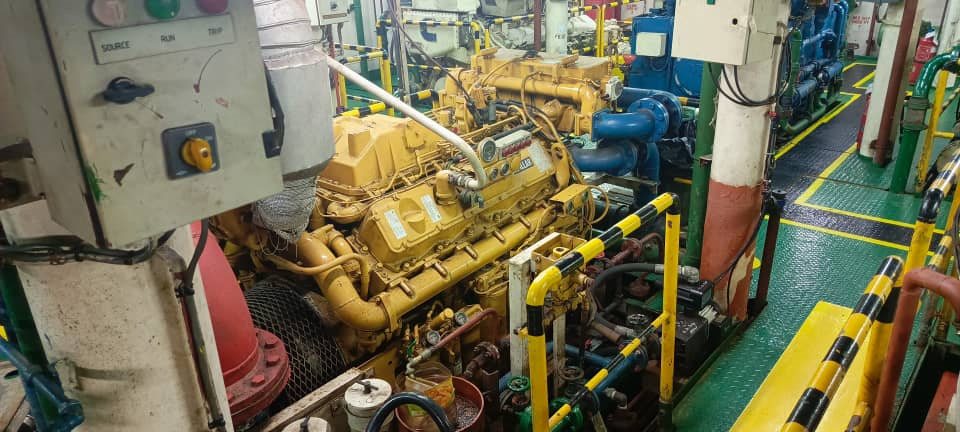

Main Engines: 2 x 1600 bhp @ 1800 rpm KTA50M2

Bow Thruster: 1 x 3T thrust engine driven

Propellers: 2 x Fixed Pitch in K/Nozzles & Four blade

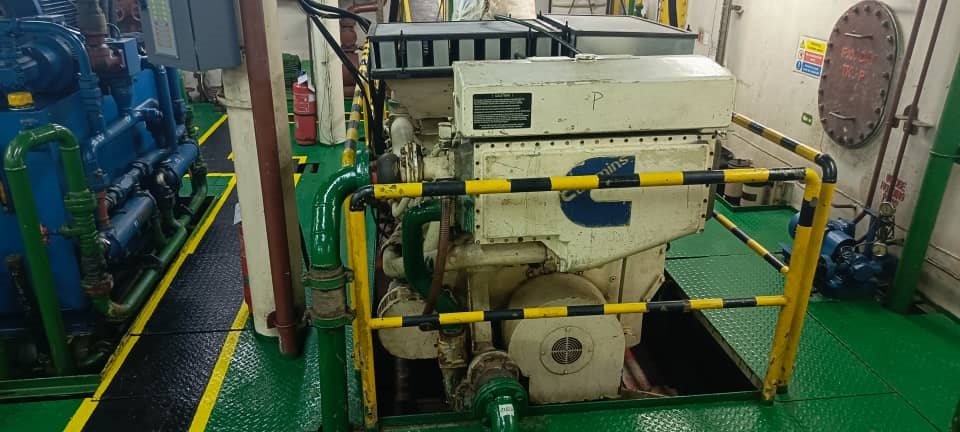

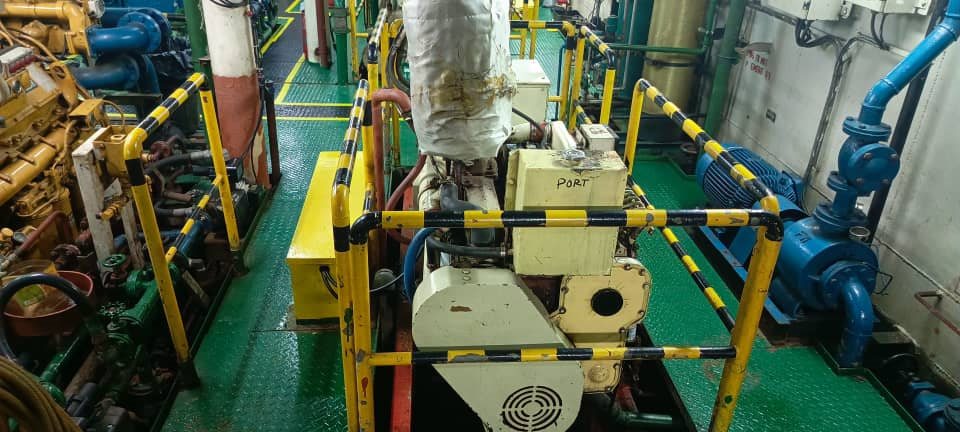

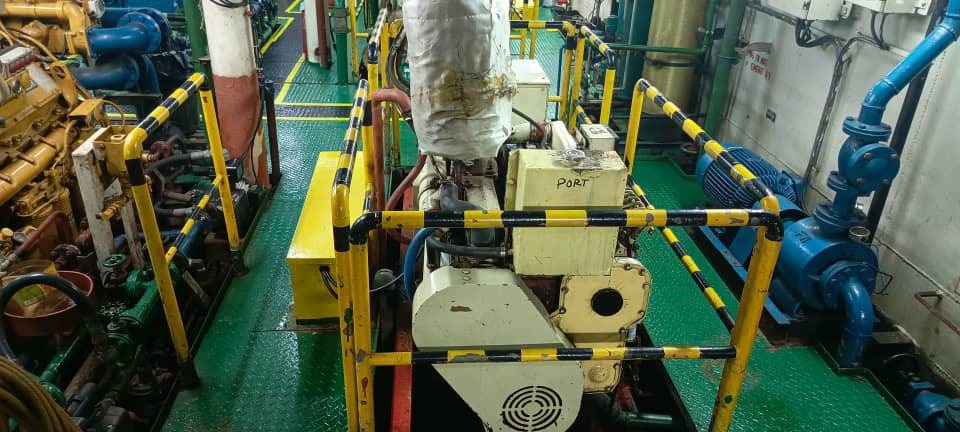

Auxiliary Engines: 2 x 150kW Cummins 6CTA8.3D(M), 415V/3/50

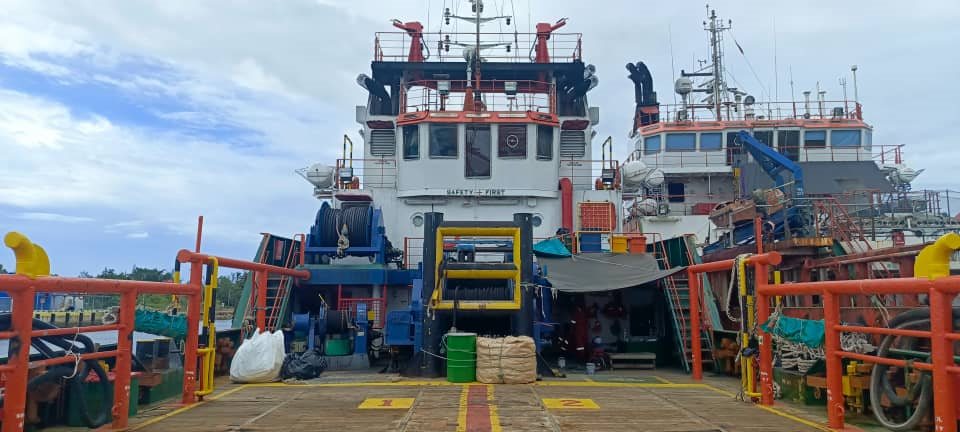

Towing/Anchor Handling Equipment

Bollard Pull: 41.52m tons certified

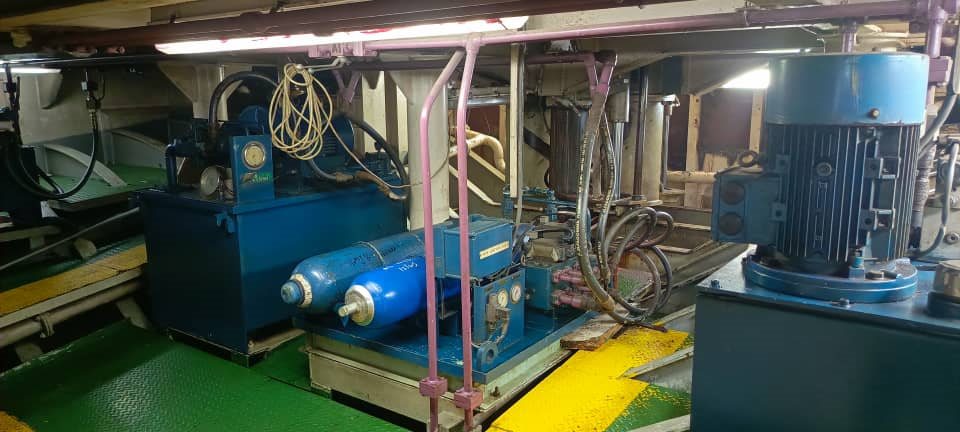

Towing/Anchor: 80t Electro Hydraulic double drum c/w wire rope

Upper & Lower Drum Cap: 52mm dia x 1000m (L) Line Pull @ first layer 80 tons

Shark Jaws & Towing Pin: hydraulic operated 150mt SWL

Stern Roller: SWL 120M

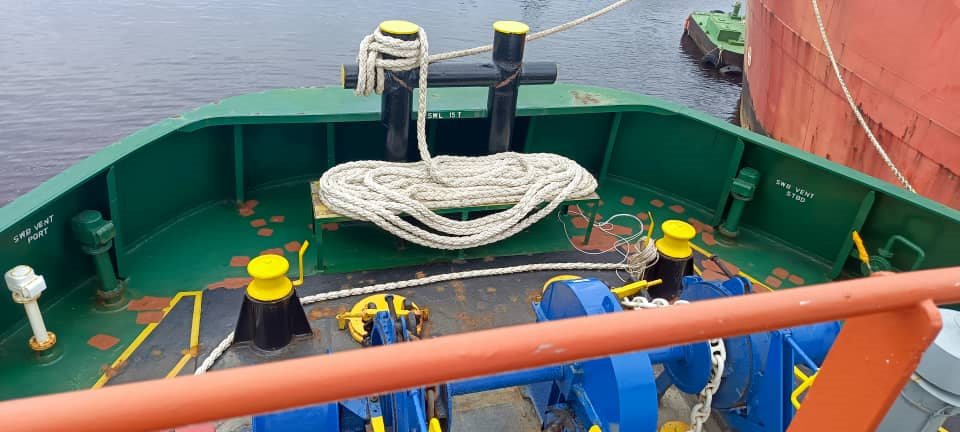

Deck Equipment

Anchors: 2 x 1020kg stockless bower anchors, 10 shackles 32mm diameter chains

Anchor windlass: electro-hydraulic powered

Tugger Winch: 1 x 5m tons @ 15m/min

Capstan: 2 x 5t

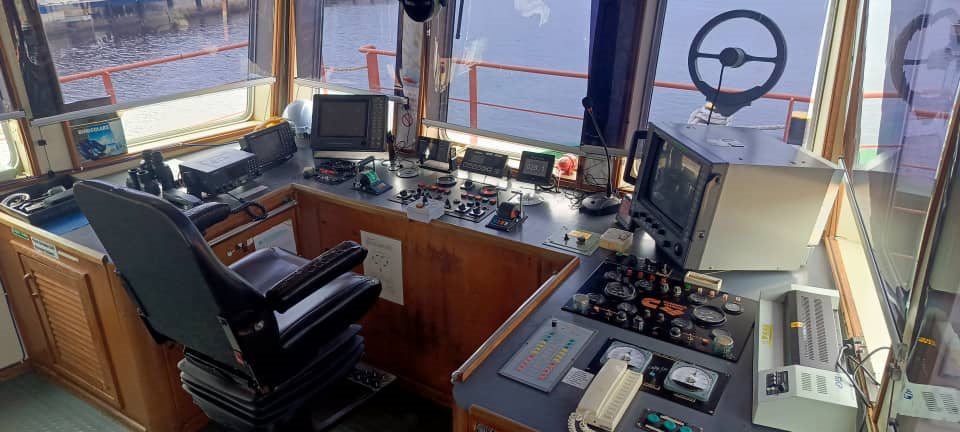

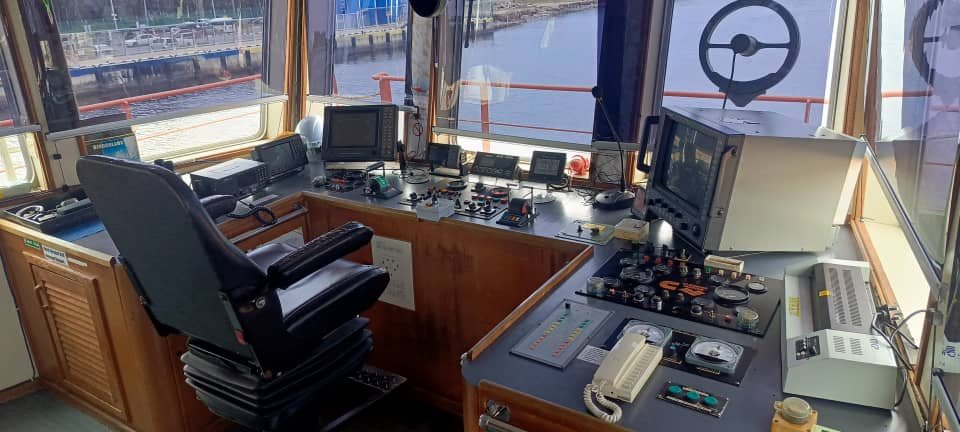

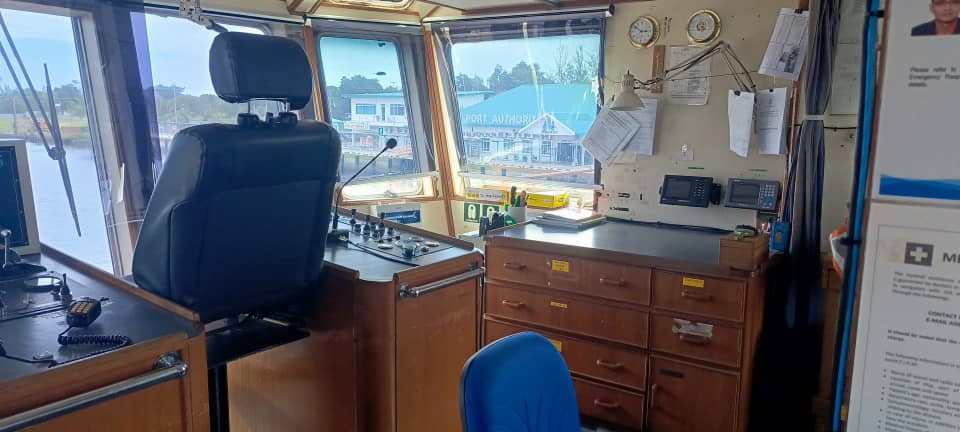

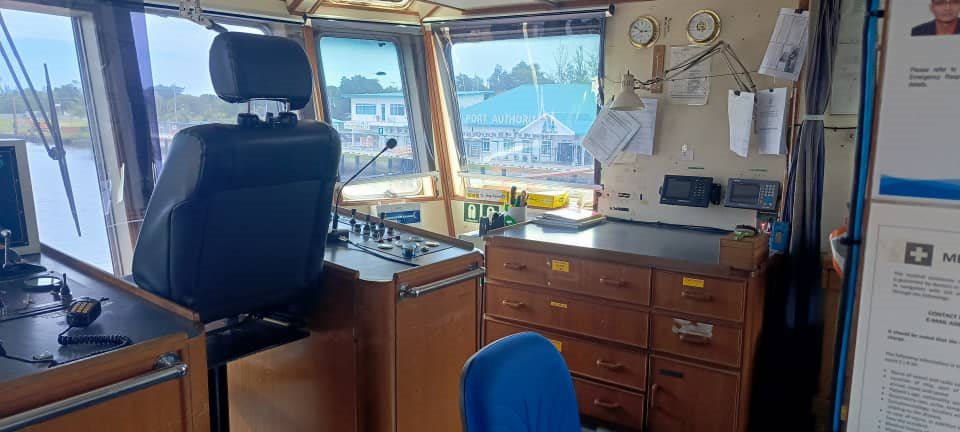

Radio & Navigation Equipment

Communication Equipment Complied to GMDSS A3,

Communication & Navaids complied with SOLAS and FLAG Administration for vessel GRT< 500



Fire Fighting Equipment

Internal: CO2 system in engine room & bow thruster compartment

External Fire Fighting: ½ FiFi



Life Saving Equipment

LSA for 20 men as per SOLAS & flag administration rule

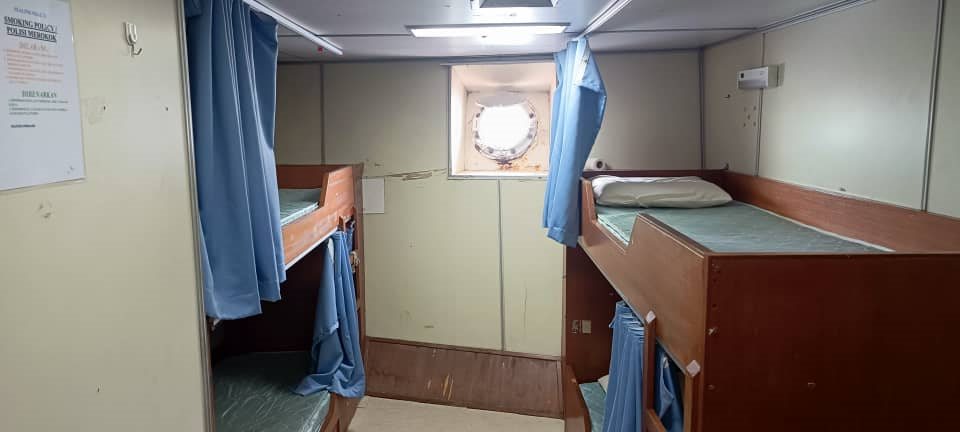

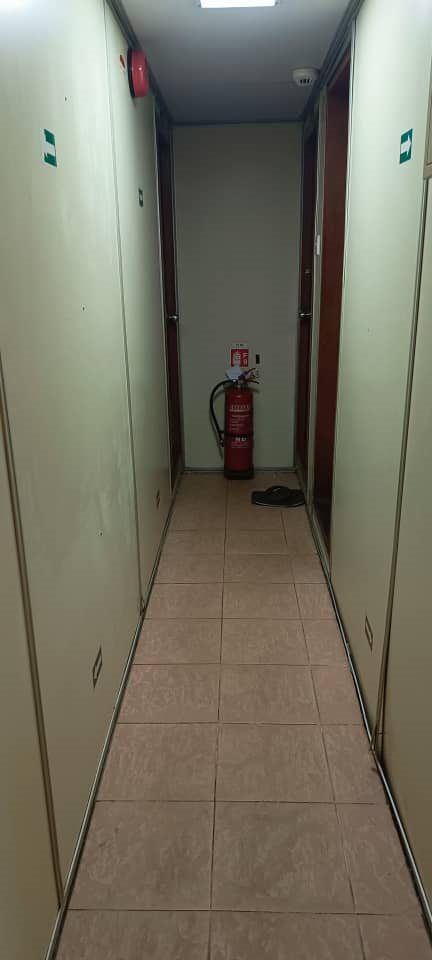

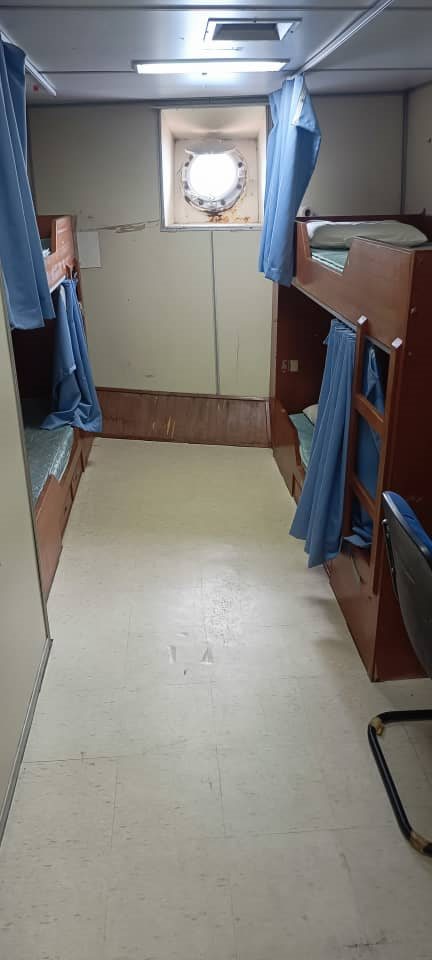

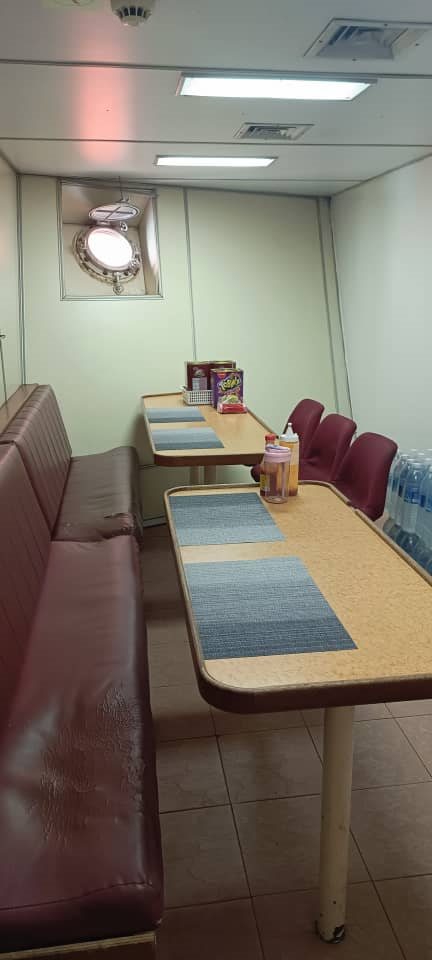

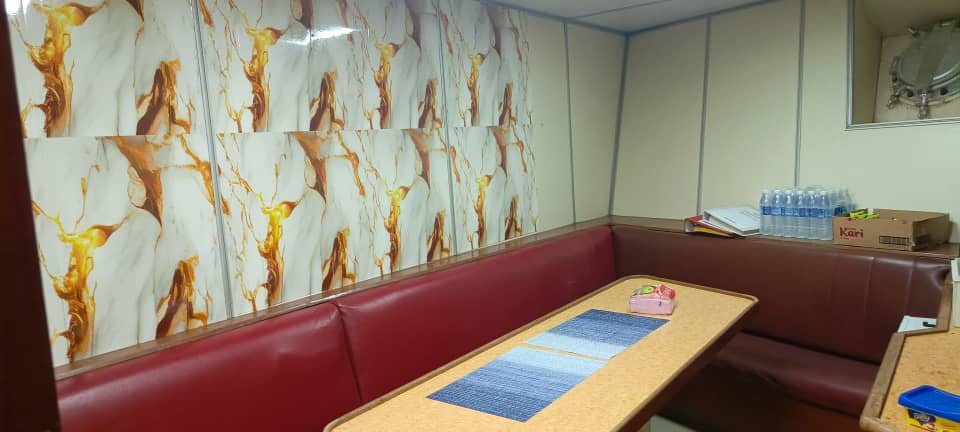

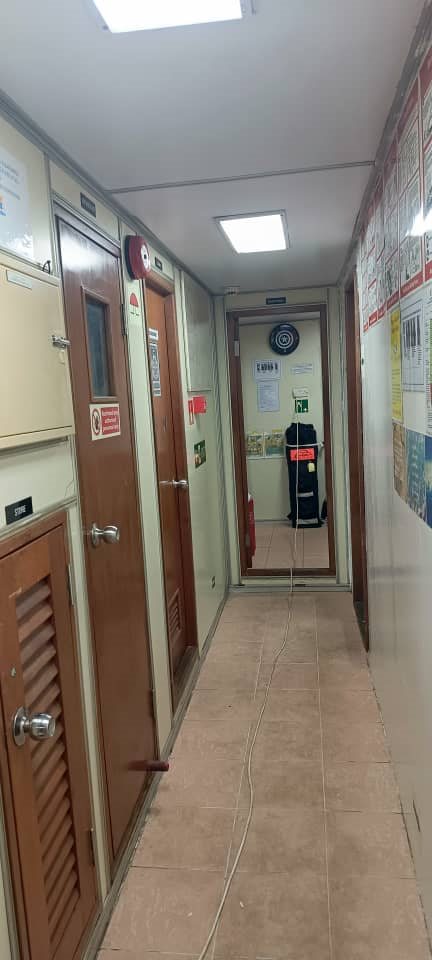

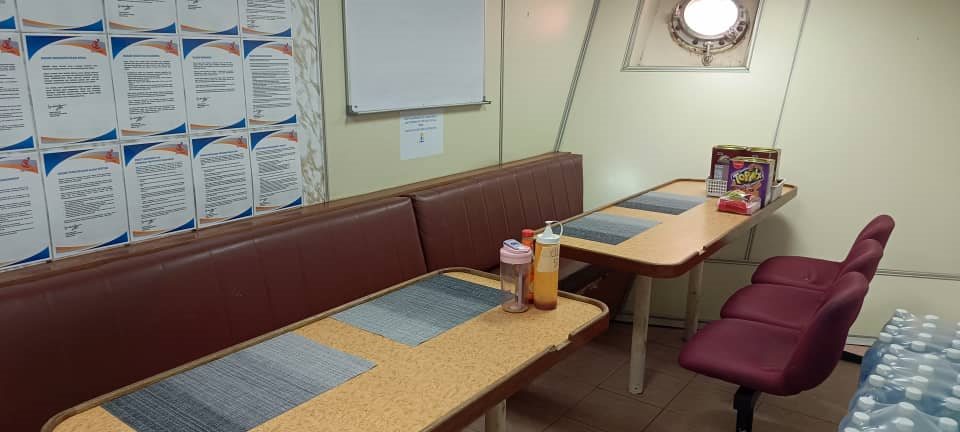

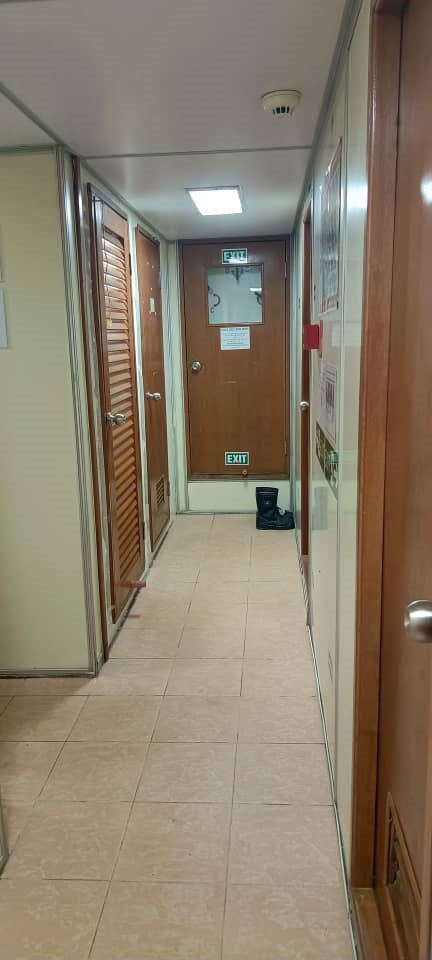

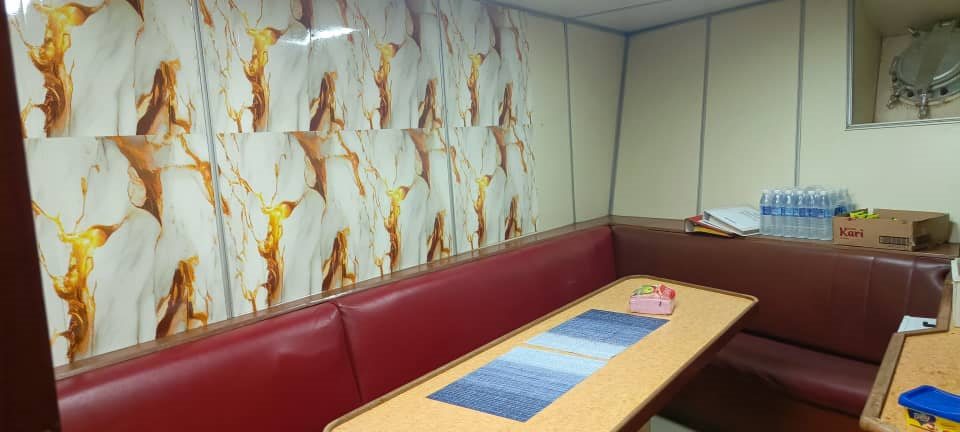

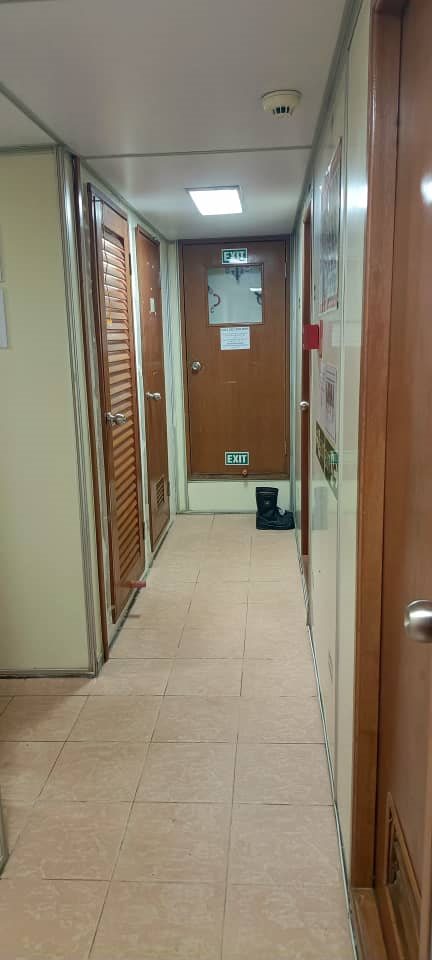

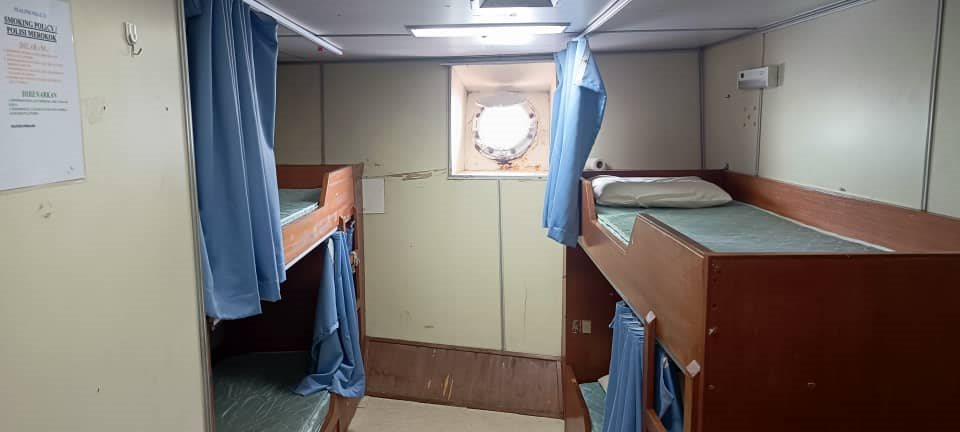

Accommodation

2 x 1 berth c/w attached washrooms

2 x 2 berth c/w attached washrooms

3 x 4 berth c/w attached washrooms

Total: 18 pax

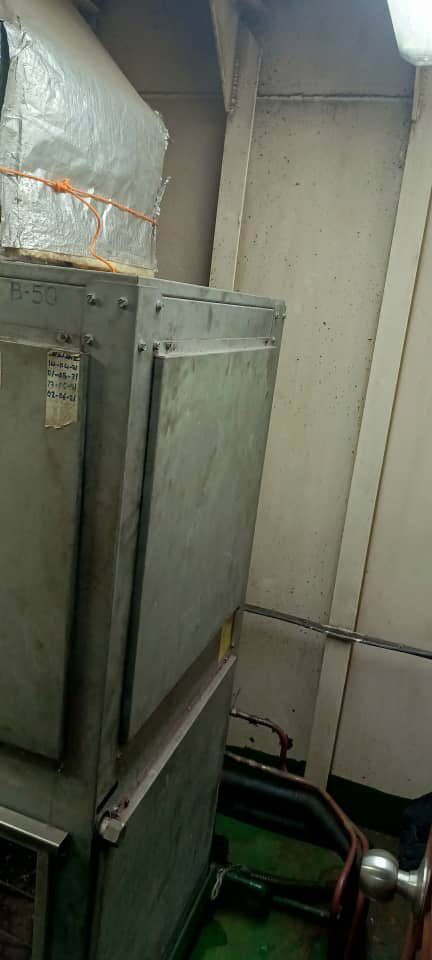

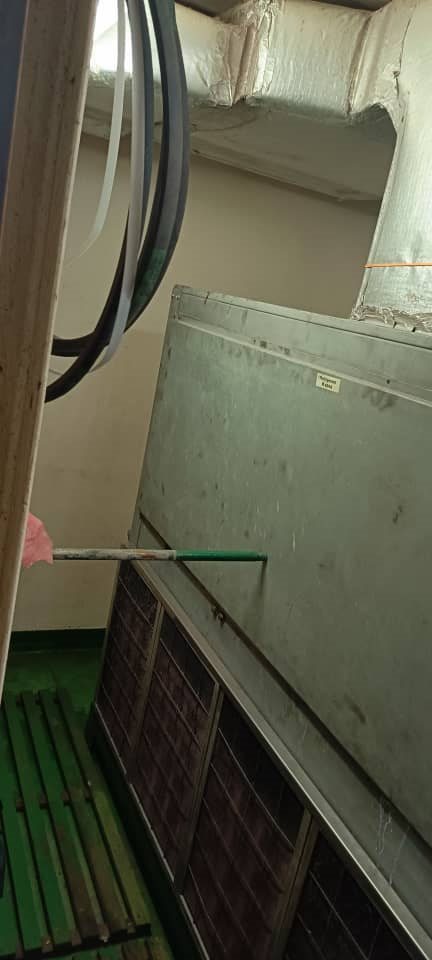

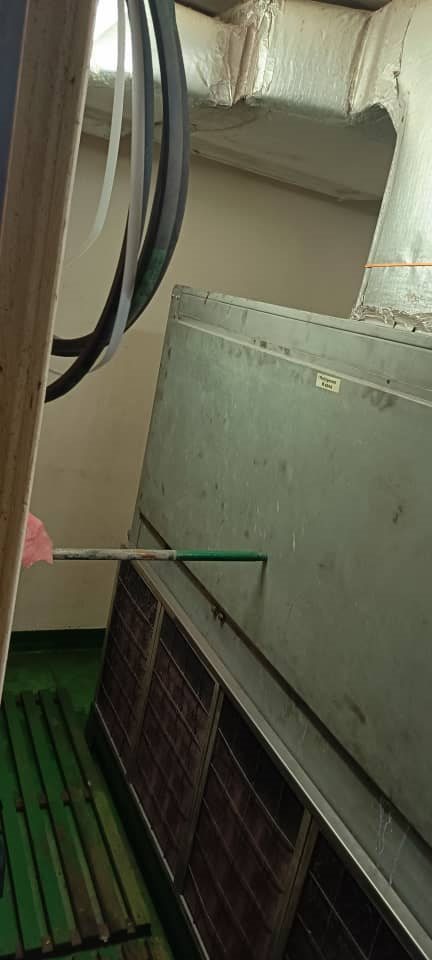

All Cabins are centrally air-conditioned



Pollution Control

Dispersant Boom

Marpol 1 – Oily Water Separator

Sewage treatment plant for 25 men


The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
