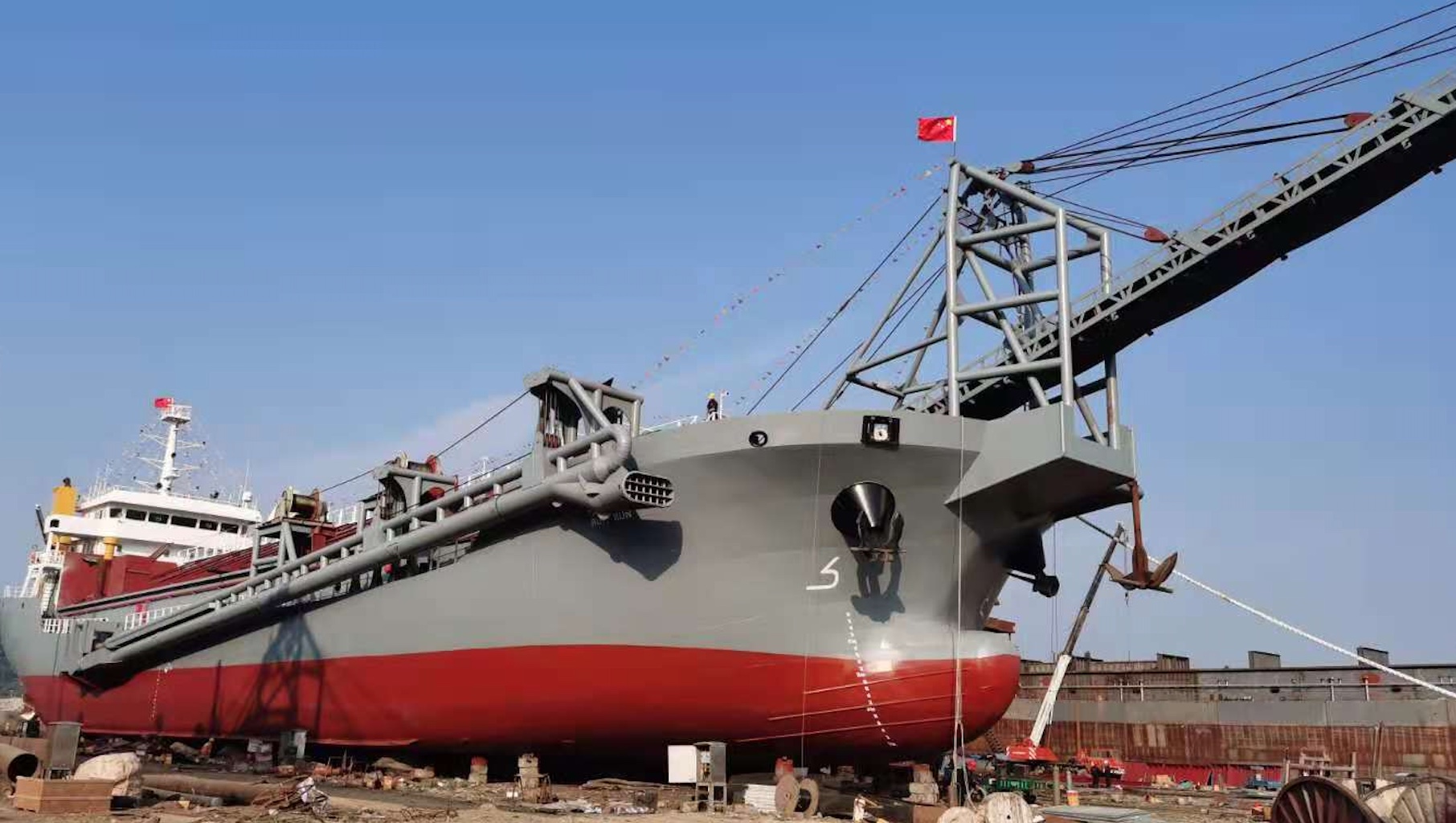

This ship is a steel, single deck, double engine, double propeller, double rudder, double trail type, square tail, bulbous bow coastal self-suction dump ship. Three decks are provided on the aft main deck. The ship’s engine room rear wall to the freighter front wall is a double-sided structure. The tank bottom in the ship is a double bottom structure, while the other areas are single bottom and single side structure.



MSA 2020 Statutory Inspection Rules for Vessels and Marine Facilities Statutory Inspection Technical Rules for Domestic Navigable Seagoing Vessels 2018 CCS Code for Construction of Domestic Navigable Seagoing Vessels 2019, 2019 Notification of Modification 2020 CCS Material and Welding Code 2018, 2018 and 2020 CCS Notification of Modification



The ship’s operating equipment includes 1 set of sand absorption equipment and 1 set of self-discharging equipment. Sand absorption equipment includes sand absorption main machine, gear box, sand suction pump, sand suction pipe, sand production pipe, filtering net frame, and self-discharging equipment includes main machine, gear box, reduction machine, belt wheel, conveyor belt, lifting and landing derrick.



Operation mode

Self-suction: The sand suction pump group sucks the sand pump in the riverbed through the sand suction pipe on the right side of the ship to the sand discharging pipe above the cargo compartment, and then discharges to the compartment through the filter screen.



Self-discharging: The sand in the cargo hold is transported to the front end of the ship through the bilge conveyor belt and transferred to other places. The conveyor belt is driven by the engine room of the ship head conveyor belt.



The self-suction self-discharging vessel is converted from the self-discharging vessel.

The caoside wall of the fore peak cabin conveyor belt extends to the bottom of the cabin and is watertight.

Change the water pump tank (right) to sand suction pump tank (right) and change the normal cabin to class A machinery space.

Add a groove to the bottom plate at the collision bulkhead, which is higher than the full load waterline.

Cancel weathertight hatch cover at the exit of cargo hold and first conveyor belt.

The design draft is changed from 4.60m to 3.55m, and the relevant load line draft drawing and relevant drawings are all changed.



Built: 2020

LOA: 104.80m

Length 89.8m

LWL: 85.60m

Length between the Columns: 86.24m

Width: 19.20m

Type deep: 5.80m

Design Draft: 3.55m

Structural Draft: 4.80m

Main deck to living deck: 2.95-3.30

Living deck to driving deck: 2.60

Pilot deck to compass deck: 2.60

Beam: 0.29:

Displacement: 4915.4t

Square Coefficient: 0.817

Load: 2707.9t

Cargo Capacity: 2165.48t

Navigation main engine: 1600hp+1600hp Yuchai

Conveyor main engine: 1600hp yuchai

Suction main engine: 2400hp, 24 inches pump,

Sand-suction time for full loaded vessel full: 1.5hours,

Conveyor speed for full loaded vessel: 40mins

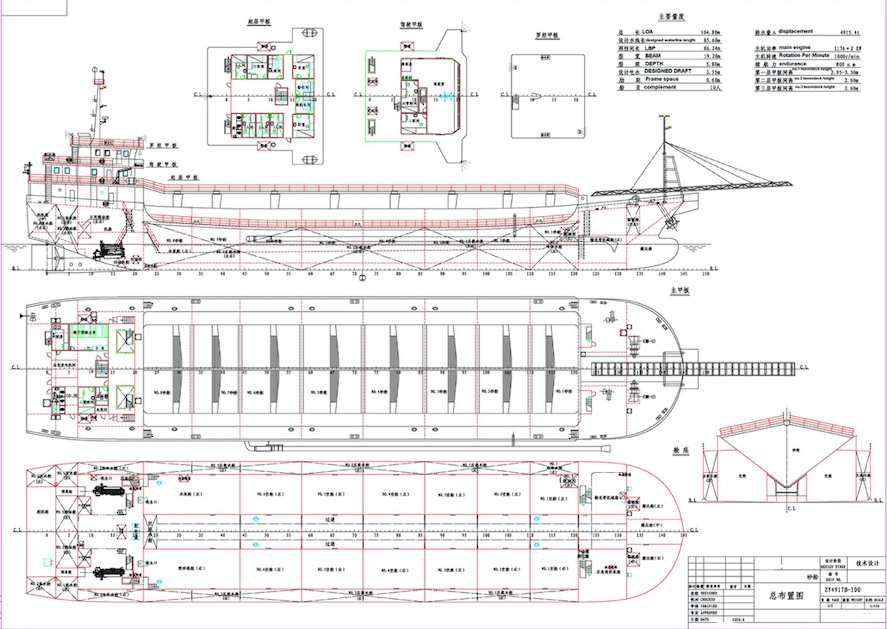

In addition to the cargo hold, there are 5 watertight transverse bulkheads, FR2, FR7, FR22, FR121 and FR132 respectively. The cabins are divided from aft to fore successively as follows:



Name location

NO.2 Fresh water tank (left and right) Stern ~ Fr.2
NO.1 Fresh water tank (left and right) Fr.2 ~ Fr.7

No.2 Cooling water tank (left and right) Fr.2 ~ Fr.7

Isolation cabin(left and right) Fr.2 ~ Fr.7

No.2 Fuel tank (left and right) Fr.2 ~ Fr.7

Engine room Fr.7 ~ Fr.22

Sand chamber Fr.22~Fr.121

Settling tank Fr.22 ~ Fr.25

Conveyor belt engine room (left) Fr.121 ~ Fr.132

Emergency cabin (right) Fr.121~Fr.132

Chain cabin (left and right) Fr.132~Fr.135

The bow cabin (left center right) Fr.132~ bow

NO.8 Sand chamber Fr.22 ~ Fr.33

NO.7 sand chamber Fr.33 ~ Fr.44

NO.6 sand chamber Fr.44 ~ Fr.58

NO.5 sand chamber Fr.58 ~ Fr.72

NO.4 Sand chamber Fr.72 ~ Fr.86

NO.3 Sand chamber Fr.86 ~ Fr.98

NO.2 Sand chamber Fr.98 ~ Fr.110

NO.1 Sand chamber Fr.110~Fr.121

There are 6 watertight transverse bulkheads under the sand trough inclined plate, namely FR44, FR58, FR72, FR86, FR98, FR110, The pump room area is equipped with a double bottom, and the empty tanks below the sand trough slope are installed from the tail to the fore:

Name location Water pump room (left) Fr.22 ~ Fr.44

Sand suction pump room (right) Fr.22 ~ Fr.44 NO.6

Empty cabin (left and right) Fr.44 ~ Fr.58
