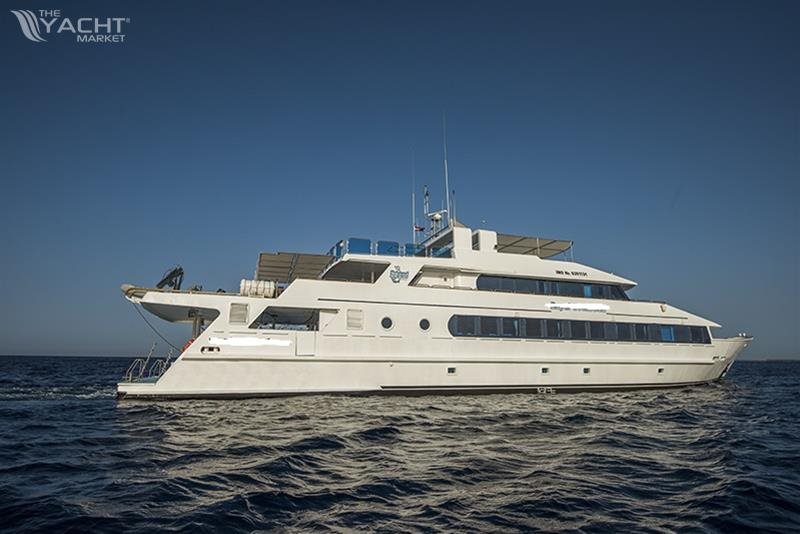

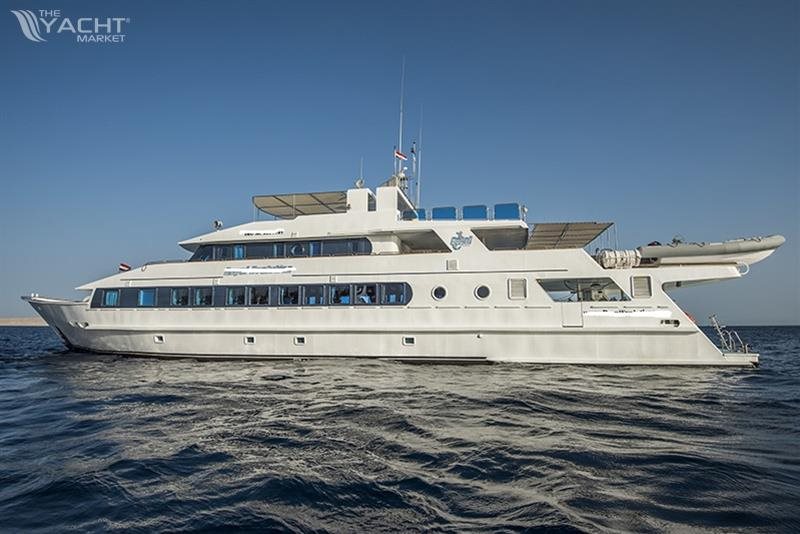

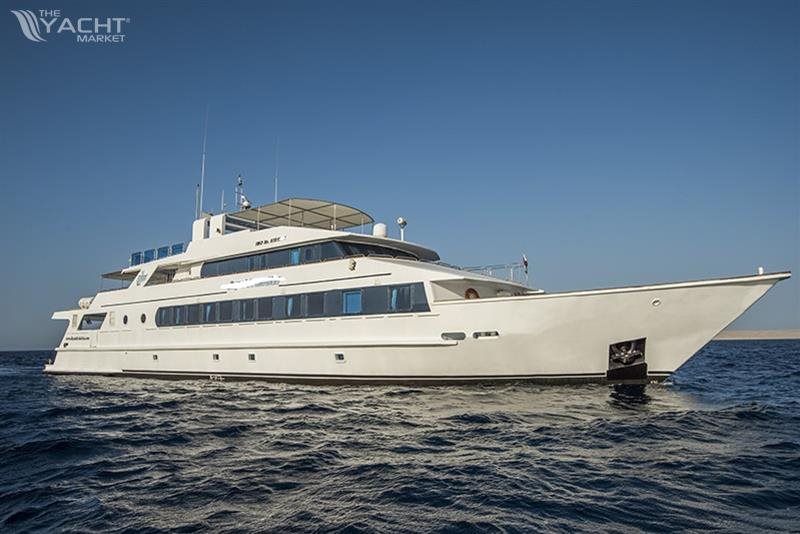

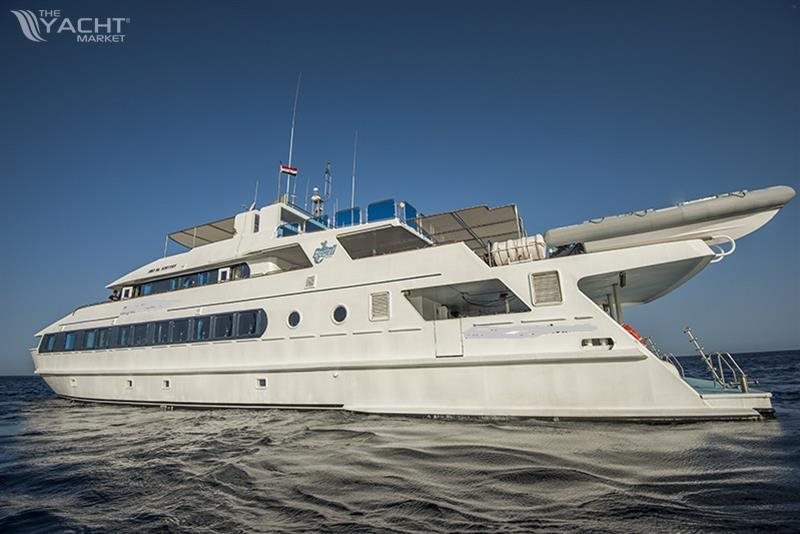

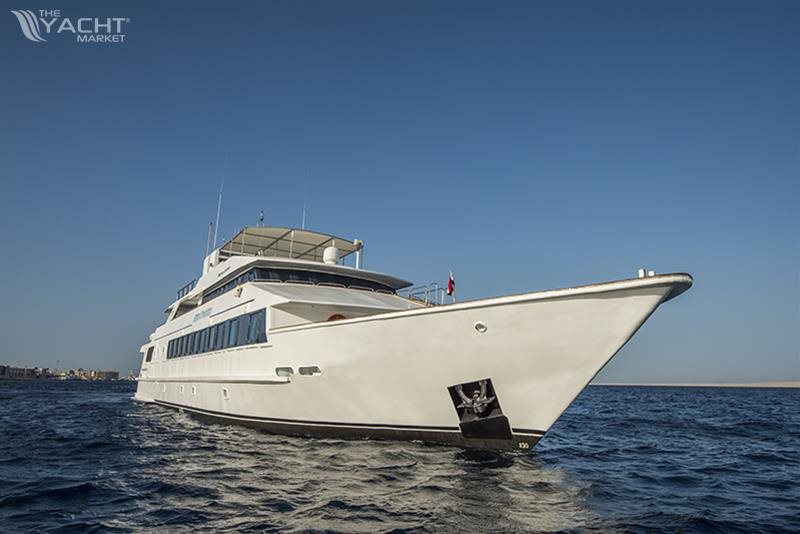

Sail the Red Sea on Suez Safari Dive Yacht, a 39m Luxury Passenger Ship. Built in 2006 and classed by Bureau Veritas, it offers 24 guests and 19 crew members comfort, style and adventure. Luxury cabins are equipped with twin beds (Two separate beds), desk & chair, Air Conditioning and bathroom with amenities. The spacious lounge has seating for 24 and a Bar with fridges. On the aft deck you will find Scuba & Nitrox filling stations plus an array of deck and mooring equipment. Powered by 2 Cummins KTA 38 - M1 engines with maximum rating of 1100hp and maximum speed of 11 knots. 2000 nautical mile range.



Make / Model: Suez Safari Dive Yacht

Vessel Type: Passenger Ship

Year: 2006

Designer: Customized

Construction: Marine Grade Steel (Hull & Superstructure)

Classification Society: Bureau Veritas - Full Survey (Hull, Machinery, Load Line, Intact & Damage stabilities, Ship security plan)

Hull: Steel

Keel: Full Keel

LOA: 39m

LWL: 35.60m

Beam on Waterline: 8.20m

Beam: 8.60m

Hull Depth: 3.60m

Hull Draught: 1.90m

Displacement: 280 tons

Gross Tonnage: 476 tons



Aft Dive Deck

Scuba & Nitrox filling stations Booster Pump

Trimix & O2 filling panel for Technical Diving Individual dive locker for 24 guests & 4 crew members with storage facilities for dive tanks and associated personnel equipment.

1 X Camera station ( 3 racks) for storage and maintenance of underwater photographic & video equipment

Equipped by two air guns for drying

4 X hand held showers on dive platform

2 X fresh water rinsing tank for washing dive gear

2 X Stainless Steel hanging racks for wetsuits

1 X hot & cold shower unit

1 X bathroom unit



Deck Covering

Aft Dive Deck and Diving platform

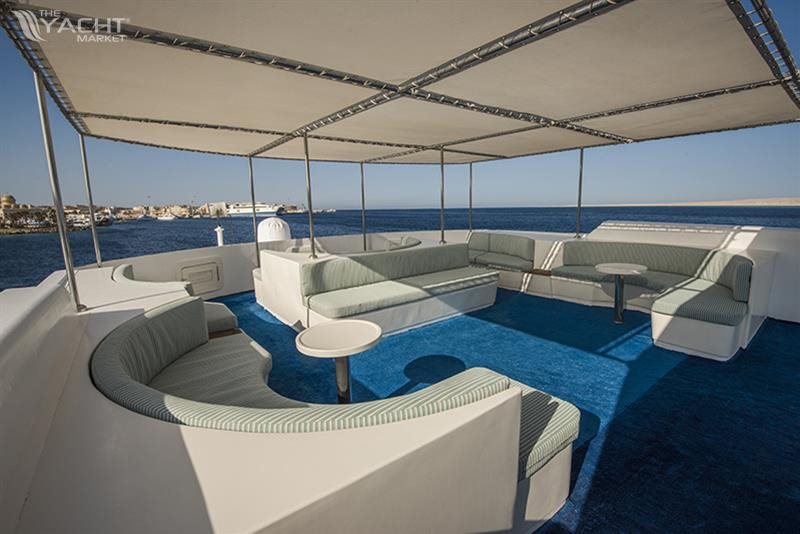

Out Door sheet Shaded Sundeck and side decks

Out Door carpet Open Sundeck – Out Door carpet



Engines: 2 X CUMMINS KTA 38 – M1 Maximum rating 1100hp@1800 rpm +/- 2% Heavy Duty Operation Gearbox: Twin Disc MG 6619 A Ratio 2.54:1

Propulsion: TEIGNBRIDGE

Propellers Ltd. 2 X 5 Bladed

Propellers Diameter 110 mm

Auxiliary 2 X Doosan 120Kw@1500rpm 3 ph. 220/380V 50Hz, 86Kw@1500rpm 3 22 ph. 0/380V 50H Maximum Speed: 11 Knots @ 1800 rpm

Cruising Speed (Continuous): 9 Knots @ 1600 rpm

Range: 2000 Nautical Miles (At cruising speed using 90% of total tankage and including auxiliary ).



Comprehensive Fire & Smoke detector CO2 Flooding system with nozzles for all machinery

2 X Fresh water desalinations unit – 10.000 liters/day each

3 X Coltri sub compressor – 265 liters/minute each connected to separate extra air filters

1 X Coltri sub LP compressor with Nitrox membrane – 500 liters/minute up to 40% O2

1 X Dive mix LP compressor with Nitrox membrane - 500 liters/minute up to 40% O2

2 X NRC LP compressors with Nitrox membrane - 500 Liters/minute up to 32% O2

1 X Hot water boiler – 100 liters each

1 X Sewage treatment plant for Black & Grey water

2 X Fresh water pumps with two hydrofoil 300 liters each

2 X Salt water pumps for WC with hydrofoil

1 X General service pump

2 X Fire pumps

3 X Bilge pumps

2 X Fuel transfer pumps

1 X Bilge oil water separator Main switchboard Electro/Hydraulic rudder Work table and vice



Diesel Fuel 2 X 9 500 liters 2 X 7 500 liters 2 X 6 500 liters

Fresh Water (S.Steel) 2 X 7 000 liters 2 X 4 000 liters

Black & Grey water 2 X 5 500 liters

Lube Oil 1 X 400 liters

Ballast (Fresh Water) 2 X 7 000 liters



Crew

24 Persons

19 Persons

Laundry

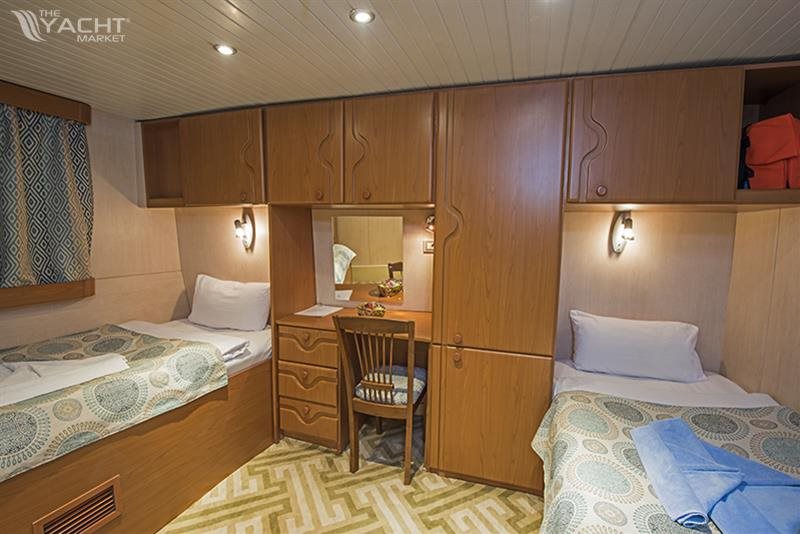

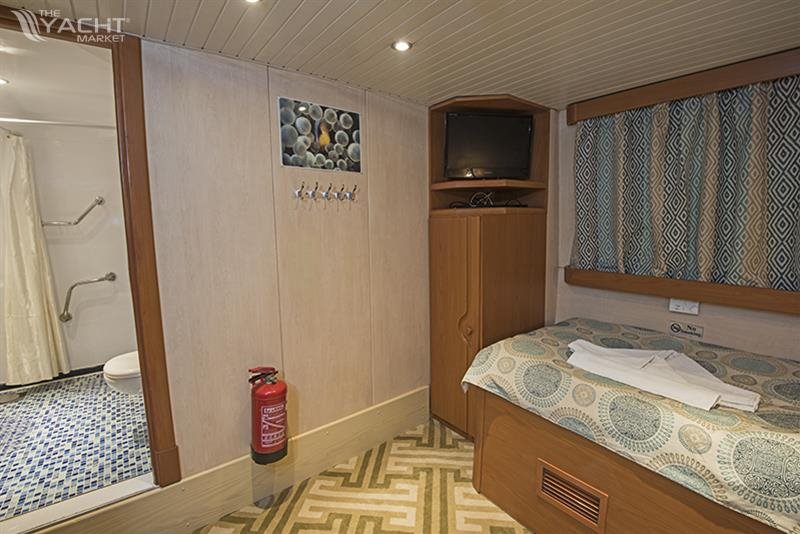

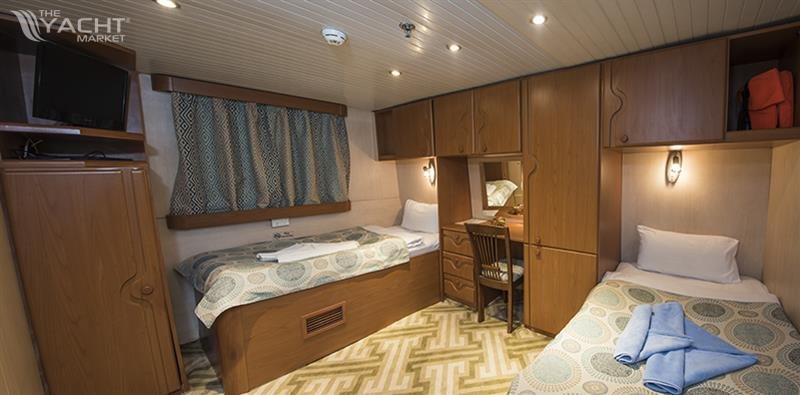

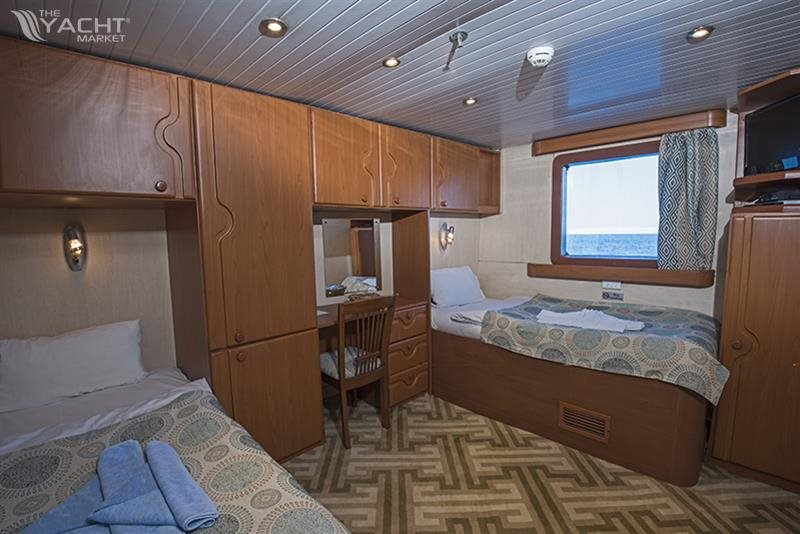

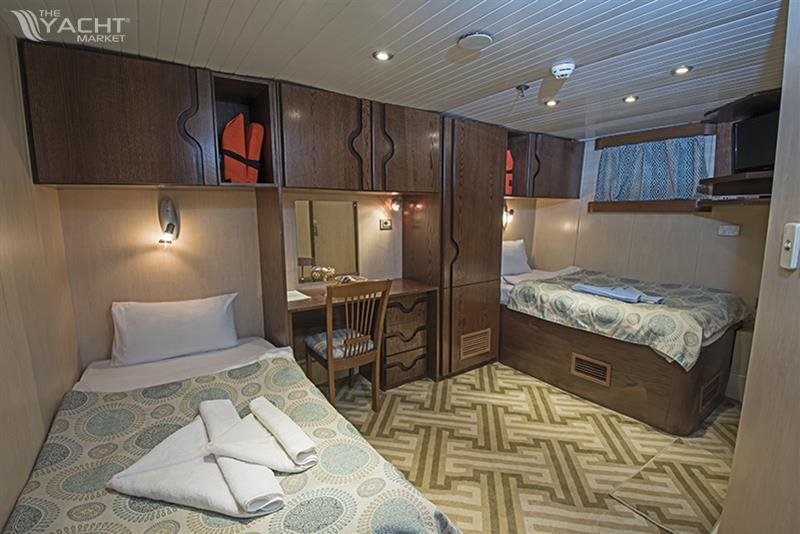

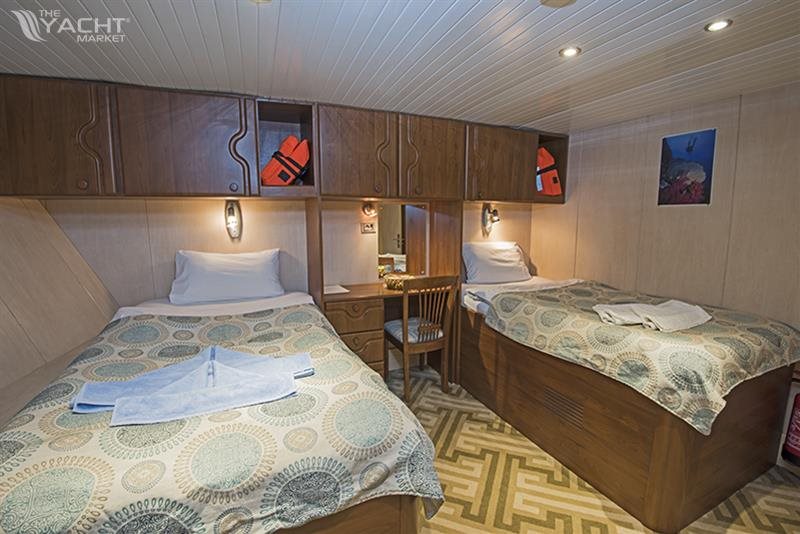

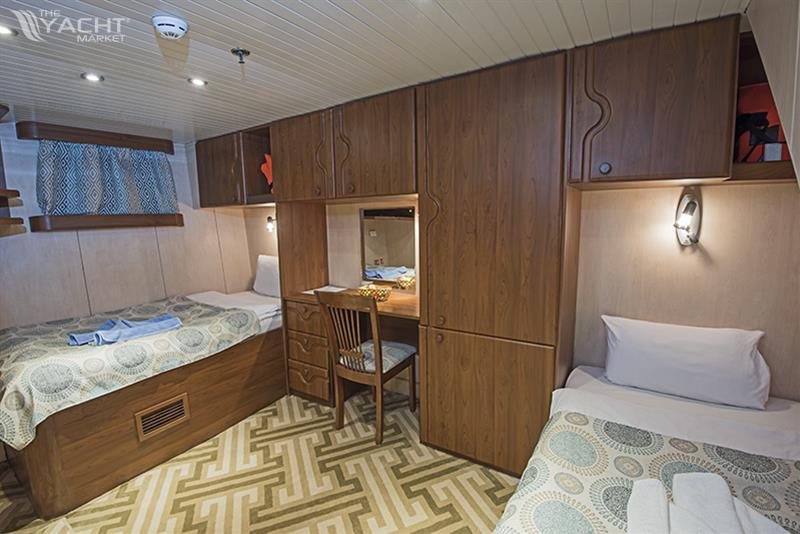

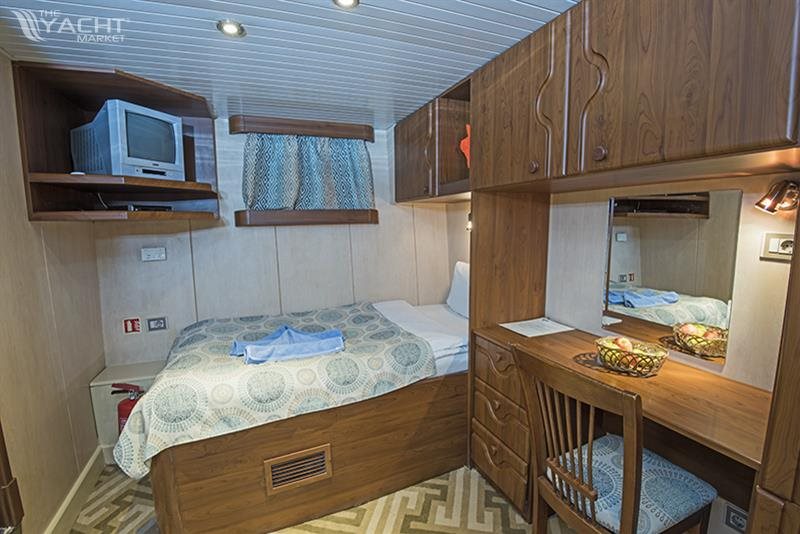

8 double/twin cabins containing:

(3.6m X 4m = 14.40m2 including ensuite)

Twin beds (Two separate beds)

1 X desk & chair

2 X locker & drawer unit

Bar fridge

Fully Air Conditioning with individual thermostat control

1 X 34cm TV & DVD player entertainment system in each cabin

Marine Satellite receiver •Sound system with volume control

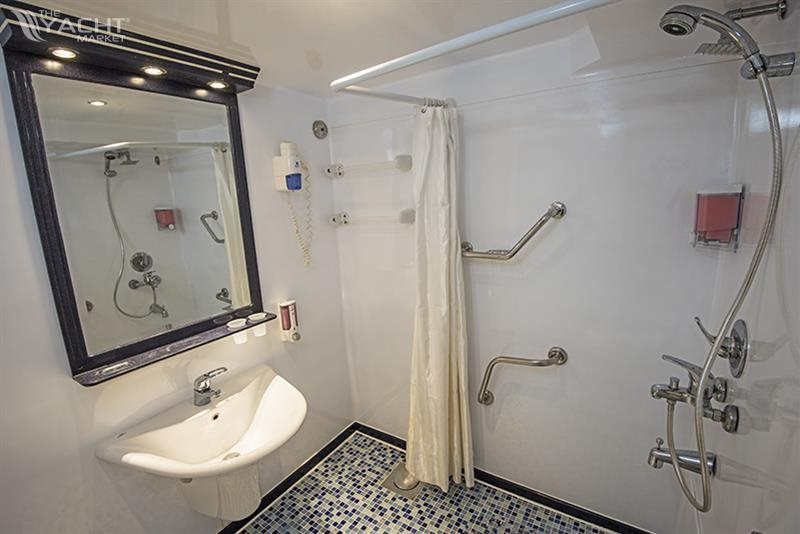

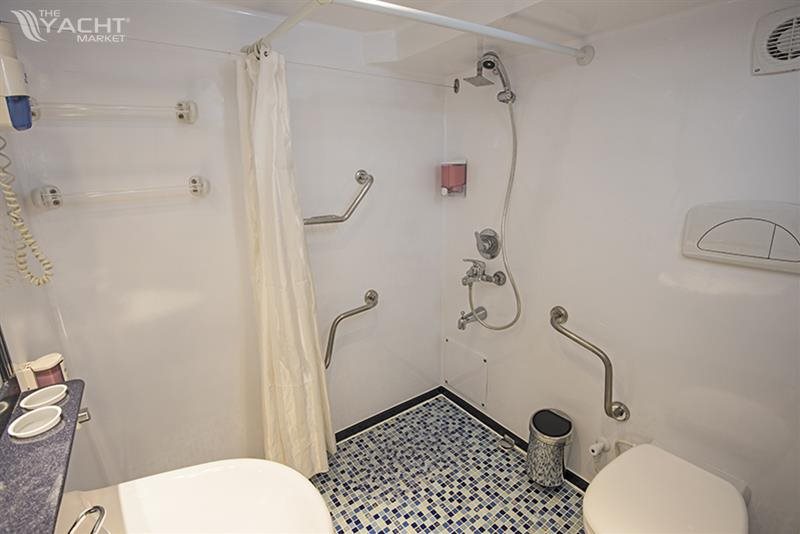

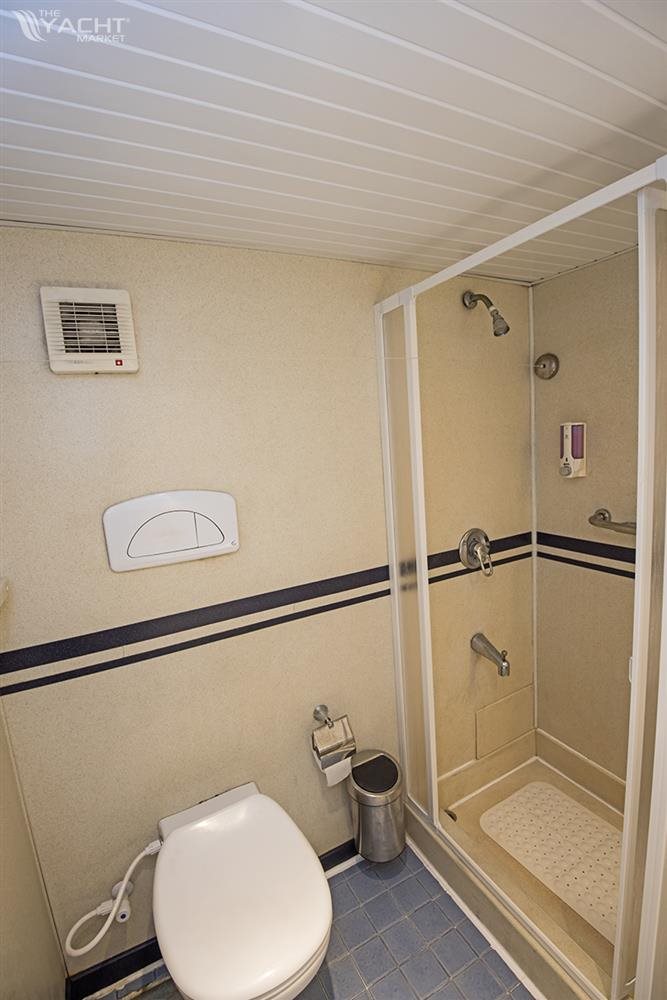

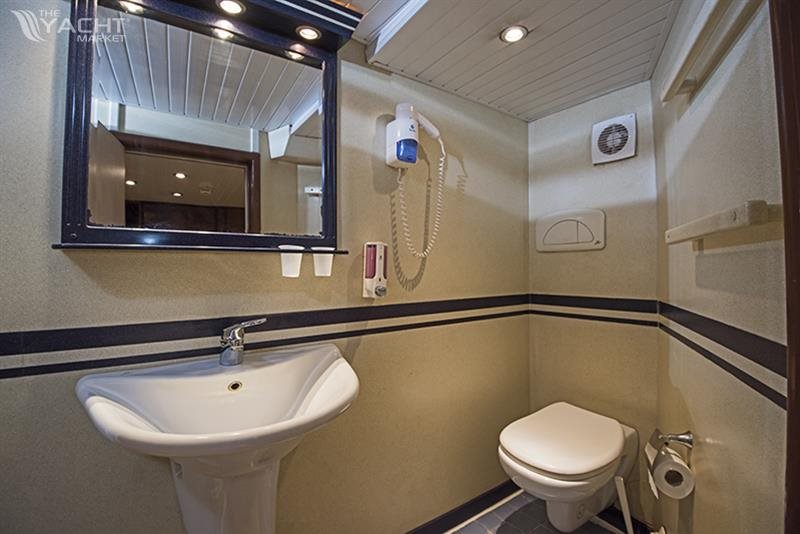

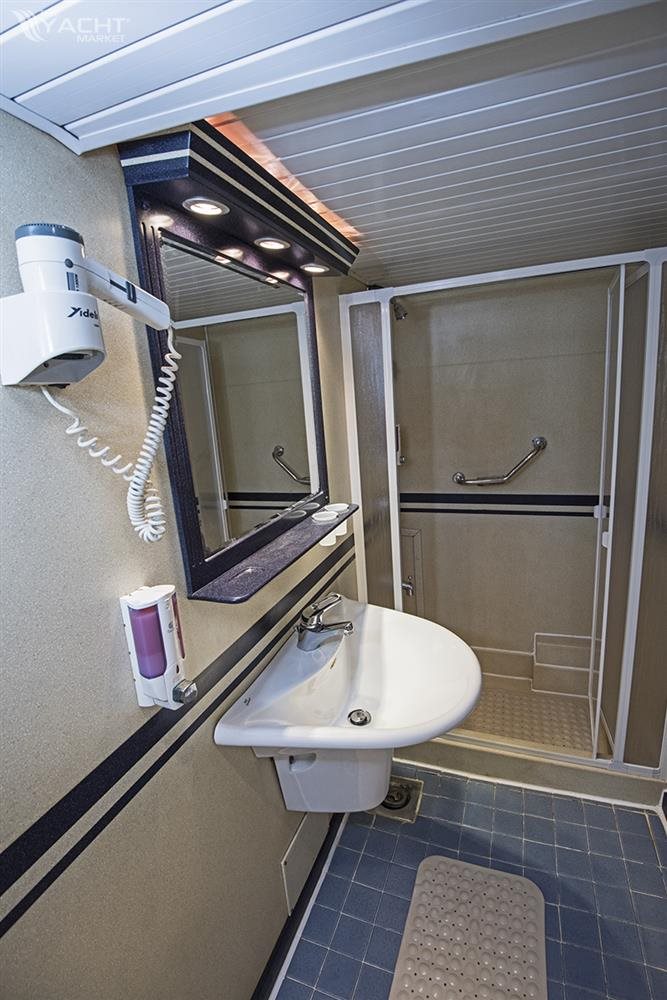

1 X Shower/Toilet unit ensuite per cabin with complete amenities

Hair dryer & 220V power supply facilities

Safety Box

Smoking detector alarm

Automatic Sprinkler anti-fireflood

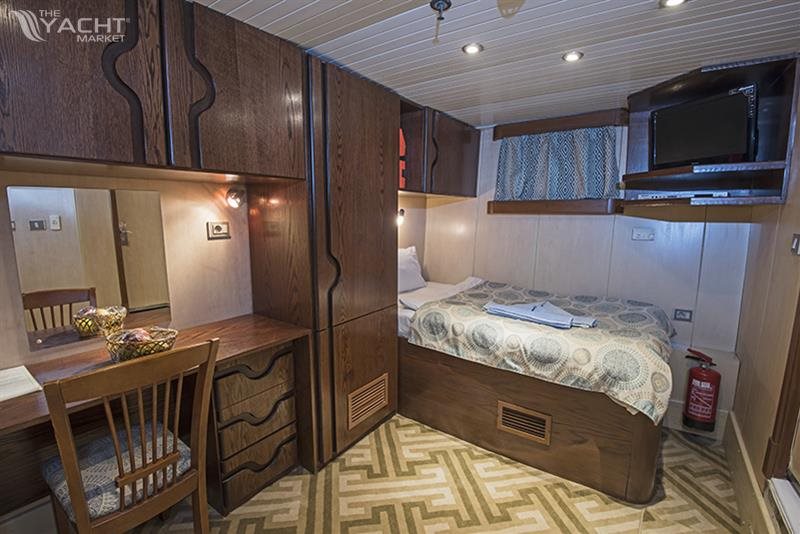

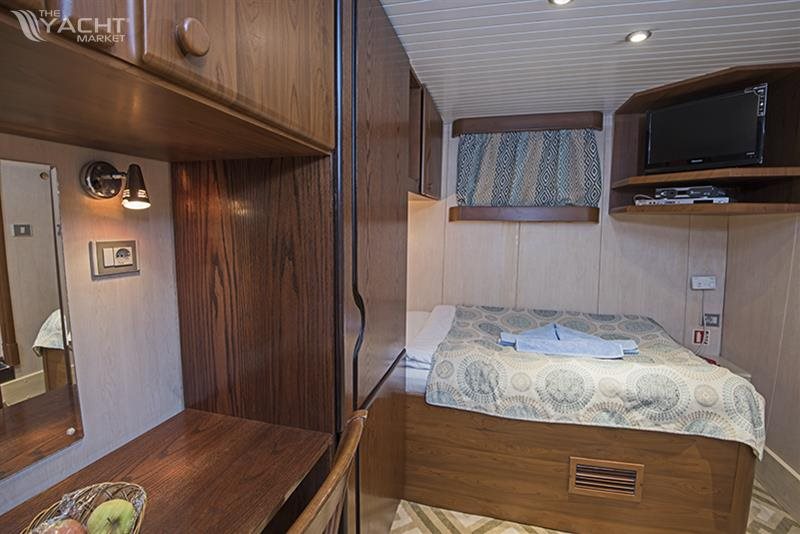

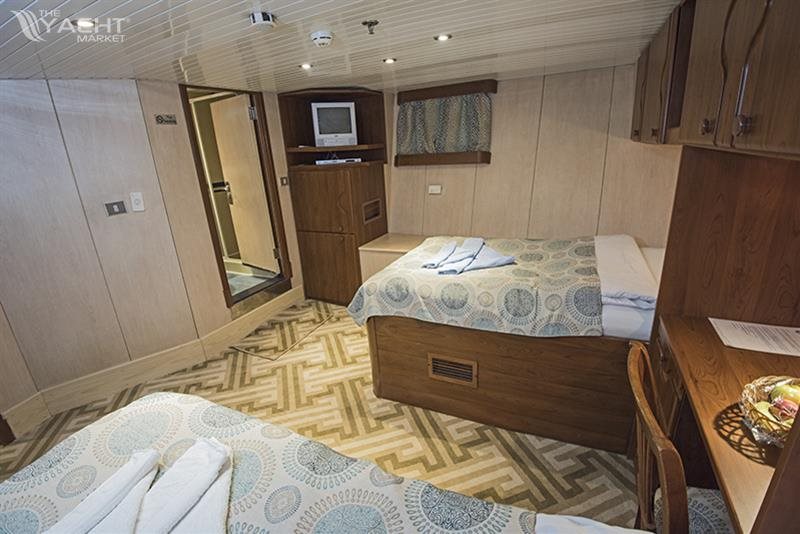

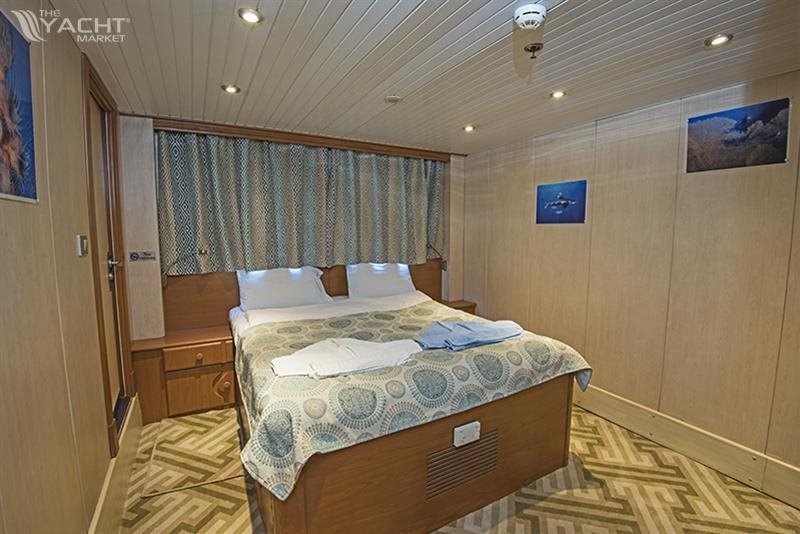

4 double/twin suites containing:

(Two cabins of them are disabled friendly) (3.80m X 4.20m = 15.96m2 including ensuite)

1 X Queen size bed

1 X desk & chair

2 X locker & drawer unit

Bar fridge

Fully Air Conditioning with individual thermostat control

1 X 34cm TV & Video player entertainment system in each cabin

Marine Satellite receiver •Sound system with volume control

1 X Shower/Toilet unit ensuite per cabin with complete amenities, hair dryer & 220V power supply facilities

Safety Box



1 X SGL Captain cabin

1 X SGL First Mate cabin

1 X SGL Senior crew cabin

1 X DBL Dive Guides cabin

1 X DBL Engineer cabin

1 X DBL Senior crew cabin

1 X 8 Bunks beds All crewmembers cabins have Air Conditioning

Shared by two bathrooms & have their own Lounge equipped with TV/VCR & Dining area.

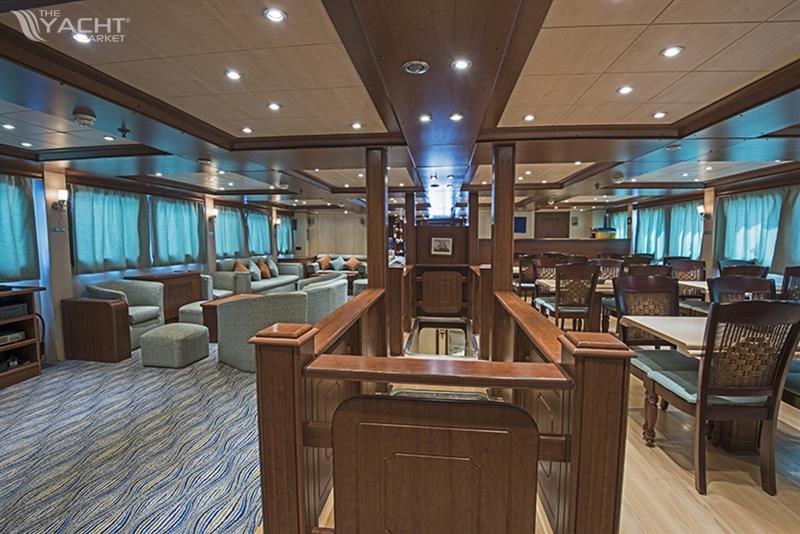

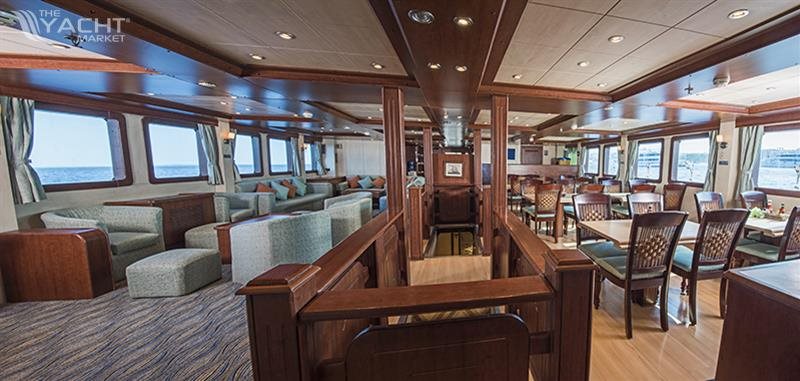

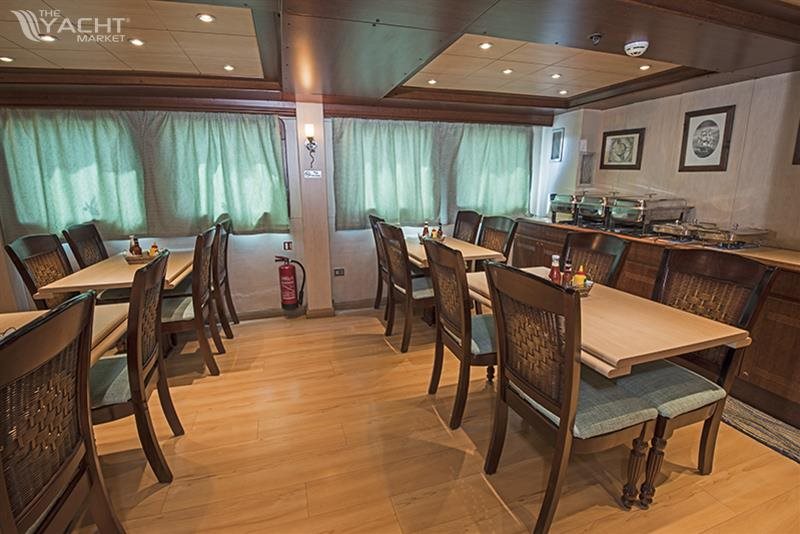

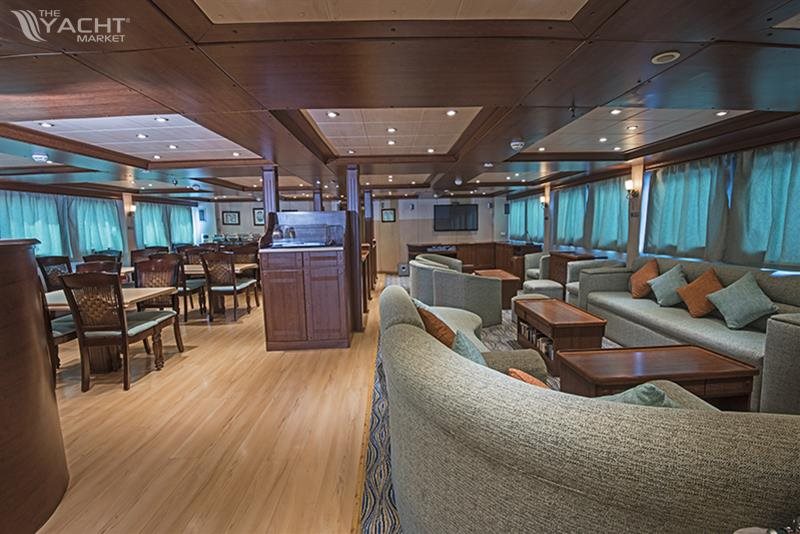

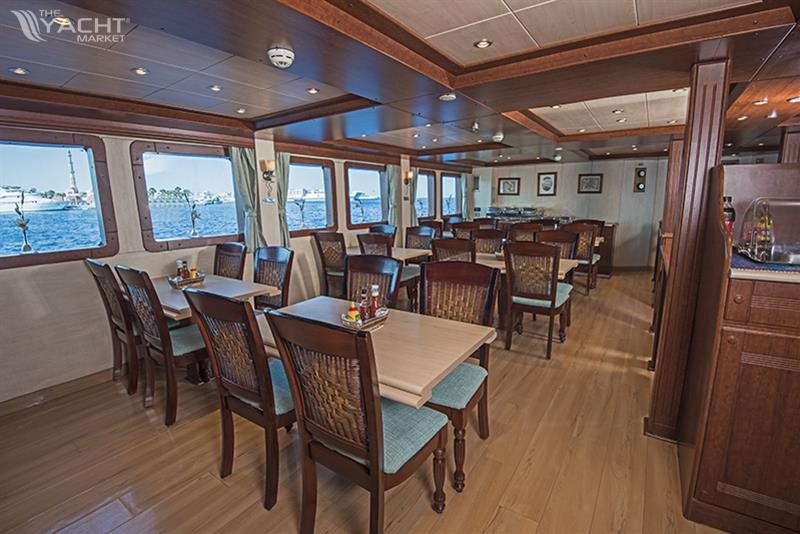

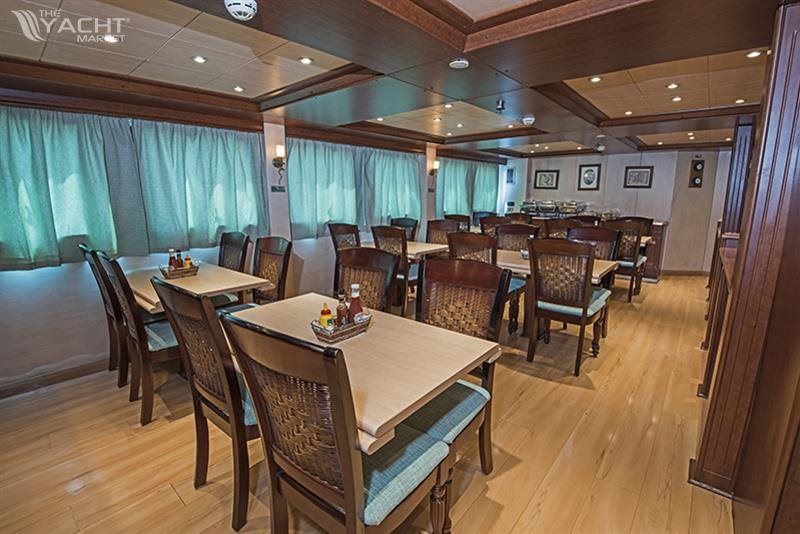

Dining Facilities

Dining area with tables and chairs for 24 guests Fully Air Conditioning Smoking detector alarm Automatic Sprinkler anti-fireflood

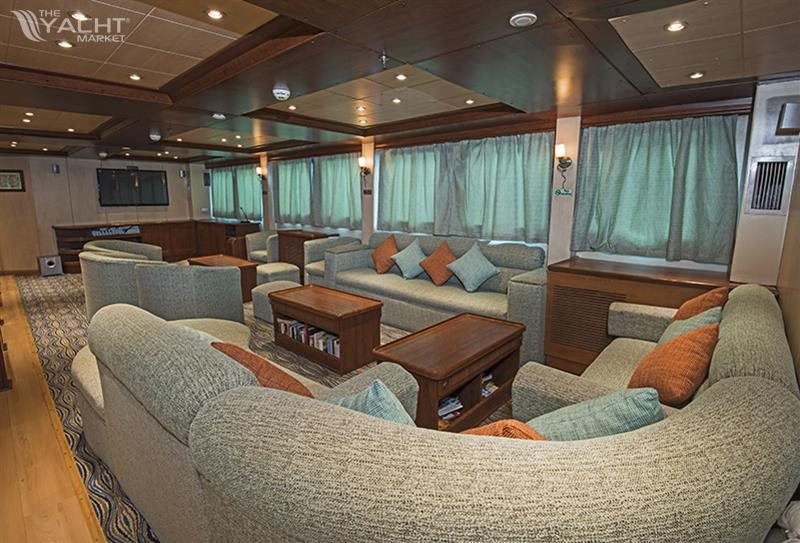

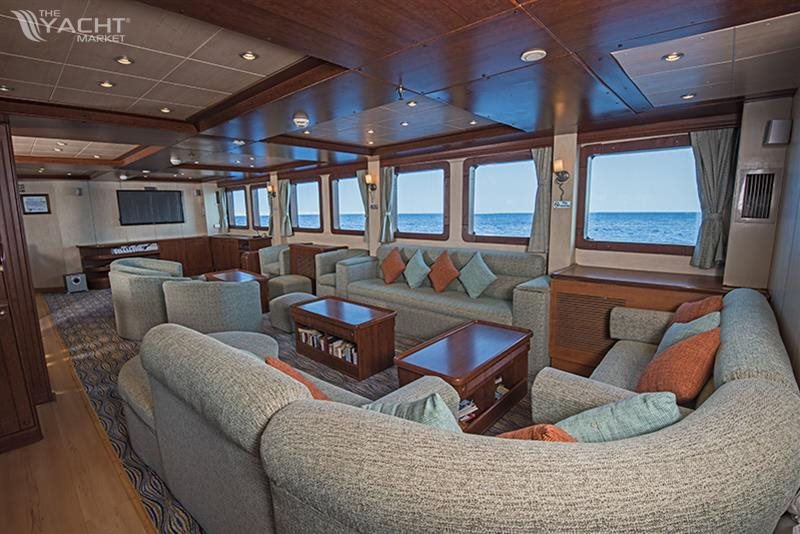

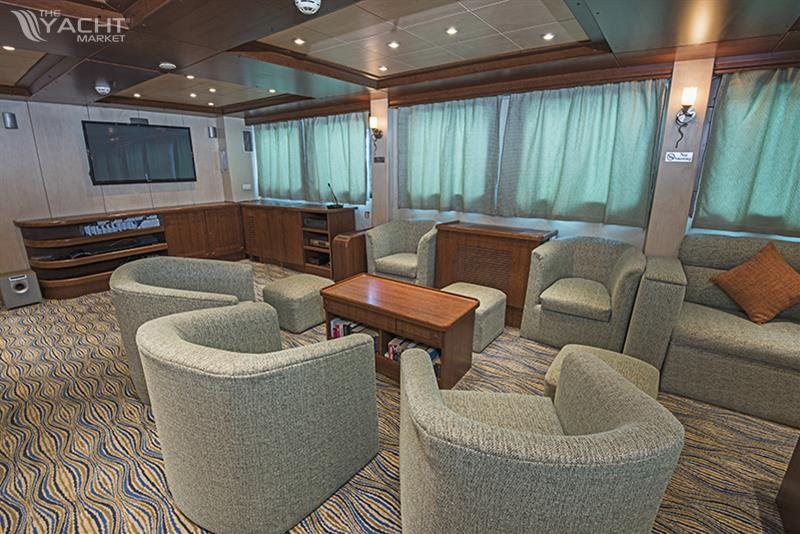

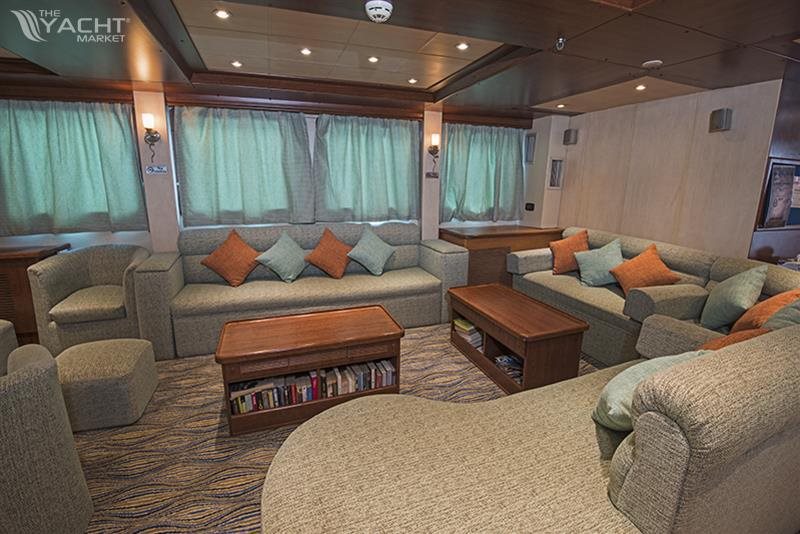

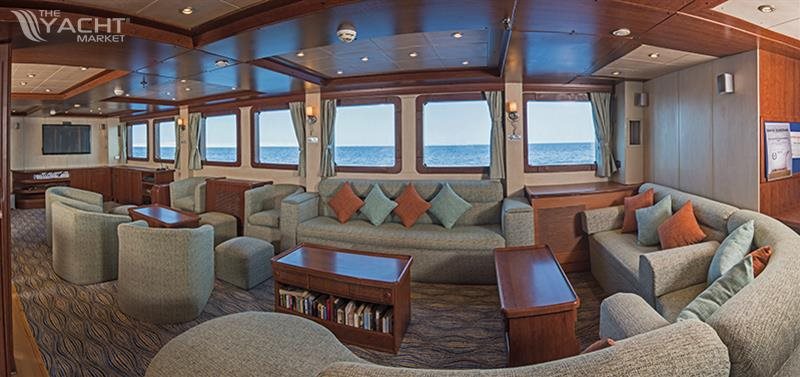

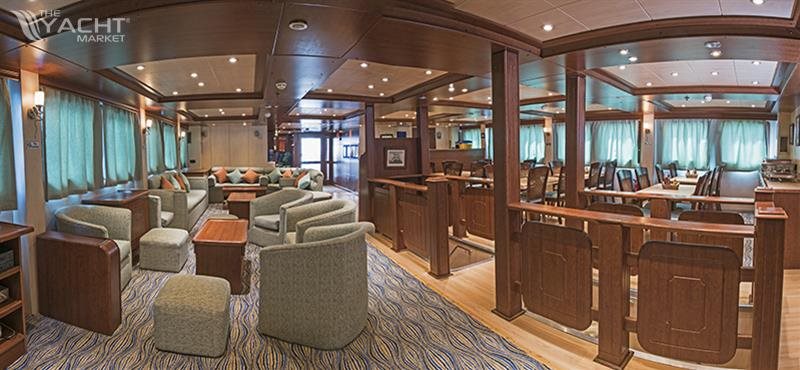

Lounge Facilities

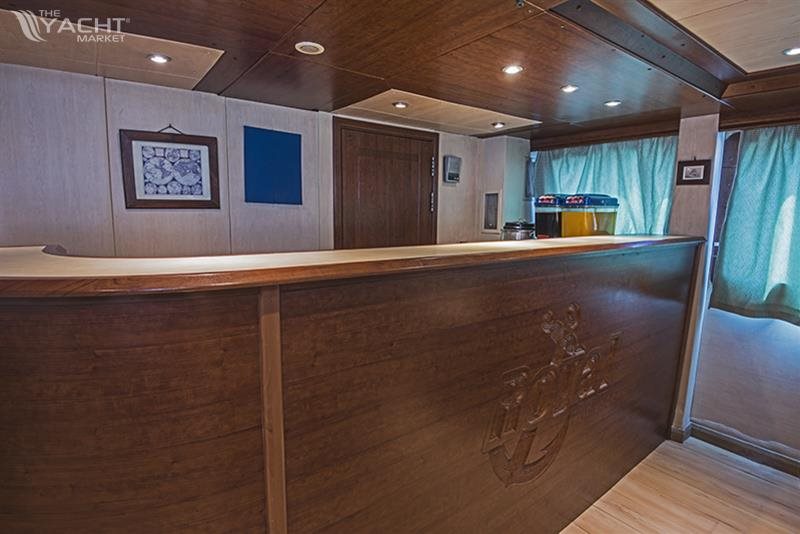

Lounge seating for 24 guests Bar with fridges Fully Air Conditioning Coffee tables Light table for slides Sound system (CD player & Tape player) for public areas 1 X 130cm Plasma TV and DVD/VCR connected with home theatre audio system DVD & CD library Sea-Tel Marine Satellite receiver Books & Magazines library Slide projector with screen Smoking detector alarm Automatic Sprinkler anti-fireflood

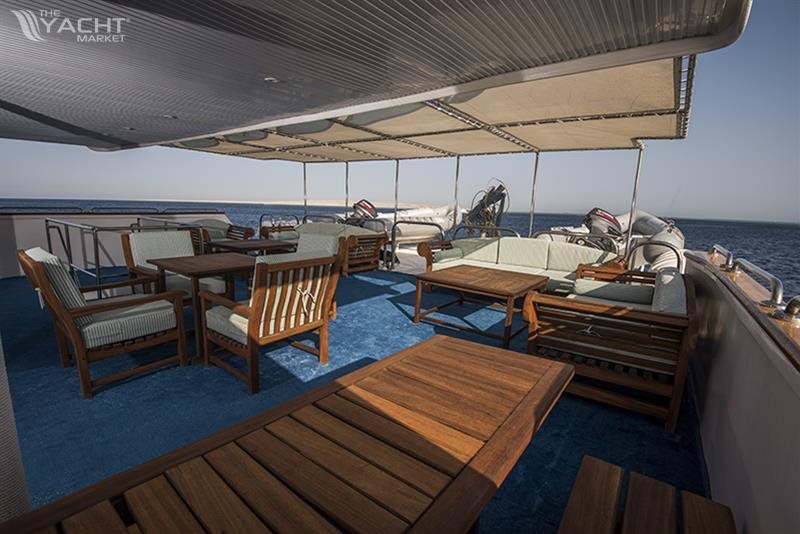

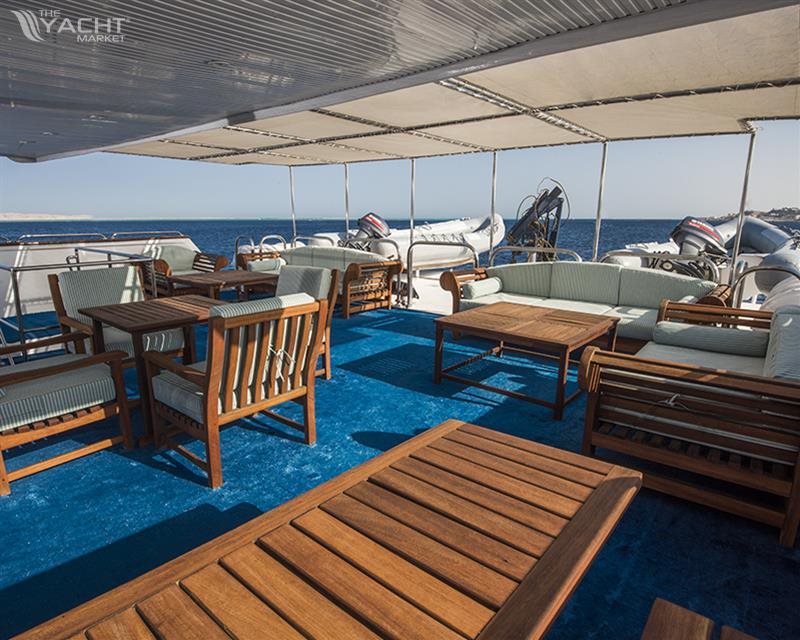

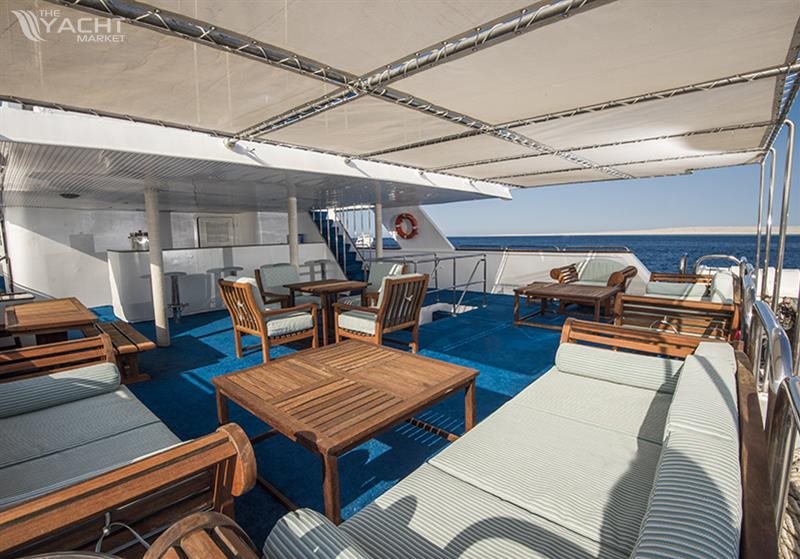

Outdoor Accommodation

6 X Teak wood sun lounges

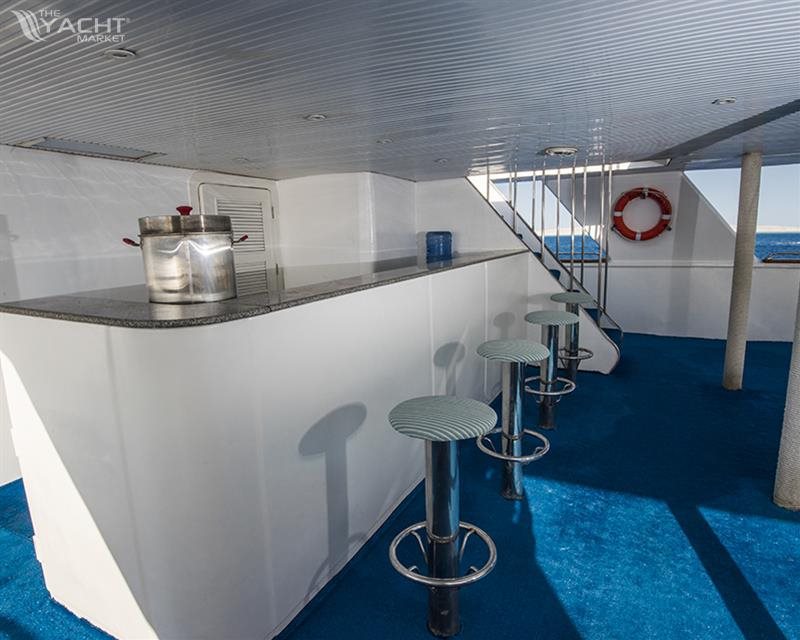

8 X Teak wood outdoor tables Outdoor Teak door sofa & chairs Bar with fridges & four bar chairs Spa / Jacuzzi Outdoor music speaker



Galley Equipment (Commercial)

Refrigerators Cool room/freezer for 14 days trip

Pantry for 14 days trip

Microwave Commercial Stove/oven/grill Urn

Commercial quality dbl sink

Commercial deep fryer

Commercial mixer

Exhaust extraction Hood

Outdoor Stainless steel BBQ



Smoking detector alarm

Automatic Sprinkler anti-fireflood



Individual charging 110/220V & storing locker for cameras & torches for 24 guests



1 X Hydraulic Anchor Windlass

2 X Hydraulic Rope winches (Stern & Aft)

1 X Hydraulic winches for tenders

2 X Avon rib tenders 5.7m

1 X Avon rib tender 4.2m

2 X 55hp Yamaha outboard

1 X 25hp Yamaha outboard



2 X 25persons SOLAS approved life rafts - Class A

8 X SOLAS life buoys

46 X SOLAS approved life jackets with indicator light Flares

Rockets

Handy Flares 2 SART (Radar transponder)

AIS (Automatic Identification Security)

SSAS (Ship Security Alarm System) Ship Security Plan

Fire alarm & fire protection

Bilge alarm 25

Fire extinguishers – 6 Kgm

Automatic Sprinkler anti-fireflood in all indoors area

Oxygen with demand valve

First aid kit Co2 ant fireflood system for engine room

Fire Blankets



1 X 62 nautical miles radar

1 X GPS / Plotter

1 X DGPS

1 X Autopilot

1 X Echo Sounder

1 X Electronic Compass

1 X Navtex

1 X Searchlight

Fire Alarm main switchboard

Sound system station

Chart table

Drawer units Binoculars



GMDSS for Coastal Operation including Area 1 & Area 2

Satellite Telephone HF/Single Side Band

VHF with DSC V HF 3 GMDSS

Marine portables VHF for tenders
