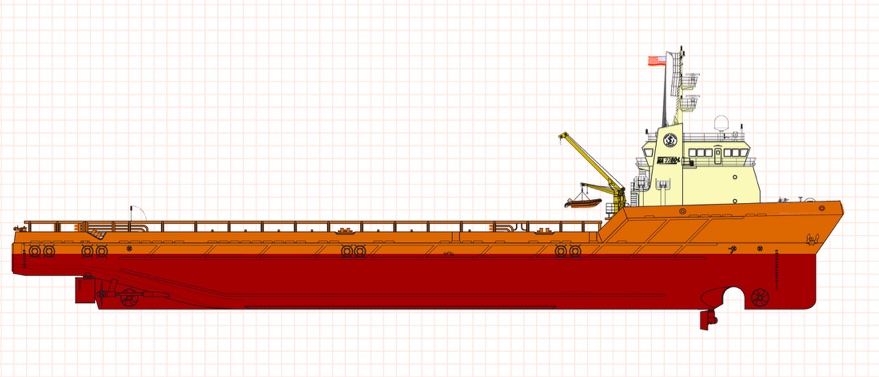

300ft OSV from SeaBoats

300ft OSV

Listing ID - 3431
Description	300ft OSV
Date Launched	2003
Length	91.44m (300ft)
Beam	18.29m (60ft)
Draft	7.32m (24 ft)
Location	USA
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
View As PDF

Hull: 219

Vessel Type: Methanol Carrier Vessel

Vessel Type: PSV - Platform Supply Vessel

Vessel Class: OSV - Offshore Supply Vessel

Year Built: 2003

Shipyard: North American Fabricators

LOA: 91.44m (300ft)

Beam: 18.29m (60ft)

Draft: 7.32m (24 ft)

Draft (Lightship): 7.76 ft. (2.37 m)

Draft (Loadline): 19 ft 1.313 in. (5.82 m)

Freeboard (Loadline): 4 ft. 10.625 in. (1.49 m)

Freeboard (Lightship): 16 ft. 2.813 in. (4.95 m)

Clear Deck: 223 ft x 50 ft 7 in (67.97 m x 15.42 m)

Cargo Deck Area: 11,280 sq. ft. (1,047.95 sq. m)

Deadweight Tonnage: 4,791.88 LT (4,868.78 MT)

CLASSIFICATION

ABS: Maltese Cross A1 (Hull)

ABS: Maltese Cross AMS (Machinery)

ABS: Loadline

ABS: DPS-2

USCG: Subchapter L (OSV)

SOLAS; 2000

MARPOL: 2001

CAPACITIES

Fuel Oil; 295,937 gals. (1,120.24 cu. m)

Ballast: 321,265.2 gals. (1,216.12 cu. m)

Potable Water: 32,998 gals. (124.91 cu. m)

Dry Bulk: 11,440 cu. ft. @ 80 psi (323.94 cu. m @ 5.5 bars)

Liquid Mud: 15,644 barrels (2,487.2 cu. m)

Methanol: 1,836 barrels (291.9 cu. m)

SPECIAL FEATURES

Tuggers: Two (2) x 4 Tons

Ship Motion: 2x Passive Type Anti-Roll Tanks

Ship Motion; Bilge Keels

Positioning: DP 2

Deck Crane: One (1) x 3,100 lbs. capacity

MACHINERY

Main Engines: 2x CAT 3608 Diesels

Total Propulsion HP: 6,600 HP

Bow Thrusters: One (1) 1,100 HP Swing Up

Stern Thrusters: One (1) 1,300 HP Tunnel

Speed: 12 knots

Generators: Two (2) x 910 kW, One (1) x 190 kW emergency

LIFE SAVING EQUIPMENT

Life Rafts: Two (2) x 25-Man Inflatable Life Rafts

Life Rafts: Two (2) x 20-Man Inflatable Life Rafts

Life Rafts: Two (2) x 10-Man Inflatable Life Rafts

Rescue Boat/Craft: FAST RSQ 450A 6-person Rescue Boat SOLAS and USCG approved

Other gear as required by authorities

FLOW-BACK / CHEMICAL

500bbl Approvals: 12 x 500bbl TANKS (6,000 BARRELS) ON VESSEL DECK - (8) tanks are capable of carrying hazardous material (8x500bbl = 4,000 barrels), All 12 tanks are capable of carrying pollution material. Flow-Back carriage requires USCG approvals of chemicals prior to carriage.

ELECTRONICS

Furuno 2115 Radar System

Furuno FE-700 Depth Sounder

Furuno NX-500 Navtex Receiver

Furuno DGPS Navigation System

Furuno RC1515 GMDSS

Felcom 12 Inmarsat-C

DSC AA50 Watch Receiver

DSC Encoder/Decoder Terminal

EPIRB ACR 406 Electronics

SART ACR Electronics

Sea Tel Satellite Telephone

Furuno DSC 60 Receiver

Furuno FM 8500 VHF Radios

AD-100 Gyro Converter

FS 1562/15 SSB (Single Sideband Radio)

RadaScan Guidance Navigation

ACCOMMODATIONS: 29

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
