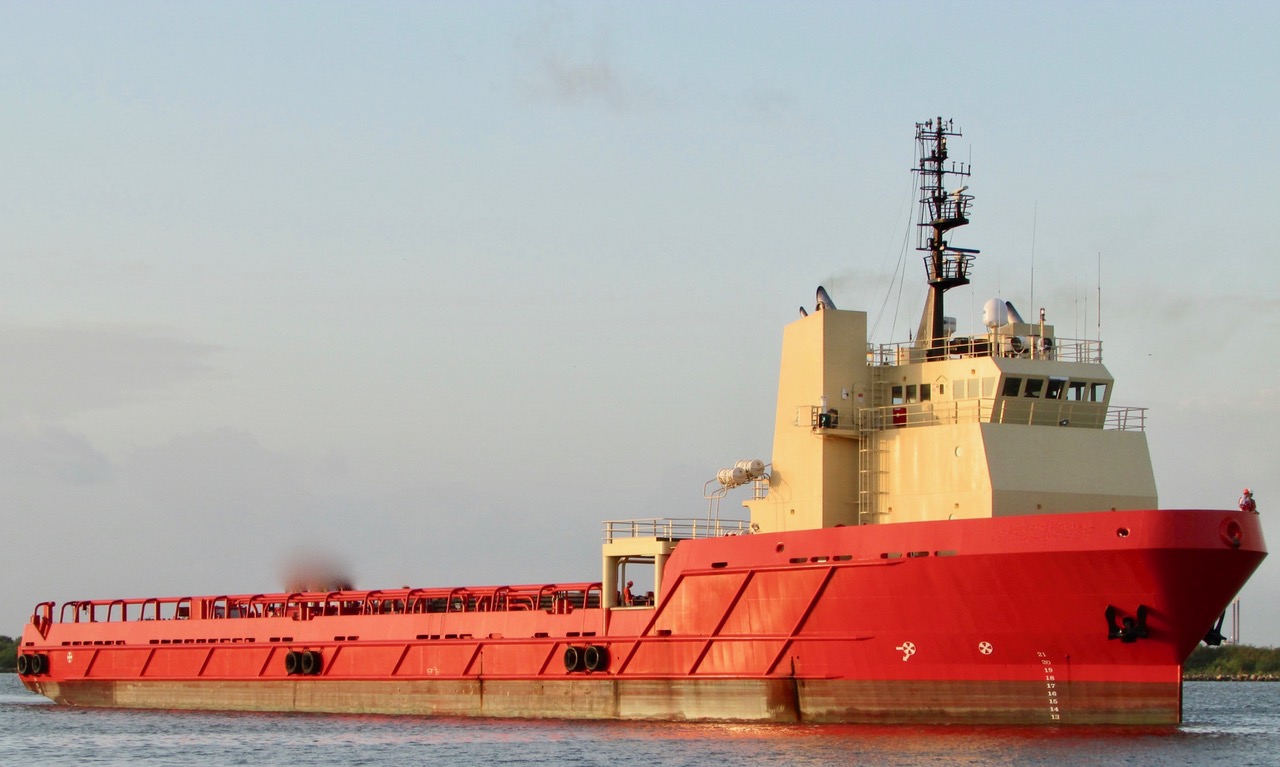

300ft Offshore Vessel

Listing ID - 1279
Description	300ft OSV
Date Launched	2003
Length	91.44m (300ft)
Beam	18.29m (60ft)
Draft	7.32m (24ft)
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
View As PDF

Hull: 218

Vessel Type: Platform Supply Vessel

Year Built: 2003

Shipyard: North American Fabricators

DIMENSIONS

Loa: 91.44m

Beam: 18.29m

Draft: 7.32m

Draft (Lightship): 7 ft. 6 in. (2.29 m)

Draft (Loadline): 19 ft. 6 in. (5.87 m)

Clear Deck: 223 ft. x 50 ft. 7 in. (67.97 m x 15.42 m)

Cargo Deck Area: 11,280 sq. ft. (1,047.95 sq. m)

Deck Strength: 1,200 lb/sq. ft. (5,615.88 kg/sq. m)

Deadweight Tonnage: 5,004.71 LT (5,084.79 MT)

CAPACITIES

Fuel Oil: 272,983 gals. (1033.35 cu. m)

Ballast: 321,265.2 gals. (1216.12 cu. m)

Potable Water: 32,998 gals. (124.9 cu. m)

Dry Bulk: 11,440 cu. ft. @ 80 psi (323.94 cu. m @ 5.5 bars)

Liquid Mud (Dedicated); 3,294.2 barrels (523.74 cu. m)

Liquid Mud/Recovered Oil: 12,349.2 barrels (1,963.4 cu. m)

Service Tanks: Eleven (11) x 13,481.4 gallons (51.03 cu. m)

Methanol: 1,836.2 barrels (292 cu.m)

MACHINERY

Main Engines: Two (2) 3608 CAT Diesels, 6,600 BHP

Bow Thrusters: One (1) 1,100 HP Swing Up

Bow Thrusters: One (1) 1,300 HP Tunnel

Stern Thrusters: One (1) 1,300 HP Tunnel

Speed: 12 knots

Generators: Two (2) x 910 kW, One (1) x 190 kW emergency

SPECIAL FEATURES

Ship Motion: Two (2) Passive Type Anti-Roll Tanks

Ship Motion: Bilge Keels

Positioning: DP 2

Deck Crane: One (1) x 3,100 lbs. capacity

LIFE SAVING EQUIPMENT

Life Rafts: Two (2) x 25-Man Inflatable Life Rafts

Life Rafts: Two (2) x 10-Man Inflatable Life Rafts

Life Rafts: Two (2) x 20-Man Inflatable Life Rafts

Rescue Boat/Craft: One (1) x Sea Force 490 SOLAS O/B Rescue Boat

Other gear as required by authorities

CLASSIFICATION

ABS: Maltese Cross A1 (Hull)

ABS: Maltese Cross AMS (Machinery)

ABS: Loadline

ABS: Subchapter L (OSV)

ABS: Maltese Cross DPS-2

ABS: Oil Recovery Capability Class 1

SOLAS: SOLAS 2000

MARPOL: 2001

ACCOMMODATIONS: 29

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
