  1. Seaboats Main
  2. Commercial Vessels
  3. Cargo
  4. Landing Craft

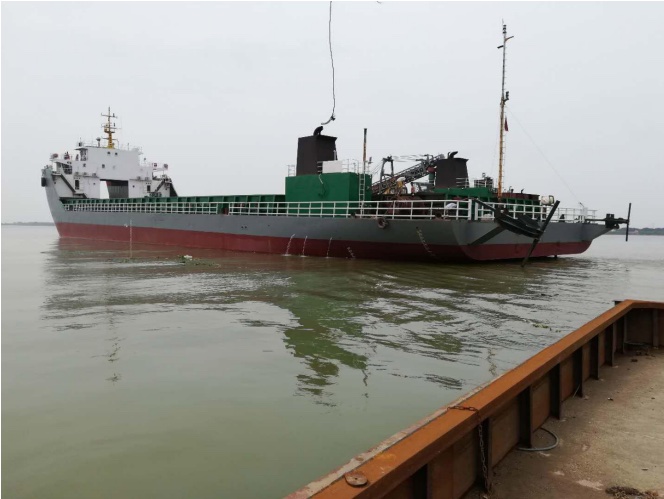

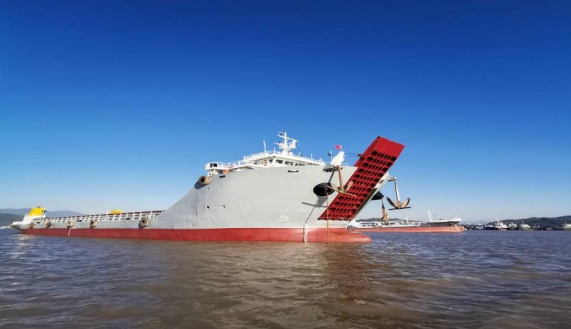

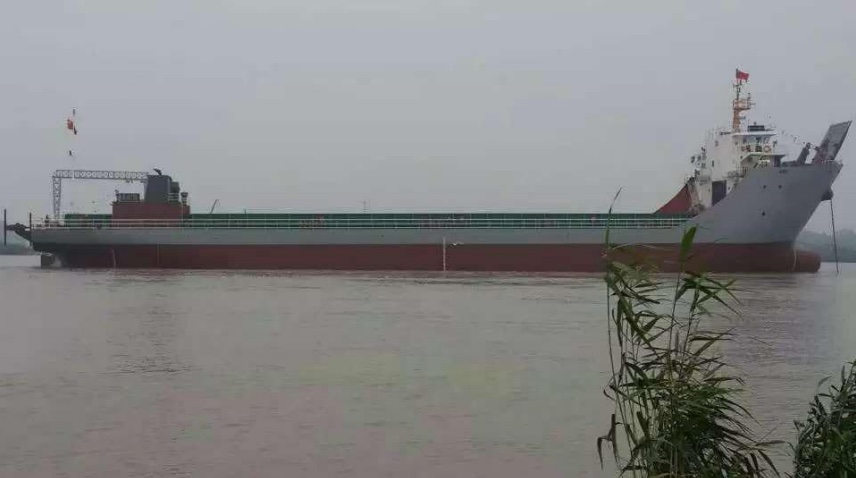

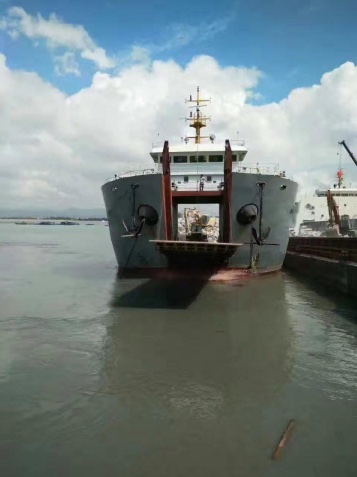

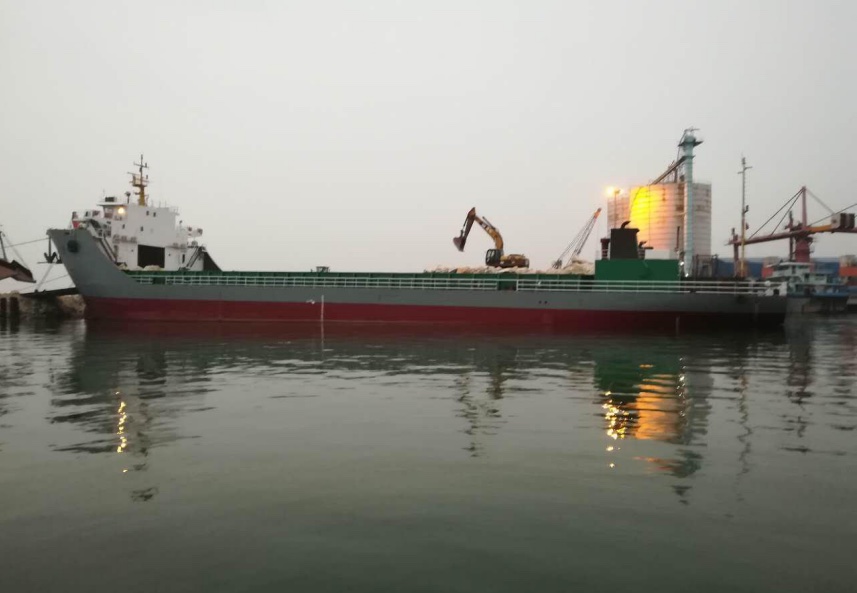

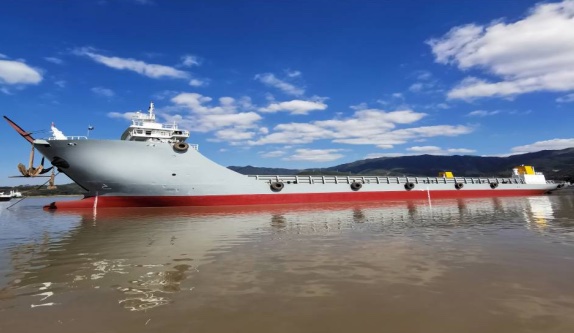

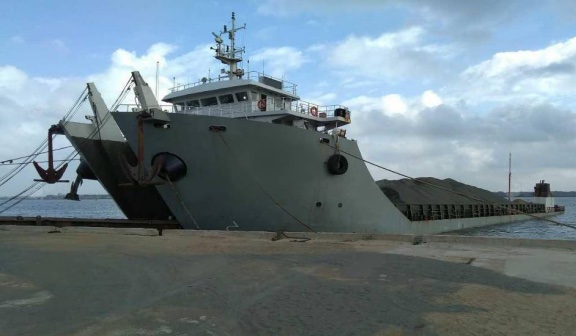

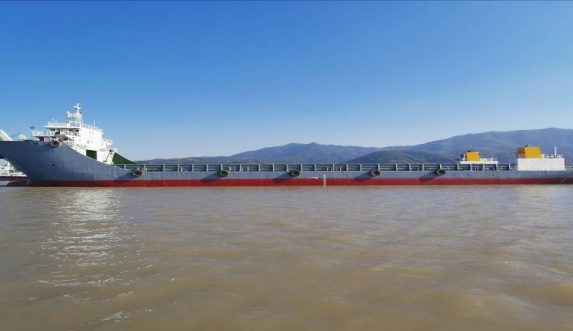

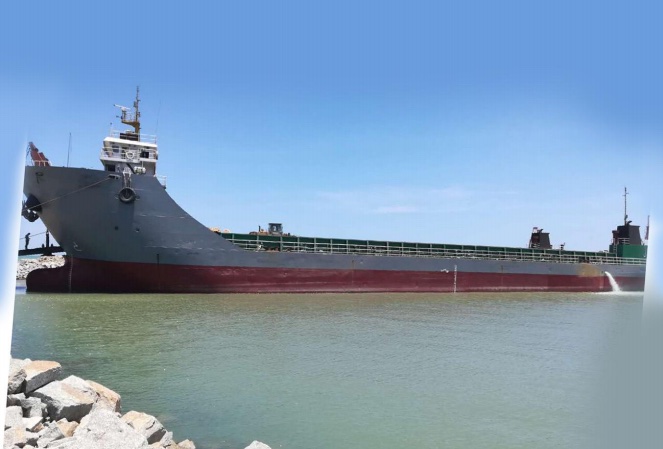

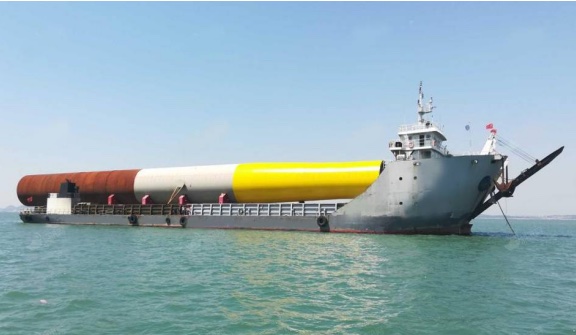

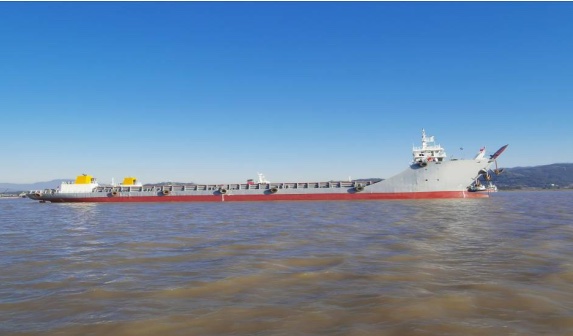

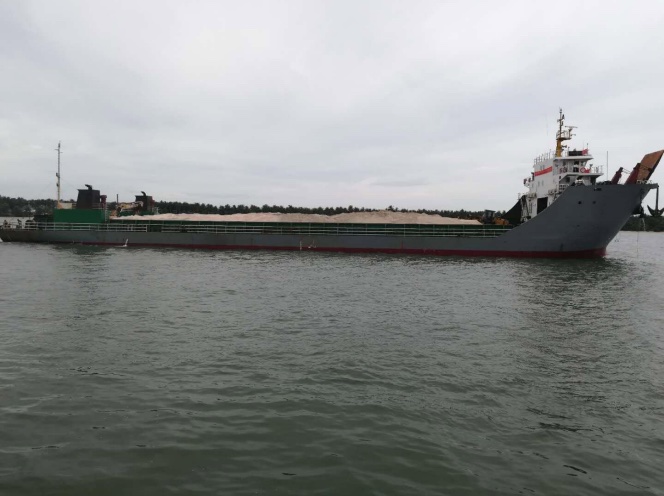

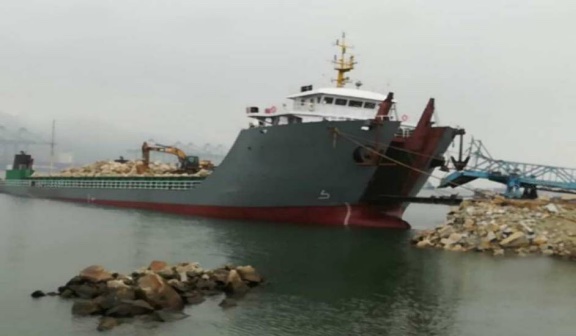

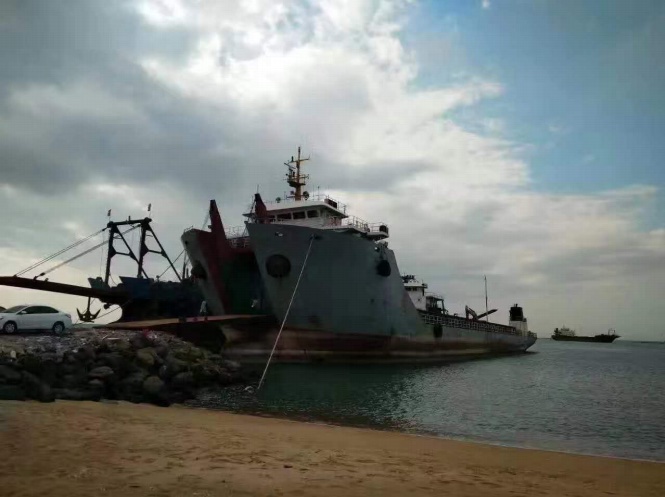

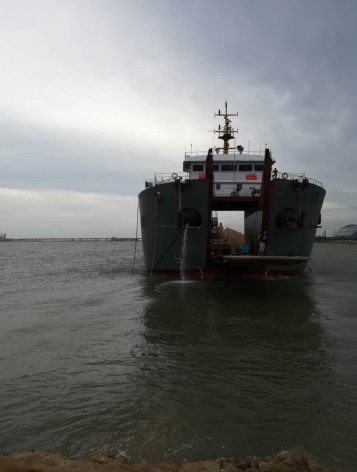

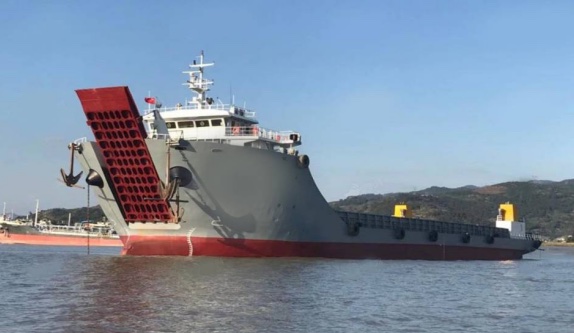

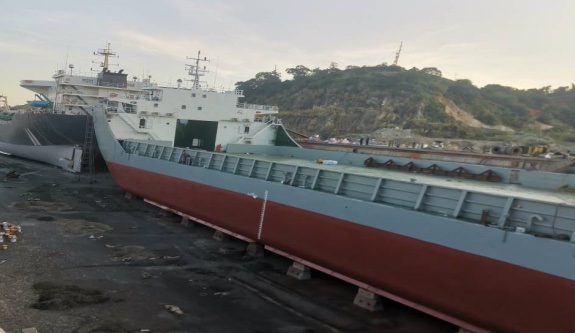

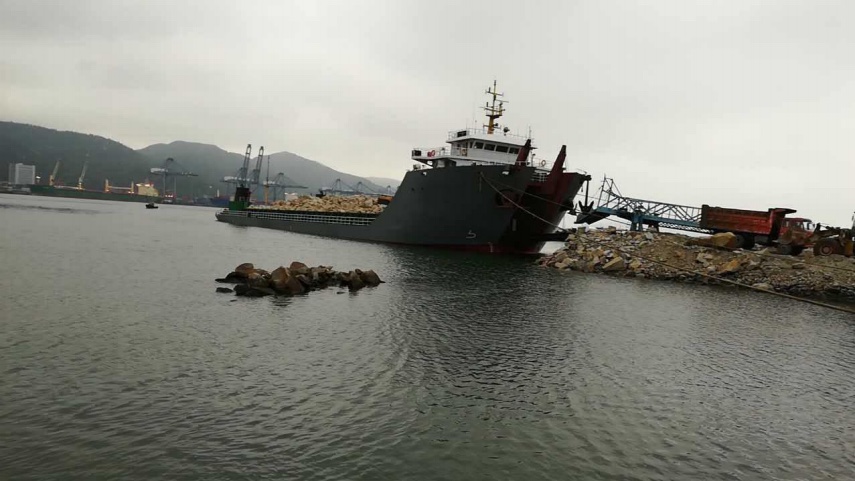

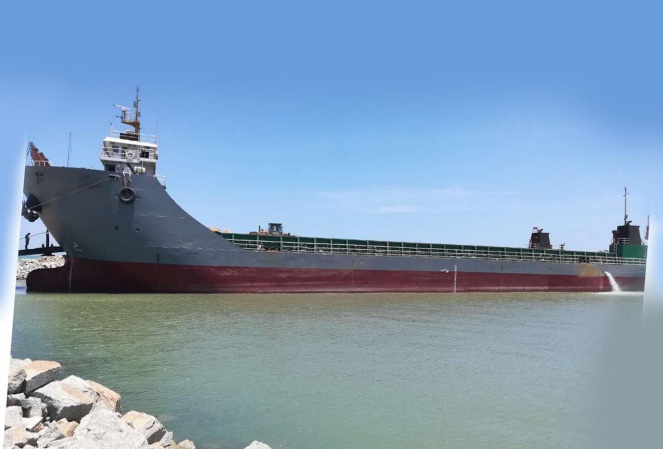

300ft LCT Barge


Listing ID - 4433


Description300 ft LCT Barge
Date Launched
2015
Length91.40m (299ft 10in)
Beam20.80m (68ft 2in)
Draft4.50m (14ft 9in)
Note2x Weichai Engines
LocationChina
BrokerIvan Colaco
ivan.colaco@seaboatsbrokers.com
+61 401 695 814
PriceUSD 2.2 million
View As PDF

Type of Vessel: 300FT LCT BARGE
Built Time: Jul 2015
Keel Laid: April 3, 2015
Built Place: China
Class: CCS (China Classification Society)
Navigation Area: Coastal Waters
Operation Area: A1+A2
LOA: 91.40m
Length: 84.88m
Length of Upper Deck: 87.95m
LWL: 87m
Breadth: 20.80m
Depth: 6m
Laden Draft: 4.50m
Laden Water Displacement: 7078.400T
Reference Cargo Capacity on paper: 5100T
Maximum Deadweight: 6000DWT
GT: 2995
NT: 1677
Hull Material: Steel
Deck Material: Steel
Main Engine: CW6200ZC, 1200HP*2, Weichai Power
Location of Double bottom: Fr.29-Fr.119
Next SS: July 25, 2025
No. of Deck: 1
No. Of Watertight Horizontal Bulkheads: 9
Place Of Double Bottom: Fr29#-119#

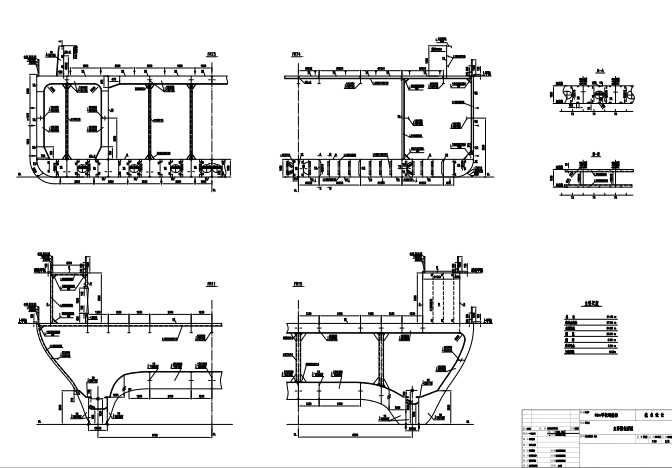

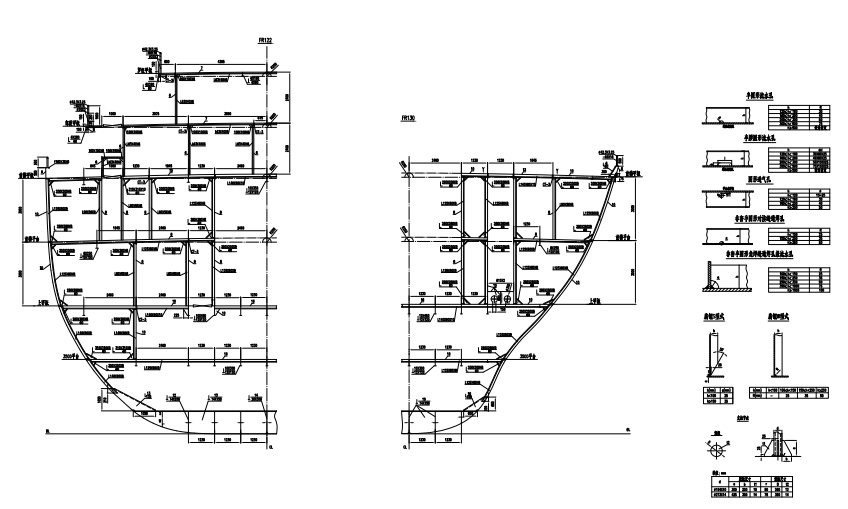

Structure Type: Transverse and longitudinal Frame Type
No. of Crews: 10 persons

Freeboard
Tropical: 1423  mm (R)
Load line: 93  mm higher than X
Summer: 1516  mm (X)
The upper edge of line passed the disk center
The breadth of fresh water of every freeboard exclude wood summer: 77 Tropical: 77 mm
The breadth of wood freeboard
Summer: 100
Tropical: 100 mm

Equipment
Anchors
No. Of Outfitting: 916
No. Of Anchors: 3
No. Of Windlasses: 2
Anchor Chain

Rudders
No. of Rudders: 2
Main Steering Device Type: Electric hydraulic

Rope Throwing Equipment: 4

Safety Equipment
1 x Emergency fire pump
2 x Main fire pump
Manual CO2 Fire fighting system
23 x Fire extinguisher container
18 x Fire detection alarm
1 x Fire extinguisher
Portable foam gun: 1 piece
Fireman’s Outfit: 1 set
Fire Pails: 4 pieces
Fire Axes: 2 pieces
Lifesaving Equipment: 10
Life Raft: 10ppl * 2pcs
Lifesaving Clothes: 10 pcs
Lifebuoy: 2 with life rope, 2 with igniting light, 2 with light and smoke signal

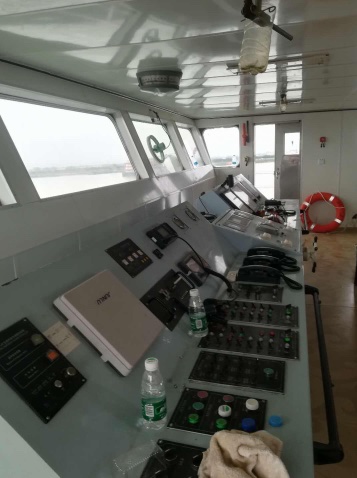

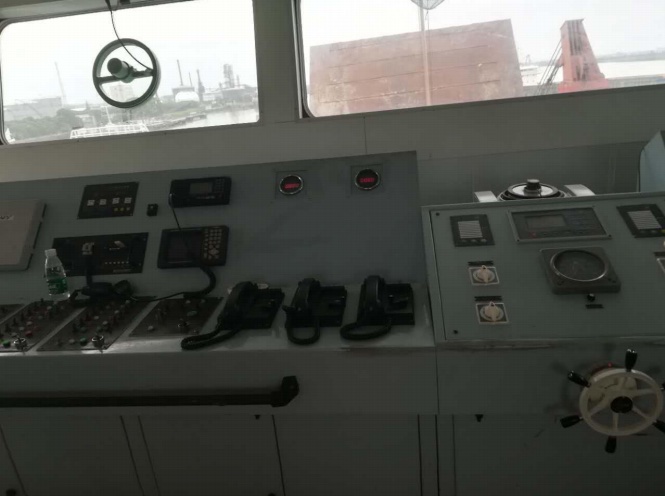

Navigation
1 AIS
1 GPS
1 Steering engine
1 Magnetic compass
1 Standard Magnetic compass
1 Radar
1 Search light
1 Echo sounder
1 Daylight signal light
4 National flag
1 Flute
1 Ball
3 Flash light
1 Clock
9 All-round light
2 Mast light
1 Tail light
1 Signal flag
2 Side light

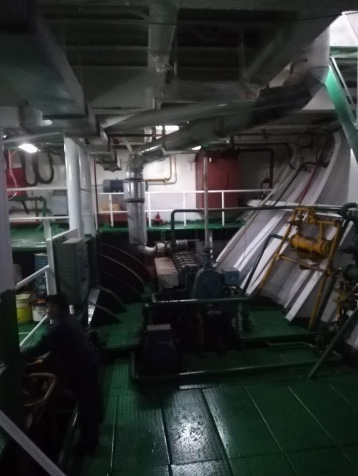

Machineries
No.: 2
Maker: Weichai Power
Model: CW6200ZC-16
Type: Diesel engine
Engine no.: 2115C000200
Rated power(kw): 350.00 on cert, actual 1200HP
Rated speed (r/min): 1000

2 Gearbox
2 Propeller Shaft
2 Middle Shaft
1 Fixed type propeller

Electric
Three phase AC three line insulated system
3 Generating Equipment

Radio Equipment
Receiver/sender
Portable radio equipment of lifeboat and life raft
Radiophone distress frequency receiver
Broadcasting equipment
M(M/H)F radio device
VHF radiophone
NAVTEX receiver
EPIRB
Rescue radar transponder
Rescue radar transponder








The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
