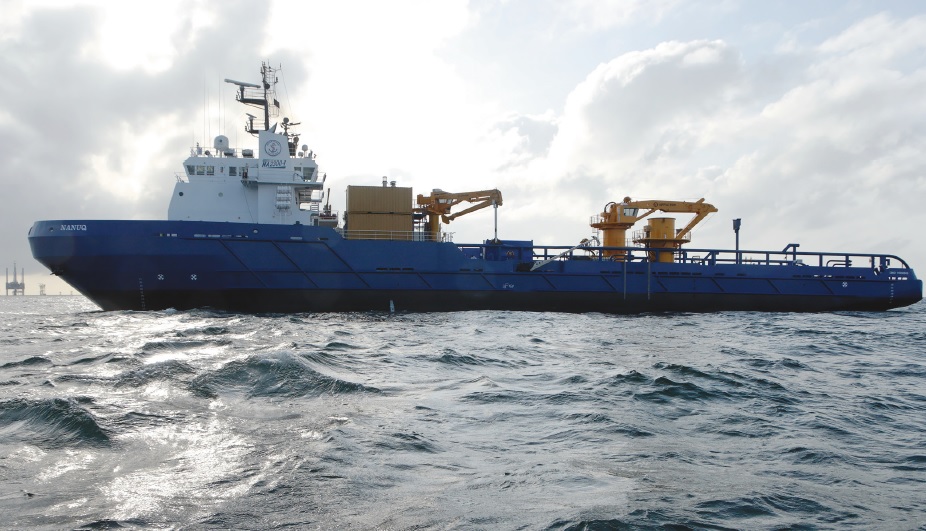

Vessel Type: Ice Class Oil Recovery/Platform Supply Vessel

Year Built: 2007

Shipyard: North American Shipbuilding



DIMENSIONS

Dimensions: 300 ft. X 60 ft. X 24 ft. (91.74 m X 18.29 m X 7.32 m)

Draft (Lightship): 9.76 ft. (2.97 m)

Draft (Loadline): 19.55 ft. (5.96 m)

Clear Deck: 169 ft. x 50.5 ft. (51.51 m x 15.40 m)

Cargo Deck Area: 8,535 sq. ft. (794 sq. m)

Deck Strength: 1,200 lb/sq. ft. (5.86 MT/sq. m)

Deadweight Tonnage: 4,100 LT (4,165.79 MT)



CAPACITIES

Fuel Oil: 358,962 gals. (1,359 cu. m)

Ballast: 250,367 gals. (948 cu. m)

Potable Water: 37,206 gals. (141 cu. m)

Dry Bulk: 11,440 cu. ft. @ 80 psi (323.9 cu. m @ 5.5 bars)

Liquid Mud/Slop Oil: 12,245 barrels (1,949 cu. m)

Service Tanks: 370.68 barrels (58.93 cu. m) (13 Tanks)



MACHINERY

Main Engines: Two (2) 3608 CAT Diesels, 7,268 BHP

Bow Thrusters: Two (2) 1,700 HP Schottel STT004CP (Electric Driven, 1,267.52 kW)

Stern Thrusters: One (1) 1,700 HP Schottel STT1010 (Electric Driven, 1,267.52 kW)

Speed: 15 knots

Generators: Two (2) x 910 kW (3508 CATs)

Generators: One (1) x 166 kW emergency



SPECIAL FEATURES

Ship Motion: Two (2) Passive Type Anti-Roll Tanks,

Ship Motion: Bilge Keels

Positioning: DP 2

Cranes: One (1) 15 MT x 18 m Knuckle boom (SS3)

Cranes: One (1) 5 MT x 12 m Knuckle boom (SS3)

VSAT Domes: Two (2) 1.5 m (360 degree coverage)

Bow Wave Deflection Walls

Enclosed Deck Bullworks

Hospital



LIFE SAVING EQUIPMENT

Life Rafts: Six (6) x 25-Man Inflatable Life Rafts

Rescue Boat/Craft: One (1) x Sea Force 490 SOLAS Rescue Boat with Davit

GMDSS Compliant Areas: 1-4

Niad

Other gear as required by authorities



MISSION SUPPORT EQUIPMENT

Mission Support Equipment Two (2) Lamor Brush Skimmer Units with Outrigger Booms

Four (4) Rubber Max Oil Boom Reels

One (1) Vertical Rope Mop Skimming System

One (1) Vikoma Skimming System

One (1) Seaslug Bladder with Tank

One (1) Fire Boom System

One (1) Brattvaag Tow Winch (250 MT Line Pull)

Two (2) Brattvaag Tuggers (25 MT Line Pull)

Two (2) Allied-Lansing Tuggers

One (1) Triplex H350 Shark Jaw (350 MT SWL)

One (1) Triplex V200 Hyd Popup Tow Pin (220 MT SWL)

One (1) 8.5 ft. dia. x 16 ft. Long Stern Roller (350 MT SWL)

Two (2) 1,200 cu. m/hr. Fire Pumps

Two (2) 1,200 cu. m/hr. Fire Monitors

One (1) Trans Rec 150

One (1) Ocean Buster Boom System

One (1) Vestdavit Trolley Manned Kvichak Launching System

Three (3) 34 ft. Kvichak Workboats and Cradles



CLASSIFICATION

ABS: Maltese Cross A1 (Hull)

ABS: Maltese Cross AMS (Machinery)

ABS: Ice Class A1

ABS: Loadline

ABS: Maltese Cross DP 2

ABS: Maltese Cross ACC

ABS: Oil Recovery Capability Class 1

USCG: Subchapter I/L

SOLAS: Current

MARPOL: Current



ACCOMMODATIONS

Accommodations: 41
