2x AHTS (under construction)

Listing ID - 5270
Description	AHTS
Date Launched	June / 2026
Length	68m (223ft)
Beam	16m (52ft 5in)
Draft	5.5m (18ft)
Location	China
Broker	Giuseppe Filippone giuseppe.filippone@seaboatsbrokers.com +39 329 886 8343
Price	POA
View As PDF

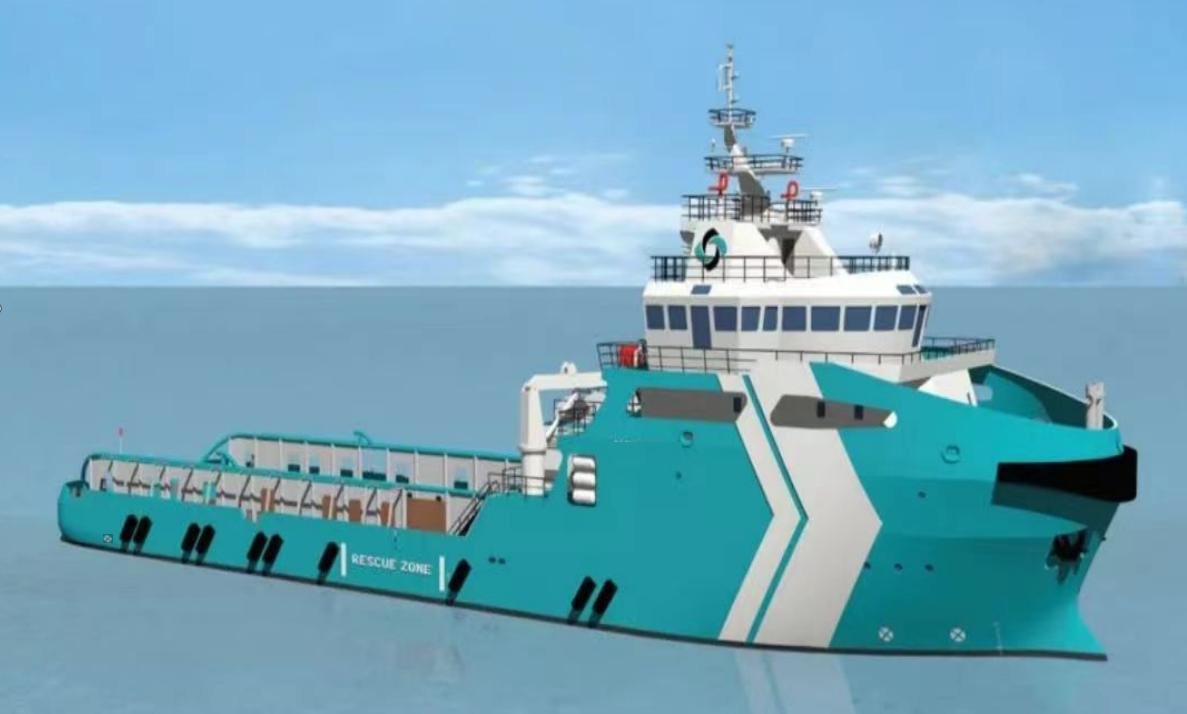

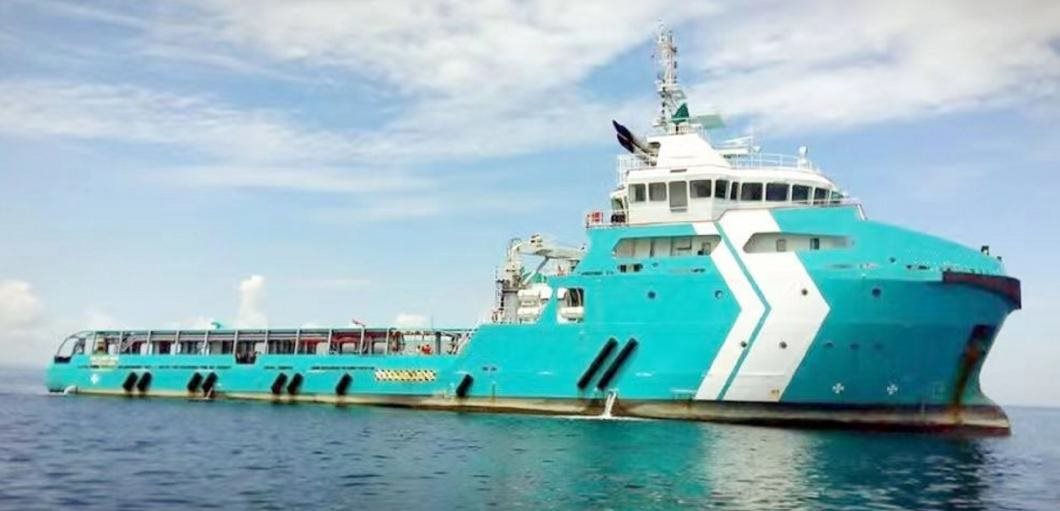

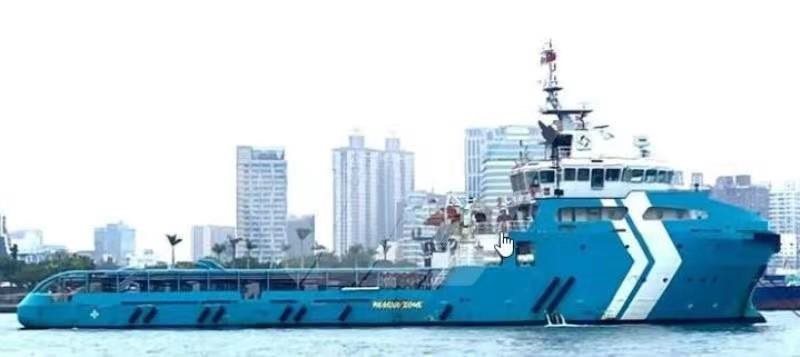

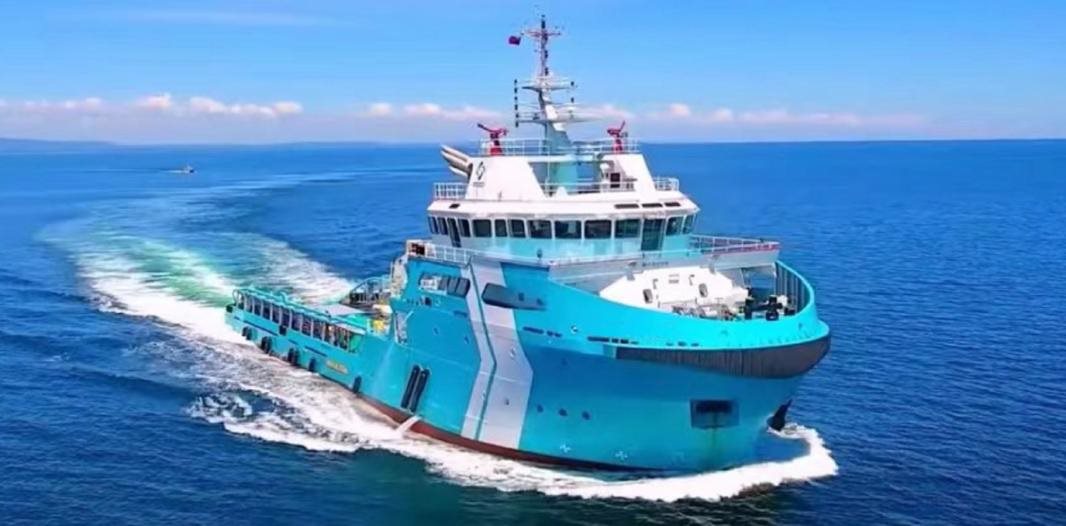

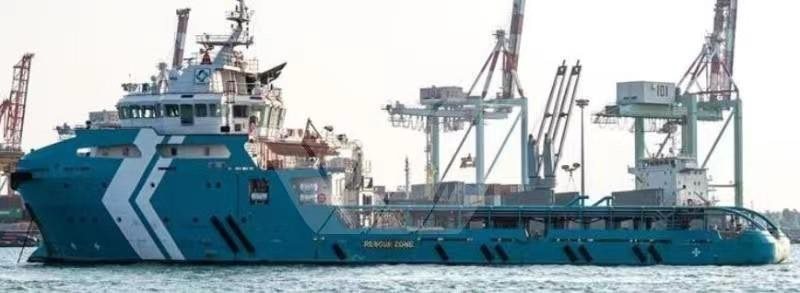

Two AHTS currently under construction, with delivery in June 2026.

DNV Class

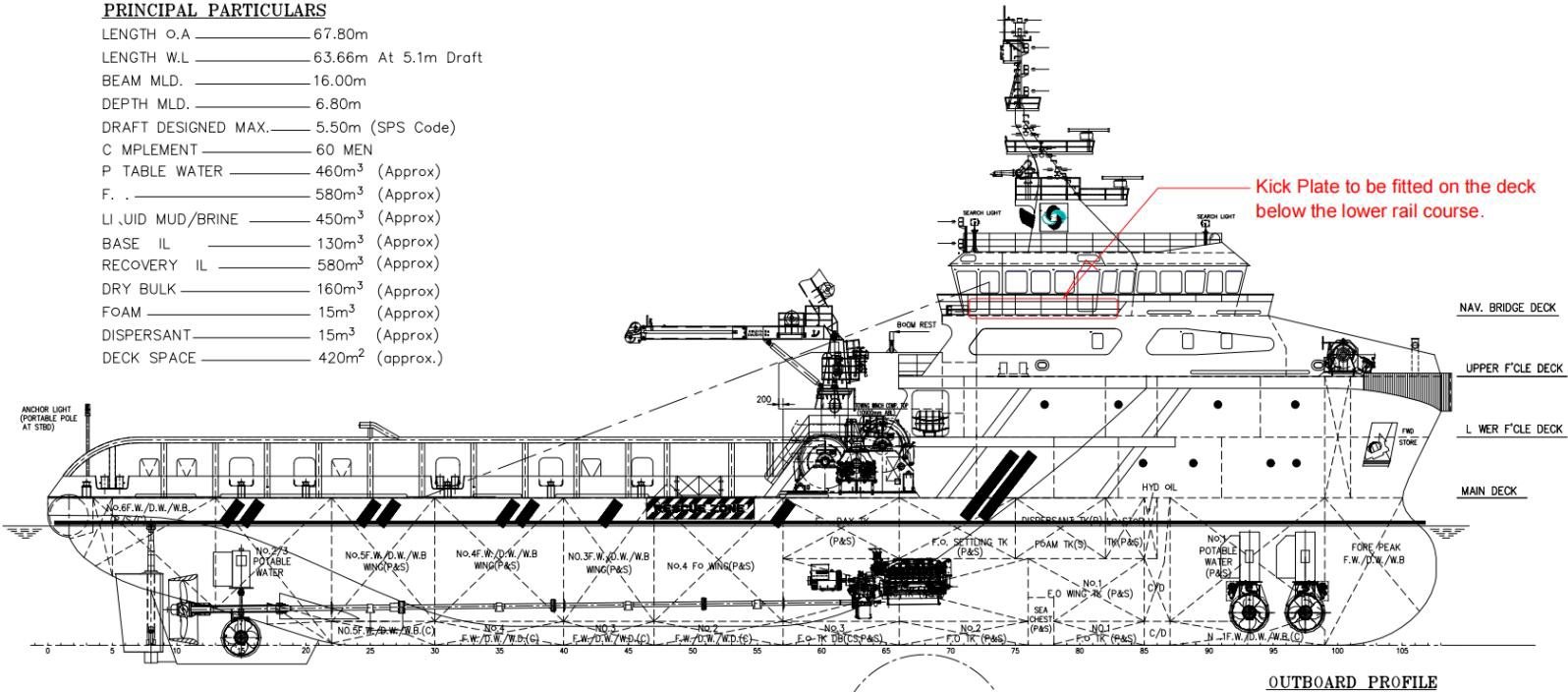

Vessels Characteristics

LOA: 67.8m

Beam: 16m

Depth: 6.8 m

Maximum Draft: 5.5 m

Light Draft: 2.8 m

Minimum Height: 25 m

Freeboard: 1.3 m

Displacement: 3,800 mt

Deadweight: 2,000 mt

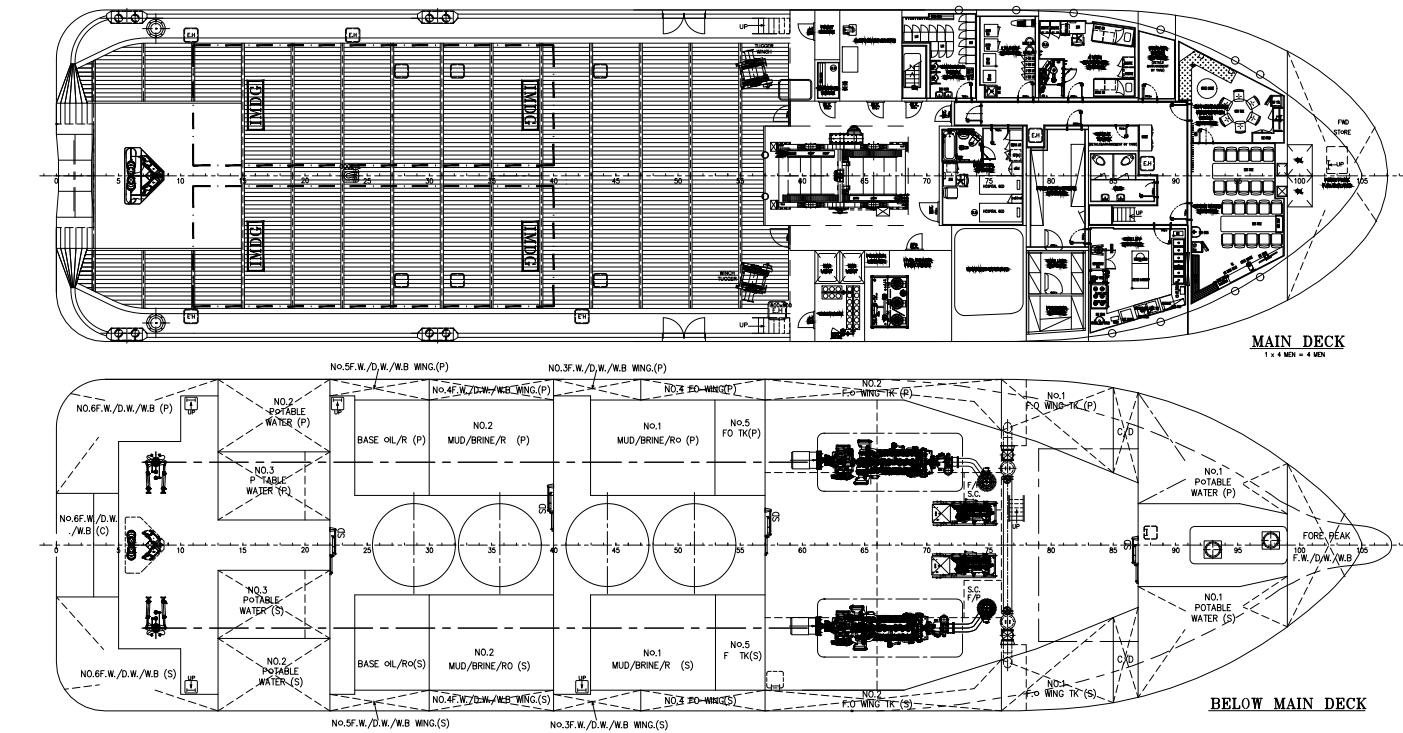

Clear Deck Space: 40 x 14 m

Clear Deck Area: 420 m2

Deck Strength: 5.5 t/m2

Class Notations: ABS: GL ✠1A1, SF, E0, TUG, SUPPLY VESSEL l, DYNPOS-AUTR, FiFi I,DPS-2,SPS,GP, Offshore Support Vessel

Capacities

Deck Cargo: 600 t

Fuel Oil: 580 m3

Potable Water: 460 m3

Mud/Brine: 450 m3

Drill/Ballast Water: 690 m3

Bulk Tanks (4 tanks): 186 m3

BaseOil: 130 m3

Lub Oil: 10 m3

Dirty Oil: 10 m3

Oil Dispersant: 10 m3

Fire Fighting Foam: 15 m3

Performance

Fuel Consumption Vs Speed

Maximum: 25t/day @ 15 knots

Cruising: 12t /day @ 10 knots

Economical: 8t /day @ 8 knots

Range @ 8 Knots: 8,750 nm

Transfer Rates

Fuel Oil: 150 m3/h @ 80 m

Fresh Water: 150 m3/h @ 80 m

Drill/Ballast Water: 150 m3/h @ 80 m

Bulk: 57 m3/h @ 57 m

Liquid Mud: 75 m3/h @ 90 m

Base Oil: 35 m³/h @ 82 m

Nav/Comms Equipment

Radar(s): 2

Depth Sounder: 1

Gyro Compass: 3

Doppler Log: 1

Radio: 2 x VHF

Sat Com: INMARSAT-C

Special Equipment

Firefighting: FiFi-1

Dynamic Positioning: DP-2

Ref. Systems: 2 x MRU; 2 x DGPS

1 x Microwave-based; 1 x Laser-based

Water Maker: 2 X 10 T/DAY

Mud Circulation System/

Mud Mixers: Yes

Rescue Boat: 6 MAN SOLAS

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
