Built year / Place: 2013 / Netherlands
Hull material: Steel
Flag: ST Kitts & Nevis



Length Overall (m): 29.5
Length between perp. (m): 28.28
Breadth (m): 6.16
Depth (m): 2.19
Draft (m): 1.3
GT (tons): 101



Total power output (BHP): 599
Main Engine(s) (make, type): 1x Mitsubishi
Main Propulsion System: Single Screw
Auxiliary engine(s): 1 x 180 kW Caterpillar
Propellers: 1
Speed maximum (knots): 12
Speed cruising (knots): 10



1 x cabin
4 x berths
4 x seats
1 x kitchen
1 x dining-room



Hydraulic crane, 31.87 metric tons
2 x positioning machines
15-ton bow lifting equipment
10-ton stern lifting equipment
29 kW generator



Cargo capacity: 100 m³

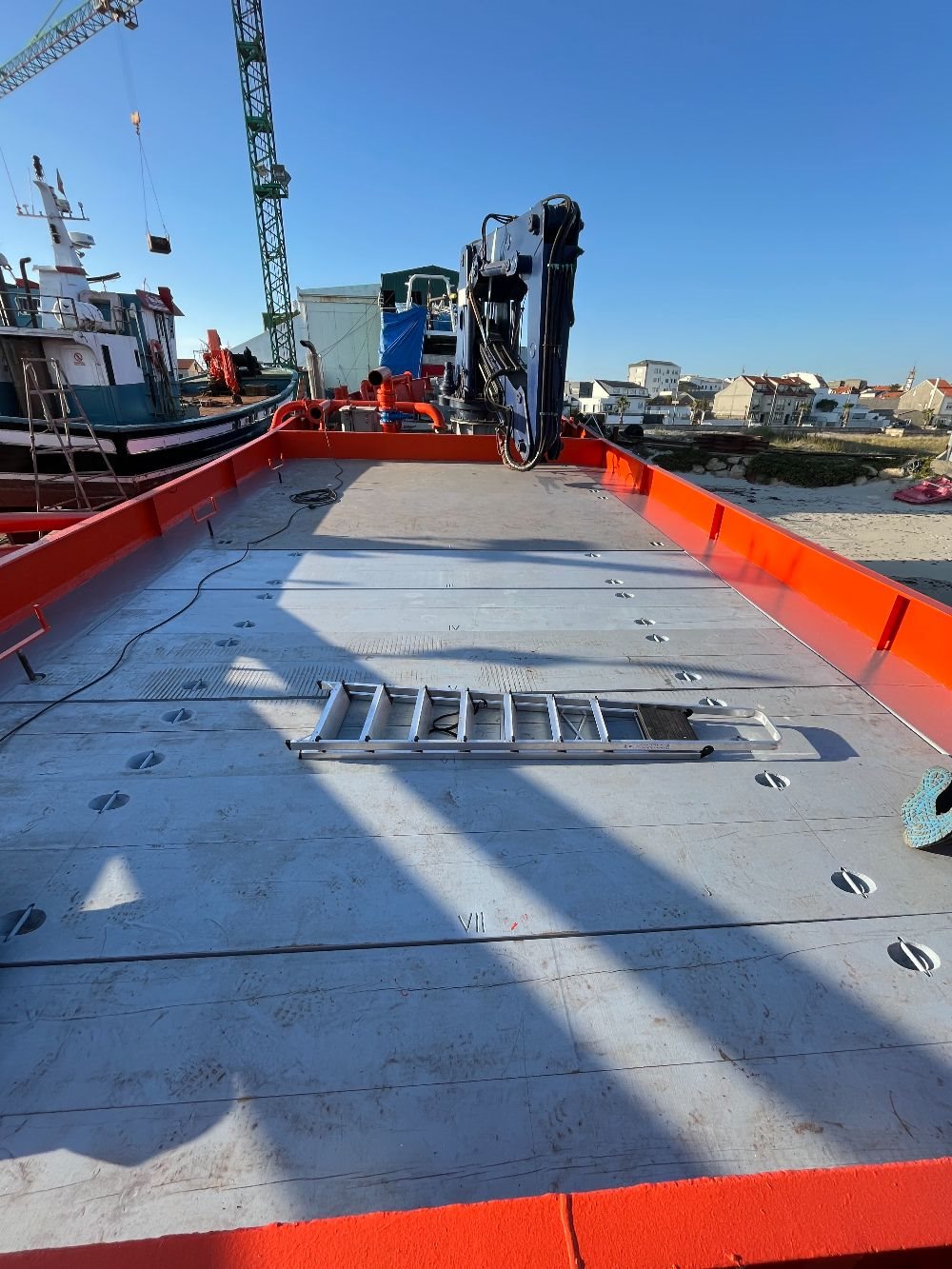

Free deck area: 154 m²
Fuel tank capacity: 8 m³
Fresh water tank capacity: 1 ton
Endurance at sea: 8 days or 200 hours



Spanish Flag under process
Year of construction: 1901, refurbished in 2013
Last DD October 2023
More than 90% of the original Vessel has been renewed in different phases.
In 2022-2023 current Owners changed a lot of steel plates, 50% + carrying cargo; Hold is dry. It can carry dry materials - cargo of the hopper floor, added a new dismountable deck cover, new inside and on deck.
New dredging circuit, new hydraulic engine for the pump and all pipes.
Support to divers or workers: it has positioning winches.
New hydraulic circuit for the crane as well as other crane parts.
Crane services.
New 15 tons winch and its hydraulic installation, new FIFI.
Buoyage: Since it has a winch on the bow, it can lift anchor systems.
CO2 isolations A60 rock wool in the engine room.
New blocks of up to 15 tons, ballasting system, new alarm system, new video system, new tail shaft, new collision bulkhead, new gas exhaustion system.
New GMDSS, new Plotter, new hydraulic oil tank 1000 liters, new navigation lighting systems.
New 10-ton winch for lifting the tube.
New belt and moving element protect.
