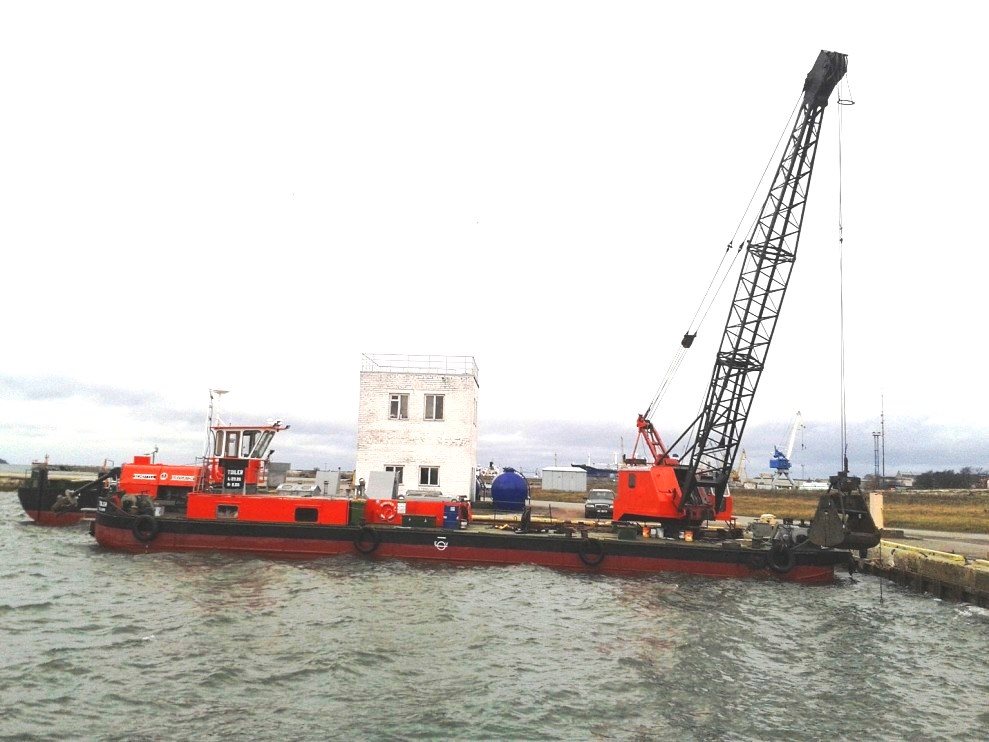

29.29m Self-propelled Floating Crane SWL 20mts


Listing ID - 5343


DescriptionSelf-propelled Floating Crane SWL 20MTS
Date Launched
1937, Upgrade: 2013
Length29.29m (96ft 1.15in)
Beam8.008m (26ft 3.30in)
Draft1.31m (4ft 3.60in)
NoteMain Engine: 1x Deutz
LocationEstonia
BrokerIvan Colaco
ivan.colaco@seaboatsbrokers.com
+61 401 695 814
PricePOA
View As PDF

GENERAL SPECIFICATION
Flag: Estonia
Port of registry: Tallinn,
Class: Estonian Maritime Administration
Trading region: Domestic trade up to 20 miles from place of refuge
Built: 1937
Built Place: Mainz-Kastel, Germany
Upgraded 2013 and after that, all equipment  renewed, new fuel and water tanks, very good condition of hull.
GT / NT:  114 / 34
Seaworthiness certificate valid: 06.11.2028

PRINCIPAL DIMENSION
Length Overall: 29.29m
Beam: 8.008m
Depth: 1.75m
Draft: 1.31 m

ENGINE AND CAPACITY
Main Engine: Deutz, F 8 L 413, KND Diesel, 1 x 111 kW
Propulsion: Schotel-Navigator, Ruderpropeller SRP 100 /103

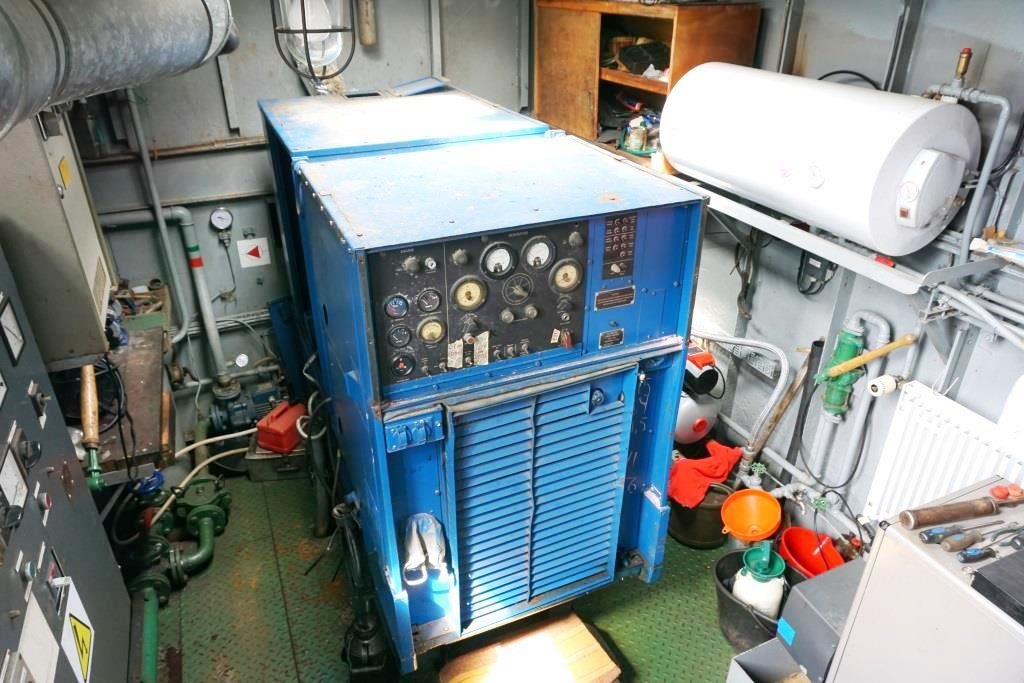

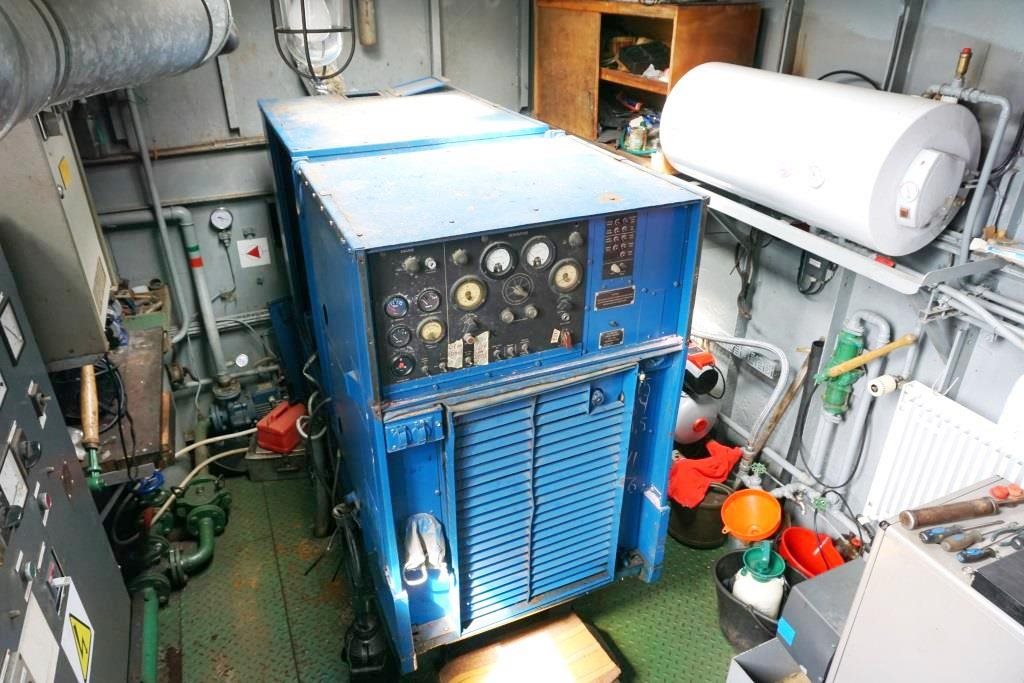

Auxiliary engine: Herkules, NSN2815-00-501-7001
Generator: 380v, 50hz, 30 kW
Speed: 5.5 knots
Bunker capacity: 3 x 3 m3
Fuel consumption:  4 l/h (in port) / 25 l/h (at sea)
Fuel autonomy: 8 days

ANCHORS
Bow: 1 x 390 kg, 2 x 27 m (16 mm)
Aft:  1 x 390 kg, 2 x 27 m (16 mm)
Winches: 4 x 4 kW, each winch with steel rope, ø19 mm

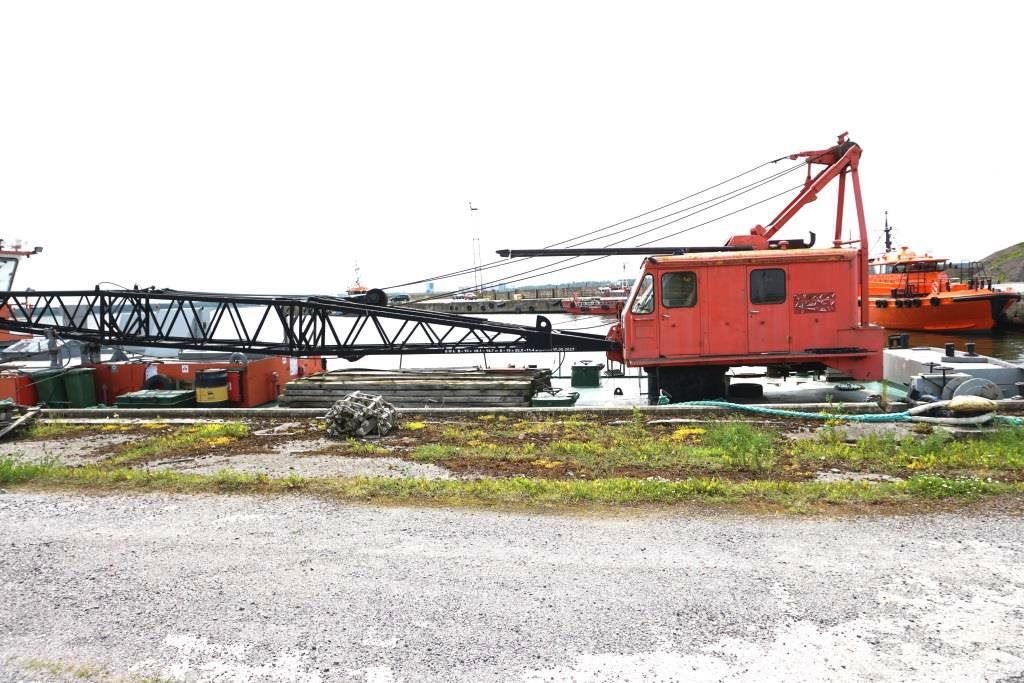

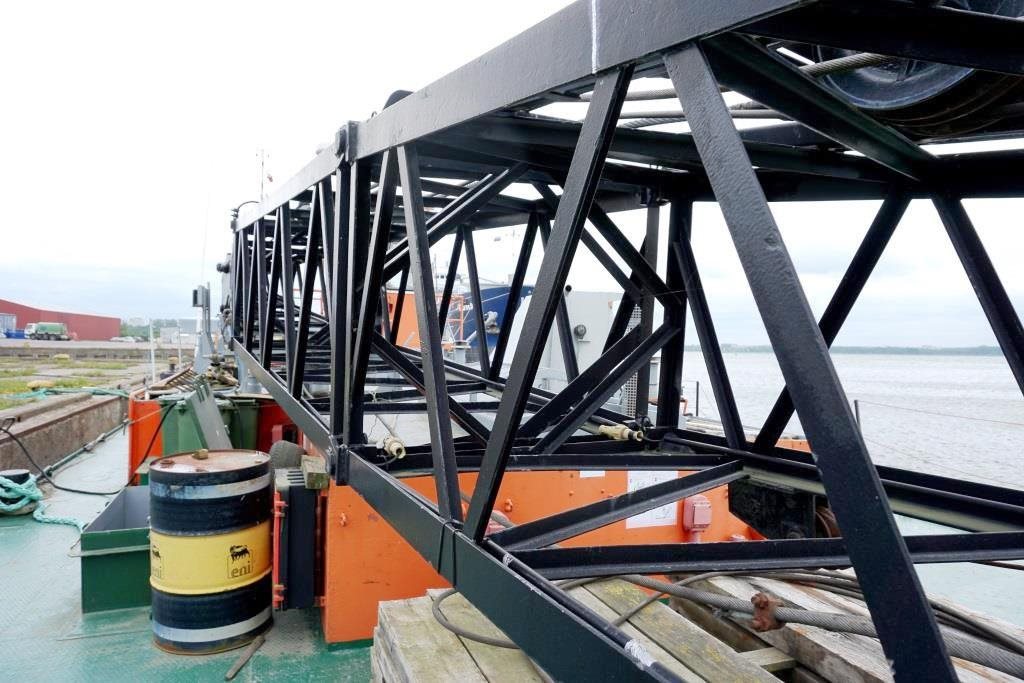

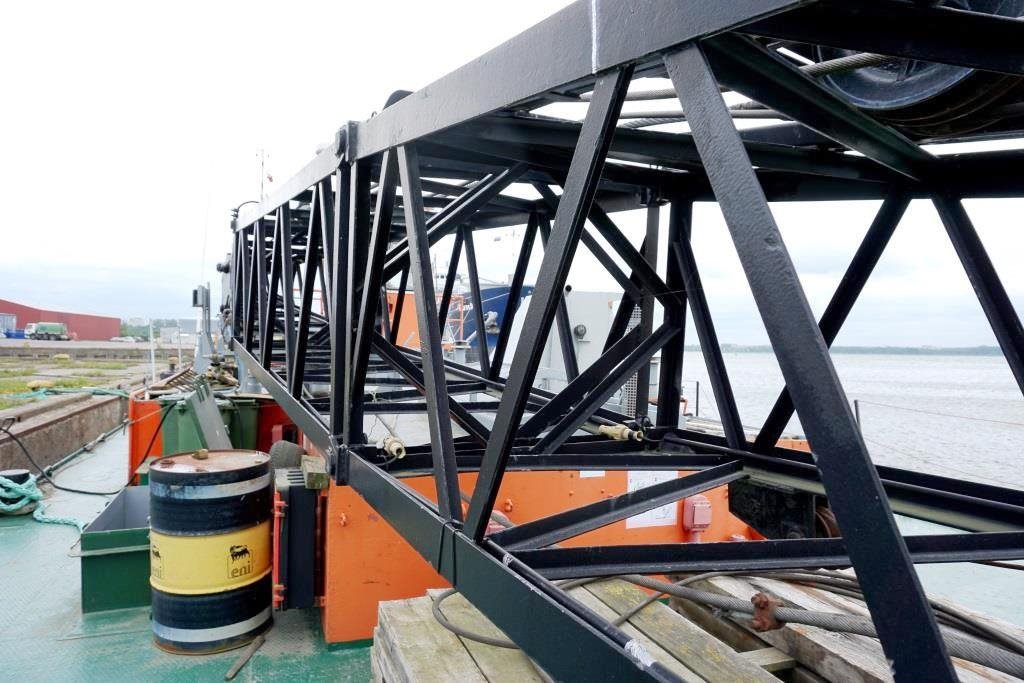

CRANE
Manufacturer:  Weserhutte
Model:  W120, Ser. No 120109
The next  test: 05.2027
Motor: Deutz-motor F 6L413
Lift capacity:  20 Mt (SWL)
Fuel consumption:  15 l/h

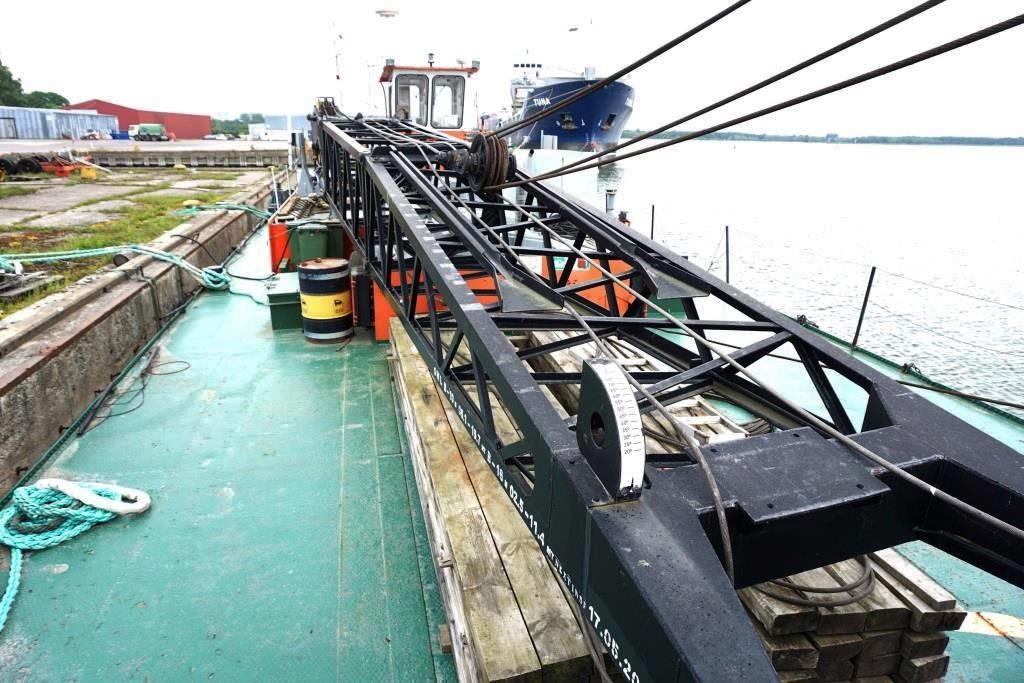

Length of the boom:  17,5 m
Max working angle of the boom: 75º

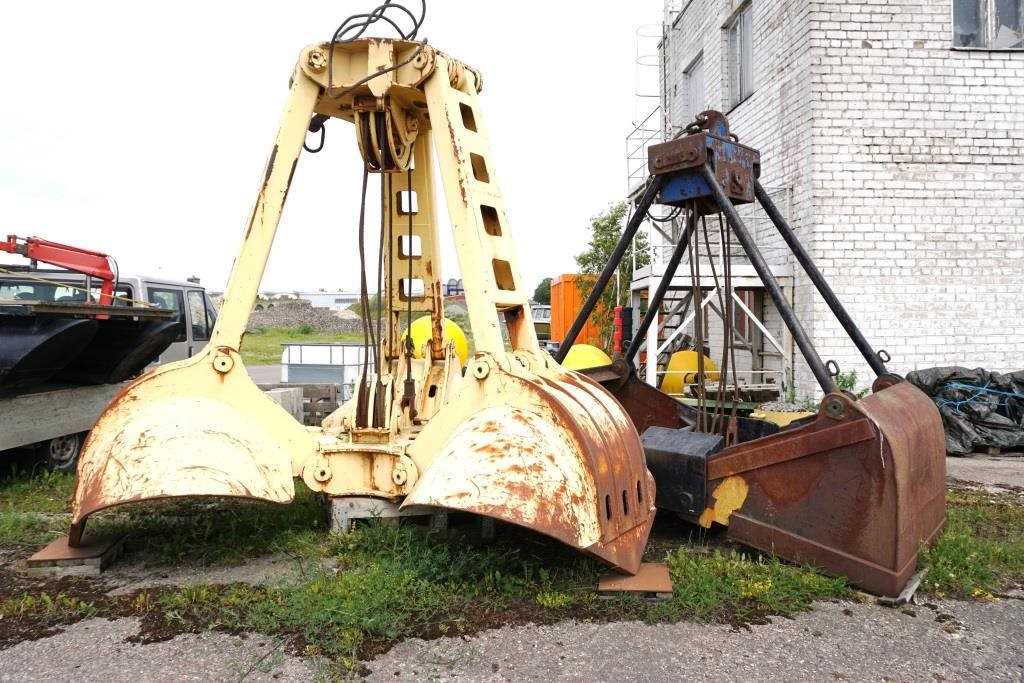

Capacity of the grab:  1,5 m3
Outreach outside: min with  2,1 m - 17,5 Mt
Outreach outside, max with /13,5 m - 3,3  Mt
Minimum outreach: 5,5 m
Max height from water level to hook (free board – 1,0 m): 16 m
Max height from water level to grab (free board – 1,0 m): 14 m
Max draft of hook for dredging works 15 m
Maximum draft of grab for dredging works : 18 m
Hook’s lifting speed: 15 m/min
Grab’s lifting speed:  32 m/min
Boom outreach change:  15 m/min
Crane turn around: 1 turn  - 20 sec




The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
