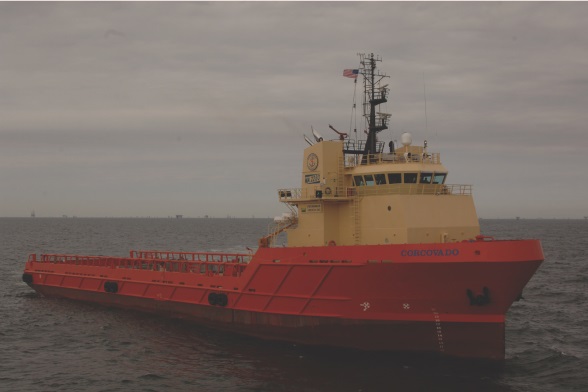

280ft Platform Supply Vessel

Listing ID - 3656
Description	280ft Platform Supply Vessel
Date Launched	2009
Length	85.34m (279ft 11in)
Draft	5.87m (19ft 3in)
Location	USA
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
Price	POA
View As PDF

Registration

Vessel Type: PSV - Platform Supply Vessel

Vessel Class: OSV - Offshore Supply Vessel

Year Built: 2009

Shipyard: North American Fabricators

Flag: US

Dimensions

Length Overall: 280 ft.

Draft (Lightship) 7 ft. 3 in. (2.21m)

Draft (Load line): 19.44 ft. (5.87m)

Clear Deck: 201 ft. x 50.5 ft. (61.27m x 15.40m)

Clear Deck Area: 10,151 ft2 (943 m2)

Deck Strength: 1,200 lbs/sq. ft. (5.86 MT/sq. m)

Deck Cargo Capacity: 2,545 LT (2,585 MT)

Deadweight Tonnage: 4,729.14 LT (4,806.39 MT)

Classification

ABS: (A1) Maltese cross (Hull)

ABS: (AMS) Maltese cross AMS (Machinery)

ABS: Loadline

ABS: (DPS - 2) Maltese cross Dynamic Positioning

ABS: (FFV1) Fire Fighting Vessel Class 1

ABS: (E) Circle E Equipment

USCG: Subchapter L (OSV)

SOLAS: Cargo Ship

MARPOL: Ship Other Thank Oil Tankers Carrying Oil

Capacities

Fuel Oil (Ship/Cargo): 375,994.6 Gallons (1,423.29 m3) (NOTE: Cargo fuel during sub-chapter L operations only)

Ballast: 304,253.8 Gallons (1,151.73 m3)

Drill Water: 90,430.3 Gallons (343.32 m3)

Potable Water: 41,335 Gallons (156.5 m3)

Dry Bulk: 11,442.4 ft3 @ 80 psig (324.01 m3 @ 5.5 bars)

Liquid Mud 13,322 Barrels (2,118 m3)

Special Features

Tuggers: Two (2) x 12,000 Lbs. Line Pull, Tulsa Winch 1241W-81157

Ship Motion: Two (2) x Passive Type Anti-Roll Tanks

Ship Motion: Bilge Keels

Positioning: DPS - 2

Deck Crane: One (1) x 3.0 LT SWL, 30' Fixed Boom, (MCF[1]530 North Pacific Crane)

Fire Fighting: Two (2) x 5,283 GPM Fire Monitors, Jason Eureka (MM602HD-C-01)

Machinery

Main Engines: Two (2) x C-280-8 Caterpillar (CAT) Diesel Engines @ 3,299 HP Each

Bow Thrusters: One (1) x Brunvoll FU80 1,050 KW @ 1,190 RPM, 4-Blade FPP Propeller @ 2,000mm Dia. Stern Thrusters: One (1) x Brunvoll FU80 1,050 KW @ 1,190 RPM, 4-Blade FPP Propeller @ 2,000mm Dia.

Swing Down Combination Thruster: One (1) x 1,100 HP Rolls Royce TCNC 73/M[1]180, 4-Blade FPP Propeller @ 1,800mm Dia.

Speed: 13 knots

Emergency Generators: One (1) x John Deere 175 kW, Radiator Cooled

Ship's Service Generators: Two (2) x C32 Caterpillar (CAT) Diesel Generators @ (910 KW) each.

Life Saving Equipment

Life Rafts: Four (4) x 25-Person Inflatable Life Rafts

Life Rafts: Two (2) x 10-Person Inflatable Life Rafts

Rescue Boat/Craft: One (1) x Fast RSQ 450 A, 6 Person Cap., 40hp, 4.3m OAL, USCG/SOLAS Appr. With Davit

Flow-Back / Chemical

500bbl Approvals: 8 X 500BBL TANKS (4,000 BARRELS) ON VESSEL DECK - All (8) tanks are capable of carrying both hazardous and pollution material. Flow-Back carriage requires USCG approval of chemical prior to carriage.

Accommodations

29 Bunks - (8 x 2 People, 3 x 4 People, & 1 x 1 People)

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
