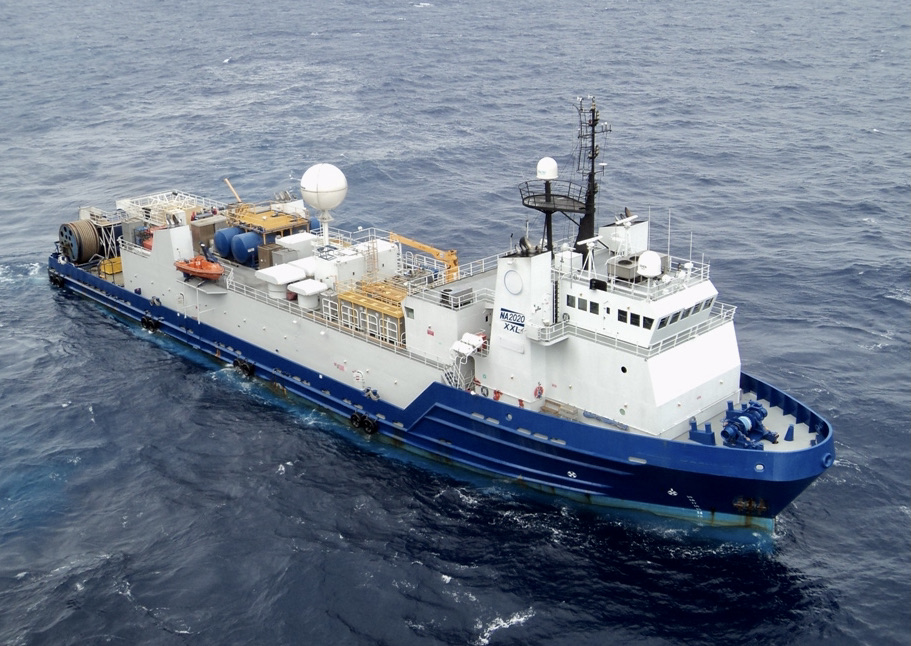

270ft Well Stimulation Vessel

Listing ID - 3677
Description	270ft Well Stimulation Vessel
Date Launched	1997
Length	82.30m (270ft)
Beam	17m (56ft)
Draft	4.62m (15ft 2in)
Note	1,599 LT (1,624 MT)
Location	USA
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
Price	POA
View As PDF

Hull: 161

Vessel Type: WSV - Well Stimulation Vessel

Vessel Class: OSV - Offshore Supply Vessel

Dimensions

Dimensions: 270 ft. x 56 ft. x 18.75 ft. (82.3m x 17m x 5.7m)

Draft (Lightship): 6 ft. 6 in. (1.98m)

Draft (Loadline): 15 ft. 2 in. (4.62m)

Freeboard (Loadline): 3 ft. 7 in. (1.09m)

Freeboard (Lightship): 12 ft. 4 in. (3.76m)

Displacement (Lightship): 1,599 LT (1,624 MT)

Deadweight (Loadline Draft): 2,173 LT (2,207.77 MT)

CLASSIFICATION

ABS: Maltese cross A1 (Hull)

ABS: Load-Line

ABS: Maltese Cross AMS (Machinery)

USCG: Sub-Chapter L (O.S.V.)

USCG: Minimally Manned Engine Room

SOLAS: ‘97

MARPOL: ‘92

CAPACITIES

Fuel Oil: 170,278 gal. (644.57 m3)

Ballast/Rig Water: 478,712 gal. (1,812.12 m3)

Potable Water: 36,694 gal. (138.90 m3)

Dry Bulk: 12,200ft. 3 (345.5 m3) @80 psig

Anti-Roll Tanks: 45,280 gallons (171.40 m3)

Slop Tank (Stainless Steel): 36,015 gallons (136.33 m3)

Gel: 279,804 gallons (1,059.17 m3)

Completion Fluid: 36,015 gallons (136.33 m3)

SPECIAL FEATURES

Steering and Controls: Two (2) x Passive Type Anti-Roll Tanks

Bilge Keel

MACHINERY

Main Propulsion: Two (2) x 3516 Caterpillar Diesels • 3420 BHP @ 1600 rpm

Azimuth Thrusters: Two (2) x 1350HRV Ulstein 315 rpm, 80 in. Dia., 4 Blades FPP

Thrusters: One (1) x 1000 hp CP Tunnel (3508 CAT)

Thrusters: One (1) x 1200 hp Drop Down Azimuth (3512 CAT)

Speed: 11.9 Kts

Emergency Generators: One (1) x 99 kW

Ship's Service Generators: Three (3) x 300 kW

Well Stim Generator: Three (3) x 300 kW

LIFE SAVING EQUIPMENT

Life Rafts: Four (4) x 25 Man Inflatable Life Rafts

Personnel Rescue Davit: One (1) x 5.8m Rescue Boat

Other gear as required by authorities

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
