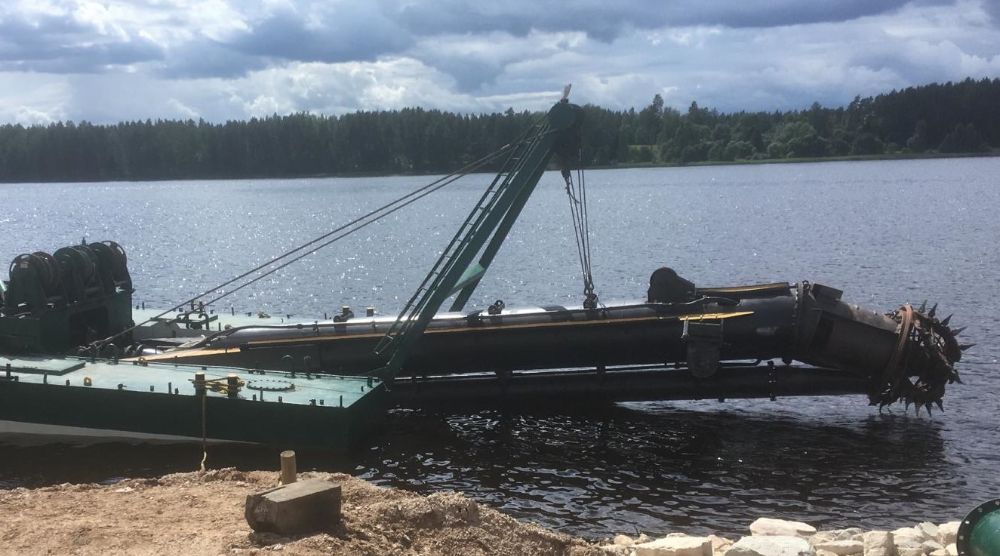

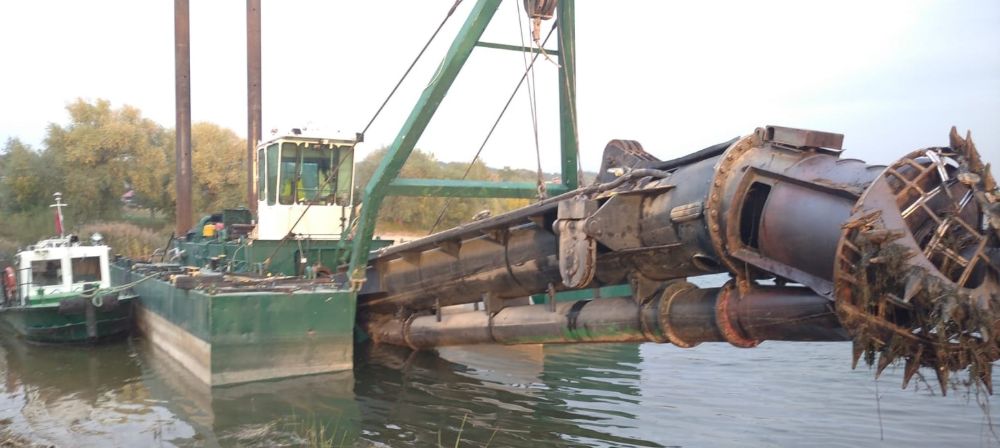

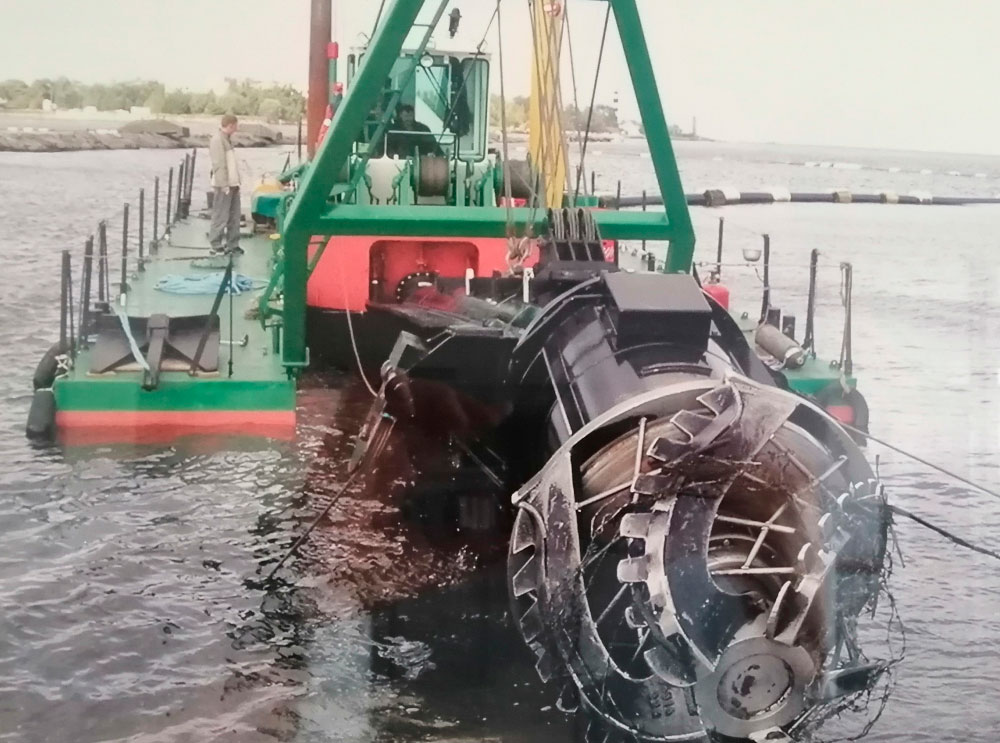

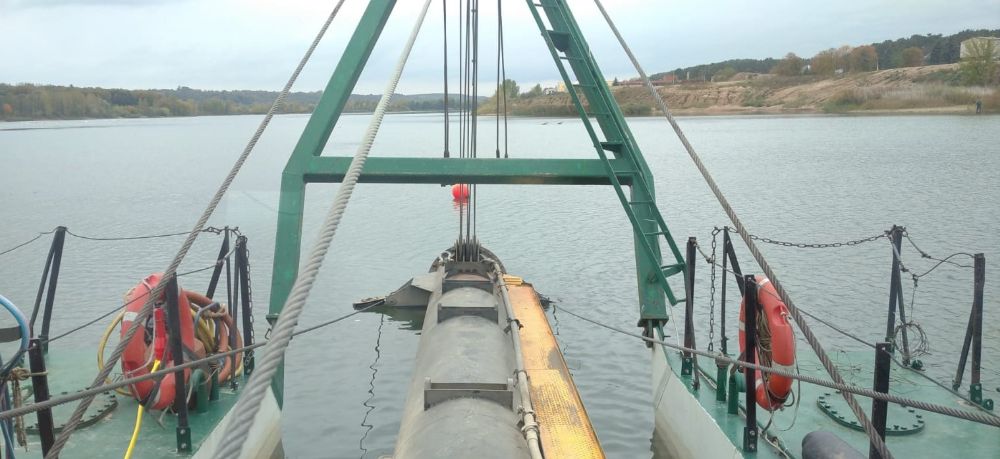

26.30m Cutter Suction Dredger For Sale


Listing ID - 3932


Description26.30m Cutter Suction Dredger For Sale
Date Launched
2004
Length26.30m (86ft 3in)
Beam6.69m (21ft 11in)
LocationBaltic
Price730,000 EUR
Price NotesSale price consists on: Dredger kit with spare parts and accessories. Only 1000 m of pipelines are available now and, if sold, the price changes proportionally.
View As PDF

Built: 2004, The Netherlands
Hull material: Steel
Flag: Latvia
Class Society and Notation: BV Class1 Hull dredger coastal
Next SS: June 2025

PRINCIPLE DIMENSIONS
Length Overall: 26.30m
Breadth: 6.69m
Depth: 1.87m

ADDITIONAL INFORMATION
Sale price consists on:
1. Dredger Kit with spares & accessories 840,000
2. Pipelines 3500 mtr about 84,000

Additional spare parts and equipment
1. Ladder Extender for dredging works up to 12.5m 1SET
2. Floating pipeline PE pipe 500mm OD with flanges about 3540m
3. Boll joint 500mm with rubber expansion pipe L= 2000mm 1SET
4. Dredge pump Cover 1pcs
5. Elbow pipe 90 degrees, 450mm ID 1pcs
6. Intermediate pipe 600m, 450mm ID 1pcs
7. Rubber expansion pipe L=1300mm, 450mm ID 1pcs NEW
8. Rubber expansion pipe L=2000mm, 450mm ID 1pcs
9. Rubber compensation joint, 450mm ID, L=200mm 1PCS NEW
10. Seals and gaskets for spud hoisting cylinders, gearbox, dredge pump etc.
11. Hydraulic cartridge Vickers 1pcs
12. Proportional solenoid valve for ladder winch 1pcs
13. Three part clamb ring w130 for cutter drive 3pcs
14. Some any other spares on board.
15. Long spud poles

Length over pontoons 16.50m
Mean draught with full bunkers 1.25m
Internal diameter of discharge main pipe 450mm
Internal diameter of available discharge line 500mm
Available length of discharge HDPE pipe line up to 3500m on stock
Maximum standard dredging depth - 10.00m
Maximum dredging depth by ladder extender - 12.50m

Spud poles
Diameter: 457mm
Spud poles L=14m for 10m dredging depth
Spud poles L=17.5m for 12.5m dredging depth
3mtr Ladder Extender with pipeline and hydraulic hoses kit

Engines
Prime mover: Caterpillar 3508 620kW, Engine 70% of lifetime with load 1100 -1200 RPM, About 37000 hours, Top End 2020 Y
Dredge pump driven via clutch/reduction gearbox. Dredge pump IHC-1100-200-400, pump installed new in 2016
Auxiliary power: Caterpillar 3306 212kW, About 4000h, Major Overhaul with long block replacement 2019
