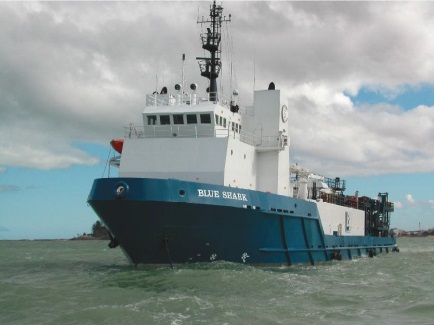

260ft Well Stimulation Vessel


Listing ID - 3662


Description260ft Well Stimulation Vessel
Date Launched
2002
Length79.24m (260ft 11in)
Beam17.07m (56ft)
Draft5.49m (18ft)
Note2,373 LT (2,410.97 MT)
LocationUSA
BrokerGeoff Fraser
geoff.fraser@seaboats.net
+64 21 61 222 5
PricePOA
View As PDF

Registration
Hull: 212
Vessel Type: Well Stimulation Vessel / OSV
Year Built: 2002

Dimensions
LOA: 260ft
Dimensions: 260 ft. x 56 ft. x 21 ft. (79.27m x 17.07m x 6.40m)
Draft (Lightship): 6 ft. 6 in. (1.98m)
Draft (Loadline): 18 ft. (5.49m)
Freeboard (Loadline): 3'-0" (0.91 m)
Freeboard (Lightship): 14'-6" (4.42 m)
Displacement (Lightship): 2,373 LT (2,410.97 MT)
Deadweight Tonnage: 2,557 LT (2,598 MT)

Capacities
Fuel Oil: 264,978 gallons (1,003 m3)
Ballast: 202,029 gallons (764.8 m3)
Potable Water: 24,000 gallons (90.8 m3)
Wash Water: 6,920 gallons (26.2 m3)
Dry Bulk: 10,973 ft.3 (31 m3) @ 80 psig
In-internal FRAC Tanks: 308,645 gallons (7,348 bbls)

Machinery

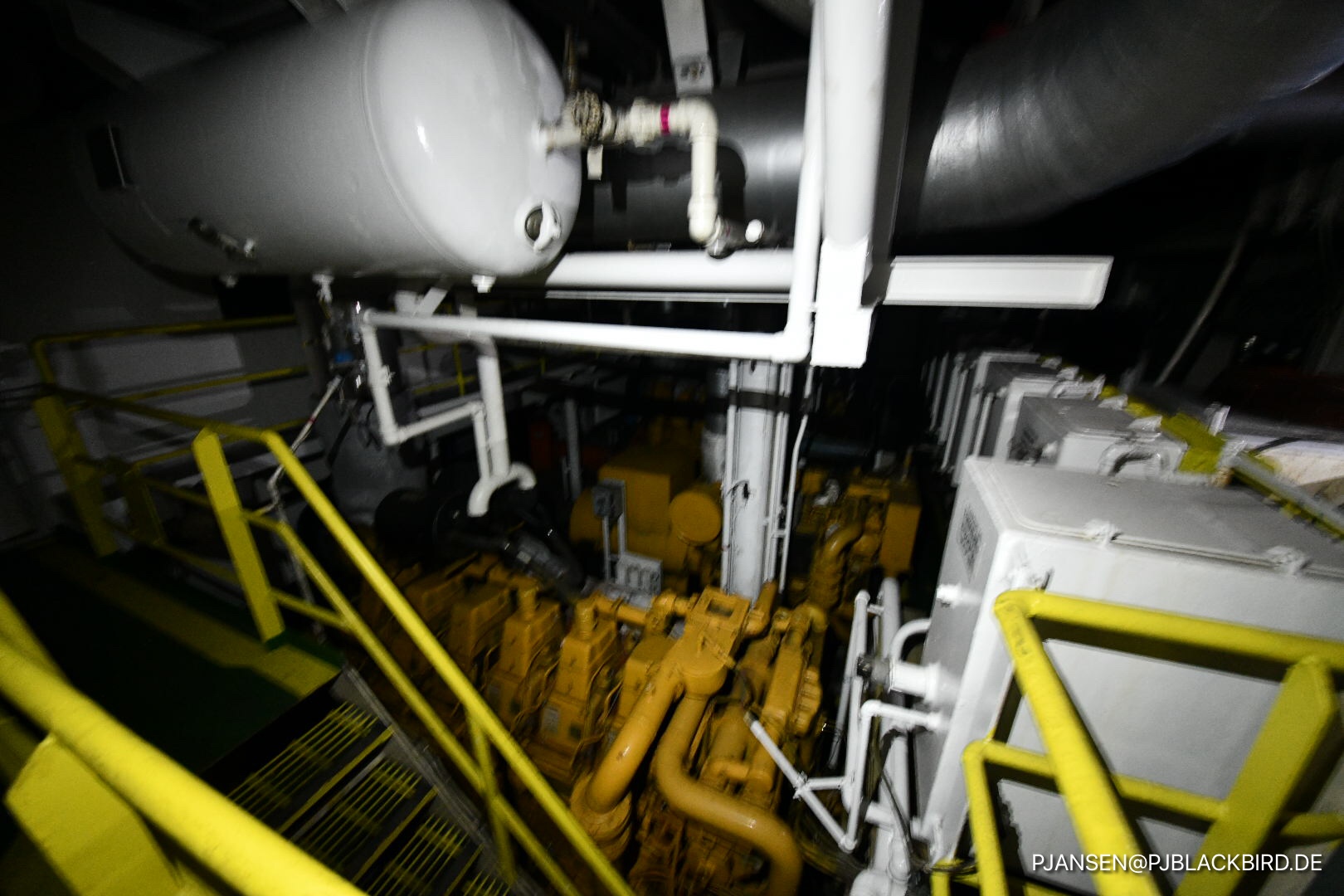

Main Engines: Two (2) x 3606 Caterpillar • 2700 BHP @ 1000 rpm each
Bow Thrusters: One (1) x 1000 hp Ulstein 150TV Tunnel (Electric Driven)
Stern Thrusters: One (1) x 1000 hp Ulstein 150TV Tunnel (Electric Driven)
Speed: 12.2 knots @ 16'-0" Draft
Gears: Two (2) x 600 AGSC Ulstein driving • Two (2) 2800mm 4 Blade CPP • Two (2) x 1.1 mW Shaft Generator
Emergency Generators: One (1) x 190 kw (3306 Cat)
Ship's Service Generators: Two (2) x 910 kw (3508 Cats)
Shaft Generators Two: (2) x 1.1 mW KATO Generators

Special Features
Ship Motion: Two (2) Passive Type Anti-Roll Tanks
Ship Motion: Port & STBD Bilge Keel System
Positioning: DPS-2 Dynamic Positioning System
Steering and Controls: Two (2) x Independent High Lift (style) Rudder System
Deck Provision Crane: 3-Ton Deck Provision Crane

Life Saving Equipment
Life Rafts: Six (6) Inflatable Life Rafts
Rescue Boat/Craft: One (1) x Narwhal SV-400H Rescue Boat
Other gear as required by authorities

Classification
ABS: (A!) Maltese Cross (Hull)
ABS: Load Line
ABS: (AMS) Maltese Cross (Machinery)
ABS: (DPS-2) Maltese Cross
USCG: Subchapter L (O.S.V.) & I (Cargo)
USCG: Minimally Manned Engine Room
SOLAS: Cargo Ship ('99)
MARPOL: Ship Other Than Oil Tankers Carrying Oil ('99)

Accommodations
Accommodations: 29 Bunks



The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
