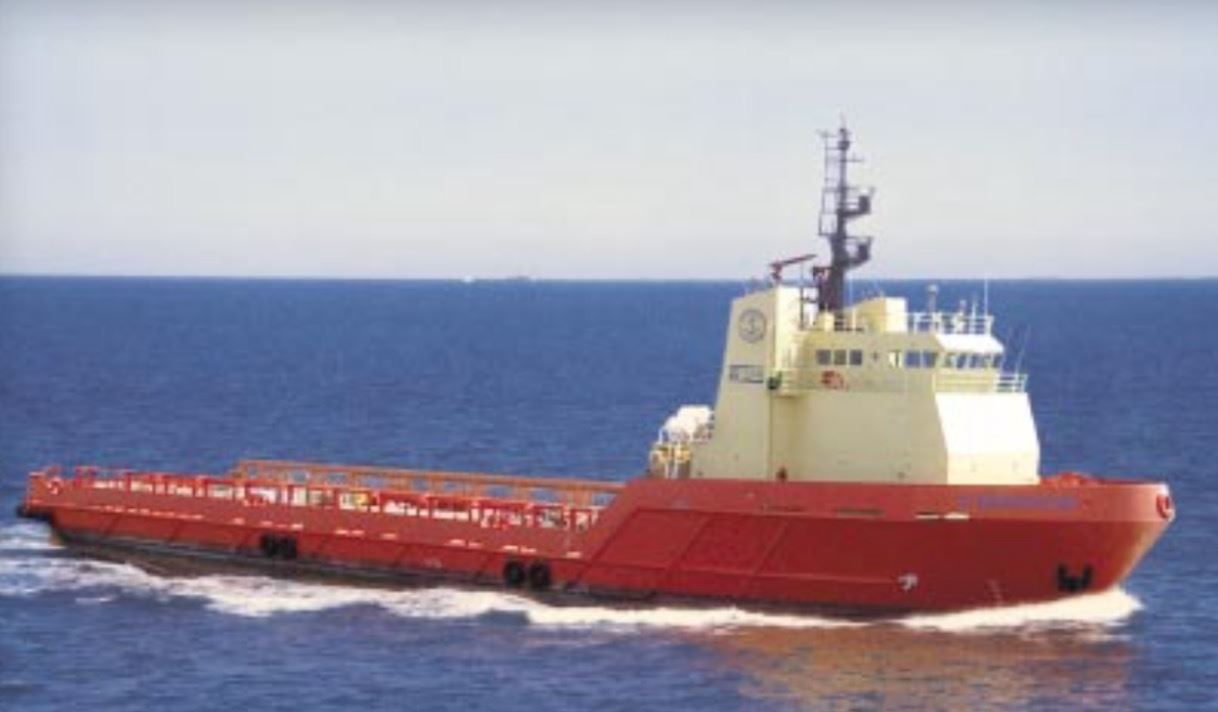

240ft Offshore Supply Vessel, built 1999

Listing ID - 1007
Description	240ft Offshore Supply Vessel
Date Launched	1999
Length	73.15m (240ft)
Beam	17m (56ft)
Location	USA
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
View As PDF

Registration

Hull #: 180, North American Fabrication

Vessel Type: Offshore Supply Vessel

Dimensions: 240’ x 56’ x 21’ (73.15m x 17m x 6.4m)

Draft (Lightship): 6’6”(1.998m)

Draft (Loadline): 18’ (5.48m)

Clear Deck: 165’ x 46’ (50.29m x 14.02m)

Clear Deck Area: 7590sq ft. (705.13m²)

Deck Cargo Capacity: 1,750 LT @ 3’ VGC (1,778.08MT @ 3’ VCG)

Deadweight Tonnage: 3,000LT (3,048.14MT)

Capacities

Fuel Oil: 309,433 gals. (1,171.33m³)

Ballast: 209,972 gals. (794.83m³)

Potable Water: 24,032 gals. (90.97m³)

Dry Bulk: 8,106 cu. Ft. @ 80psi (229.54m³ @ 80psi)

Liquid Mud (Dual Tank System): 6,063 barrels (963.94m³)

Accommodations: 29

Machinery

Main Engines: Two (2) 3516 CAT Diesels, 3,200BHP

Bow Thrusters: One (1) 340 HP CP Tunnel

One (1) Ulstein 900 HRV Drop-Down, 1,200HP

Propulsion: Two (2) Ulstein 1350 HD Azimuthing

Speed: 12 knots

Generators: Two (2) x 500kW, One (1) x 170kW

Classification

ABS: Maltese Cross AT (Hull)

ABS: Loadline

ABS: Maltese Cross AMS (Machinery)

ABS: DP-2

USCG: Subchapter L (OSV)

Solos: ‘97

Marpol: ‘73/’78/’92

Special Features

Tugger: Two (2) x 10 tons

Positioning: DP-2

Ship Motion: Two (2) Passive Type Anti-Roll Tanks, Bilge Keels

Firefighting: Two (2) Monitors @ 8,000 GPM ea.

Deck Crane: One (1) x 3,100 lbs. Capacity

Electronics

Sea 7156 VHF

Sea 7100 VHHF DSC Controller

Sea 330 SSB (Single Sideband Radio)

JRC JUE – 75C Inmarsat

Seawatch 7001 MF/HF Receiver

Necode DSC 1000

Furuno FR-1510 Mark 2 Radar

Furuno FE 600L Sounder

Seator 3000 GMDSS

(2) R.M. Young Wind Sensors

DGPS Navigation System

MDL Fonbeam

(2) Meridian Gyro Repeaters

Iridium Satellite Phone

Marine Technologies DP-2 System

Lifesaving Equipment

4 x 25-Man Inflatable Life Rafts

1 x Solas Rescue Boat

Other gear as required by USCG and Solas

2250: 240ft Offshore Supply Vessel, built 1999 - 095.jpg

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
