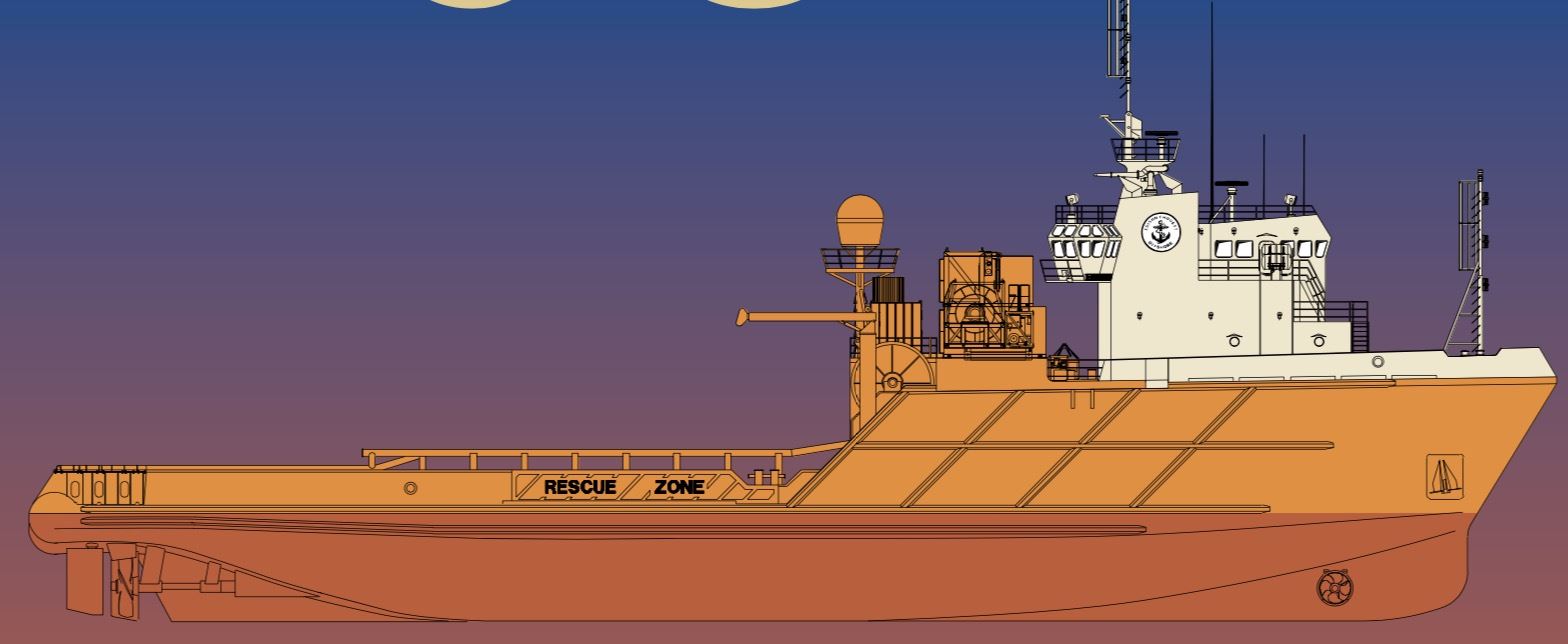

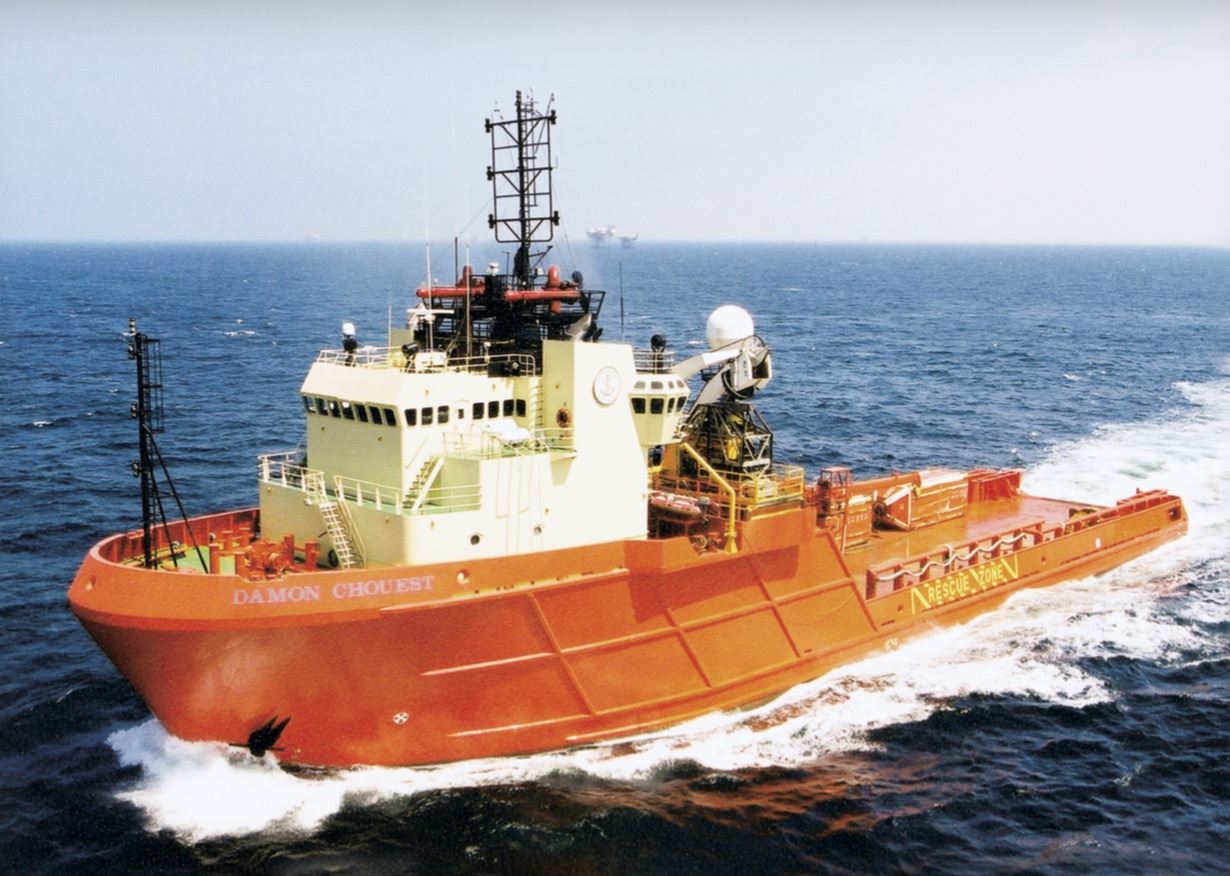

240ft Anchor Handling Tug Supply Vessel


Listing ID - 2211


Description240ft Anchor Handling Tug Supply Vessel
Date Launched
1986, Converted: 2002
Length73.15m (240ft)
Beam15.85m (52ft)
Draft4.88m (16ft)
BrokerJohn Kearns
john.kearns@seaboatsbrokers.com
+64 21 400 805
View As PDF


REGISTRATION
Hull: #132
Vessel Type: Anchor Handling Tug Supply Vessel
Builder: North American SHipbuilding
Year Built: 1986
Converted: 2002

DIMENSIONS
Design Draft: 240’ X 52’ X 18.5’ (73.15 m X 15.85 m X 5.64 m)
Draft (Maximum): 16’  (4.88 m)
Loadline Displacement: 3,770.18 LT (3,830.68 MT)
Clear Deck: 135’ x 44’ (41.15 m x 13.41 m)
Cargo Deck Area: 5,940 sq. ft (551.82 m²)
Deck Cargo Capacity: 830 LT (843.32 MT)
Deadweight Tonnage: 1,527 LT (1,551.50 MT)

CAPACITIES
Fuel Oil: 178,576 gals. (675.98 m³)
Fresh Water: 23,068 gals. (87.32 m³)
Ballast: 325,615 gals. (1,232.59 m³)
Dry Bulk: 5,120 cu. ft. @ 80 psi (144.98 m³ @ 5.5 bars)
Liquid Mud: 2,230 barrels (354.54 m³)

MACHINERY
Main Engines: Three (3) EMD 20-645 E7, 10,800 BHP
Bow Thrusters: Two (2) 150TV-D Tunnel
Stern Thruster: One (1) 1,200 HP NASB/Ulstein
360° Jet Azimuthing
Total Propulsion HP: 13,200 HP
Propulsion: Three (3) CPP

Generators:
Shaft Generators: Three (3) x 2,400 HP/1,800 kW
Ship’s Service Generators: Two (2) x 500 kW
Winch: Brattvaag BSL 350 W Double Drum with chain mouse, 350 MT or 926,100 lb
line pull or 926 KIPS line pull per drum.
Two (2) x 9,800’ (2,987.04 m) of 3” (7.62 cm) wire per drum @ 350 MT
Storage Reels: Two (2) x 11,480’ (3,499.10 m) of 3” (7.62 cm) wire
Chain Lockers: Two (2) x 6,000’ (1,828.8 m) of 3.5” (8.89 cm) chain each

SPECIAL FEATURES
Positioning: DP 2
Tugger: One (1) x 12-Ton Forward Two (2) x 10-Ton Aft
Cranes: Two (2) x 10 tons @ 30° radius
Shark Jaws: One (1) x 350 MT
Tow Pins: One (1) x 350 MT
Stern Roller: One (1) x 8’ x 6’
Firefighting: Two (2) Monitors @ 12,500 GPM

CLASSIFICATION
ABS: Steel Tug and Supply Vessel
ABS: Maltese Cross A1 (Towing Service
ABS: Maltese Cross AMS
ABS: DP 2

ACCOMMODATIONS: 41

LIFESAVING EQUIPMENT
Four (4) x 25-Man Life Rafts
One (1) x Narwhal SV-400 SOLAS FRC

ELECTRONICS
Two (2) Furuno FR-2115 Radars
GMDSS
Iridium Satellite Phone
Marine Technologies Bridge Mate DP 2
Marine Technologies Bridge Mate Autopilot
Furuno Color-View Depth Sounder
Furuno VHF FM-8500 @ Winch Operator Panel
Seven (7) Color Monitors
JRC NO2-127C Inmarsat-C Telex (GMDSS)
SEA 222 Single Sideband Radio with Ringer
JRC NCH-802 Controller MF/HF Radio
JRC NCR-300A Navtex
Raytheon NAV 398 GPS
Furuno FAI50 AIS



The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
