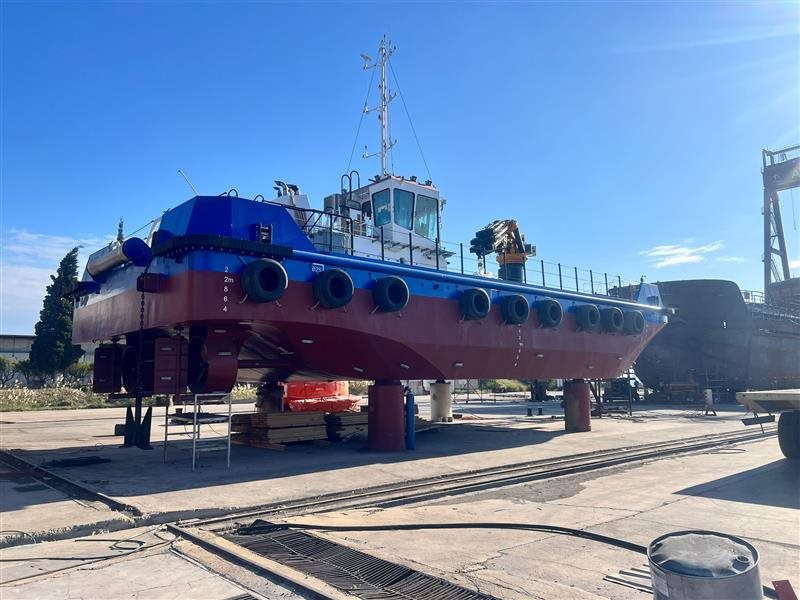

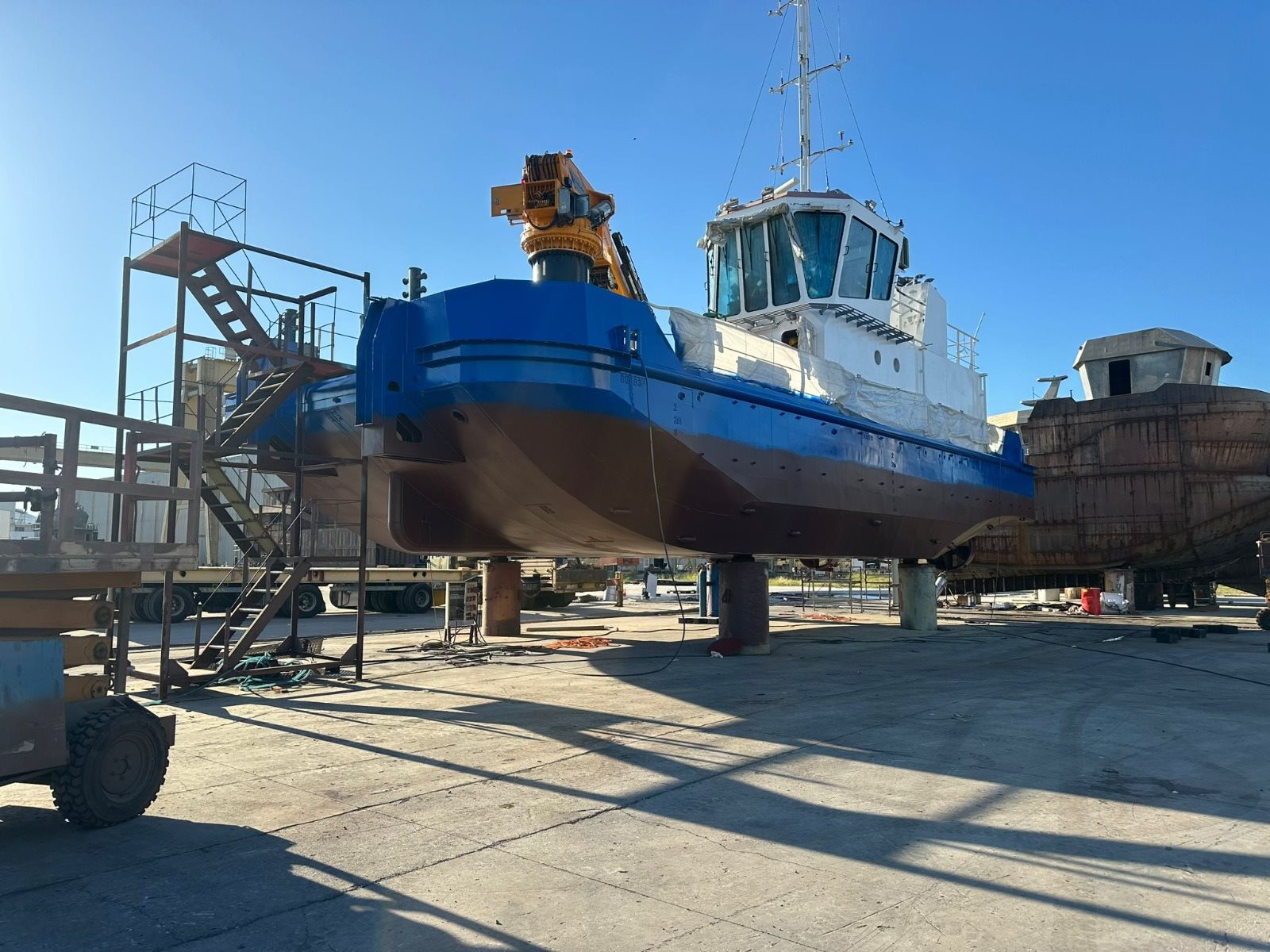

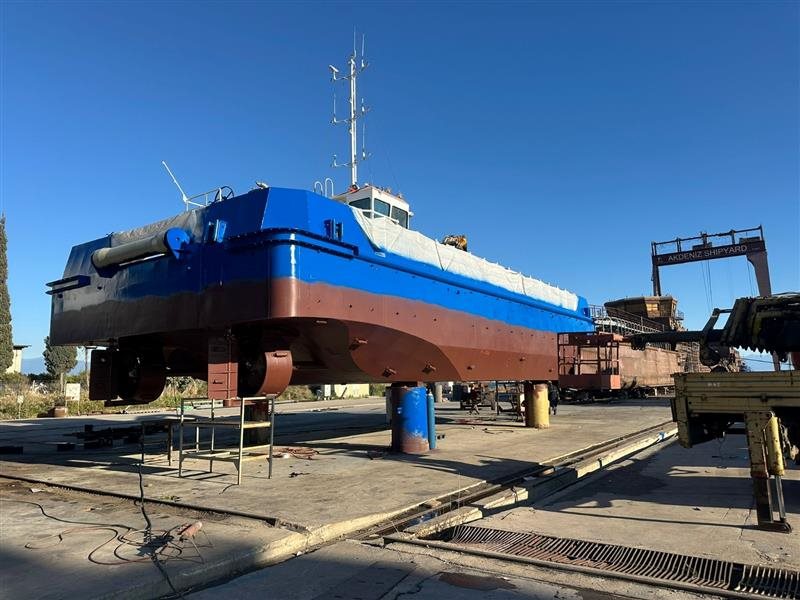

23.9m Multipurpose Work Boat for Sale (NB31)

Listing ID - 5084
Description	NB31 Multipurpose Work Boat for Sale
Length	23.90m (78ft 4.94in)
Beam	9.20m (30ft 2.25in)
Draft	2.25m (7ft 4.60in)
Note	Engine Power: 2 x 550 HP;
Location	Turkey
Broker	Georgi Savchev georgi.savchev@seaboatsbrokers.com +359 88 7228674
View As PDF

Length Over (LOA): 23.90m

LBP: 22.345m

Beam: 9.20m

Draft (for work): 1.90m

Draft (max): 2.25m

Depth: 3.150m

Speed: 9 Knots

Engine Power: 2 x 550 HP

Gen. Set: 2 x 77 kVA

Deck Load: 10 T/M2 FRIO-13 / 4 T/M2 Other

Environment Conditions: Sea water, temperature range from 0 degree Celsius +40 Degree Celsius Air, Temperature range from 0 degree Celsius +40 Degree Celsius

Number of Crew: 3/4/5 (three or four or five)

Navigation notation: Coastal Area

TANK CAPACITIES

The major thank capacities are:

Marine DO: about 40 m3

Cargo FW: 2 X about 20 m3

Ballast Water: about 70 m3

CABINS AND MESS ROOM

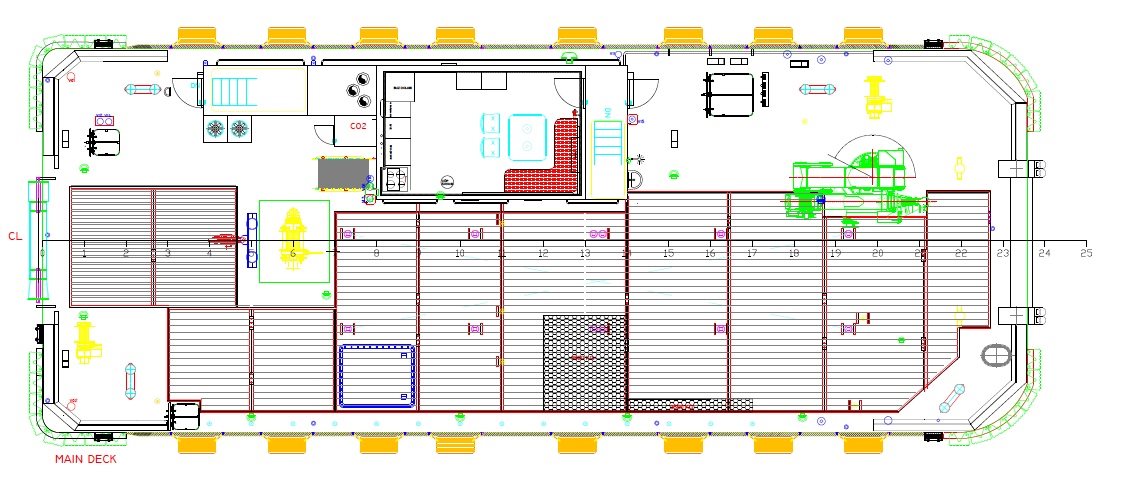

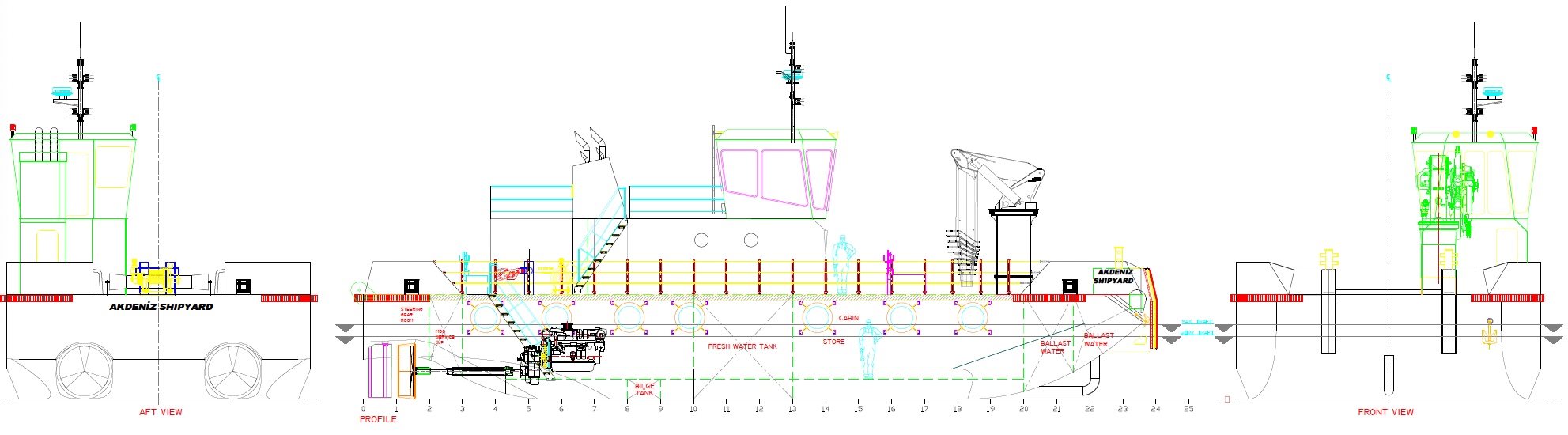

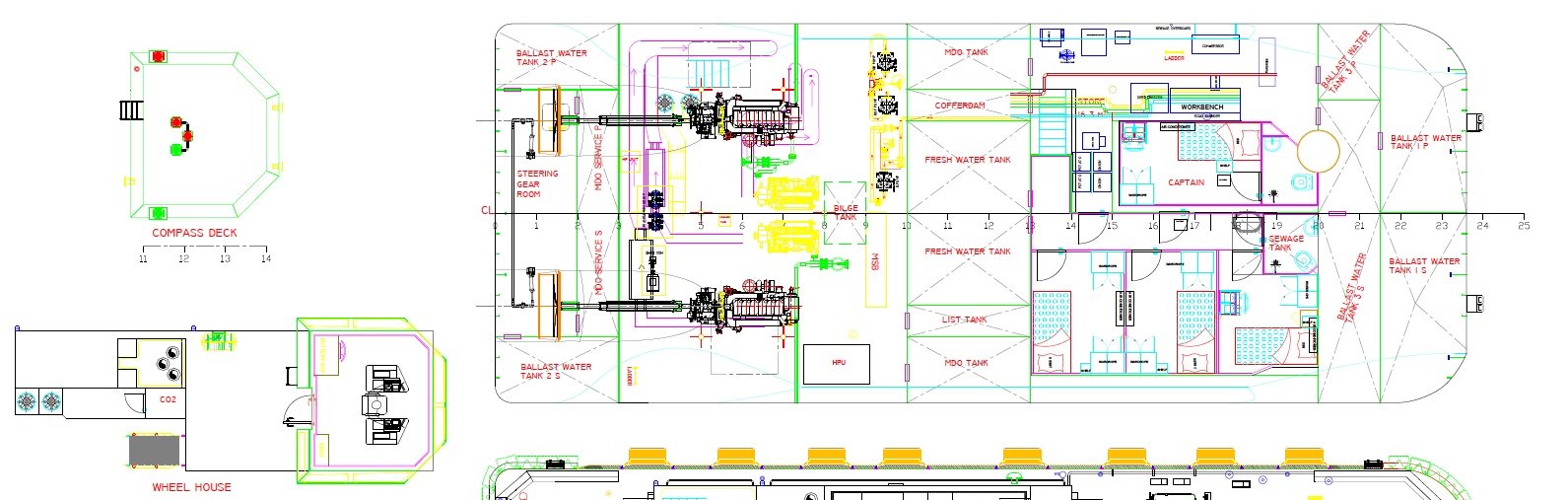

The accommodation will be arranged as shown on the GA

The accommodation area has 4 (four) cabins

1 (one) single cabin for the master,

1 (one) single cabin for the chief engineer,

1 (one) single cabin for 1 (one) crew

1 (one) double cabin for 2 (two) crew

2 (two) wet unit with shower to be installed at accommodation area as per GA.

All sleeping cabins will be separated by a wall with a door. Bed’s size is to be about 85 x 200cm.

All the above will be proper insulated from the hull and provided with air condition.

Also, there will be a mess room for personnel with a pantry.

All cabins & mess to be provided with TV antenna sockets

Flooring will be from non-slip marine mat.

PANTRY EQUIPMENT

The following equipment to be installed in the pantry. All will have the capacity for 6 (six) persons.

1. Electrical Baking Oven 1 (one)

2. Refrigerator 1 (one)

3. Dish Washing Machine 1 (one)

4. Coffee Machine 1 (one)

5. Sink with hot and cold-water tap 1 (one)

6. Induction Steel hob cooker with 2 (two) cooking places and with metal fixators in bad weather 1 (one)
