22m Workboat For Sale

Listing ID - 5534
Description	22m Workboat For Sale
Date Launched	2021
Length	22m (72ft 2in)
Beam	5.82m (19ft 1in)
Draft	1.85m (6ft 0.8in)
Note	Engine: Mitsubishi S4S-DT61SD
Location	Black Sea
Broker	Richard Pierrepont
Price	Euro 397,000
View As PDF

Built year / Place: 2021 / Bulgaria

Hull material: Steel

Flag: Bulgaria

Class Society and Notation: Local Class

Length Overall (m): 22

Breadth (m): 5.82m

Draft (m): 1.85

NT (tons): 16

GT (tons): 56

Machinery & Propulsion

Main Engine: Mitsubishi S4S-DT61SD

Alternator is ECP323S/4B; Power: 42.5 kVA (34 kW); Frequency 50 Hz @ 1500rpm; Rated voltage 3x 400/230 V.

Total power output (BHP): 480

Main Propulsion System: Propeller 4 blades

Auxiliary Engine: 1 X 40 KW, Mitsubishi @ 1500 rpm

Maximum Speed: 10 knots

Additional Information

Date keel laid: 2020 Delivered: 2021

Bow Thruster: Dual Propeller, 5.5 kW

Cargo on deck: 55 t

Clean deck cargo area: 55 sq m

Folding boom marine crane: 8 t/m

Cargo deck area dimensions: 5160 x 10540 mm Number of passengers and crew onboard: 12 persons /10 passengers and 2 crew

Fresh Water capacity: 60 cub m

Main activity of the boat is:

Fresh water supply to vessels

Crew changes to vessels and platforms

Technical and provision supply to vessels at and platforms- After mobilization of special equipment on deck, the boat is used for diving and underwater inspections.

Tanks are treated and painted with special paint for potable water tanks: SIGMAGUARDS CSF 85 WITH Sigma Ep Universal

Running hours of ME are: 2450 at 01.07.2025

Running hours of DG are: 2695 at 01.07.2025 primer.

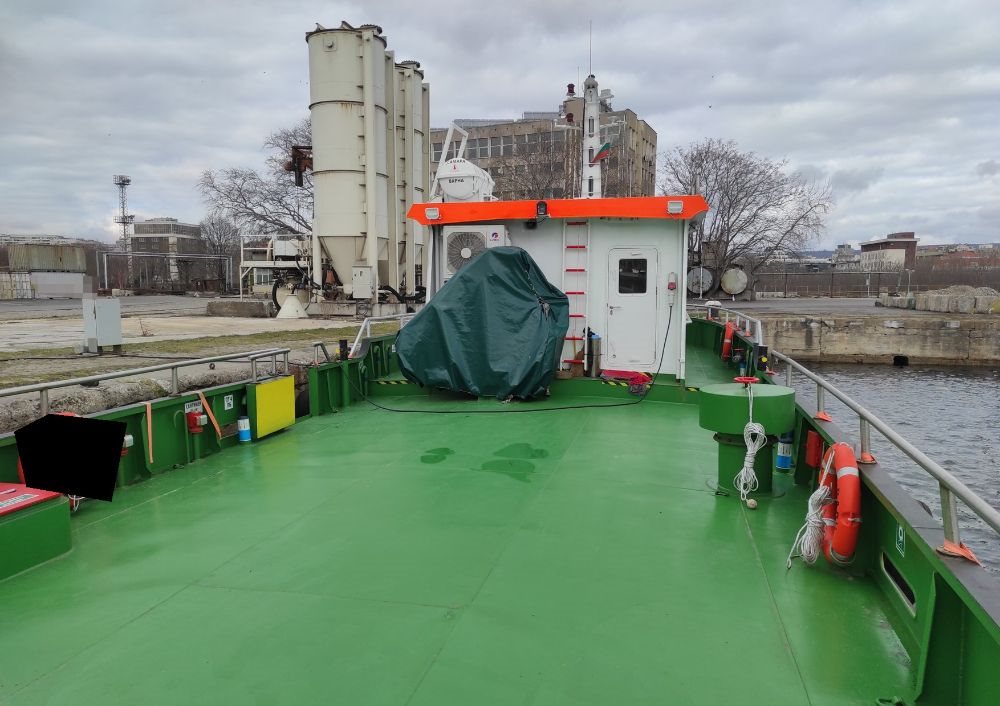

Clean cargo area on deck is 55 m2 with permissible cargo dock

In October, 2024 service boat passed its first special survey capacity on deck 55 tons.

During the dock all major works are caried out including:

On deck is installed folding boom marine crane with capacity of 8 blasting and painting of the hull with all new color as per t/m.

Specification and requirements of HEMPEL pain surveyor; changing of all sacrificial anodes.

Motor boat, fitted with one Doosan V158 TIH engine, V – type, 8 cylinders, turbocharged, intercooled with heavy duty rating, developing 480 HP at 1800 rpm.

Main engine is closed coupled to D-I marine gearbox type DMT 200H, with reduction ratio 3.08:1, that drives the propeller shaft.

Propeller is fixed with four blades.

Boat’s power is provided by one diesel generator set type: WM40MMAH, developing 40kVA/32kW@1500rpm.

For easy maneuvering, the boat is equipped with one bow thruster with Dual Propeller, 5.5 kW.

In addition to the technical details above, the service boat features a cabin with 3 berths and kitchen.

All machineries and equipment are newly installed and maintained as per Manufacturer’s instructions and recommendations.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
