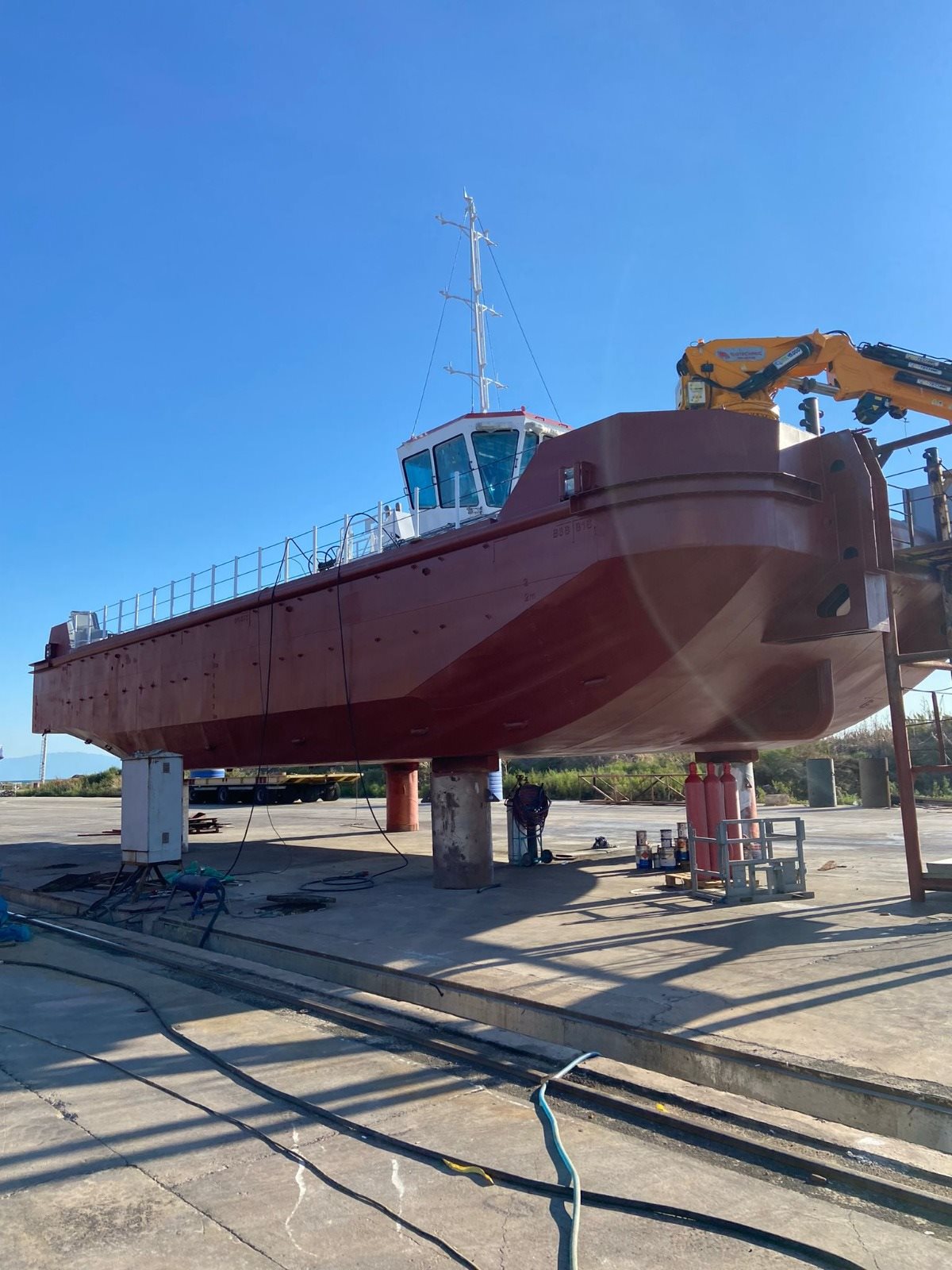

22m Multipurpose Work Boat for Sale


Listing ID - 5085


DescriptionNB32 Multipurpose Work Boat for Sale
Date Launched
2024 (Under Construction)
Length22.00m (72ft 2.14in)
Beam9.00m (29ft 6.33in)
Draft2.20m (7ft 2.61in)
NoteMain Engine: 2 x Doosan 550 HP @ 2100 RPM
LocationTurkey
BrokerGeorgi Savchev
georgi.savchev@seaboatsbrokers.com
+359 88 7228674
View As PDF

SPECIFICATIONS
Built: 2024 (under construction)
Class: BV, I ✠ Hull ● Mach, Special Service,  Multi-Purpose Work Boat,  Tug, Coastal Area, IWS
Construction: Marine Steel

MAIN DIMENSIONS
Length Overall: 22.00 m
Beam Overall: 9.00 m
Depth @ sides: 2.85 m
Draught (max): 2.20 m
Deck Workshop Area: ≈ 80 m²
Deck Load: 3 t / m²

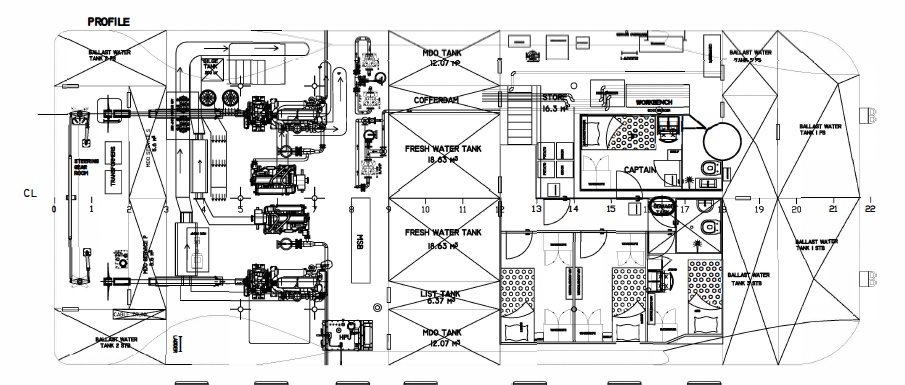

TANK CAPACITIES
MDO ≈ 34 m³
Cargo Fresh Water: 2 x ≈ 18 m³
Ballast Water: ≈ 48 m³
Sewage: ≈ 2 m³
Bilge: ≈ 0.6 m³

PERFORMANCES
Speed: 9 knots

ELECTRICAL SYSTEM
380 VAC 50 Hz – 220VAC 50 Hz & 24 VDC

PROPULSION SYSTEM
Main Engine: 2 x Doosan 550 HP @ 2100 RPM
Gearbox: 2 x Dong-I r ≈ 5,04:1
Propulsion: 2 x FPP, Ø ≈ 1250 mm
Bollard Pull: ≈ 13 ton
Electro-Hydraulic Steering Gear, DDS 2*550, 35°-0-35°

AUXILIARY SYSTEM
Auxiliary Genset: 2 x Doosan 77 kW
Air Compressor: 1 x DKC-200, 14 ½ m³ / h @ 8bar

DECK EQUIPMENT
Anchor: 2 x 210 kg VHHP
Anchor Winch: DTC2001 E/7, 1800Kg
Tugger Winch: DTC5000 HPL, Single drum, 5 T
Crane: 1 x TLG ≈ 105 T.m (Class load attestation)
Compliance for Carrying Dangerous Good
Suitable for 20’-Container on deck
Bencros Fenders

ACCOMMODATION
Comfortable AC accommodation
Cabins for 5 persons – 1 x Master, 2 x Single and 1 x Double,
Galley, Messroom, W/C-Shower
Fire & Safety as per rules, CO2 Fi-Fi Sys. for ER

NAVIGATION & COMMUNICATION
Koden: Marine Radar + GPS/GPS Compass + Chart Plotter + Echo Sounder
Sailor-VHF DSC (Class.A) + ICOM-VHF DSC (Class.D) + NAVTEX,
Jotron-Portable GMDSS + Victron Battery Charger + AIS + EPIRB + SART,
SIMRAD-Autopilot
Zenitel-Batteryless Telephone Sys. + Talk-Back Sys.
J.Lilley&Gillie-Magnetic Compass
CCTV w 4 camera


The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
