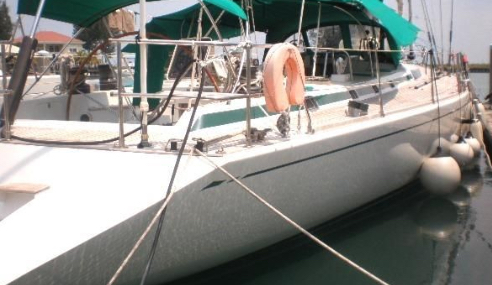

Built to R.I.N.A. 100A - 1.1 “Y” Classification. White painted aluminum hull, deck and superstructure, teak laid decks and teak foot rails all round. Teak laid to sole of both guest and steering cockpits. Teak covered seat tops in both cockpits. Forward of steering cockpit, large deck hatch access to engine room. Steering cockpit sole lifts to give access to generator. Hull extended to provide stern bathing platform. Fin keel. Lead ballast weight - 29,760lb / 13,500kg. Wheel steering.

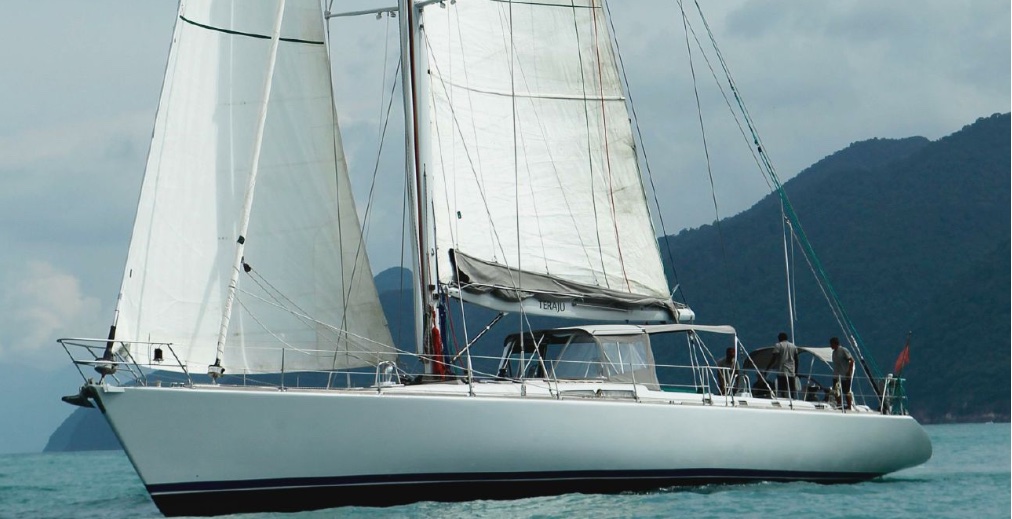

She is a classic beauty and she can be sailed easily around the blue oceans. She has undergone a major refit for world cruising with a new generator and watchmaker etc. She is priced to sell, bring all offers!



Type: Sail Boat

Class: Sloop

Model: Cassanelli Spa 75ft

Designer: A. Vallicelli & C.

Builder: Cassanelli

Year: 1995

Length: 22m

Beam: 5m

Displacement: 37,000 lb

Cabins: 3

Heads: 3

Mas Draft: 3m

Hull Material: Fiberglass

Hull Shape: Monohull

Fractional Shares: 1



1 Cummins 6BTA 5.9m

Type: Inboard

Fuel Type: Diesel

Hours: 360

Drive Type: Sail Drive

Power: 370hp

Propeller Type: 3 Blade

Cruising Speed: 8knots

Max Speed: 10knots

Small engine room accessible from deck and from the crew quarters

Mechanical Chain and Wire System

Autopilot with Hydraulic drive Propeller

Fix Prop – Three blade

Gearbox, ZF Marine 220V



Life Raft Capacity: 10



Fuel: 2000 gal-uk

Fresh Water: 1,200 gal-uk

Hot water 2 X 40 liters



Bimini top

Sprayhood

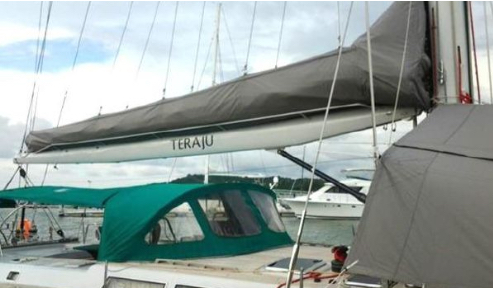

Mainsail cover

Lazy Bag

Cockpit cover

Lazy jacks



Shore power inlet

Generator

Inverter

Batteries, 8 x 24 volt 1200AH, 4 x 24 volt 200 AH, Voltage, 12 & 24 volt

Battery charger, Victron and Mastervolt

Shore power, 220v 50 amp



Depth sounder

Radar: Ray marine RD418HD

Wind Speed and Direction

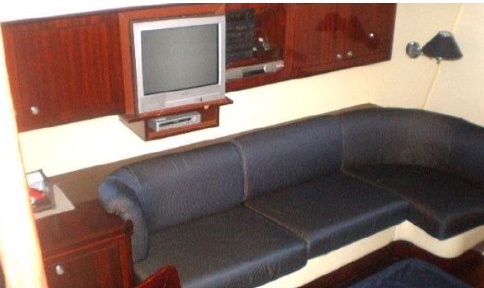

TV Set

DVD Player

Autopilot: Ray marine SPX30

Compass

CD Player

GPS and Plotter: Ray marine E120W chart plotter in steering cockpit

Cockpit Speakers

VHF

Radios, Ray 55E VHF Radio, Icom IC-M600-MRC SSB

Ray marine ST70 Plus Multifunction display in navigation area 3 x ST60plus – wind, depth and

speed in steering cockpit



Bow Thruster

Electric Bilge Pump

Oven

Microwave Oven

Marine Head

Air Conditioning

Hot Water

Refrigerator

Fresh Water Maker

Deep Freezer

Sea Water Pump

Battery Charger

Sea fresh Water maker at 100 liters per hour

Condaria Air conditioning throughout boat



Teak Cockpit

Cockpit Shower

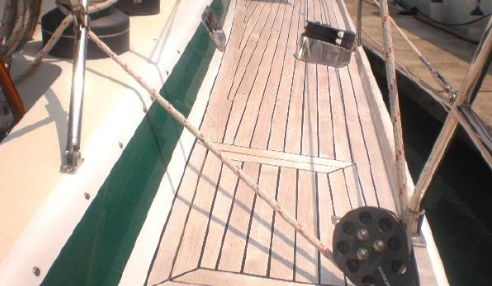

Teak Side decks

Radar Reflector

Tender

Life raft

Cockpit Cushions

Cockpit Table

Swimming Ladder



Dinghy, EMC MX340RIB Rigid Inflatable Boat, Yamaha 15 HP

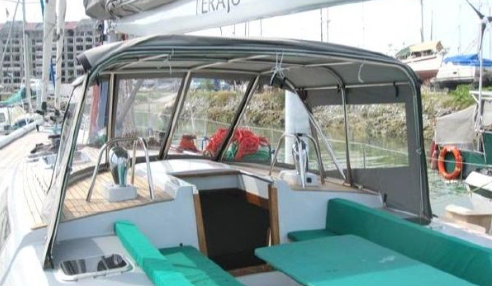

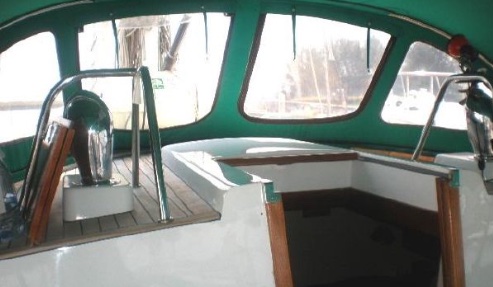

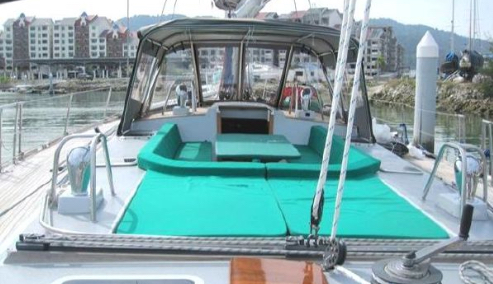

Covers, Blue Bimini cloth covered cushions and backrests in guest and steering cockpit SS frame and Bimini covered awning in guest and steering cockpit

Others

Teak cockpit table with extension

2 lifebuoys with lights

Whip aerial for SSB astern to starboard quarter

4 small deck floodlights mounted on each lower mast spreader



Electric Winch

Spinnaker Pole

Hydraulic Winch



Battened Mainsail

Gennaker/Cruising Spinnaker

Genoa

Sailing instruments

New Quantum Dacron mainsail, genoa (150 % high cut) and Staysail installed May 2011 One Gennaker and One Symmetric spinnaker

Spars

Cariboni white painted aluminum main mast with 3 spreader rig fitted Cariboni white painted aluminum boom fitted for slab reefing with lock cam wheels at the forward end and lazy jacks. Sail stowing rails supported on integral struts, the bases of which screwed to the boom. Carbon fiber spinnaker pole.

Cariboni hydraulic vang.

Standing and Rigging

Rigging comprised of double lowers, cap shrouds, D2’s D3’s

Forestay

Inner forestay

Single Standing Backstay and single runners, no check stays

Cariboni hydraulic backstay tensioner.

Navtec hydraulic back stay and boom vang control box.

All rigging is stainless steel including runners

Turn buckles have bronze barrels and stainless steel screws.

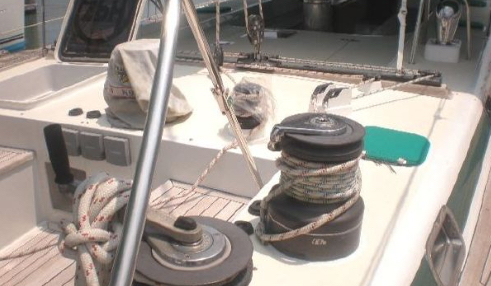

All Harken;

2 x 98.2ST electric – primaries

2 x 66.2ST aft winches for runners

1 x 66.2ST electric for main sheet

1 x 32ST for main sheet positioning

1 x 56.2ST electric for main halyard

1 x 56.2ST for staysail halyard

1 x 56.2ST for main sail outhaul

1 x 56.2ST for spinnaker or general halyard Furling Gear

Harken Manual Furling Genoa and Staysail



Construction aluminum teak deck

Hull color white

Extended stern bathing platform

Fin keel, lead ballast weight - 29.70lb/ 13.500 kgs

Wheel steering



Steering system

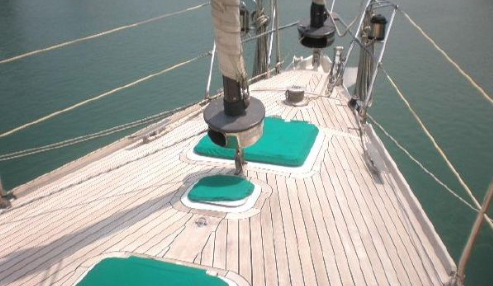

Deck Hatches (All Goiot Crystal):

1 x Large and 1 x medium hatch on foredeck

2 x medium hatches forward of staysail track

4 x medium hatches aft of mast

4 x small on guest cockpit in coaming

2 x Small in front of steering cockpit

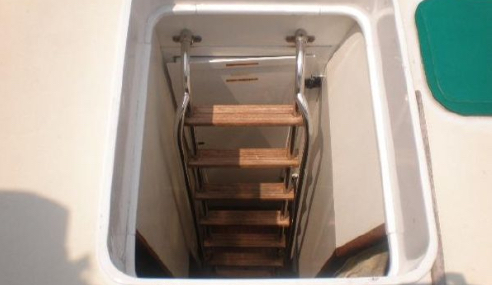

1 x Large into aft crew accommodation

8 x openings portholes on side of coamings, providing ventilation to aft accommodation

Harken main sheet track and cars

Harken staysail track and car

Halyard Rope clutch to starboard of mast

5 x Dorade ventilators with ss protection bars

2 x mushroom ventilators

Tapered ss tube stanchions with opening gate to port, starboard an aft Sockets on starboard side deck for boarding ladder



Winch/Chains

Lofrans Titan A with 100 meters galvanized chain

Anchors, 105 lb. CQR Anchor



9 Berths Total

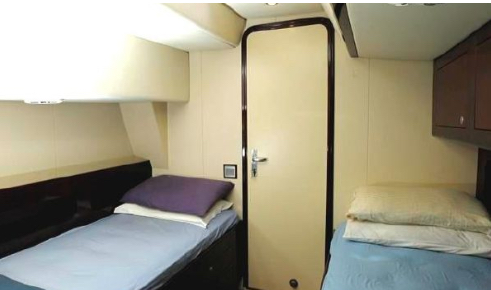

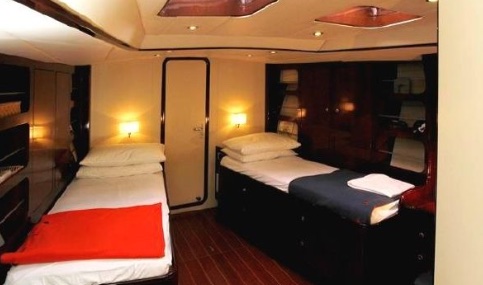

Cabins

I master cabin, 2 guest and 1 crew cabin

Fit out-joinery

Full Gloss Mahogany with Teak and Holly soles in cabin area

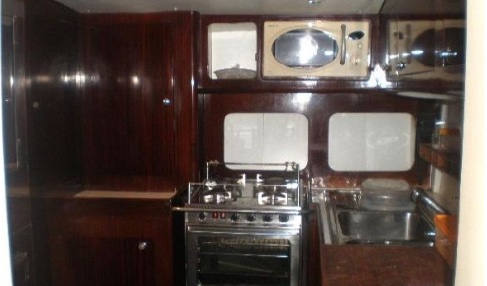

Galley

Double Stainless Steel Sink and drainer

Alpes Stainless steel cooker with 4 burners and oven

2 Stainless Steel refrigerators

2 Stainless steel freezers

Microwave

Worktops in Formica and a large beech chopping board



2 x Sanguineti Chiavari electric flush toilets

2 x Manual flush toilets

5 x showers



Life Raft: 10 men Epirb

Lifejackets: 10 sets Flares

Gas detector

Fire Extinguisher: 6 sets in main salon

Compass: Magnetic steering compass in binnacle
