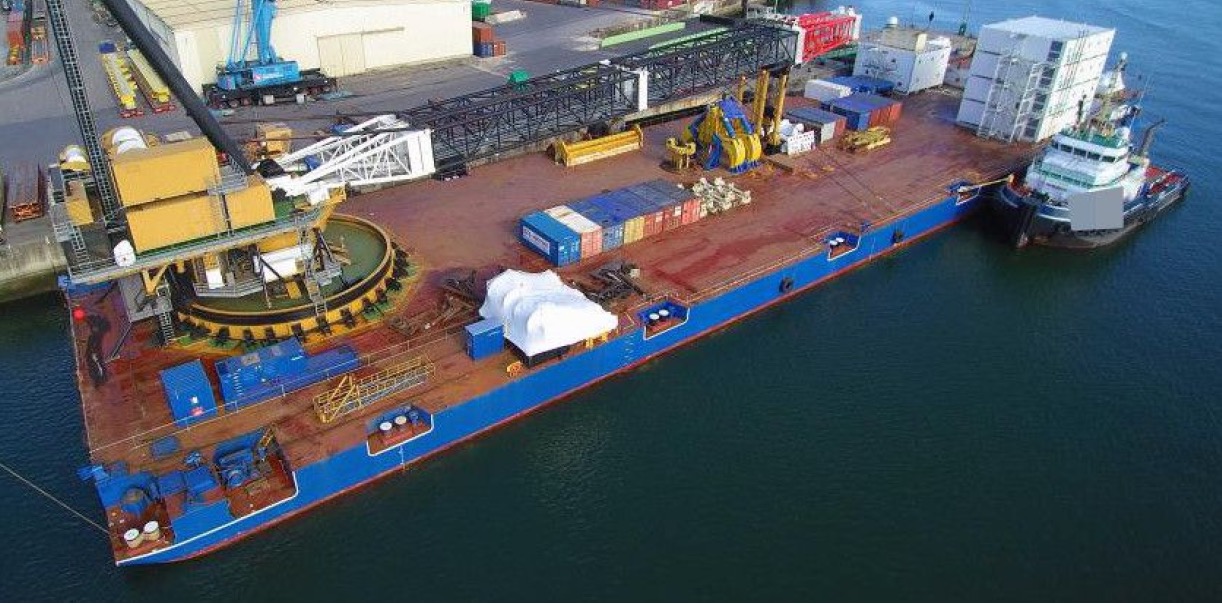

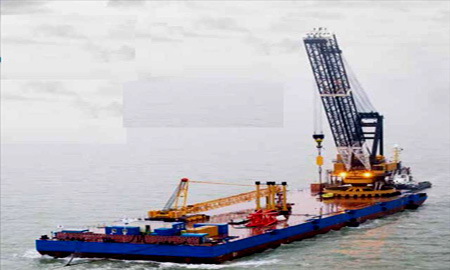

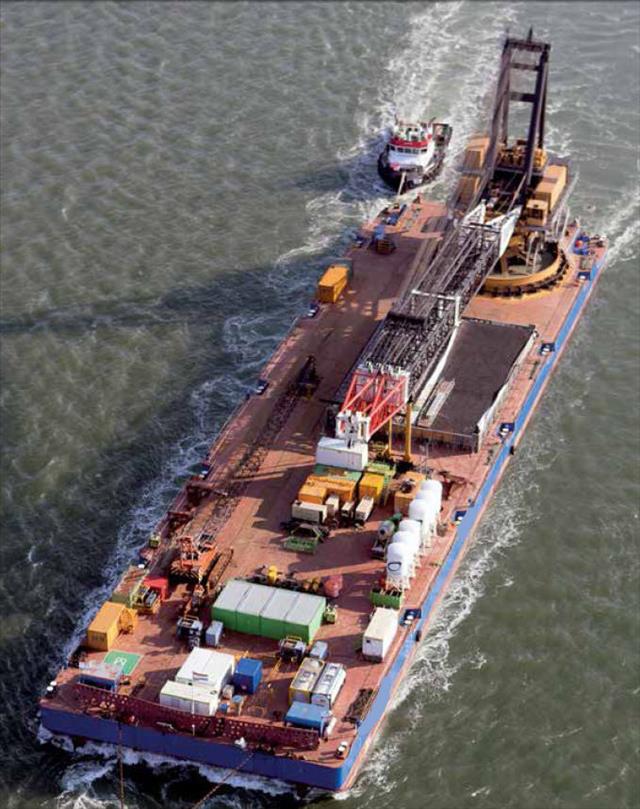

136m Heavy Lift Crane Barge For Charter

Listing ID - 590605
Description	136m Heavy Lift Crane Barge For Charter
Date Launched	2009
Length	136.00m (446ft)
Beam	36.00m (118ft)
Draft	8.00m (26ft)
Location	Mediterranean
Broker	Peter Cookson peter.cookson@seaboatsbrokers.com +61 429 543 180
View As PDF

Built: 2012, Netherlands

Hull material: Steel

Flag: Netherlands

Class Society and Notation RINA unrestricted

PRINCIPLE DIMENSIONS

Length Overall: 136.00 m

Breadth: 36.00 m

Depth: 8.00 m

Draft: 4.50 m

NT: 3747 tons

GT: 12491 tons

DWT: 18000 tons

CARGO AND TANKS CAPACITIES

Deck Area (m2) 4900 m2

Deck Load (tons/m2) 10000 tons/m2

ADDITIONAL INFORMATION

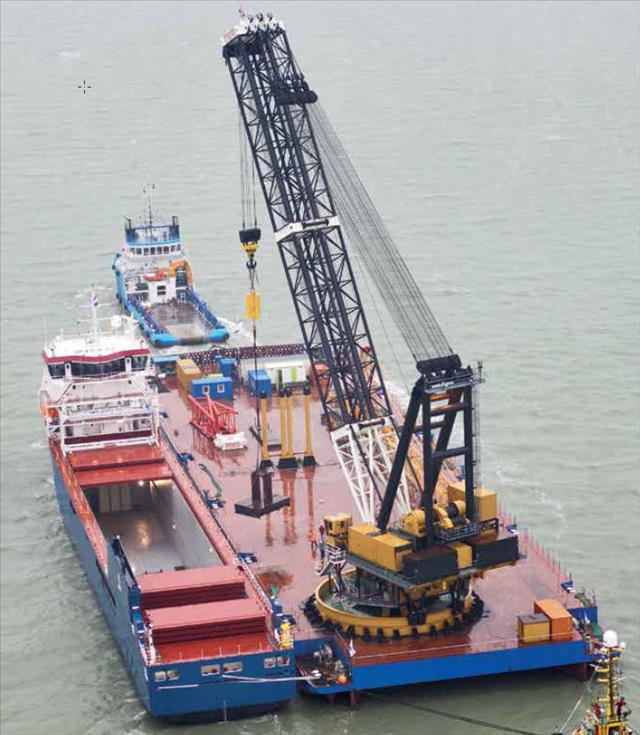

GENERAL DATA ON CRANE

Marine Crane on a pedestal foundation

Boom length 75m (246ft) runner/auxiliary hoist - 63m (207ft) heavy duty double boom

POWER UNITS FOR CRANE

Main power unit 2 x D3508 Caterpillar diesel - Power 2 x 1,100 kVA

Auxiliary engine(s) Cummins 415 V/3/50 Hz 1500 rpm

WIRES

All wires new certified and with Class certificates

Boom hoist wire 44 mm, 2 x 1600 m - Main hook wire 44 mm, 2 x 1600 m

Auxiliary hook wire4 4 mm, 1 x 800 m - Runner hoist wire 30 mm, 1 x 400 m - Lifting speed Up to 1.5 m/s (depend on reeving)

CARGO, TANKS CAPACITIES & RANGE AT SEA

Free deck space (m2) 3,700 m2 -Deck Strength (tons/m2) 20 ton/m2

Towing bracket (tons) 200 ton - Fuel tanks capacity 10,000 litres

Fresh Water tanks capacity Nil - Ballast tanks capacity about 9000 m3/hour

Lifting capacities 1400 tons main hoist with 63 m boom - 150 tons runner hoist with 75 m boom - Line pull 44 ton

DECK AND TOWING, LIFTING, MOORING EQUIPMENT

8 x Anchor 8000 kg Flipper Delta - 20 x Anchor chain 52mm,27.5m

Towing arrangement 2 chains, delta plate, wire - 1 x Automatic ballast (anti-heeling)

2x 800 m3/h, 4 x 1000 m3/h and 2x 2000 m3/h - 2 x Winches 630 kW for main hoist - 8 x Swing system 22 kW motors operated through

2x2x2x2 left-right switch basis - Swing speed 1 deg./second, 6 min full

revolving

AUXILIARY EQUIPMENT

Main generator 1.500 kVA, 50 Hz, 3 phase, Emergency generator 50 kVA, 50 Hz, 3 phase - Deck crane 150-300 ton crawler crane

ACCOMMODATION: Currently only for crew - more (up to 120) on request

OTHER DETAILS

Length: 446 ft, Breadth:118 ft, Depth:26 ft, Operating draft:11 ft

Construction weight (tons) 8000 tons
