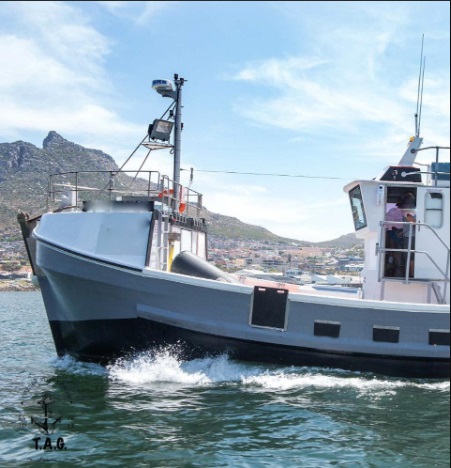

12.20m Small Fiberglass Tuna Fishing Boat

Listing ID - 3695
Description	12.20m Small Fiberglass Tuna Fishing Boat
Date Launched	1974
Length	12.20m (40ft)
Beam	5.50m (18ft)
Location	South Africa
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	POA
View As PDF

Year of Build: 1974

Conversion/Upgrade: 2019/2020

Length Registered: 12.20m

Breadth: 5.50m

Depth in Hold: 1.60m

Tonnage Gross: Under 25 tonnes

Number of Crew: Thirteen (13)

Hull External

Material & Type of Construction

GRP hull with raked stem, transom stern, one deck, whaleback forward and wheelhouse aft

Type of Propeller: 3Blade bronze fixed pitch. The shaft was withdrawn for survey by SAMSA in December 2019.

Type of Rudder: Semi-balanced, bush on the shaft, pintle in skeg. The rudder was dropped for survey by SAMSA in December 2019.

Propulsion Nozzle: No

Subdivisions: Four (4) transverse.

Watertight Bulkheads: Three (3).

Hull Internal

Deck Shelter Type & Condition: No deck shelter.

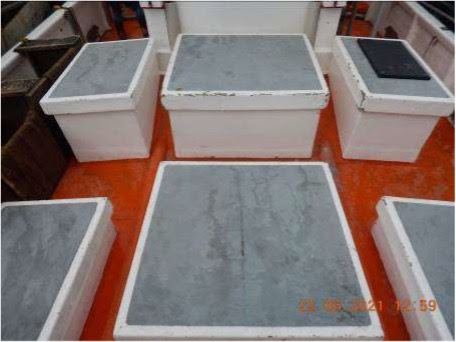

Fish Holds: Six (6) small holds suitable for slurry ice and with individual pumps, new piping installed. One (1) x baits hold.

Deck Machinery

Type of Main Winches: None. The vessel has two anchors, ropes and a parachute anchor – all deployed and recovered by hand.

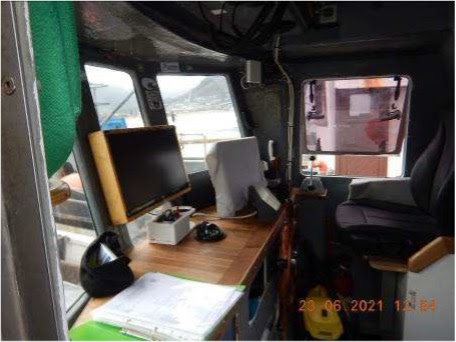

Wheelhouse

External Navigation Equipment Condition

All external navigation equipment has been replaced in 2019.

Life Rafts Type: VIKING DK+ 16-man

The vessel is currently equipped with the following fishing, communication and navigation equipment (mostly new in 2019):

Radar: SITEX T-760

Plotter/Echo Sounder: SITEX SVS1010 Series Plotter – SITEX

Explorer NAVPRO

VMS: KAVICOMM HYTERA VHF - ICOM IC-M412

Autopilot: FURUNO FAP300 Sonar - FURUNO CSH5L

Magnetic Compass: Ritchie Power damp AIS – ICOM MA 500 TR Class B

MF/HF: ICOM IC-M710

Inverter: VICTRON PHOENIX 24V 3000 VA EPIRB – ACR GLOBALFIX V4

SART

Seawater Temperature: SITEX SST-110 VHF handheld

AIS/DSC Radio: SITEX METADATA MDA-4 (VHF) FM Radio – FUSION MS RA70N

CCTV: HKVISION, 2 cameras and display for engine room engine control panel

Battery Chargers: VICTRON ENERGY CENTAUR 24V AMP, 2 x ORION (VICTRON) 24V DC/12

Gas Installation

Location of Cylinders: Two (2) x 19 Kg bottles on top of Monkey Island.

Accommodation Space/s

Number of Berths

The vessel has twelve (12) berths consisting of:

Skipper’s cabin: Three (3) bunks abaft wheelhouse with en-suite toilet and shower; and AIM microwave and kettle.

Nine (9) bunks in focsle

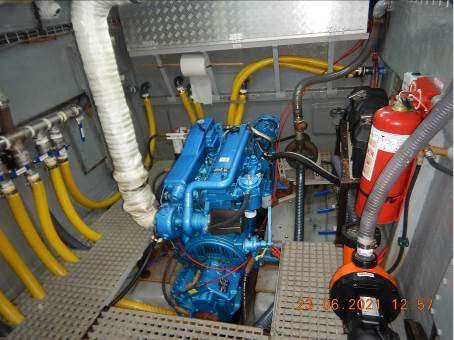

Main Engine

Maker: John Deere

Type: 6068 TFM 50 (6.8 litres).

Year: New installed in December 2019.

Power: About 115 kW.

Running Hours: 1,334.6 hours

Main Gearbox

Maker: ZF.

Type: ZF 220

Year: New installed in December 2019

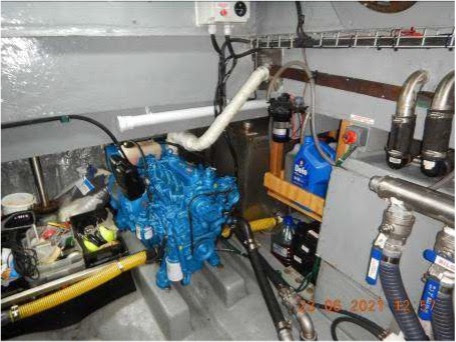

Auxiliary Engine

Maker: NANNI

Type: QMSION 4-cylinder

Year: New installed in December 2019

Running Hours

451.5 hours

General Remarks

Drives a MECCALTE type NPE 32-C/4 11.7

KVA 220 V single-phase alternator new in 2019

Fuel Tanks

Service Tank Location: Port and starboard engine room

Centrifuge Fitted: No VETUS filters

Steering Gear

Type: Single ram hydraulic.

Bilge and Seawater System

Details of Bilge Pumps Available

One (1) x Bronze pump belt-driven

One (1) x SPECK 220 V (2100) electric pump

Workspace Pump Details

One (1) x SPECK 220 V (1500) pump

Electrical System

Voltages: 220 V 50 Hz Single phase AC - 24 V DC

Number and Type of Batteries/Location

Two (2) x 12 V FULMEN batteries on Monkey Island

Three (3) x 12 V batteries in the engine room

Six (6) x 12 V FULMEN batteries in the engine room
