Builder: Ananda Shipyard & Slipways Ltd. Dhaka. Bangladesh.



Class: Germanischer Lloyd, GL-Reg. – 114270

GL ?100 A5 ‘G’ ‘E3’ ?MC AUT 24 ‘E3’

Equipped for Carriage of Containers

Strengthened for Heavy Cargo

SOLAS II-2-Reg. 19



Flag: GIBRALTAR

Call Sign: ZDK U9, MMSI NO.: 236 111 816

(Certificate of Compliance for See-BG)



Complements: 11 person



Radio Communication Equipment

Communication equipments are in accordance with the

GMDSS areas A1, A2 and A3.



Type:

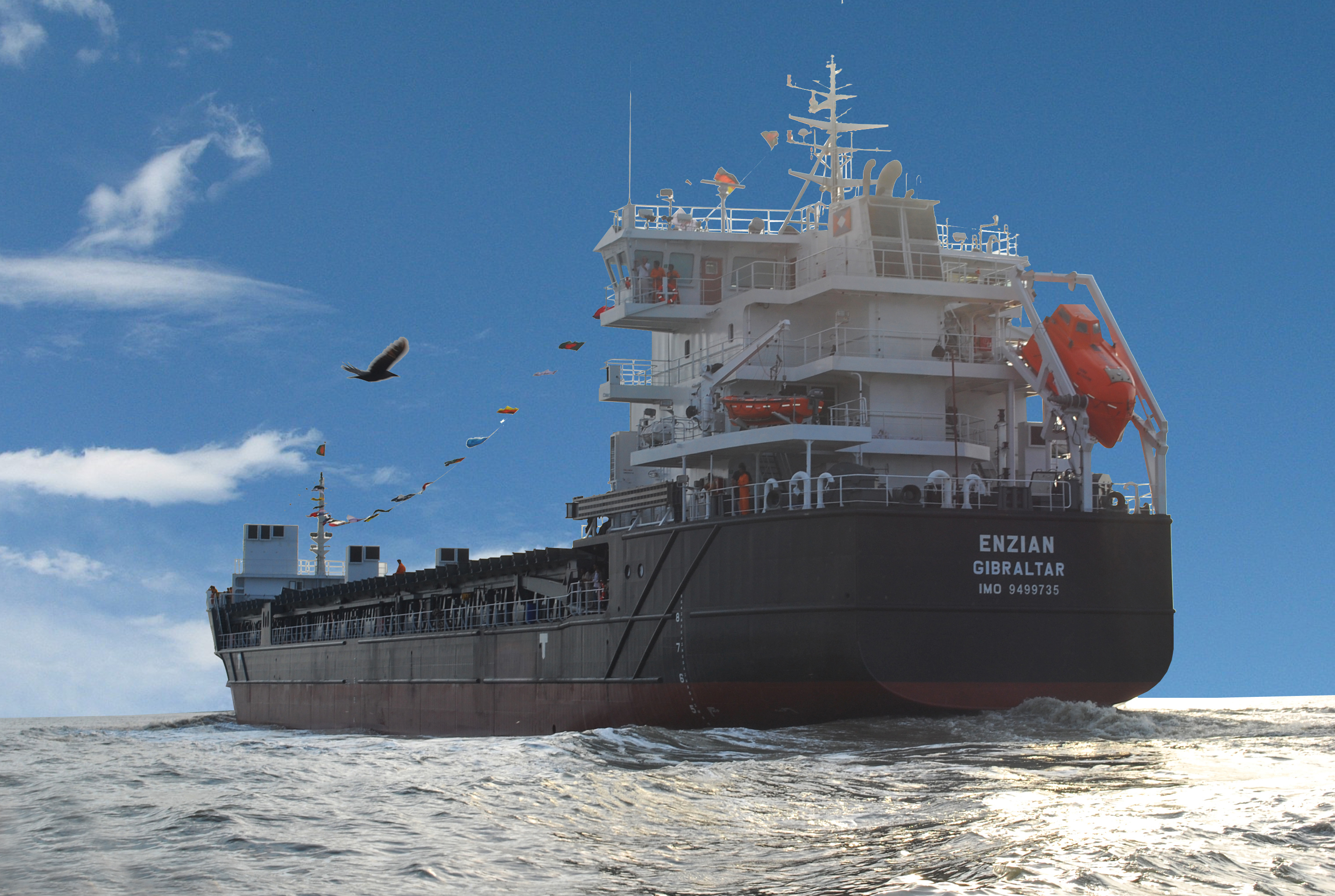

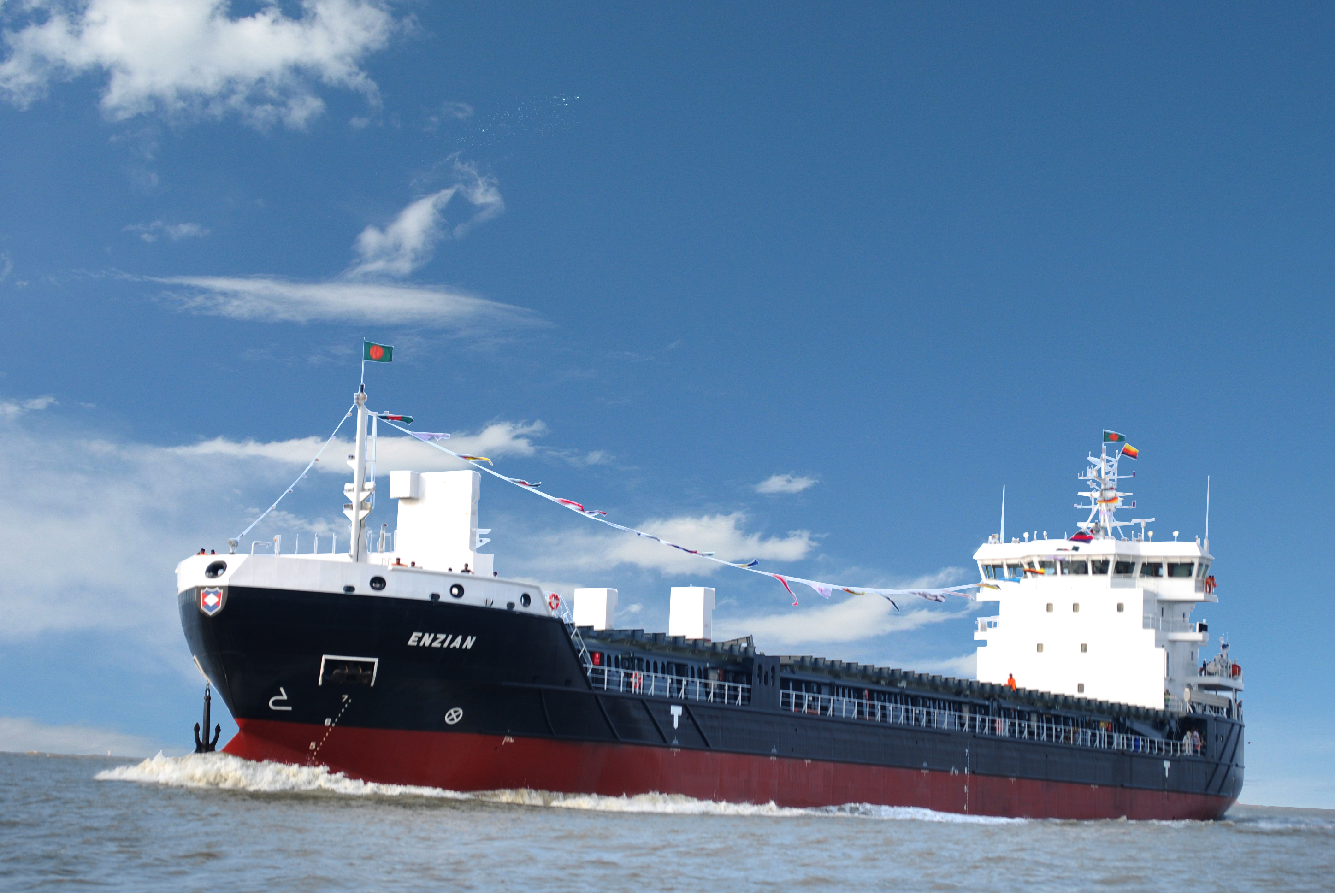

Single screw general cargo / container vessel for worldwide trade.



Principle Particulars

Length overall: 110.9m (363ft 10in)

Length between PP: 106.9m (350ft 8in)

Breadth moulded: 16.5m (54ft 1in)

Dept moulded to main deck: 8.2m (26ft 10in)

Draught summer: 6m (19ft 8in)

Speed: 12.50 knots



Tonnage

DWT: 6069 MT GT/NT: 4966 / 2441



Container capacity

In hold: 159 TEU & On hatch cover 174 TEU

Total capacity 333 TEU



Hold Volume

Hold 1 – Size 51100 x 13500 x 9050 mm

Volm – 6240m3 (220200 cft)

Hold 2 – Size 20300 x 13500 x 9050 mm

Volm – 2400m3 (84700 cft)



Timber Carrying

Total 88 nos. Timber stanchions of 3.95m height, fitted over

the full length of the Hatch Covers on both PS & SB side



Bunker Capacity

HFO – 235 MT, MGO – 63 MT



Freshwater Capacity: 85 MT



Main Engine:

Wärtsilä – In-Line 9L26, 3060 KW @ 1000 RPM,

Clockwise

At 100% rated power fuel oil consumption is 528 Kg./hr



Reduction Gear:

Wärtsilä – SCV75-P48

Ratio (Propeller) – 1: 5.600, Ratio (PTO) - 1.516:1



CP Propeller:

Wärtsilä – 4D1000, Dia. – 3600 mm, Pitch – 2652mm



Main Generators: 2 Nos.

Diesel Engine – MAN – Netzfahrzeuge AG

Type – D 2876 LE 301, 345 KW @1500 RPM

Alternator – Leroy Somer

Type – LSAM 47.2 S5, 280 KW, 400V, 50Hz



Harbour/Emergency Generator:

Diesel Engine – MAN – Netzfahrzeuge AG

Type – D 0824 LE 201, 95 KW @1500 RPM

Alternator – Leroy Somer

Type – LSAM 44.2 VS3, 64 KW, 400V, 50Hz



Shaft Generator:

Alternator Type: Leroy Somer- ME PTO driven – 500 KW



Steering Gear:

HATLAPA, Germany

Rotary Vane type - HTV 230-45°, 128 kNm



Rudder:

BECKER Flap Rudder – SC-2250/410 K.2, Area – 8.5m2



Bow Thruster:

JASTRAM – BU 60 F, Power – 450 kW



Thermal Oil Heater:

AALBORG – HT-0-TFO-005, Capacity – 500 kW



Air Condition, Ventilation & Heating:

De Haan. B. V. , Netherland



Hatch Covers

MacGREGOR (FIN) OY

Electro-hydraulic actuated and transversally folded type

weather tight steel hatch covers with flat top.
