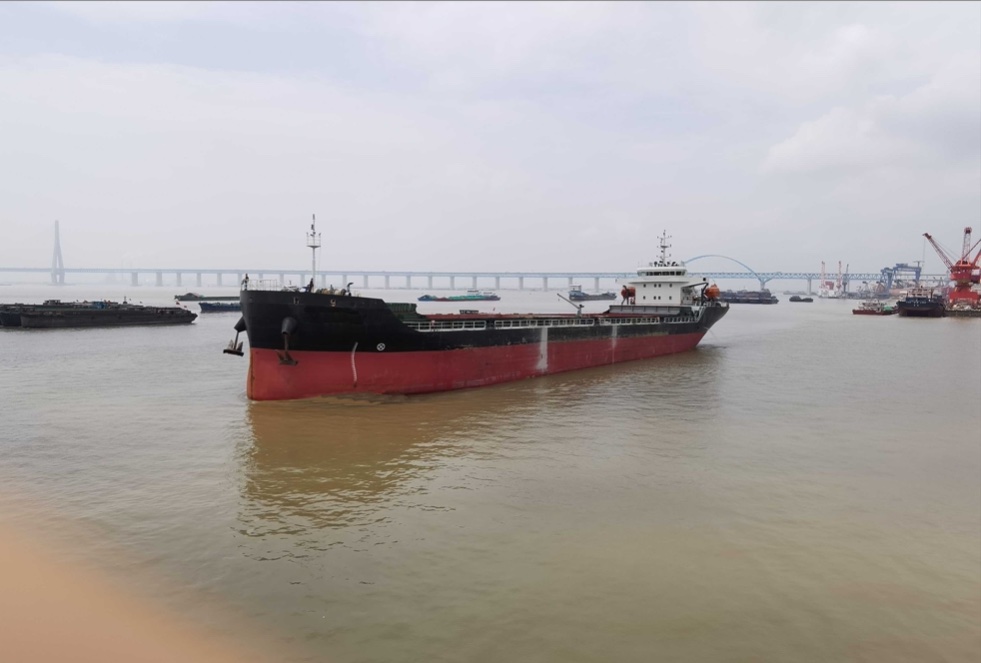

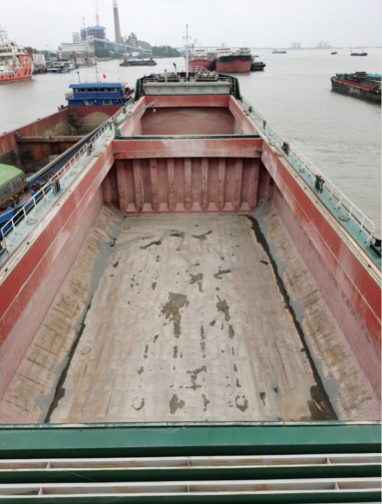

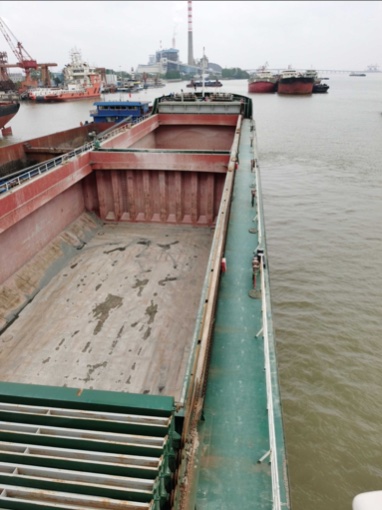

This ship is a bulk carrier with a stern model, vertical bow column, single engine, single propeller, single rudder, and diesel engine propulsion. The ship has a first floor, a poop and a three‐story deckhouse. The cargo hold area is a double‐bottom double‐hull longitudinal frame structure, and the bow and stern tip cabins are single‐bottomed. Single‐shell transverse frame structure, and the nacelle is a double bottom longitudinal frame structure. The ship is navigable in the coastal.



Built: June 2020

Class: China Classification Society 2018

Total Length: 109.80m

Waterline Length: 109.80m

Length Between Perpendiculars: 107.36m

Width: 21m

Depth: 8.43m

Designed DWT: 9805t

Max Full Load: 13000T

Design Draft: 6.50m

Rib Distance: 0.60m

GT: 5967

NT: 3341

Beam Arch: 0.3m

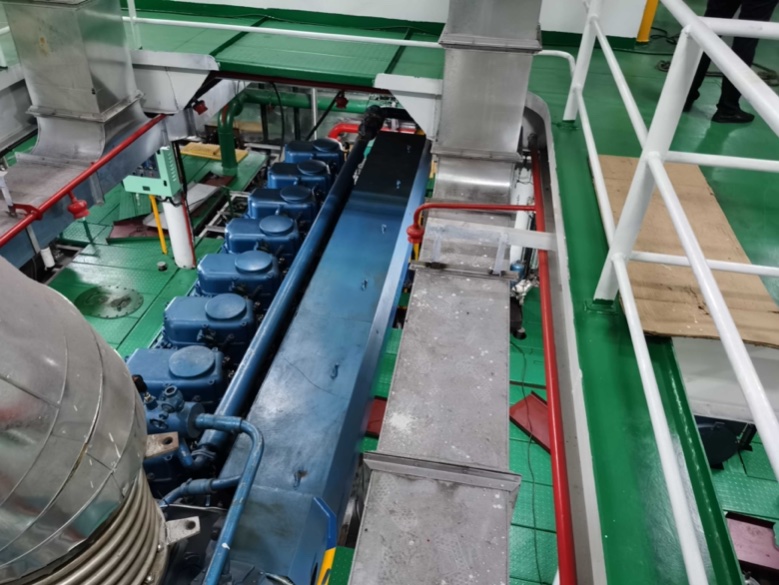

Main Engine: 3000hp (Guangzhou diesel engine)

Host Machine: 6320ZCd-6,1 tower

Rated Power: 1545kW

Change Speed: 525 r/min

Gearbox: GWC49.54

Speed Compare: i=3.45:1

First Side Push: 6170ZC480-2

Continuous Power: 353kW



Crew Member: 13 people

Crew Room: 6

Kitchen

Dining Room

Battery Room

Bathroom

Laundry Room

Drying Room

Dressing Room

Dry food warehouse

Engine room shed

Stairway

Captain’s Deckhouse

Driving deck house



Windlass: 2 Taiwan with 3330 kg

Spike Anchor: 3 only (GB/T546-1997)

Spare: 1 only

Stable Welding Chain: 495m



Mooring Line: equipped Ø45 Eight‐strand polypropylene rope (minimum breaking force 264 KN)4 root,180 m/ Root

Tow Line: with 6V × 37S – 32 – 1670(Breaking strength 685KN)1 root, 200 m/Root

Tail Winch: equipped with double drum mooring winch 1 tower



Own ship design 1 Only streamline balanced rudder

Single rudder blade area: A = 12.152m2, Balance factor 0.25

Servo selection1 tower 100 KN.m

Fork‐pull hydraulic steering gear



Life Jacket (with life jacket light): 18 pcs

Life Jacket: 13 pcs

Lifebuoy with self-lighting light: 5 only

Lifebuoy with lifeline: 3 only

Lifebuoy with self-lighting light and self-producing smoke signal: 2 only

Fully enclosed lifeboat (15 people): 2 only

Pilot Ladder: 2 only

Life-saving rope thrower: 18 pcs

Rocket Parachute Signal: 13 pcs

15 Self-supporting official life raft: 5 only

Boarding Ladder: 3 only

Emergency escape breathing device: 2 only

Inverted arm davit: 2 only



Fire extinguishing system

C Fire extinguishing system

Fire pumps

Emergency fire pump room

Portable foam fire extinguisher: 1 set

45L Hand push foam fire extinguisher: 1 individual

Fire Hydrant: 13 only

5KgCO2 Fire Extinguisher: 2 individuals

Fire hose and box: 13 set

Firefighter Outfit: 2 set

9L Foam fire extinguisher: 14 individual

6Kg Dry powder fire extinguisher: 7 individual



Starboard Light: 1

Port Light: 1

Masthead Light: 2

Stern Light: 1

Anchor Light: 2

Semaphore: 4 cups (1 white, 2 red, 1 green)

Out of control light: 2 cups (2 red)

Morse Lamp: 1 flash 3 cups (1 white, 1 green, 1 red)

Portable daylight communication flash: 1 and 2 only

Spare Bulb

Big Flute: 1

Large Model Clock: 1

Large Sphere: 3

Chinese Flag: (4 No) 4 face

International signal flag is small: 2 no 2 set

Hand Flag: 1 vice

Horn Gong: 1 individual



Portable VHF radiotelephone: 3 set

VHF radiotelephone: 1 set



Navigation Equipment
Medium and high frequency radio station 1 set

Naftes receiver 1 set Emergency satellite beacon 1 only

Search and rescue radar transponder: 2 only

Radio Socket: 3 only

Rudder Angle Indicator System: 1 set

Tail shaft tachometer system: 1 set

Radar System: 1 set

Echo Sounder System: 1 set

GPS: 1 set

AIS Automatic identification system: 1 Set of fog

Whistle: 1 only

Steering magnetic compass: 1 tower

Rain and snow remover: 1 tower

Electronic Chart: 1 set

Autopilot: 1 set

Gyro Compass: 1 set
