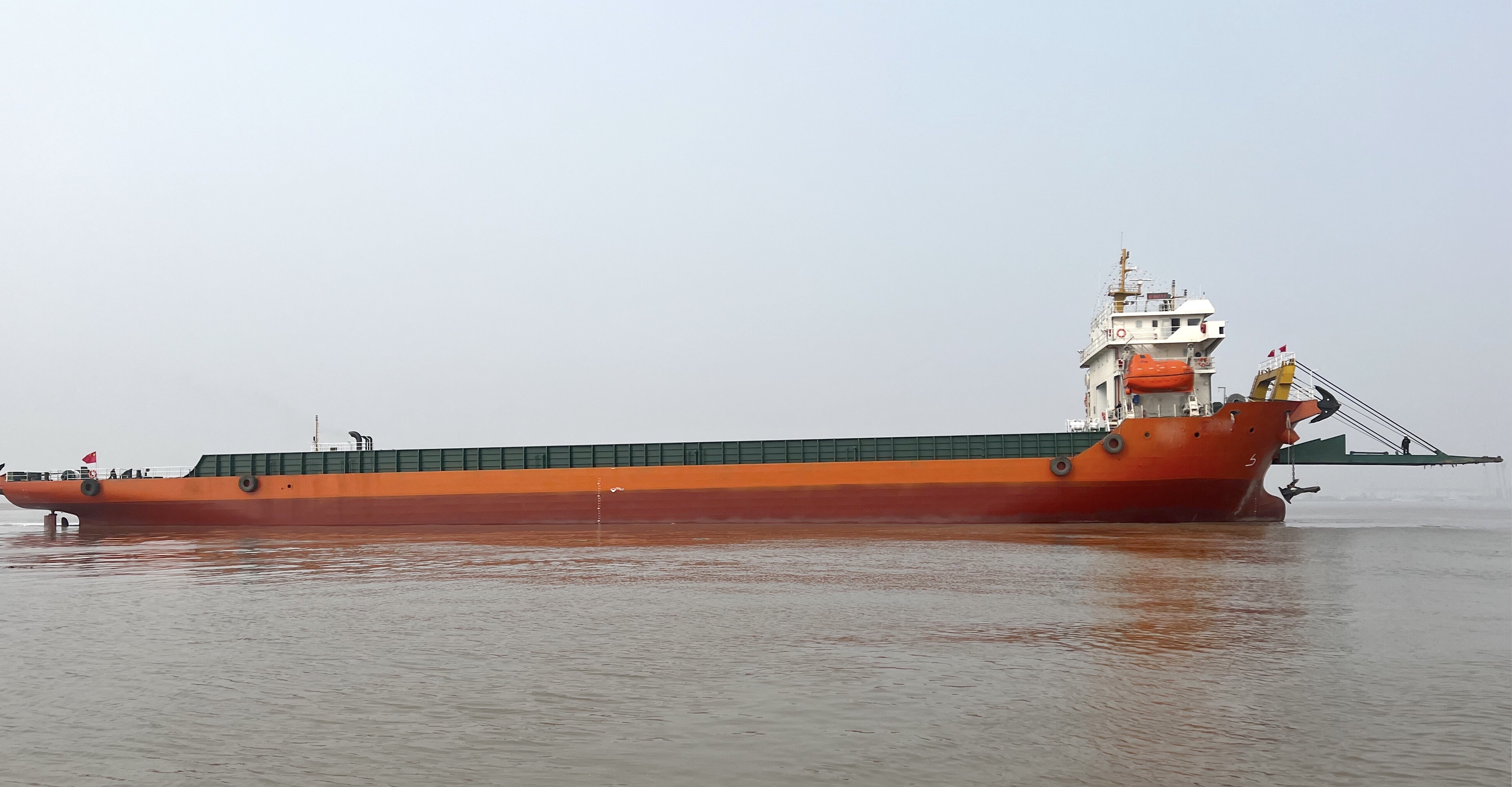

109.69m Multifunctional LCT Transport Barge


Listing ID - 3969


Description109.69m Multifunctional LCT Transport Barge
Date Launched
2022
Length109.69m (359ft 10in)
Beam22m (72ft 2in)
Draft4.5m (14ft 9in)
Note9184.700t
LocationChina
BrokerIvan Colaco
ivan.colaco@seaboatsbrokers.com
+61 401 695 814
PriceUSD 3.6 million
View As PDF

276TEU
Built: 2022
Class: China ZC
Flag: China
LOA: 109.69m
LWL: 106.51m
LPP: 104.22m
Width: 22m
Deep: 6.25m
Beam: 22m
Depth: 6.25m
Light Draft: 3.214m
Loaded Draft: 4.5m
Loaded Displacement: 9184.700t
Light Displacement: 2266.796t
Gross Tonnage: 3960
Net Tonnage: 2217
Max Full Load Capacity: 9000t
Main Engine: NINGBO CSI diesel engines two units 1103+1103kw
Max Self Sail Speed: 13kn/h
Speed: 12kn
From the upper deck edge to the first deck edge: 3m
From the first deck to the captain’s deck: 3m
Captain’s deck to driving deck: 2.40m
Flying deck to compass deck: 2.40m
Upper deck to canopy deck: 2.90m
The rest are built on beam arches: 0.20m

Capacity
Fresh Water Tank (left)
Rib: FR144〜FR156
Net volume (m 3): 67.64

Fresh Water Tank (right): FR144〜FR156
Rib: FR144〜FR156
Net volume (m 3): 67.64

Diesel Tank
Serial Number: 1
Cabin Name: Diesel tank (left)
Rib: FR43〜FR52
Net volume (m 3): 34.72

Serial Number: 2
Cabin Name: Diesel tank (left)
Rib: FR43〜FR52
Net volume (m 3): 34.72

Serial Number: 3
Cabin Name: Diesel daily cabin (left)
Rib: FR43〜FR46
Net volume (m 3): 7.36

Serial Number: 4
Cabin Name: Diesel daily cabin (right)
Rib: FR43〜FR46
Net volume (m 3): 7.36

Ballast Water Tank
Serial Number: 1
Cabin Name: Tail ballast tank (left, right)
Rib: FR2〜FR23
Net volume (m 3): 499.66×2

Serial Number: 2
Cabin Name: NO.1Bottom ballast tank(left, right)
Rib: FR113〜FR144
Net volume (m 3): 207.21/208.06

Serial Number: 3
Cabin Name: NO.2Bottom ballast tank(left, right)
Rib: FR93〜FR113
Net volume (m 3): 145.35×2

Serial Number: 4
Cabin Name: NO.3Bottom ballast tank(left, right)
Rib: FR73〜FR93
Net volume (m 3): 145.35×2

Serial Number: 5
Cabin Name: NO.4Bottom ballast tank(left, right)
Rib: FR43〜FR73
Net volume (m 3): 217.90×2

Serial Number: 6
Cabin Name: First ballast tank
Rib: FR156〜First
Net volume (m 3): 296.81

Serial Number: 7
Cabin Name: NO.1regulating water tank(left, right)
Rib: FR113〜FR144
Net volume (m 3): 713.64×2

Serial Number: 8
Cabin Name: NO.2regulating water tank(left, right)
Rib: FR93〜FR113
Net volume (m 3): 492.09×2

Serial Number: 9
Cabin Name: NO.3regulating water tank(left, right)
Rib: FR73〜FR93
Net volume (m 3): 492.09×2

Serial Number: 10
Cabin Name: NO.4regulating water tank(left, right)
Rib: FR43〜FR73
Net volume (m 3): 666.04×2

Other Cabins
Serial Number: 1
Cabin Name: Domestic sewage storage tank
Rib: FR46〜FR49
Net volume (m 3): 3.70

Serial Number: 2
Cabin Name: Domestic sewage storage cabinet
Rib: FR152+0.180〜FR155+0.380
Net volume (m 3): 9.60

Serial Number: 3
Cabin Name: Residual oil tank
Rib: FR40〜FR43
Net volume (m 3): 2.55

Serial Number: 4
Cabin Name: Dirty oil tank
Rib: FR40〜FR43
Net volume (m 3): 7.64

Serial Number: 5
Cabin Name: Main engine oil circulation tank(left, right)
Rib: FR33〜FR37
Net volume (m 3): 2.41×2

Serial Number: 6
Cabin Name: Main engine oil storage tank
Rib: FR30〜FR35
Net volume (m 3): 7.27

Power Unit
Host
Model and Quantity: G6300ZC6B 2 units
Rated Power and Speed: 1103kWx500r/min

Thrusters
Paddle type and number of blades: MAU type 4 leaves
Spin Towards: External rotation
Straight Path: 3.05m
Material: Cu3
Connection with propeller shaft: Flat key connection

Gearbox Model: GWC42.45

Main Generator Set
Genset Model and Quantity: CCFJ200J-Y 2 sets
Diesel Model: WP12CD235E201
Output Power and Speed: 235kW×1500r/min
Generator Model: SB-HW4(.D)-200
Rated Power: 200kW

Parking Diesel Generator Sets
Genset Model and Quantity: CCFJ64J-Y 1 set
Diesel Model: WP4CD100E200
Output Power and Speed: 90kWx1500r/min
Generator Model: SB-HW4.(D)-64
Rated Power: 64kW

Accommodation
Crew Quota: 12 people

Aggregate Spacing
Rib Spacing
Tail-FR8: 600mm
FR8-FR144: 640mm
FR144-first: 600mm

Longitudinal Spacing
Double Bottom and Upper Deck: 615mm
Side and Longitudinal Walls: 625/530mm

Spacing of Deck Girder
Deck Stringer: 1230/2460mm

Spacing between side keels
Side Keel: 1230/2460mm

Equipment
Rudder Blade
Number of Rudder Blades: 2 individual
Single Rudder Area: 7.62
Aspect Ratio: 1.50
Balance Ratio: 0.227

Tiller
The diameter of the rudder stock at the tiller is150mm;
The diameter of the rudder stock at the lower rudder bearing is170mm;

Servo
The ship adopts 1 hydraulic fork type hydraulic steering gear; nominal torque: 125kN-m; steering angle:±35 o

Life-saving Equipment
2 Lifeboats: for 12 people
Rescue Boat: 1
2 Self-supporting Formal Inflatable Life Rafts: for 12 people and 2 rope ladders for boarding; there are 6 people throwing inflatable life rafts on the starboard side of the upper deck at the stern (6 person) 1, and take 1 rope ladder.
Life Jackets: 21
Life Jacket Light: 21
Thermal Immersion Suit per person: 14 pieces
Lifebuoys: 10
Self-igniting Light: 3
Buoyant Lifeline: 2
Light and Smoke Signal: 2
Rope Throwers: 4 portable
Pyrotechnic signal equipment
Rocket Parachute Flame Signals: 12
Two-way VHF radiotelephones for life rafts: 3

Fire-Fighting Equipment
Fire Hydrant: 19
Hose Box: 19
Hose and water gun
Fire Extinguisher
Carbon Dioxide Cylinders: 1 set
Firefighter Equipment: 2
EEBD: 7 sets

Construction
Metal door
Metal windows
Hatch covers and manhole covers
Cabin outfitting part

Mechanical Equipment List
Host 1 Model: G6300ZC6B
High elastic coupling
Marine reduction gearbox
Main diesel generator set
Parking diesel generator sets
Bilge fire main pump
Ballast pump
Emergency fire pump set
Main engine seawater backup pump
Main engine oil backup pump
Gearbox oil backup pump
Diesel transfer pump
Sump oil transfer pump
Domestic sewage crushing pump
Bilge jet pump
Oil sewage separator
Domestic sewage treatment device
Oil strainer
Stationary
Whistle and miscellaneous air cylinders
Air compressor (air cooling)
Assembled fresh water pressure tank
Assembled seawater pressure tank
Electric heating hot water tank
Pneumatic quick closing valve control box
Foam fire extinguisher
Dry powder fire extinguisher
Large foam fire extinguisher
Potable air foam gun
Cabin emergency escape breathing apparatus
Turntable vise
Straight grinder
Bench drill press
Chain Hoist
Dry silencer
Marine flange cast steel sea valve
Marine flange cast steel gate valve
Suction coarse water filter
Marine flange cast steel sea valve
Marine flange cast steel gate valve
Suction coarse water filter
Shaft accessories
Hydraulic steering gear




The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
