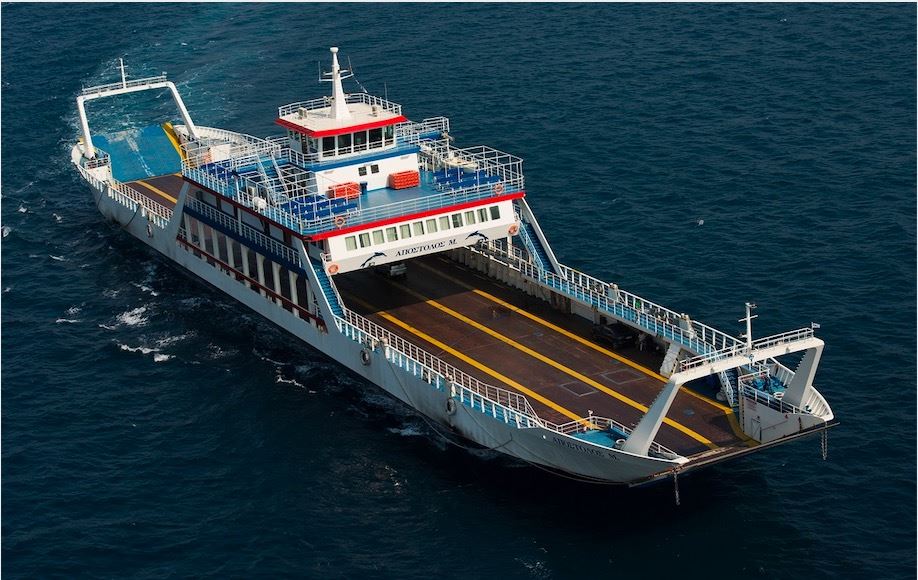

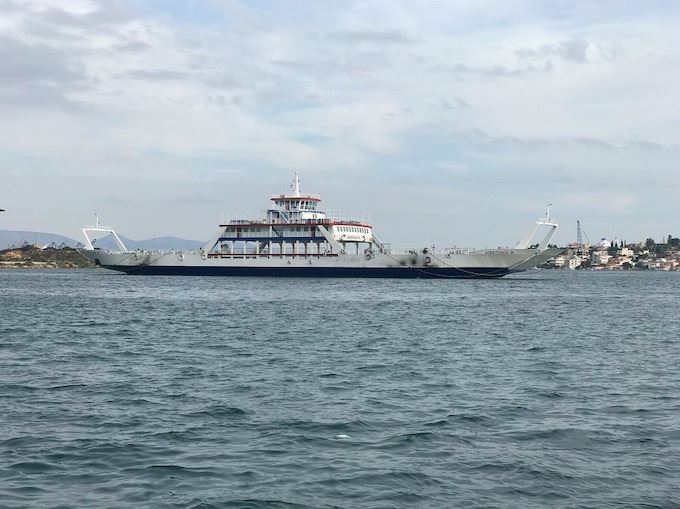

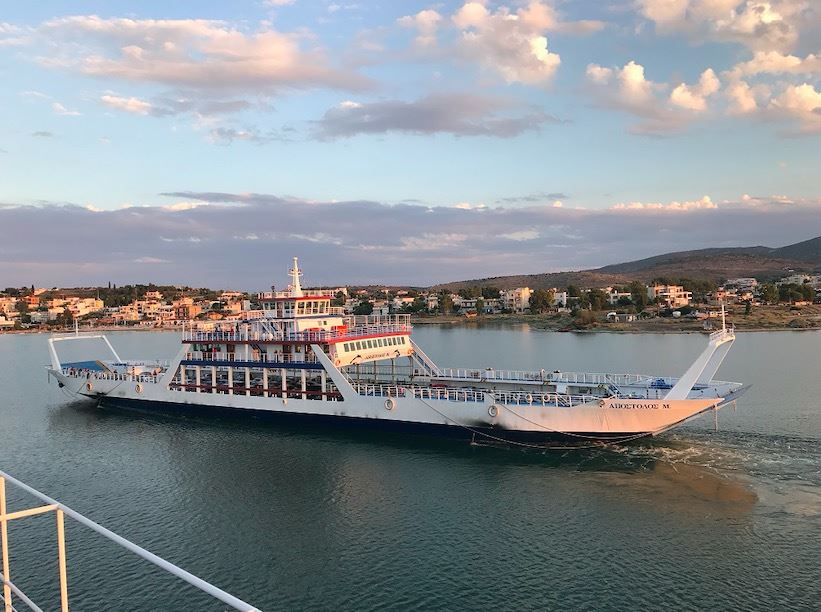

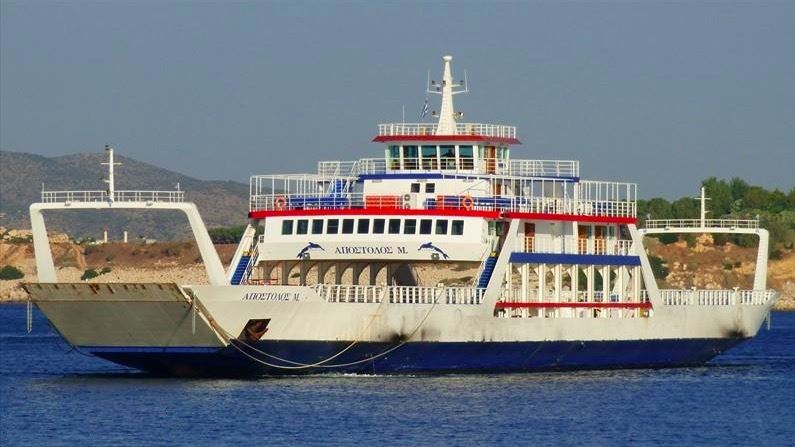

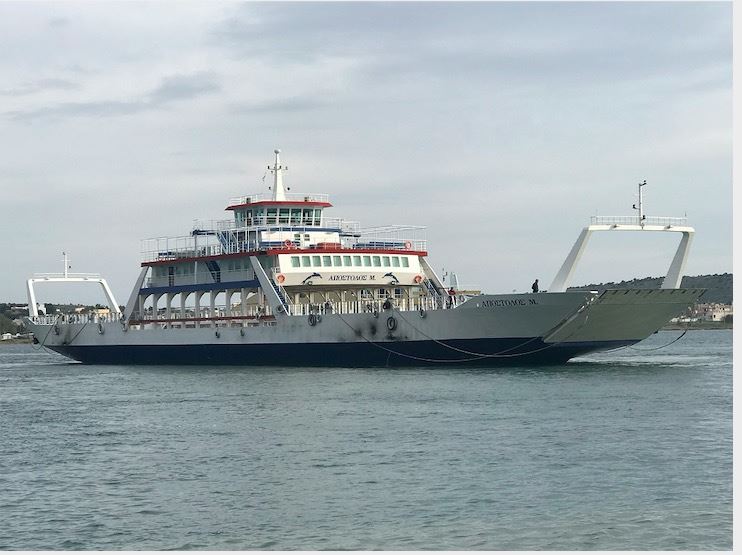

104m Double Ended Ferry.

Listing ID - 1325
Description	104 Mt. Double Ended Ferry
Date Launched	2010
Length	104m (341ft 2in)
Beam	18m (59ft)
Draft	1.9m (6ft 2in)
Location	Greece
Broker	Giuseppe Filippone giuseppe.filippone@seaboatsbrokers.com +39 329 886 8343
Price	POA
View As PDF

Loa: 104m

Beam: 18m

Depth: 4.20m

Lightship Draft: 1,90m

Summer Draft: 2.65m

Dwt: 807

GRT: 1352

NRT: 604.73

Sea Trial Speed: 14 knots

Service Speed: 12.5knots

Built: 2010 In Greece. 8/2010 Started Her Voyages.

Now All Certificates Have Been Issued By Merchant Hellenic Inspectorate. Class Notation Certificates Possible To Be Issued By Iacs Classification Society With Extra Cost. Possible Class Notation: 100a1 Hull, 100a1 Machinery, Passengers Ro-ro Vessel, EU-C If Necessary.

Full Length Double Bottom. Yes

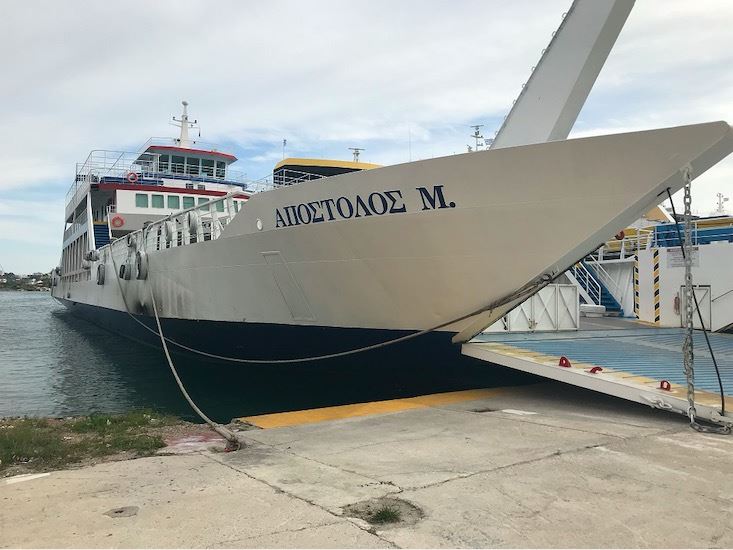

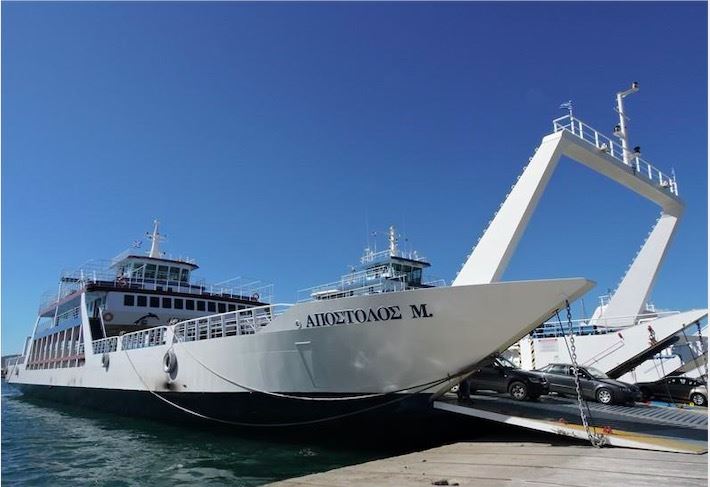

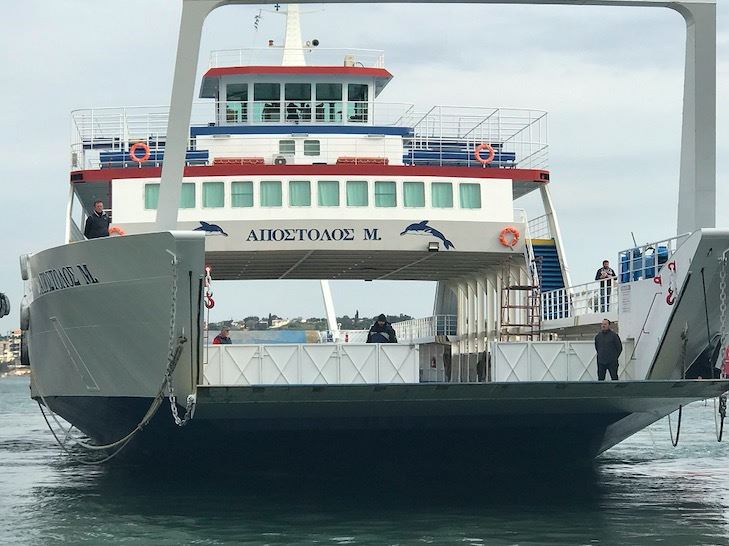

Both Ramps Open Type - Day Ferry

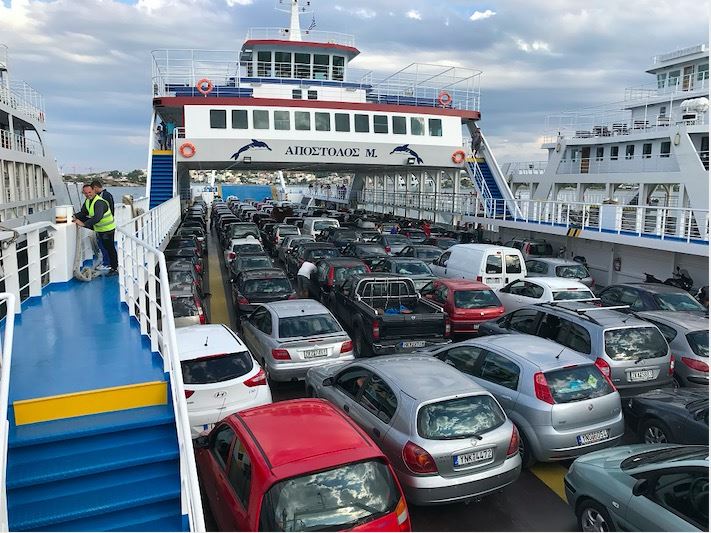

Twin Decks For Vehicles. (Main And Lower Garage).

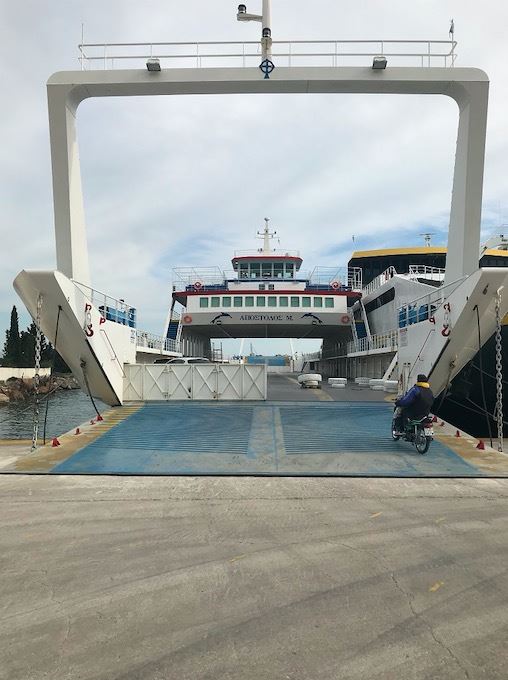

Both Main Ramps Dim.: Breadth 9m Length 8m

Both Lower Garage Ramps Dim.: Breadth 4.5m Length 12m

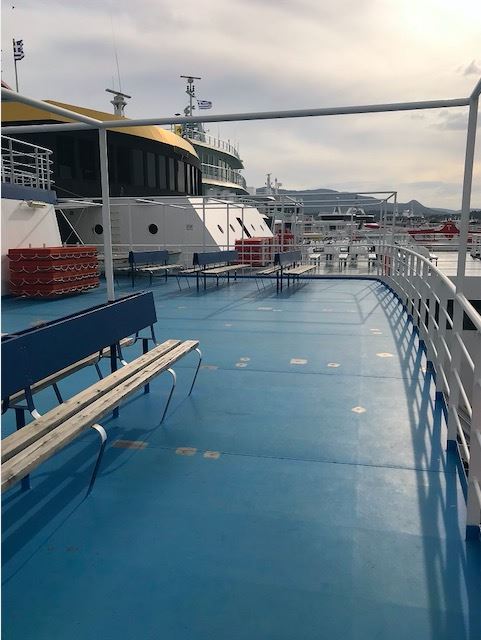

2 Decks For Passengers.

2 Decks For Vehicles.

Cars 208 Totally (168 On Main Deck And 40 On Lower Deck)

Garage).

Load Resistance On Main Deck 15 Mt/Truck Axle.

Load Resistance On Lower Deck 1,5 Mt/ Car Axle.

Summer Passengers 1000 / Winter Passengers 280(Saloon).

Liferafts+Rescue Boat.

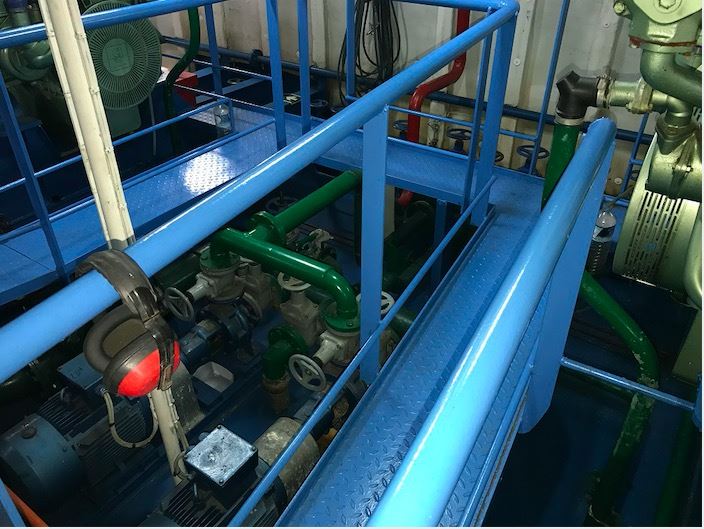

All Brand New Machinery:

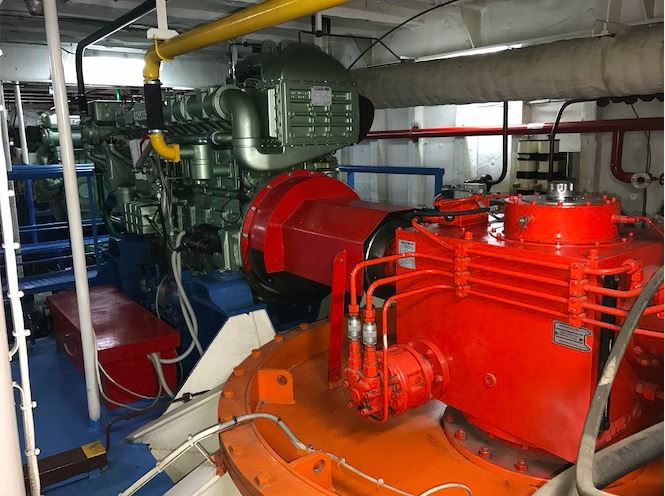

4 M/E (2400 Hp Total) Guascor F240ta

4 Rudder Propellers Z-drive: Veth Vz550

4 Propellers 5 blade Diam1.35m/ Pitch 1.31m

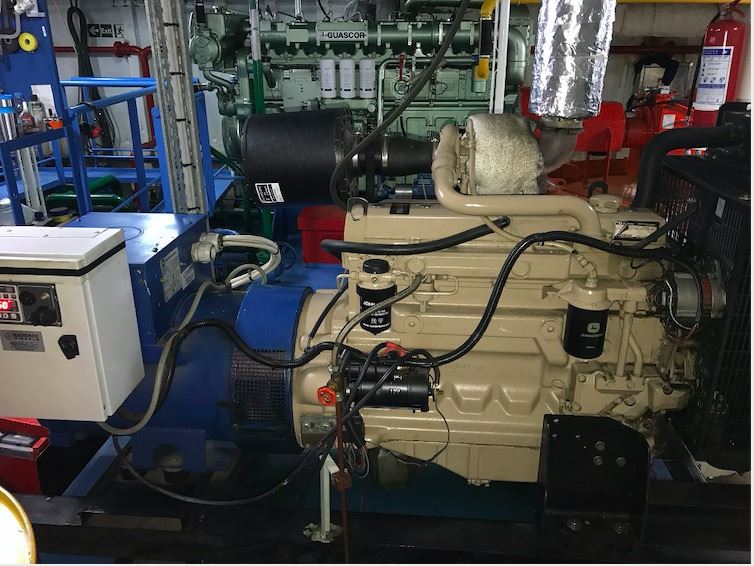

2 John Deere 6068 /125kva

1 John Deere 6068 120 Kva

2x Magneti Marelli 125 kva Alternator

1x Magneti Marelli 120 kva Alternator

4 Pumps 15hp

Biological Cleaning Unit For Toilets Effluents For 1000 Passengers.

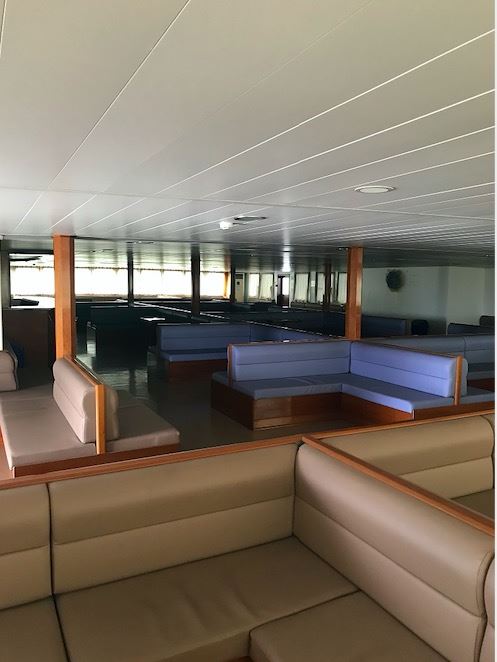

Luxury Accommodation.

Net Height Between Main Deck And Accommodation Deck 5 M.

Net Height Between Lower Garage And Main Garage 2m

Ttl Bunkers Capacity 65 M3.

Fresh Water Capacity 55 M3.

Sprinkler Fire Fighting System: Only In Saloon, Cabins And Bridge Area

Emergency Generator Room.

Solas/Iacs Certified Construction Materials/A-60 Fire Proof External Doors Engine

Room

All Areas B-15 Fire Proof Insulated.

Fully Air Conditioned.

Fitted Smoke Detecting Sensors.

Heating Description: 5x 50000btu Heat/Cool, 2x 24000btu Heat/Cool,

Crew Cabins:

1x 1-person

1x 2-person

2x 4 Person

W.C. In Crew Area

Notice: There Is Space For

A) Cabins 2x 4-persons

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
