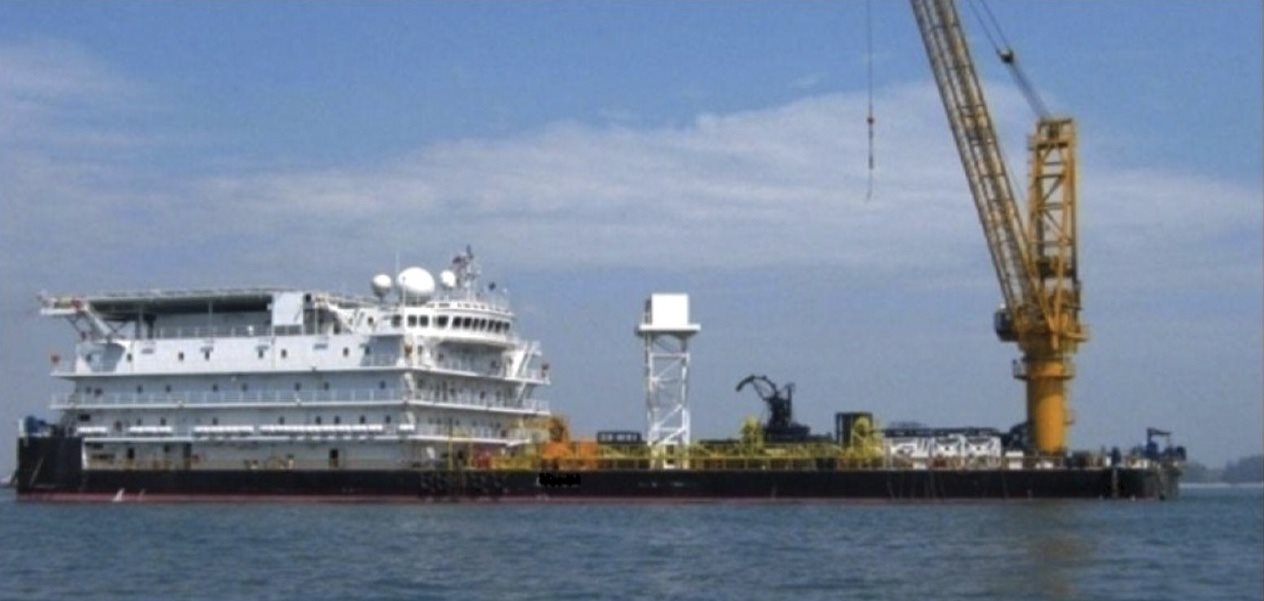

100m Accommodation Crane Barge for Charter

Listing ID - 4978
Description	Accommodation Crane Barge for Sale
Date Launched	2009
Length	100m (328ft 1.01in)
Beam	30.5m (100ft 0.79in)
Draft	7.62m (25ft )
Location	UAE
Broker	Richard Pierreport
View As PDF

Registry: St Kitts & Nevis

Built Hull: 2009

Class: ABS

Notation: Accommodation Crane Barge

Safety Compliance: MODU Code Complied

Dead Weight: 11203 MT @ design Draft

Lightship Weight: 5571 MT

Gross Tonnage: 10413 MT

Complement: 300 Men (Can be increased to 364 Pax)

Mooring: 8 Point Mooring (Hydraulic - Mechanical)

PRINCIPAL CHARACTERISTICS

Length Overall (LOA): 100m

Beam: 30.5m

Depth: 7.6m

Design Draft: 5.5m

Clear Deck: 1500 Sq. Mtr approx

Deck Strength: 15 MT/ Sq.Mtr

Ballast: Up to 6218 MT

Freshwater Capacity: Up to 2650 MT

Fuel oil Capacity: Up to 1482 MT

Cooling Water Capacity: Up to 218 MT

Anti Rolling Tank (Fwd): Up to 1380 MT

Anti Rolling Tank (Aft): Up to 1587 MT

F.W Pressure Tank: 3 X 2000 Ltr

S.W Pressure Tank: 3 X 2000 Ltr

Calorifier: 3 X 1500 Ltr

ENGINE ROOM MACHINERY

Generators: 5 X 500 eKW Caterpillar

Emergency Generator: 1 X 85.8 ekW Caterpillar

Air Compressors: 2 X 18.5 M3/hr @ 30 bar (Starting air); 1 X 80 M3/hr @ 10 bar (Working air)

Ballast Pump: 2 X 500 M3/hr @ 30 M Head

Bilge Pump: 2 X 130 M3/hr @ 80 M Head

General Service Pump: 1 X 130 M3/hr @ 80 M Head

Main Fire Pump: 1 X 160 M3/hr @ 100 M Head

Fuel Oil Purifier: 1 X 1500 ltr

Domestic S.W Pump: 3 X 30 M3/hr @ 43 M Head

Hot Water Circ Pump: 6 X 2.4 M3/hr @ 15 M Head

F.W Transfer Pump: 2 X 30 M3/hr @ 35 M Head

Domestic F.W Pump: 3 X 30 M3/hr @ 43 M Head

Sewage Plant: 2 X 150 Men Unit as per IMO, USCG

Freshwater Maker: 2 X 50 MT capacity with UV sterilizer

Air Conditioning: Based on outside +35 Degree C, 95 % RH / Inside +23 Degree C, 60 % RH

DECK EQUIPMENT

Main crane:

Offshore Pedestral crane

National Oilwell Varco, Model : 35000HD

Main Hoist: 68 Tonnes @ 9.1 m Radius

Auxiliary Hoist: 9 Tonnes@ 48 m Radius

Operating Ratius: 360 Degrees

Provisional Crane: 3 Tonne @ 10 m Radius

Mooring Winch 8 Point Mooring System, Single Drum

Anchor Wire Capacity = 1500 M of 52 dia wire

85 tonne pull @ 10 m/min

150 tonnes brake holding

Anchor Weight Delta Flipper - 8 X 8T

Tugger Winch 4 X Tonne @ 15 m/min

Helideck Suitable for S-92 Helicopter

ACCOMMODATION FACILITIES

Fully Air conditioned backup AC plant European Standard,

All rooms with Ensuite Toilets

Single Berth (Suite): 4 Nos

Single Berth: 8 Nos

Double Berth:12 Nos

Four men Berth: 66 Nos

Total 300 Nos

Galley: 1 Unit c/w equipment utensils

Mess Room: Seating arrangement for 200 Persons

Hospital: 1 No fully Equipped Hospital with Two Bed

Offices: 6 Offices +Conference Room

Laundry: 3 Rooms c/w necessary equipments

Gymnasium: 1 Room c/w necessary equipments

TV/ Video Room: 1 X Smoking, 1X Non Smoking Unit

LIFE SAVING & SAFETY EQUIPMENT

As per SOLAS & Class Requirement

Life Rafts: 36 Nos (25 Men Capacity with SOLAS)

Rescue Boat: 1 No

Lifebuoy: 10 Sets c/w recharging apparatus

Lifejacket: 600 Sets

Breathing Apparatus: 11 Sets c/w Recharging compressor

Pyrotechnic: As per class Requirement

Eyewash Station: 3 Sets

NAVIGATION AND COMMUNICATION EQUIPMENT

Helicopter Communication Equipments

1 X VHF AM Transceiver

1 X Non Directional Radio Beacon

1 X Aviation Portable Radio Set

1 X 1.5 m Windsock with Light

6 X Multi-Channl Walkie Talkie

Intercom or Puplic address system as per MODU Code

Sound Powered Telephone

Remote Control, Monitoring & Instrumentation for mooring winches

1 X 24 nm Radar

Echo Sounder for 200 m Working Depth

Fog Horn as per SOLAS Requirements

Aldis Signal Lamp Complete with Battery in Box

Anemometer for Wind Speed & Direction

8 X CCTV (Indoor) and 4 X CCTV (Outdoor)

1 X GPS Set

1 X Navetex Receiver Set

Navigation Light System as per Rule Requirement

GMDSS Type Radio Communtication Equipments

3 X 2-Way Hand Held VHF

1 X MF/ HF Radio Telephone

1 X Radar Transponder (SART)

3 X 2-Way Hand Held VHF

Radio Telephone, VHF and MF Watch

Receivers

1 X EPIRB

1 X Mini M SATCOM

Emergency Fire Pump 1 X 60 M3/hr @ 65 M Head

Main Fuel transfer Pump 4 X 45 M3/hr @ 45 M Head

Oil Bilge System Cap. Of seperator = 1 M3/hr acc. to. IMO

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
