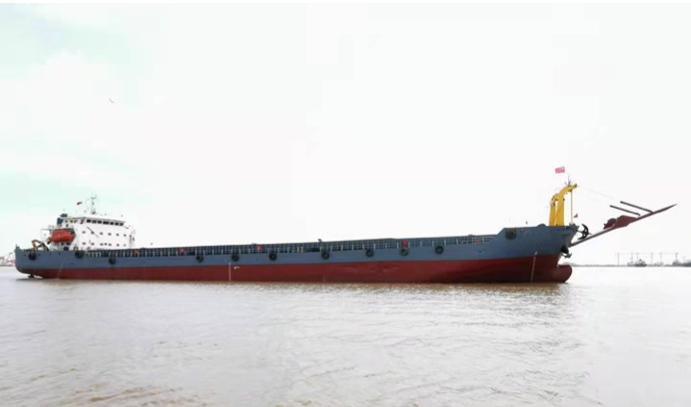

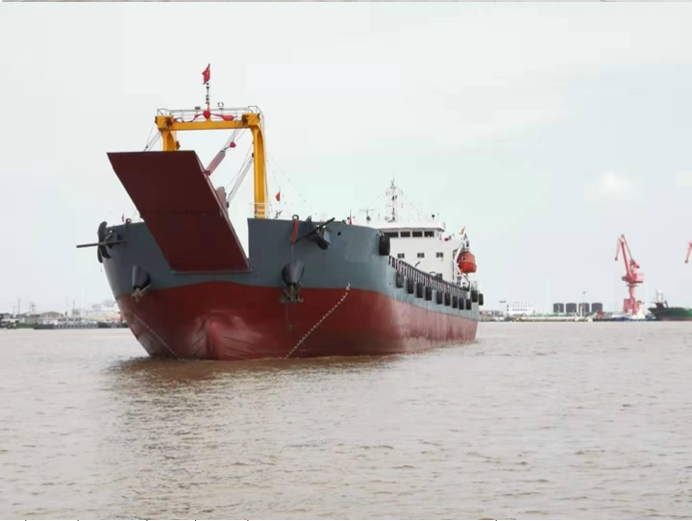

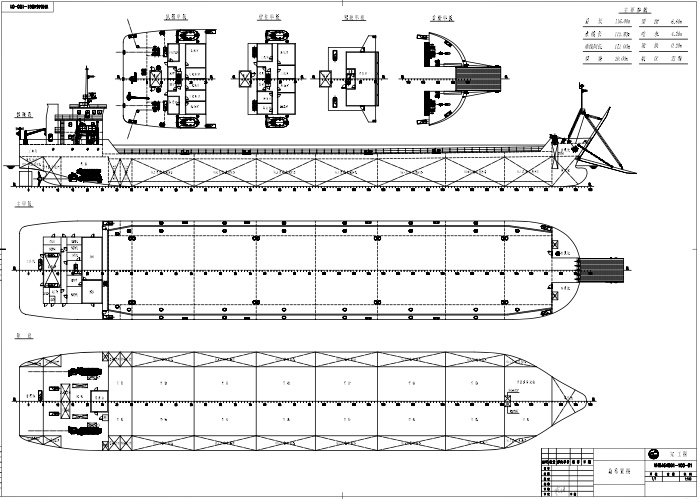

This ship is a deck cargo ship driven by stern engine, bulbous bow, double engine, double propeller, double rudder and diesel engine. The ship has a first floor at the bow and four deckhouses at the stern. The stern is a single-deck single-bottom transverse framing structure, the middle main deck is a single-deck longitudinal framing structure, and the bottom 7000mmThe area is a double bottom longitudinal framing structure, the side is a single bottom longitudinal framing structure; the forward deck is a longitudinal framing structure, The bottom of the ship is a horizontal frame structure with a single bottom. This ship is a multi-purpose deck ship, which can transport iron ore, coke and steel structure and so on. When using vehicles to load and unload cargo on and off the ship through the bow ramp, before all cargo loading and unloading is completed and ready to sail, It should be ensured that all loading and unloading vehicles have safely left the ship through the ramp. During the voyage of the ship, no one is allowed loading and unloading vehicles remain in the loading area. At the same time, the ramp is to be lifted and locked with the deckhouse on each side, and there is a corresponding sound in the bridge and light alarm facility. This ship is a sea ship.



Ship Type: Deck Cargo Ship

Classification Society: China Classification Society

Built: 2007

Rebuilt: Aug. 2019

LOA: 116m

LWL: 112.80m

Length between Two Columns: 111m

Upper Deck: 113.88m

Width: 20m

Depth: 6.60m

Draft: 4.20m

Main Deck Beam Arch: 0.20m

Crew: 13

Speed: 8 knots

GT: 4415

NT: 2472



Forepeak Cabin: 167.70m3

NO1 Ballast tank (P/S): 72.40 m3

NO2 Ballast tank (P/S): 190.13m3

NO3 Ballast tank (P/S): 231.42 m3

NO4 Ballast tank (P/S): 207.11 m3

NO5 Ballast tank (P/S): 197.15 m3

NO6 Ballast tank (P/S): 207.01 m3

NO7 Ballast tank (P/S): 202.50m3

Heavy Oil Tank (P/S): 33.64m3
Light Oil Tank (P/S): 35.41m3
NO1 Fresh water tank (P/S): 19.04 m3

NO2 Fresh water tank (P/S): 20.92m3



Host Model: G6300ZCB/G6300ZC1B

Rated Power: 750 KW x 2

Rated Speed: 400r/min

Gearbox Model: 45.49

Speed Ratio: 2.467:1



The ship's actual summer freeboard2416mm, satisfying our country 2011 Statutory Survey of Ships and Offshore Installations Statutory Survey Rules for Sea-going Vessels) and 2012, 2014, 2016, 2018 Annual revision notice to B ship requirements.



The intact stability of the ship under various typical working conditions satisfies the requirements of our country2011Statutory Inspection Regulations for Ships and Offshore Installations (National Statutory Survey Rules for Sea-going Vessels) and 2012, 2014, 2016, 2018 Requirements for deck cargo ships in annual repair notification.



Damage Stability
The ship's damage stability meets the requirements of our country 2011 "Rules for Statutory Inspection of Ships and Offshore Installations" (Statutory Inspection of Sea-going Vessels inspection rules) and 2012, 2014, 2016, 2018 Requirements for deck cargo ships in annual repair notification.



Watertight Bulkhead Setting

The whole ship is provided with watertight transverse bulkheads10road, located in FR5, 27, 35, 56, 77, 97, 118, 141, 161, 177.



Below the main deck: stern - FR5For the steering gear compartment. FR5-27 for the cabin. FR27-31 Left and right are heavy oil tanks, FR31-35 left and right light oil tanks, empty tanks in the middle. FR35-56left and rightNO7Ballast water tank with empty tank in the middle.FR56-77 left and right NO6 Ballast water tank with empty tank in the middle. FR77-97 left and right NO5 Ballast water tank with empty tank in the middle. FR97-118 left right is NO4 Ballast water tank with empty tank in the middle. FR118 - 141 left and right NO3 Ballast water tank with empty tank in the middle. FR141 - 159 left and right NO2 Ballast water tank with empty tank in the middle. FR159 - 177 left and right NO1 Ballast water tank, empty and emergency in the middle fire pump room. FR177 - The bow is the forepeak cabin. Below the deck of the first floor: the left and right are the sail cable compartment and the anchor chain compartment.



Main deckhouse: equipped with tool room, machine repair room, utility room, engine room shed, duty room, toilet, grain storehouse, storage room, storage room,CO2 Room, battery room, stairway, kitchen and dining room.

Poop deck house: equipped with stairway, spare room, toilet, bathroom, chief officer room, first engineer room, second engineer room, third engineer room wheel room and 2 crew room.

Living deck house: equipped with stairway, toilet, bathroom, captain's room, chief engineer's room, second room, third room and 3 between crew room.

Driving deck house: stairway, toilet and driving cab are arranged.



The middle deck, side and bottom of this ship are of longitudinal framing type.3Road longitudinal wall. Fore and aft and engine room decks are of transverse frame type. Both the bow and stern and the side of the engine room are of transverse framing structure. first and last It adopts a single-layer bottom horizontal skeleton structure. The main members of the hull are to be kept continuous, and reinforcement is to be made in case of unavoidable disconnection. Any strength member, such as When pipelines or cables pass through, manholes or other functions, the size of the openings should meet the requirements of the specification. Outer panels and other strength members. All openings shall have smooth rounded corners, and the bottom box and other openings shall be provided with thickened plates or cladding plates. The water flow holes, ventilation holes, notches where frames pass through the members and the type of structural joints on the ship’s members are to be in accordance with the relevant standards. Ready for construction. All welding surfaces should be clean, dry, free of chips, oxides, grease, impurities, and the edge of the plate should be meet specification requirements. Prefabrication and automatic/semi-automatic welding should be used as far as possible for hull construction, flat welding should be used as far as possible for manual welding, and component assembly should be It should not be forced to form to avoid large internal stress and deformation in the component. If the welding groove or the assembly gap is too large, it must be repaired timing, the surveyor's consent is to be obtained. All welds are welded according to the specifications. Before manual back-sealing welding on the back of the welds, the grooves should be planed and whitened. The welds should be thoroughly cleaned and Remove slag, avoid slag inclusions, undercuts, pores and other welding defects, and all fine and rough welds should be polished smooth. Before welding, it is to prove that the chemical composition of the primer has no adverse effect on the welding quality, and report to the surveyor for approval. Welds in important and critical parts shall be X Light, ultrasonic and other non-destructive testing methods to check the internal quality of welds, In case of defects, it must be repaired, and it should be re-inspected after repairing.



The structural material of the main hull adopts the marine steel approved by the classification society, unless it is marked as CCS–A grade steel. The deckhouse is of steel structure, the frame type is transverse frame type, the front end, side wall and inner wall of the deckhouse are all vertical. The plate structure type of the straight stiffener.



Anchoring Equipment

First Anchor: with2only Hall anchors, each heavy1740 Kg.
Anchor Chain: Equipped with Welding Anchor Chain AM2–Ø34 (GB/T 549–1996), long495 m. (3) Anchor winch: with Ø34 Electric windlass 2 table, left and right 1 tower



Mooring Line: with eight-strand polypropylene cable 4 root, with a diameter of 40mm, each length 170 m



Rudder blade: with streamline balance rudder 2 only, the area of a single rudder blade is 7.5 m2, the balance coefficient is 0.28, the thickness ratio is 0.15. The rudder area coefficient is 0.039, the aspect ratio is 1.2.

Servo: with 100 KN.m Swing cylinder hydraulic steering gear 1 Taiwan (dual rudder).



CO2 Fire extinguishing system: engine room CO2 Fire extinguishing system protection.



5kg dry powder fire extinguisher: 2 tools
9 Liter Foam Fire Extinguisher: 20 tools
45 Litre cart-type foam fire extinguisher Portable Foam Gun: 1 tower

5 Kilogram CO2 fire extinguisher: 4 tools

Fire Hose and Water Gun: 15 only

Firefighter Equipment: 2 sets



Life Jacket (with life jacket light): 17 pieces

Life Jacket: 15 pieces
Lifebuoy with self-igniting light: 4 only
Lifebuoy with lifeline: 6 only
13 Man self-righting throwing life raft: 2 only

13 Human fully enclosed lifeboat (each one of them doubles as a rescue boat): 2 only

Red Light Parachute Signal: 12 pieces
Lifesaving rope thrower: 4 tool
Emergency Escape Breathing Apparatus: 7 tool
Lifebuoy with self-igniting light and smoke signal: 2 only

Ride the rope ladder: 3 departments

6 Man throwing life raft: 1 only



Marine Radar: 1 station

Satellite Navigator: GPS2 sleeve

Tail Shaft Tachometer: 2set

Rain and Snow Remover: 2Only

Rudder Angle Indicator System: 2set

Electric Tachometer: 2set

Echo Sounder: 1set

Standard Magnetic Compass: 1only

Steering Magnetic Compass: 1Only

Sounding Hammer: 1Only

AIS system: 1set

Electronic Chart: 1table

Gyro: 1desk

Autopilot: 1set



Anchor Light: 2 lamp

Mast Light: 2 light

Stern Light: 1 lamp

Sidelight: 2 lamp

Signal Light: 6 cup (of which2out of control light)

Portable daylight communication flash: 1 cup

Medium Flute: 1 only

Large Clock: 1 only

Large Sphere: 3 only

The Chinese flag (4 No): 4 face

International signal flag (4No): 1set of hand flags 1 vice



Medium / high frequency radio station: 1Set

VHF radiotelephone: 1 Sleeve

Nevotes Receiver: 1set

Guard Star Emergency Beacon: 1station

Radar Transponder: 2two-way

VHF radiotelephone for survival craft: 3one

Walkie-talkie: 3Only



In addition to brushing with effective paint, the immersed surface of the steel hull of this ship is also provided with anti-corrosion zinc blocks to protect the outer surface of the underwater part of the hull. plate to prevent corrosion, sacrificial anode protection for years3year.



Enclosures of corridors and stairways, and exposed surfaces of ceilings in living spaces, service spaces (except saunas) and control stations Surfaces, and surfaces and linings in sheltered or inaccessible places in accommodation spaces, service spaces and control stations shall have low flame spread. Paints, varnishes and other finishes used for exposed surfaces should not generate excessive fumes and toxic substances. Deck base coverings used in accommodation spaces, service spaces and control stations are to be resistant to fire at high temperatures approved materials that generate fumes and toxic substances or explosion hazard.



Anti-fouling systems containing biocide organotin compounds should not be applied to this vessel.



Host Machine

Model: G6300ZCB/G6300ZC1B

Type: Four-stroke, water-cooled, in-line, direct injection, supercharged intercooling, irreversible change

Rated Power: 750kW
Rated Speed: 400r/min

Bore × Journey: 300mm×380mm

Fuel Consumption: 215g/kW.h
Oil Consumption Rate: 2.18g/kW.h
Start Mode: Compressed air start



Model: GWC45.49

Reduction Ratio: 2.4671:1



Model: RATO-R2527

Rated Torque: 25kN.m



Model: 2CY-7.5/2.5D

Flow: 7.5m3/h

Pressure: 2.5MPa

Motor Power: 7.5kW



Unit Type: CCFJ100JL

Rated Power: 100kW



Model: 6135ZCaf

Power: 126kW
Amount of speed: 1500r/min
Fuel consumption: 235g/kW.h
Oil consumption rate: 1.0g/kW.h
Starting method: DC24V starting and pressing compressed air start



Power: 100kW

Voltage: 400V

Frequency: 50Hz



Model: ZYS0.35/50-0.7(Dual machine type)
Fuel Evaporation: 350kg/h

Evaporation of exhaust gas: ~350kg/h

Working Pressure: 0.7MPa

Unit Power: ~3.4kW



Model: 25W-70
Type: Horizontal self-priming centrifugal pump

Flow: 0.78~1.8m3/h

Pressure: 1.1~0.52MPa

Motor Power: 3kW
Working Temperature: ≤220°C



Hot wells, atmospheric condensation device



Model: KHV(T)U-B11-1.2A

Rated fuel supply: 1.2m3/h

Rated fuel viscosity control range: 9~15Cst

Circulating fuel supply pump power: 2×1.5kW

Machine power: ~3.5kW



Model: KYDR203CD-23

Type: Manual slag discharge type
Rated Separation: 1500l/h 1500s

Separation amount of heavy oil:675l/h

Power:2.2kW



Model: KYDR203CD-23

Type: Manual slag discharge type

Rated separation:1500l/h

Power:2.2kW

Main Air Compressor

Model: LSHC-40A

Exhaust Volume: 20 m3/h

Pressure: 3.0MPa

Power:5.5kW



Model: LSHC-40A

Displacement: 20m3/h

Pressure: 3.0Mpa
Diesel power (S195): 5.5kW

Start mode: Hand crank



Model: A0.32-3 CB/T493-98

Volume: 320L
Pressure: 3.0MPa



Model: A0.32-3 CB/T493-98

Volume: 320L
Pressure: 3.0MPa



Model: A0.25-1 CB/T493-98

Capacity: 250L
Pressure: 1.0MPa



Model: A0.05-1 CB/T493-98

Capacity: 50L
Pressure: 1.0MPa



Cylinder volume: 30L

Working pressure: 1MPa



Model: KCB-200

Type: Gear pump

Displacement: 12m3/h

Head: 0.33Mpa

Power: 4kW



Model: KCB-55

Type: Gear pump

Displacement: 3.3m3/h

Head: 0.33Mpa

Power: 1.5kW



Model: KCB-55

Type: Gear pump

Displacement: 3.3m3/h

Head: 0.33Mpa

Power:1.5kW



Model: CS-32Y

Flow: 2.4 m3/h

Indenter: 0.25 Mpa



Model: KCB-55

Type: Gear pump

Displacement: 3.3m3/h

Head: 0.33 Mpa

Power: 1.5kW



Model: 50CLZ-4.5A
Type: Vertical self-priming centrifugal pump

Flow: 10 m3/h

Pressure: 0.28 MPa

Motor Power: 3kW



Model: CS-25Y

Flow: 1.92 m3/h

Indenter: 0.25 Mpa



Model: 125CLZ-23
Type: Vertical self-priming centrifugal pump

Flow: 160 m3/h

Pressure: 0.2MPa

Power: 18.5kW



Model: CLH80-220B

Type: Vertical heart pump

Flow: 45m3/h

Pressure: 0.48 MPa

Power: 11kW



Model: 80CWY-55 flow:60m3/h

Pressure: 0.55MPa
Diesel engine power: 20kW
Start mode: electric start
Cooling method: water cooling (closed cooling)



Model: CP15-0.3T flow:15m3/h
Working water consumption: 19m3/h



Model: CLH65-50-6.5(Z)

Type: Vertical centrifugal pump

Flow: 25m3/h

Pressure: 0.32MPa

Power: 4kW



Model: CZ-80A

Flow: 27000 m3/h

Full pressure: 530Pa

Power: 7.5kW



Model: CZ-70B

Flow: 15000 m3/h
Full pressure: 230Pa

Power: 2.2kW



Model: 1.5CWX-2A

Flow: 3 m3/h

Pressure: 0.4Mpa

Power: 2.2kW



Model: A0.3 CB455-91

Volume: 300L
Working pressure: 0.4MPa



Model: ZDR-0.3

Volume: 0.3m3
Working pressure: 0.4MPa
Heating method: steam/electric heating

Electric heating power: 12kW



Model: CYSC-2
Processing power: 2m3/h

Separation effect: ≤15PPM

Matching motor power: 0.75kW

Electric heating power of oil collecting room: 4kW

Oil discharge method: automatic and manual



Model: WCBX-15

Type: Biochemical treatment

Processing power: 15people

Total power: 3.5kW



Twenty two bottle(68L) Carbon dioxide cylinder cast valve, check valve, whistle, nozzle, connecting lock switch



Model: C800 CB/T295-2000



Model: C700 CB/T295-2000



Model: VTJZ-350



Model: VTJZ-100



Model: Z406
Maximum Drilling Diameter: 16mm

Motor Power: 0.6kW



Jaw Width: 150mm



Model: S3ST-200



Model: WA2

Lifting capacity: 2t



Model: HS2-A
