NEW BUILD - 80m LCT

Listing ID - 4877
Description	NEW BUILD - 80m LCT
Date Launched	Q2 2025
Length	79.80m (261ft 9in)
Beam	16.8m (55ft)
Draft	3.6m (11ft 9in)
Location	Malaysia
Broker	Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5
Price	POA
View As PDF

L.O.A: 79.80 Meters

Breadth: 16.80 Meters

Classification: Bureau Veritas (BV)

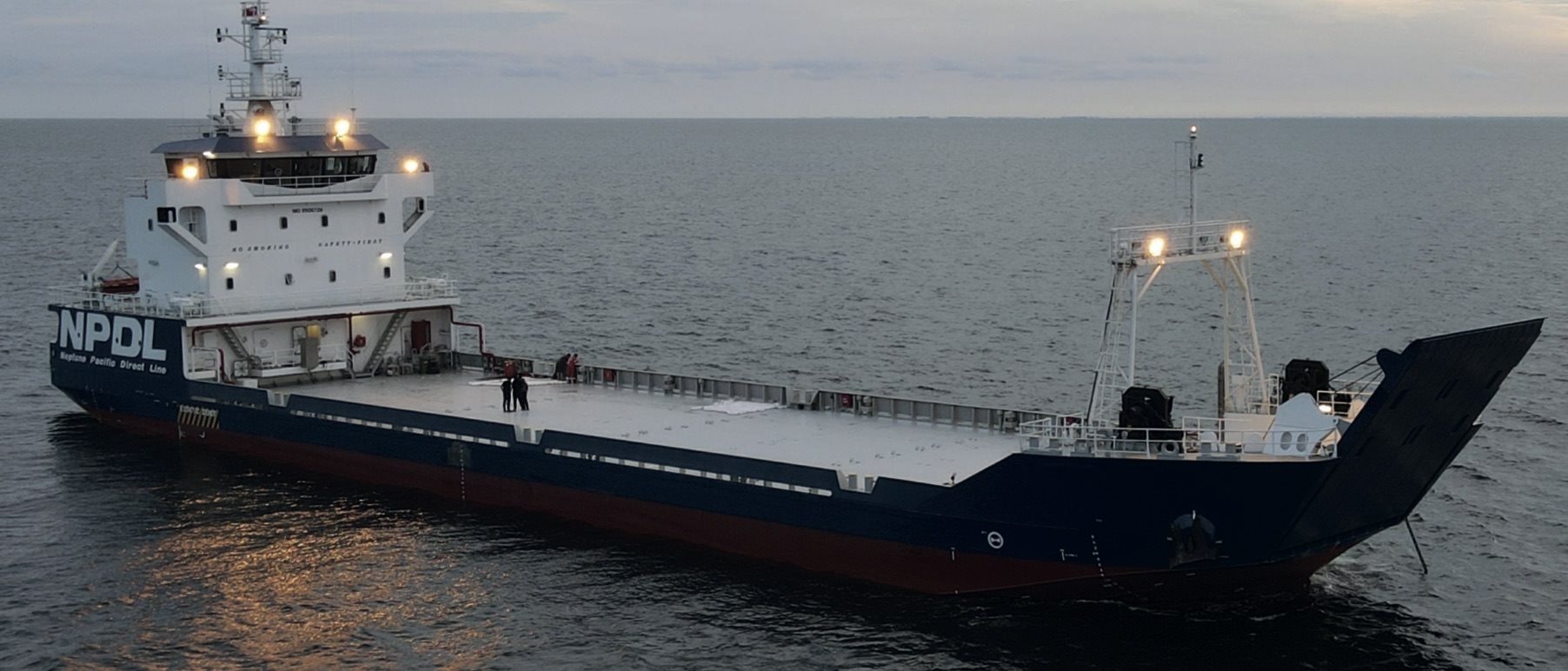

NORFOLK is a highly versatile sea going Kort nozzle twin-screw diesel-powered vessel. The design of this vessel is suitable for cargo operations in shallow waters, area without proper ports or jetties. Furthermore, it carries cargo and vehicles for fulfilling the demand of logistic and transport and support task in remote and rural areas worldwide.

NORFOLK has a very high flexibility in operations. It has heavy duty bow ramp and rake of keel for optimum vessel wading depth and also for direct transfer of vehicles to or from the vessel. In addition, 740m2 of free deck space makes NORFOLK a flexible logistic solution.

INNOVATION

All of our vessels benefit from knowledge gathered during ongoing research with local Classifications and previous clients.

Our vast experiences in oil and gas industries with different reputable clients leadsus to build vessel of top-notch quality.

• Flexibility of upgrade

• Cargo tank for fuel oil and fresh water

• Flexibility of container arrangement options

• Harbour genset and Emergency genset combination

• 100% Air-Cond system redundancy

• Hull design improvement base on feedback from multi-international delivery

• Ease of power management on fuel efficiency

• Ease of compliance to international flag requirements e.g. AMSA.

General

Basic Function: Landing Craft

Classification: Bureau Veritas

Notation: BVI + Hull + Mach; Deck Ship; Special Service - Carriage of cargo oil FP > 600C; Equipped for carriage of containers; Unrestricted Navigation Inwater Survey

Descriptive Note: Container vessel, General Cargo for shallow operation

Gross Tonnage: 1,998 Ton

Dimensions

Length O.A: 79.80m

Length B.P: 74.90m

Breadth Mld: 16.80m

Depth Mld: 4.90m

Max Draft: 3.60m

Endurance: Approx. 30 days

Range: Approx. 4000 nautical miles at 10.5 knots service speed.

Deadweight: Est. 2,335.37T

Cargo Capacity

Cargo Fuel Oil: 964.3 m3

Long Range Fuel Oil: 723.2 m3

Cargo Fresh Water: 368.6 m3

Deck Strength: Fr 21-28 7.5T/M2

Fr 28 onward 15T/M2

Open Deck Space: Est.900m2

Container Arrangement (Optional)

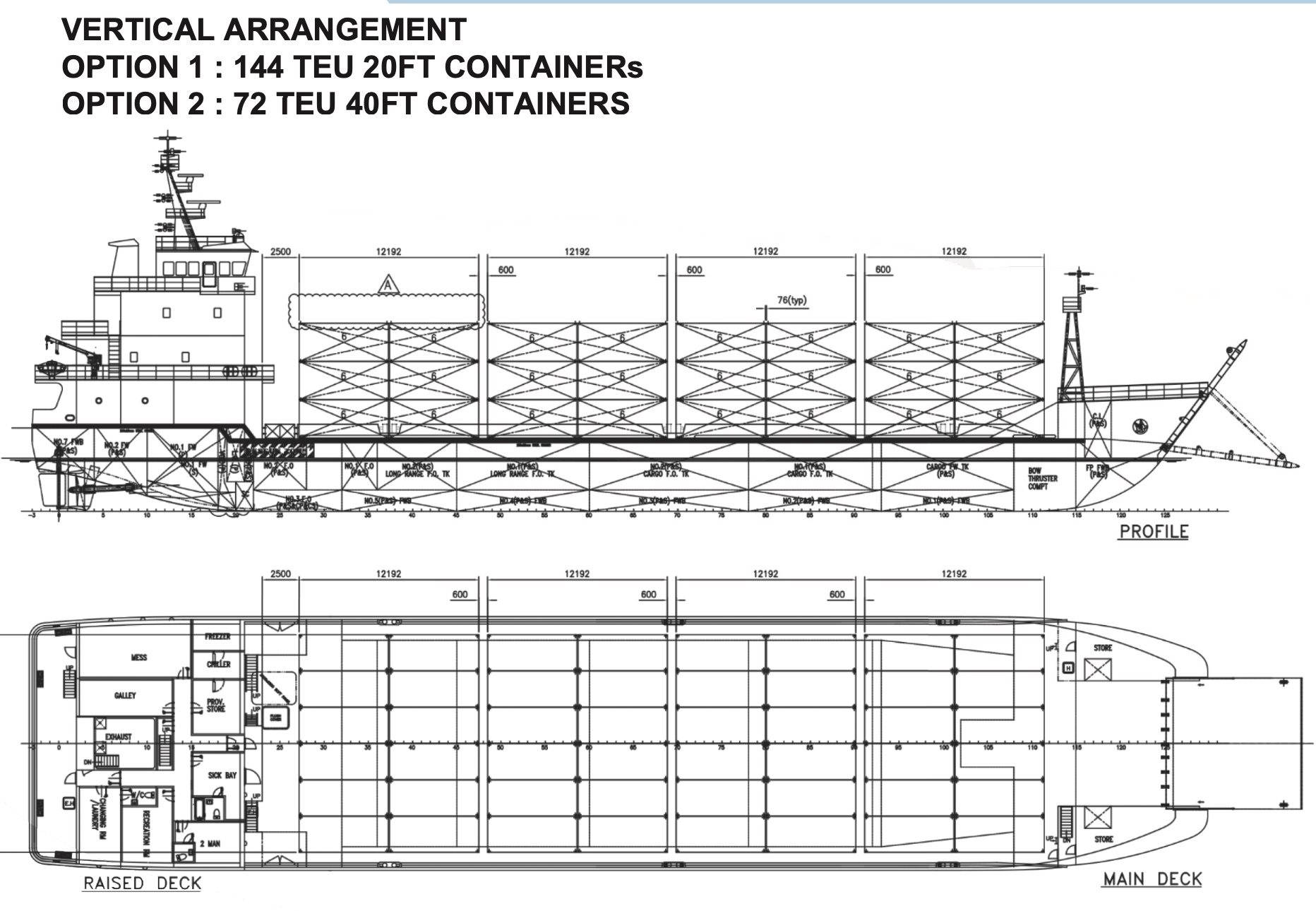

Vertical: Option 1 - 144 TEU 20ft; Option 2 - 72 TEU 40ft

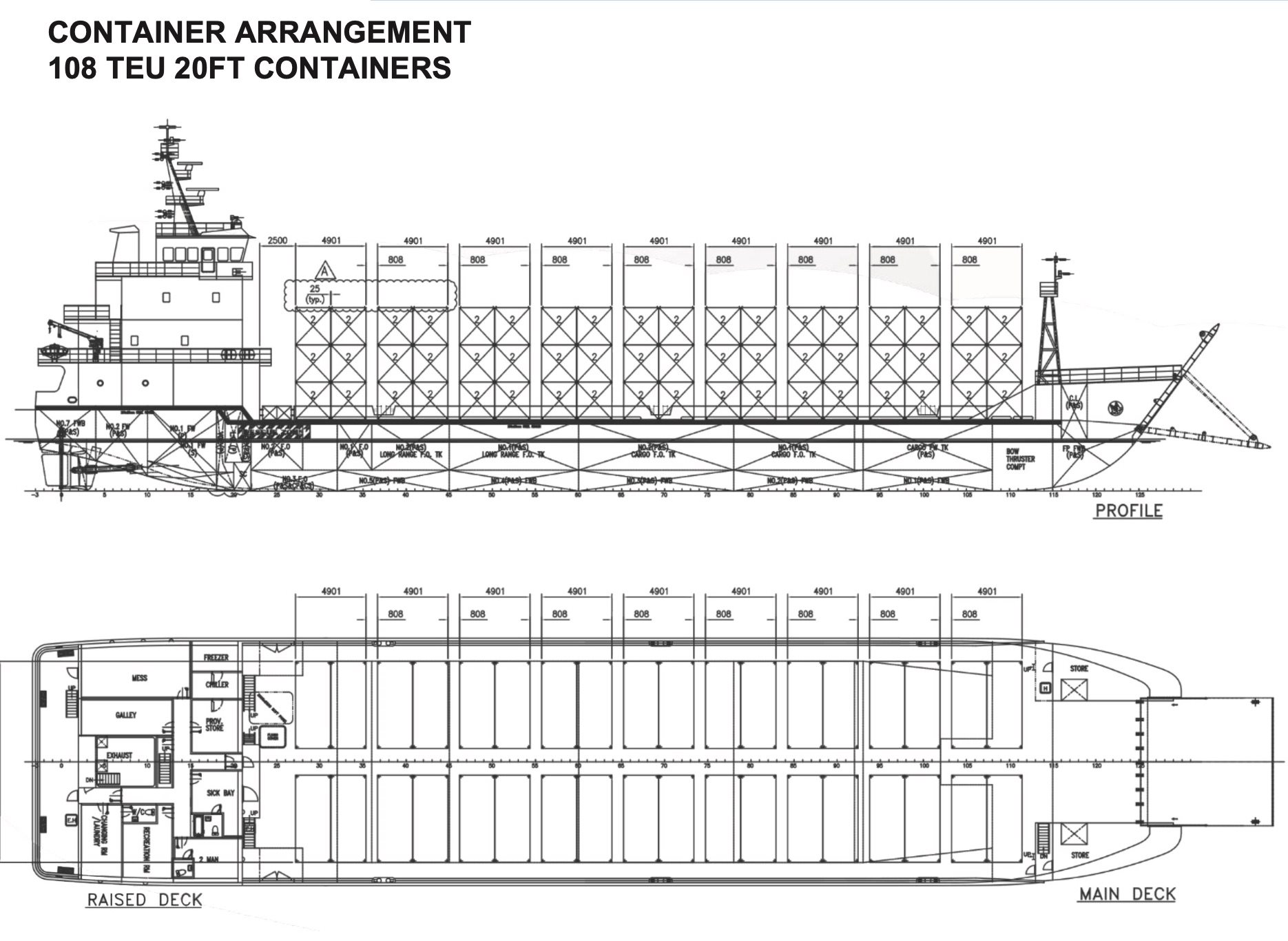

Horizontal: 108 TEU 20ft

Cargo Discharge Rate

Fuel Oil: Dia.80, 100m3/hr @ 75mTH

Tank Capacity

Daily Fuel oil: 20.4 m3

Fuel Oil Tank: 274.0 m3

Fresh Water: 218.1 m3

Fresh Water Ballast: 1125.1m3

Performance

Free running speed: 11.5 knots

Fuel Consumption at Max Speed: TBA

Fuel Consumption at Service Speed: TBA

Fuel Consumption at Standby: TBA

Propulsion System

Main Engine: 2X KTA50M2, 1600hp @ 1800 RPM Electric Start, PT Elite Plus Panel with Gearbox. WAF665L RATIO 5.950:1

Propellers: 2x FPP, Dia.2200x 1470x 4-Blade x R/L x BAR 0.55 with KORT-NOZZLE

Shafting System: 1x Oil Lubricate cooling system, with Wartsila stern tube seal and cast iron white metal lined bearing

Steering System: 1x 5 TM Hydraulic Steering System (Connecting Rode Type)

Bow Thruster Engine: 1x QSM11M 602BHP@2300RPM

Bow Thruster: 1x ZF TT 4000, L-Drive unit 449 kW@ 1576rpm

Auxiliary Equipment

Network: 415V, 50Hz

Marine Generator Engine: 2x Cummins QSB7-DM 150 eKW

Harbour Generator+ Emergency Gen Set: 1x 6BT5.9 D(M) 80eKW

Pump Equipment

F.O Transfer Pump: 1x 15m3/hr @ 25mTH

Long Range Fuel Oil Pump: 1x 100m3/hr @75mTH

Long Range Striping Pump: 1x 30m3/hr@50mTH

Bilge/Ballast/Fire Pump: 1x 100m3/hr@50mTH

Bilge/G.S/Fire Pump: 1x 100m3/hr@50mTH

Emergency Bilge Pump: 1x 100m3/hr@50mTH

Emergency Fire Pump: 1x 40m3/hr@40mTH

Fresh water Cargo pump: 1x 100m3/hr@50mTH

Dirty Oil pump: 1x 5m3/hr @ 40mTH

Air-Cond S.W. cooling pump: 2x 50m3 /hr @30mTH

Chiller / Freezer S.W. cooling pump: 2x 25m3/hr @ 30mTH

Freshwater pressure set: 1x 5m3/hr @ 40mTH

S.W. pressure set: 1x 5m3/hr @ 40mTH

Standby Pump for SW/FW pressure set: 1x 5m3/hr @ 40mTH

Hot water circulating pump: 1x 3m3/hr @ 15mTH

EMR Package A/C S.W Cooling Pump: 1x 20m3/hr @ 20mTH

Sewage Pump: 1x 15m3/hr @ 20mTH

Sewage Treatment Plant: 1x 25 Person

Calorifier: 2x Joven 90 liter

Deck Layout

Hydraulic anchor Windlass/Ramp Door: 2x Function: Anchor Windlass

12 ton at 12m/min, Dia.36mm U2 grade 50 ton Brake Holding

Function: Ramp Door 20 ton at 9m/min, 1st layer Dia.24mmx 100m 50 ton Brake Holding

Ramp System

Door Dimension: 1x 8.9m(W) x 9.2m(L) S.W.L80T Per Msq

Loading Condition: Container Forklift

System Type: Electric Driven Hydraulic System with 8 roller sheave each side.

Accommodation

Berths: One (1) man Room x 2

(with attach toilet): Two (2) men Room x 8

Berths Total: 18 men

Navigation & Communication Equipment

GMDSS: 1x Furuno, RC-1800T

Inmarsat-C: 1x Furuno, Felcom-18

VHF Radiotelephone: 1x Furuno, FM-8900S

Radar Transponder (Sart): 2x McMurdo S4

Navtex Receiver: 1x Furuno, NX 700 (Type B)

EPIRB: 1x McMurdo E8

MF/HF Radio telephones: 1x Furuno, FS-1575 SSB

VHF Handheld Radiotelephones: 1x Furuno, FM-8900S

Walkie Talkie: 3x Samyung, STV-160

Echo Sounder: 1x Furuno, FE-800

Radar: 1x Furuno, FAR-2118

GPS: 1x Furuno, GP-170

AIS: 1x Furuno, FA- 170

Speed Log: 1x Furuno, DS-85

BNWAS: 1x Furuno BR-500

Gyro Compass: 1x Simrad Model RGC80/85

Autopilot System: 1x Simrad, AP-80

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
