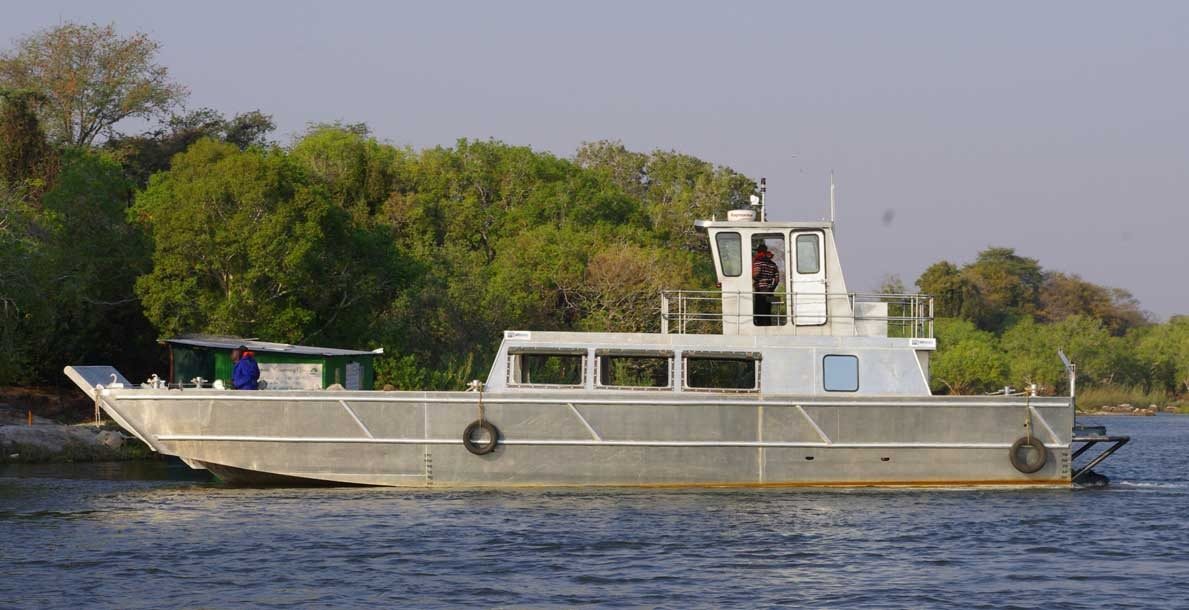

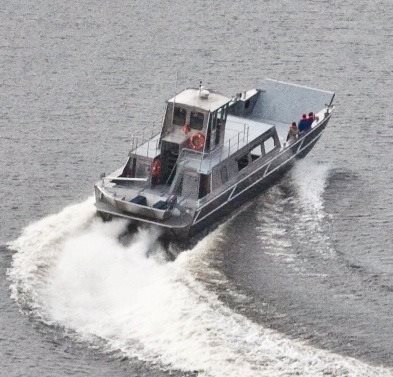

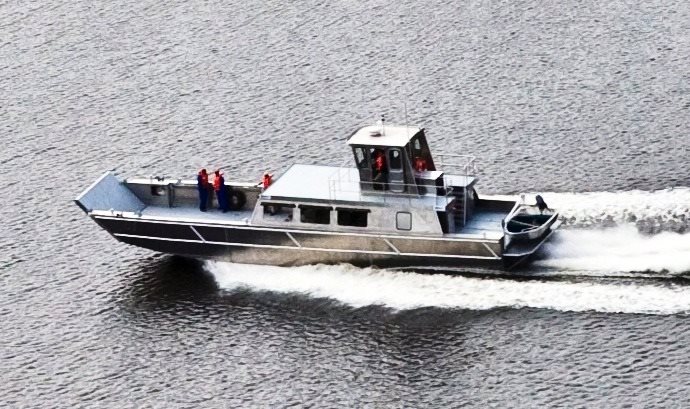

NEW BUILD - 18m Passenger Landing Craft


Listing ID - 4772


Description18m Passenger Landing Craft
Date Launched
Built to Order
Length18.7m (61ft 4in)
Beam5m (16ft 4in)
Draft0.52m (1ft 8in)
NoteFull load displacement: 20,400kgs (40,000 lbs.)
LocationCambodia
BrokerCraig McKay
craig.mckay@seaboatsbrokers.com
+61 412 295 595
PricePOA
View As PDF

LOA: 18.7m
Beam: 5m
Draft to waterline: 0.52m
Full load displacement: 20,400kgs (40,000 lbs.)
Design & Construction Standard: USCG Small Passenger Vessel Standard

Structural
Hull, Bulkheads, Main Deck, Cabin, Marine Aluminum from CNC kitset.
Marine grade windows

Hull Finishing
Antifouling paint 2 coats
Non-skid in working areas of Deck

Tanks, Piping & Pumps
Fresh Water Tanks (2) - Fiberglass 850 Liters Total x 2
Diesel Fuel Tanks (2) – 2,000 Liters Total – Aluminum or vinyl ester x 2
Senders on Fuel Tanks x 2
Diesel Fuel Header Manifold x 2
Diesel Fuel Piping
Fresh water piping and fittings- HEP2O or Speed fit
Shore Water Supply Fitting x 1
Salt Water piping
Through hull fittings-SS x 2
Seacock Valves-Marelon x 2
Sea Strainers x 2
Check Valves x 6
Tank Vents x 4
Hydraulic Steering Lines/helm pump Sea First x 2
Bilge Pumping- Manual Amazon x 2
Bilge pumps - electric with float switches Jabsco, 2000GPH x 4
Shower Drain Pump with Float Switch, Rule x 1
Fresh water Pressure Pump, Aqua fax 38LPM or similar x 1
Waste Piping, low odor
Black water tank, H/D plastic 80L x 1
Black water manual pump-out system

Mechanical
Option 1:
Engines: Cummins QSB5.9-355 INT 350 HP @ 2,800 rpm x 2
Transmission: Twin Disc MG5061-SC x 2
Jet Units: Hamilton HJ 364 x 2

Option 2:
Engines: Cummins 6BTA or Yanmar equivalent
2 x 316L S/Steel shafts and Faster Propulsion [Taiwan] props

Option 3:
Engines: Iveco, 420 HP @ 3,000 RPM x 2
Transmission / Gear: 2 X ZF 280-1 PL, Ratio .814:1
Stern Drive: 2 X Konrad Model 680, Ratio 1.94:1

Main Engine Exhaust Pipes
Racor twin 75/900MAX2 fuel filters x 2
Engine Room Ventilation Blowers x 2
Main Engine Muffler- Center or Halyard x 2
Engine Room Ventilation Ducts x 6
Engine Room Soundproofing

Electrical
90-amp x 12VDC alternators supplied with engines x 2
Service batteries, 200 ampere hours each, 1 for windlass x 3
Engine start battery, 120 ampere hour x 2
Battery Boxes with Covers for all battery sets x 3
Battery isolator x 2
Battery Switches x 4
Galvanic isolator x 1
Electrical Wiring – Marine Grade- Ancor- color coded per USCG
Electrical Panel 12VDC x 24CB Bluesea Systems or BEP x 1
Lighting System Wiring 12 VDC x 1
Navigation lights LED, Hella or similar x 4
Anchor Light LED x 1
Instrumentation lighting LED x 2
Helm position lighting red/white LED x 2
Engine Room Lighting fluorescent x 4
Interior lighting LED warm white dimmable x 10
Cockpit lighting LED warm white dimmable x 2
Step Lights / Ladder lights LED x 2
Courtesy/ Walkway lighting lights LED, blue x 10
Manually controlled halogen search lights x 2
Sockets 12 VDC- Helm station and cockpit x 6
PVC Conduit for all power wiring x 1
Battery Monitor x 1

Main Deck Equipment
Electric Windlass/Capstan, Muir with foot switches x 1
Hatches, Lewmar low profile x 4
Waterproof hatch for Chain Locker x 1
Bow Roller, Anchor 16 kg Delta, chain 3/8” High Test, rope 3⁄4” x 2
Stowage hatch forward for fenders and mooring lines x 1
Overhead stowage for life jackets.
Under seat stowage for passenger shoes and gear.
Cleats, cast aluminum or Marelon x 6
Seating for 40 pax, forward facing
Deck Filler Fresh Water- Port & Starboard, nylon x 2
Deck Filler Diesel Fuel- Port & Starboard, nylon x 2

Helm Station / Bridge Equipment
Micro Commander electronic controls for throttle and gear x 2
Furuno Radar M1715/15 x 1
Furuno GPS Navigator GP-33 x 1
Furuno 6 Echo Sound LS-6100 x 1
Magnetic compass, Plastimo x 1
Diesel tank Gauges x 2
Fresh Water tank gauges x 2
Marine quality steering wheel x 2
Pilot’s Seat x 1
Crew Seat x 1
Heavy duty w/screen wiper at helm position x 1
12 Volt Horn x 1

Interior Finish
Ceiling Material- GRP finish panels

Heads
Compartment aft equipped with an electric flush toilet, wash basin and shower x 2
Fresh water system with 2 x 200-liter tanks, Flojet Sensor type pump, cold water toilet/shower x 1

Engine Room
Soundproofing
Engine beds

Safety Equipment
Fire Extinguishers x 8
FireBuoy automatic smothering cylinders x 2

Options
Full paint finish
Life-rafts, extra safety equipment
Compliance certification



The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
