Overview

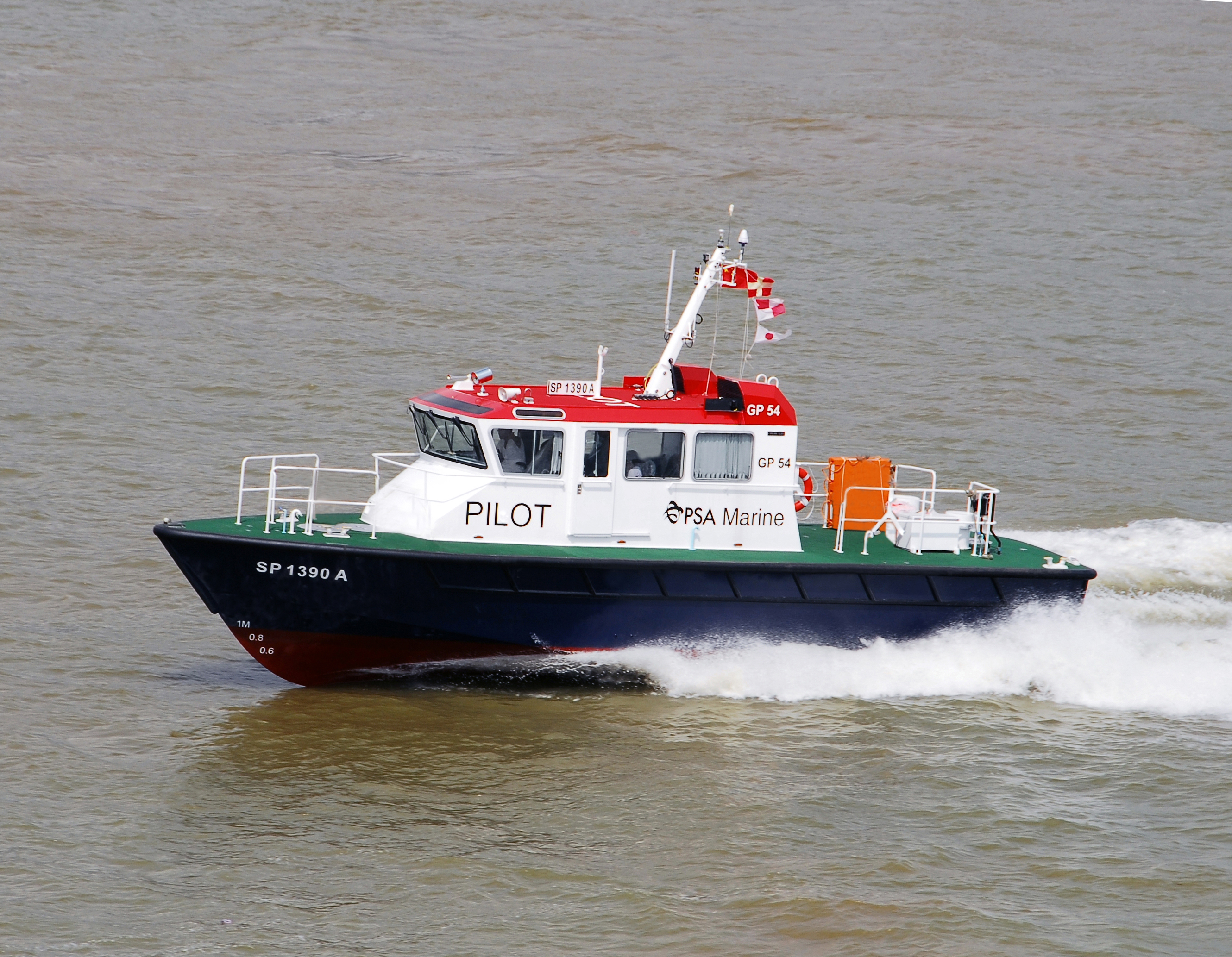

The design was developed by Cheoy Lee’s design office as a fast 15m launch for the Hong Kong Fire Services department.  Following that over 30 units have been built with slightly varying lengths as a harbour launch.  This hull is now used for the new generation of Pilot Launches as the size and performance has proven a huge success.   A well proven design with some recent laminate changes to achieve better laminate weight and increased performance.  This design should be considered the benchmark for Pilot Launches.

LOA: 15.00m
Length W.L.: 13.65m
Breadth Mld: 4.40m
Depth Mld: 2.33m
Draft (max):1.35m

Main Engines:
2x Man D2876 LE403, 450 hp (331 kW) @1800 rpm

or
2x Caterpillar C18 ACERT, 479 hp (357 kW) @1800 rpm

Gearboxes
2x Twin Disc MGX 5114A (MAN)
or

2x Twin Disc MGX 5135A (CAT)

Generating Set: Kohler 17EFOZD, 17 kW @ 230/1/50

Steering System: Shipset: Marol Hydraulic
Engine Control: 1x Kobelt 6505S

F.O. Filters / Separators: Shipset; Racor  1000 & 500
Flexible Couplings: 2x Globe Drivesaver
F.O. Flow Meters:  Shipset; Nitto Seiko
Fresh Water Pressure Set: 1x ITT Jabsco Par-Max 2+
Bilge Pumps: 7x ITT Rule 2000
Bilge Pump (AC): 1x Bombas Azcue CA-50-2
Emergency Bilge Pump: 1x Whale Gusher 30

Rubber Fender: Shipset; Trelleborg Hercules
Sliding Fender: Shipset; Trelleborg Hercules

Anchor / Anchor Chain: Chinese make

Toilet: 1x Raritan, manual type

Aluminium Windows: Shipset; Hai Xiang / Beta

Flush Aluminium W.T. Hatches: 4x Bomar / Freeman
Fuel Tank Gauge: 1x VDO / Itim
Interior Panelling: Shipset; Forex PVC boards

Interior Lights: Shipset; Cheoy Lee
Navigation Lights: Aqua Signal Series 40
Electric Horn: Marco

Helmsman + Passenger Seats: 2 + 8; Bostrom  Sea Post

Life Jackets: 12 (Chinese make)
Lifebuoys: 2 Viking

Portable Fire Extinguishers: Eversafe (Shipset)

Air Conditioning Plant: Cruisair VCD27, VCD18, VTD12 (Shipset)
Engine Room Ventilators: Meta-Vent ((Shipset)
Paint: International Paint
Main Switchboard + Distribution Boards: Cheoy Lee
Electric Cables: Draka
Window Wipers: 3x Exalto 223BD
VHF Radio Telephone: 1x Motorola GM-338
AIS: 1x JRC JHS-183
Electronic Navigational Chart with GPS: Lowrance HDS-10
Public Address System: 1x SEA 857
Searchlight: 1x Francis L300 RC
Video Recording: HIK Vision
Remote Fuel Monitoring (Option): eGenKit
