Built year / Place: 1972 / Norway

Hull Material: Steel

Flag: Norway

Class Society and Notation: Local Norwegian Class



LOA: 60.58m

LBP: 56.5m

Breadth: 10.3m

Draft: 2.1m

GT: 850 tons



Total power output (BHP): 1004

Main Engine: 2 x

Main Propulsion System: Schottels

Propellers: 2

Maximum Speed: 10 knots

Cruising Speed: 8 knots



The ship went through a major rebuild in 1996. The rebuild included a major modernization of the vessel, including a new wheelhouse made of aluminum and the interior.
Bow gate, stern gate and deck hatches were replaced with new ones.

At the same time, all engines were renewed, and a double water jet was fitted to improve the control of the vessels.



• 2003, the vessel was sold to a private industry.
• 2016, The vessel went through a full certification, including thickness measurement and updated safety system and electrical system.
• 2017, the bridge was updated with Bridge Mate PKS and Operator Chair DGPS, Autopilot, 2xECDIS, Radar, Gyro and Sonar.
• 2019, major upgrade and gained European Certificates
• 2020, the dayroom was upgraded with new furniture and underfloor heating.
• 2021, 2 new engines from Scania were mounted and 2 new generators from John Deer. Engines are made for use with BIODIESEL. New alarm panel and New maneuvering system was also installed.

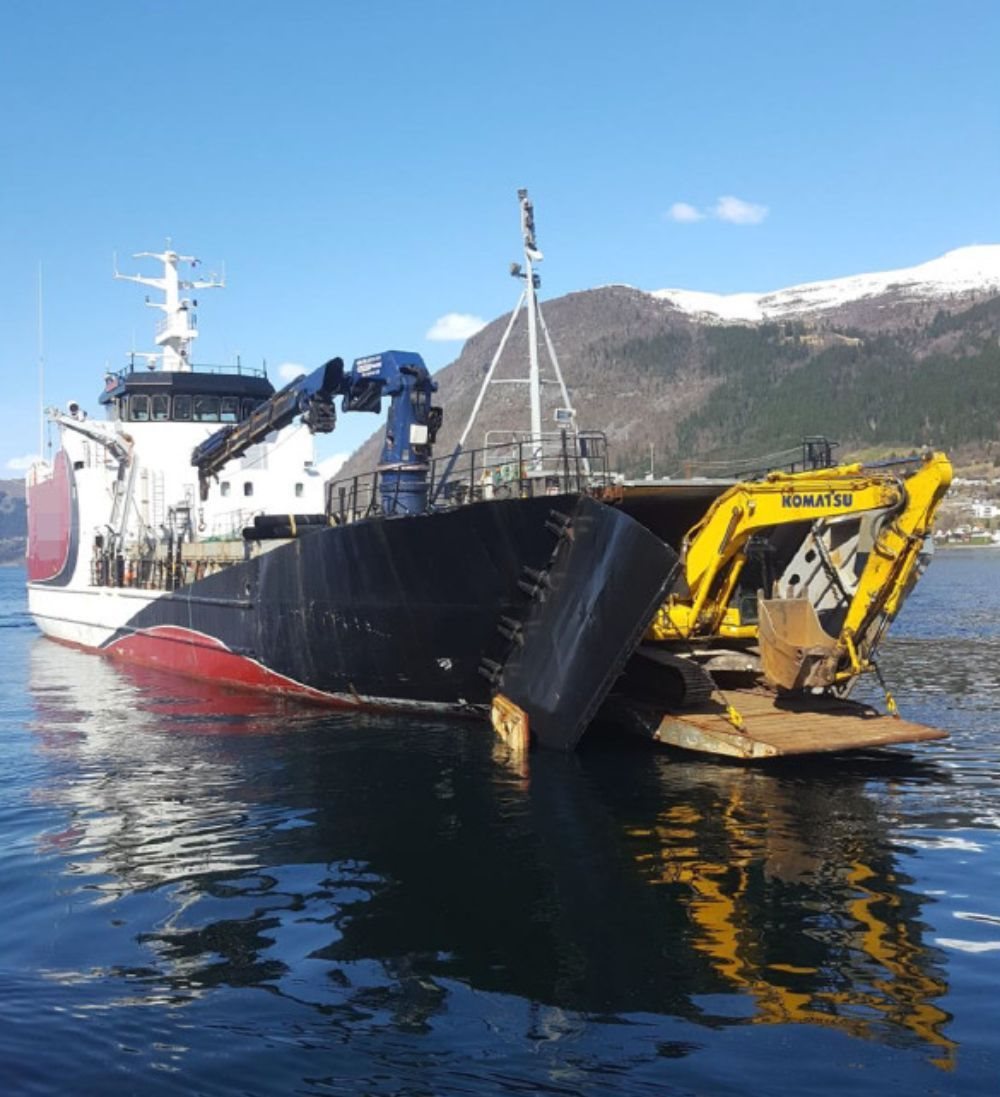

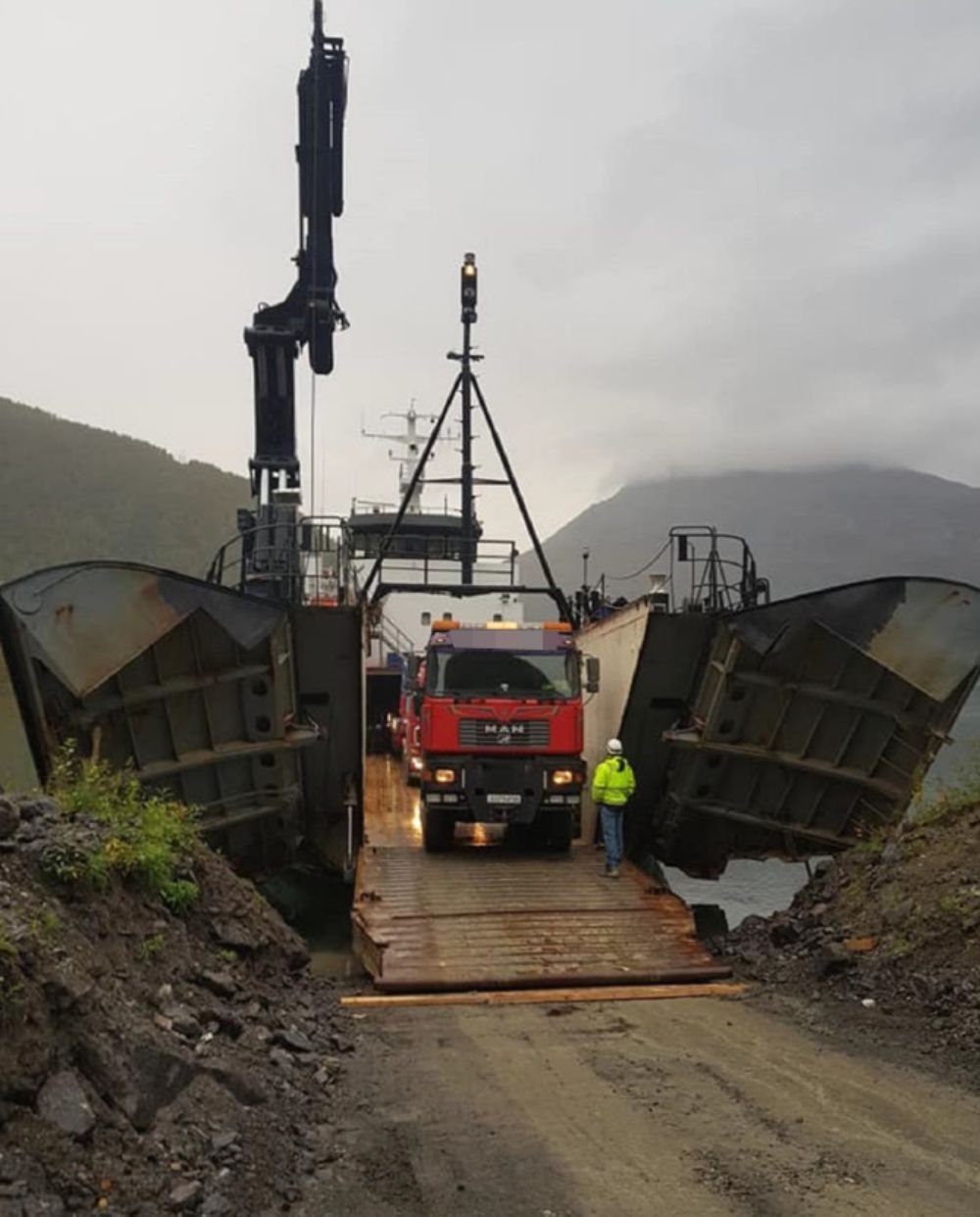

This ship is perfect for transporting machines and equipment. Weight, terrain, and low availability are our specialty. We can transport big and heavy components by sea. With its special design, the ship is very suitable for transport in shallow water.



Max drive height thorough drive deck ca 3.6 meter



Addition information for Landing Craft’s class:

Length of transport deck: 54.5 meter
Width of deck: 6.2 meter
Max height under hatches: 3.6 meter

Max width of bow port: 4.0 meter

Max width of stem port: 4.3 meter

Max height of stem port: 3.5 meter



PROPULSION MACHINERY
• 2 SCANIA DI16-070M-625hk v/1800 rpm (2021 model)
• 2 propels type Schottel SRP 300 m rotational speed 453 rpm. Stb right-handed propel, bb lefthanded propel
• Clutch Electro Hydraulic type K305



BOW THRUSTERS
Made Schottel Werke
• 2 type Schottel Pumpejet SPJ 22
• Output 100 kW (134 Hp) v/2080 rpm



POWER SUPPLY
2 engines type
• John Deere 6068TFM50
• Output 89kw v/1500 rpm
1 engine type
• Type DEUTZ MWM TBD 234 V8
• Output 255 kW (342 Hp) v/1500 rpm

1 generators made Stamford
• Type MHC 434C
• Effect 200 KVA
• Voltage: 3 x 230V, Frequency 50Hz v/1500 rpm

2 generator made Stamford

• Effect 105 KVA / 84kw
• Voltage: 3 x 230V, Frequency 50Hz v/1500 rpm



FIRE DETECTING SYSTEM

Type Eltek ZLX 30



ROV
Type: Sirio inspection ROV
Operating depth: 300 m
Dimensions: 590x560x450 mm
Weight: 40 kg
Chassis: High Impact Resistant Maintenance Free Polyethilene

Cameras: n° 1 Color
Power requirements: 220-240 VAC, 380-410 VAC single phase 50/60 Hz 3 kW
Payload: 8 kg (up to 10 kg with optional buoyancy)
Tritech micron DST Sonar
Tritech Micronav 100 USBL

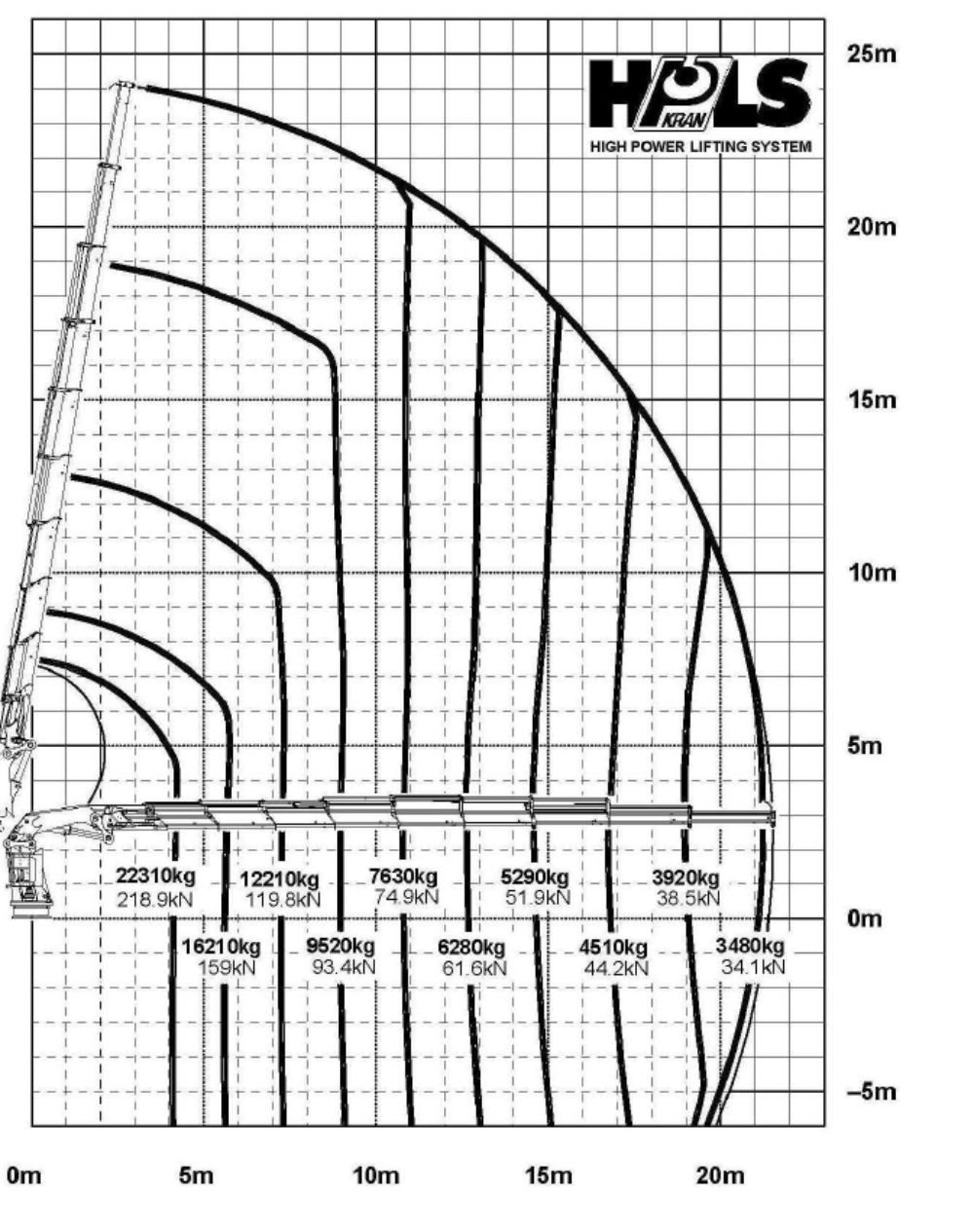

CRANE
Palfinger PK120000MH 120 T/M

Range 21.6 m (3.5 ton)
Range 26.6 m (2.2 ton)



DP SYSTEM
Type: MT Bridgemate DP0
Ref systems: 1 Diff GPS
Sensor: 1 acoustic wind sensor, 2 Gyros, 1 VRU
DP modes: DP, Joystick, Transit, DP Relaxed
Logging: 30 day logging of alarm/event and playback of DP screen.
