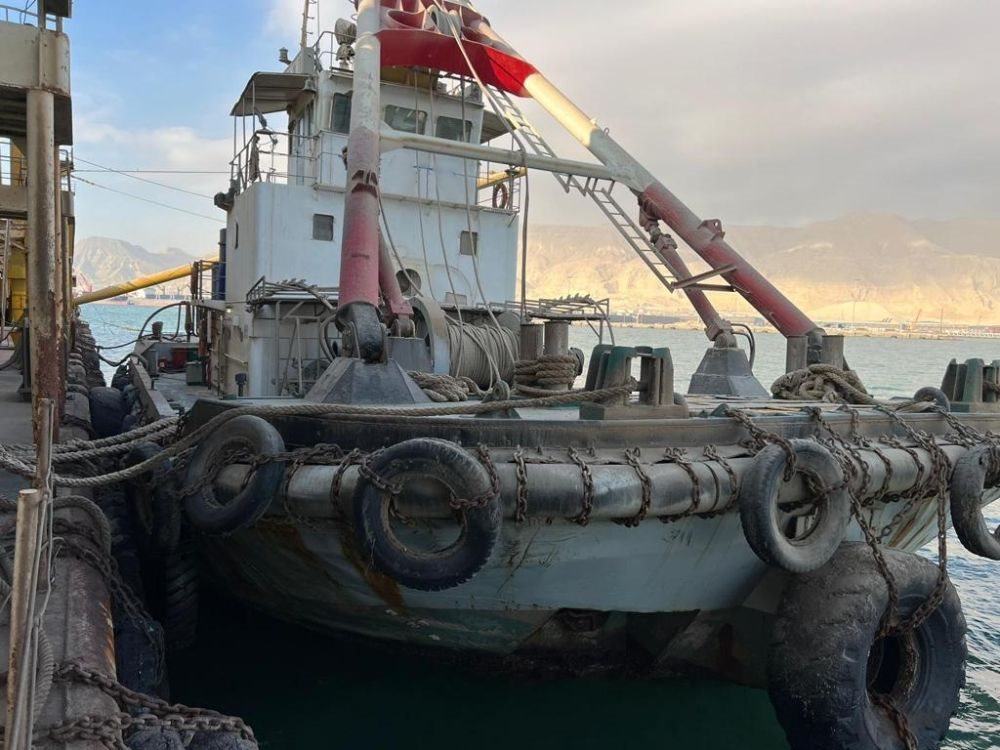

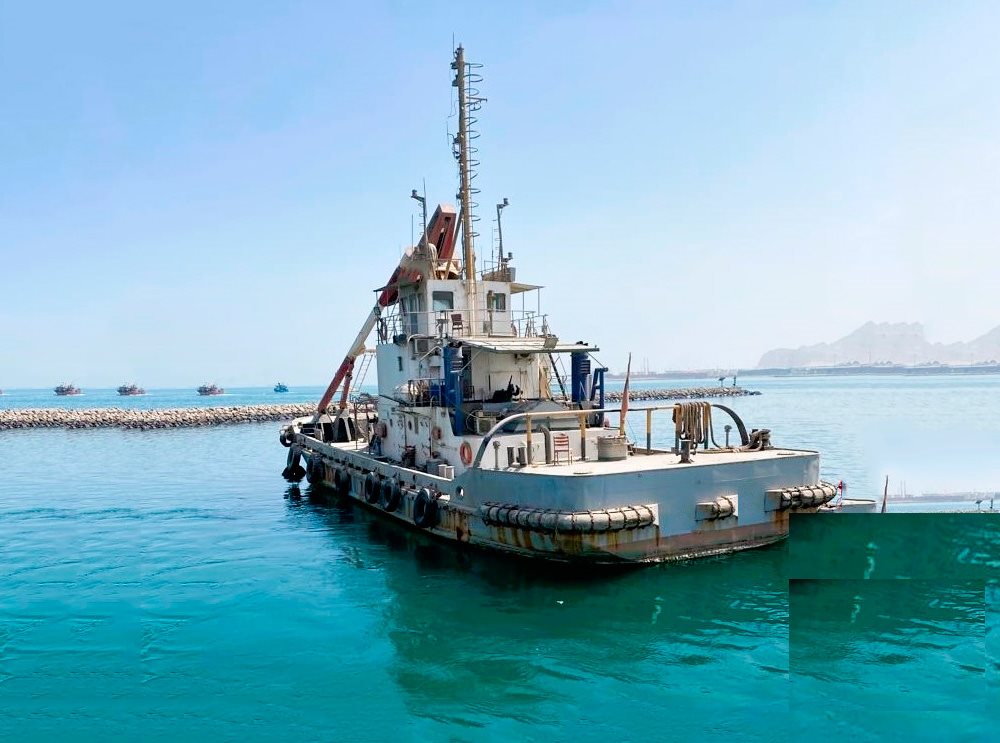

28.5m Workboat For Sale

Listing ID - 4868
Description	28.5m Workboat For Sale
Date Launched	1985
Length	28.5m (93ft 6in)
Beam	10m (32ft 9in)
Draft	1.88m (6ft 2in)
Location	East Med
Price	150,000 EUR
View As PDF

Built year / Place: 1985 / JAPAN

Hull material: Steel

Flag: St Kitts and Nevis

Class Society and Notation: Expired

Principle Dimension

Length Overall: 28.5m

Length between perp.: 25.5m

Breadth: 10m

Depth: 2.9m

Draft: 1.88m

NT (tons): 72

GT (tons): 241

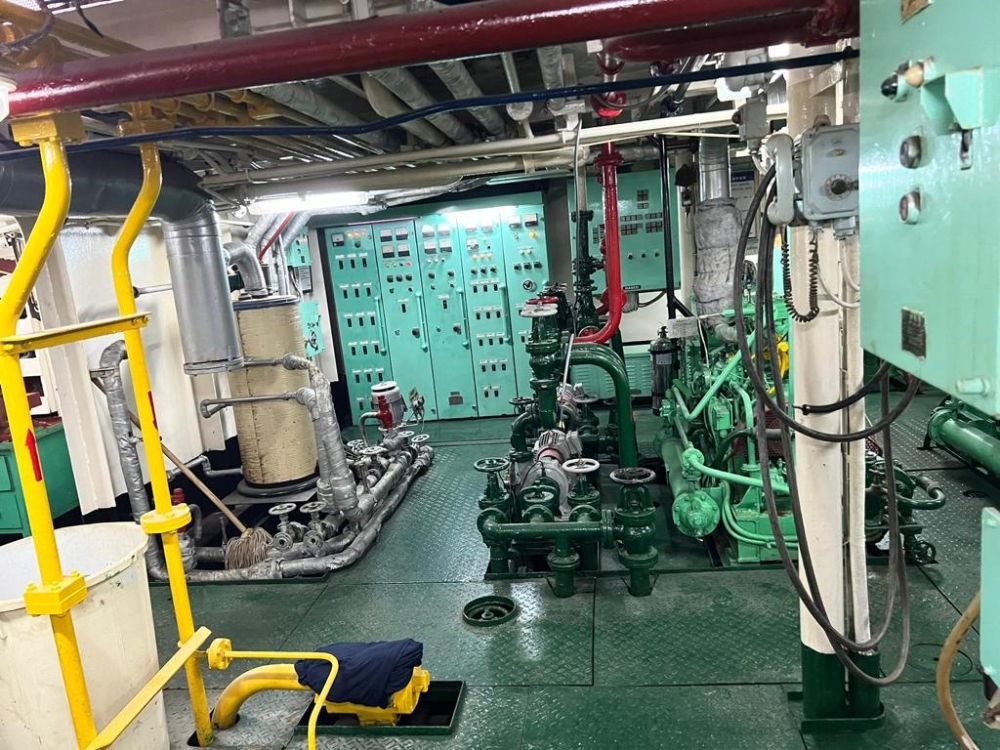

Machinery & Propulsion

Total power output (BHP): 592

Main Engine(s) (make, type): 2x

Main Propulsion System: Twin Screw

Auxiliary engine(s): 2x 25kW, Yanmar 35ML

Speed cruising (knots): 9.68

Cargo and Tanks Capacities

Fuel tanks capacity: 38m3

Fresh Water tanks capacity: 40m3

Additional Information

Reduction gears: 2 x Niigata, ratio 3.5:1

Loaded draft: Average 1.88m, Aft Stern 1.95m

Empty draft light draft: Average 1.63m, Aft Stern: 2.33m Displacement: fully loaded draft 286.04t, No-load light draft 259.50t

Type Deep D 2.9m

Complement 6P

Light ship weight light ship weight 225.32t

Bed bit crew bed 6pcs

tallest building height from baseline 18.7m

Rated anchor force 40t

maximum anchor force 45t

tow hook 10t

ANCHOR WINCH

NO.1drum

pull 421×103N 110×103N

speed 5m/min 10/20m/min

Braking ability 637×103N 167×103N rope drum ?950×1500 ?550×1500 wire rope ?54×80 ?30×90 hydraulic motor 169MPa 167MPa

Chain wheel

pull 32×103N

speed 9m/min

Braking ability 110×103N rope drum

wire rope 20.5mm hydraulic motor 7.3MPa

side drum 29.4×103N

Boat Boom Capacity 110×103N retracted by hydraulic cylinder

SAILING HOST

Type No. x Number of units M3Sx2 Bore x stroke 140 x 160mm Electricity bottle

Pregnancy Produce factory Japanese Daihatsu Fuel consumption 238g/kgw·h null gas bottle 100Lx3 MPa

Date of manufacture 1984.1 oil consumption 1.36 g/kw·h increase to press device RU110Japan rated power 221KW Spindle diameter 100mm. Rated speed 1600r/min Starting method Air3 MPa transfer method Gearbox1600/455

BOILER

Model × number of units KVA-63 x 1 production plant Japan Kyoto Factory heating area 2.9m2 type automatic fuel Date of manufacture 1984year Evaporation 264 x 103 x 103J/h use Warm water for heating fuel pressure

CAR LEAVES

Type Mode Three leaf guide tube Diameter x Pitch 1250 x 1005mm Heavy quantity 140KG

quantity, rotation 2, external rotation change speed 100mm material Manganese brass

STEERING GEAR

Power x Torque 7.84 x 103Nm steering time 30/60Smaximum rudder angle37° hydraulic pump GSP2-AOSO4AR-AOtype 10MPa 5.7L/min 1420 r/min motor 1.5KW AC380V×36A

NAVIGATION EQUIPMENT:

desktop magnetic compass T-130VDhydraulic rudder console, rudder angle indicator

DIESEL GENERATOR SETS

Diesel engine model × number 35ML-E×2 Generator model x number NIAKL-VEN x 2

Manufacturer, date of manufacture Japanese Yanmar1984.11 Manufacturer, date of manufacture Japan1984

Rated power, speed 24KW x 1500r/min Capacity x speed 16KW x 1500r/min

Bore x stroke 105 x 120mm voltage x current 385V x 30A kind type AC

PUMP

Ballast master pump:SH-50-2 15/7.1m3/h 0.2/0.3MPa motor:2.2KW 380V 2870r/min

Spare oil pump: ALC-3 2.1 m 3/h 0.2MPa

motor:3.7KW 380V 955r/min

Fuel transfer pump: TLG-3 2.0 m 3/h 0.2MPa

motor:0.75KW 380V 930r/min

Fresh water transfer pump:SH-65-2 20m 3/h 0.25MPa

Drive motor:3.7KW 380V 2870r/min

Hot water circulation pump: PVC-32 5m 3/h 0.098MPa

Drive motor:0.75KW 380V 2850r/min

Hot water supply pump: PVC-32 1m 3/h 0.098MPa

Drive motor:0.4KW 380V 2850r/min

Daily lubricating oil pump for main engine reducer: TLG-3 2.1 m3/h 24MPa

Drive motor:3.7KW 380V 955r/min

Windlass hydraulic pump:16.9MPa

Left main engine front shaft drive

ANCHOR stock anchor 570kg×2 Tail Anchors: Rod Anchor 290kg×1

WATER SEPARATOR M-015type 0.15m3/h automatic oil discharge Japan May 1985

NULL TO PRESS MACHINE Main air compressor: LSHC-20B 3 MPa 5 meters3/h1.7KW 1500r/min 2 sets

Daily air compressor: VLH-74A0.7 MPa 140m3/h 18KW 1200r/min driven by 1 right main engine

freezer
