Listing ID - 1219481 | |
|---|---|
| Description | 18m Self Elevating General Jack Up |
| Date Launched | 2014 |
| Length | 18m (59ft) |
| Beam | 12m (39ft 4in) |
| Draft | 1m (3ft 3in) |
| Location | Europe |
| Broker | John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805 |
| Price | POA |
| View As PDF | |
Built: 2014, The Netherlands
Hull material: Steel
Flag: Irish Republic
Class Society and Notation: TBA TBA
PRINCIPLE DIMENSIONS
Length Overall: 18m (59ft)
Breadth: 12m (39ft 4in)
Draft: 1m (3ft 3in)
CARGO AND TANKS CAPACITIES
Deck Area (m²): 96 m²
Deck Load (tons/m²): 15 tons/m²
ADDITIONAL INFORMATION
OTHER DETAILS

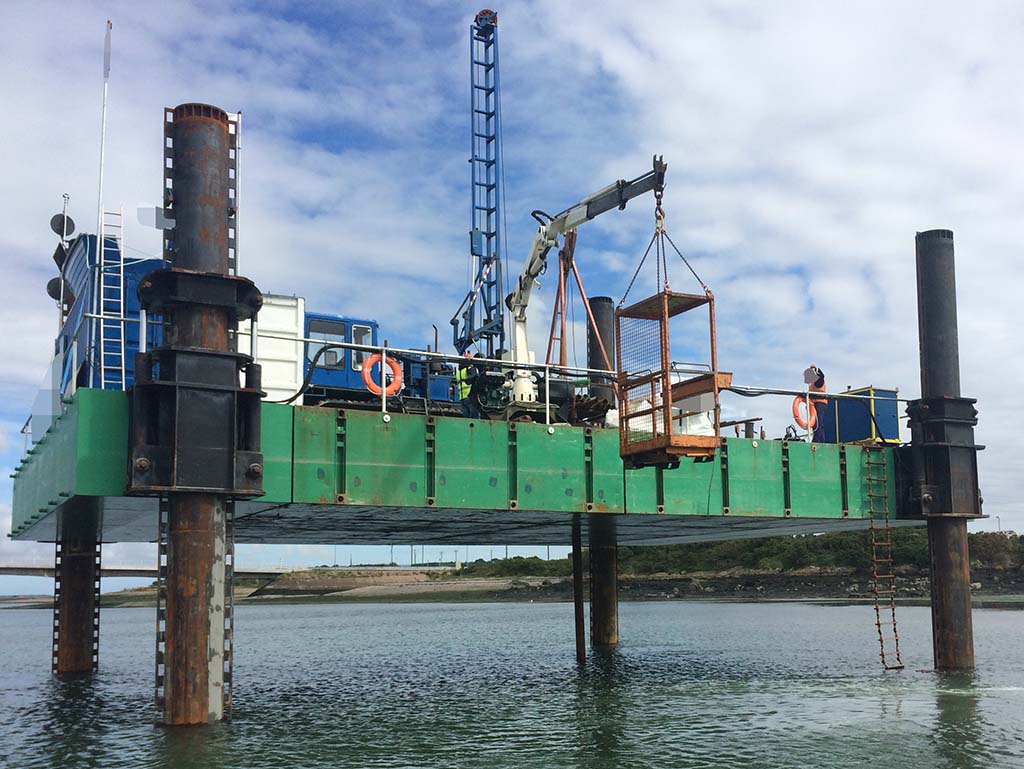

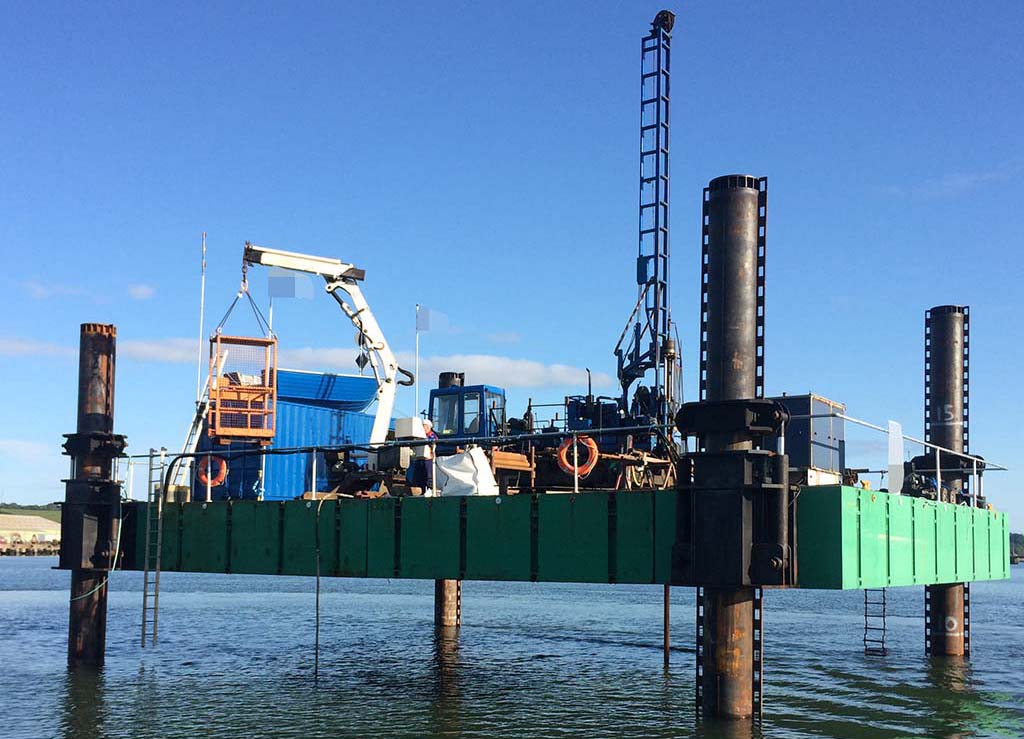

Road transportable modular Jackup barge comprising of eight Duo pontoons and two Quadra pontoons. In her current configuration two blocks of four barges are joined together along their longest axis. The two Quadra barges are joined to the short ends to form a single barge of 12m x 18m excluding the spud leg arrangements. Can be assembled by three crews and a mobile 80 ton crane over a typical working day shift.
Some newer pontoon sections were added in 2015
It has 2 x moon pools of 330mm each which make it ideal for Site Investigation works, but is also suitable for piling, crane barge, diving platform etc.
Legs: 18m long with 762mm outside diam and 25mm wall thickness
Height 1.52m Draught (unladen) 0.36m
Maximum Load Capacity 15 tons x10 for freeboard of 350mm
Jacking Capacity:
Designed/constructed 100tons
Operational limit of 80 tons
Hydraulic Oil Capacity: 280litres
Pontoon weight (Each): 7 ton Jacking Unit weight (Each) 5 ton
Leg weight (Each): 9 ton
No of trucks to move: 5 (3 x 40ft & 2 x 60ft)

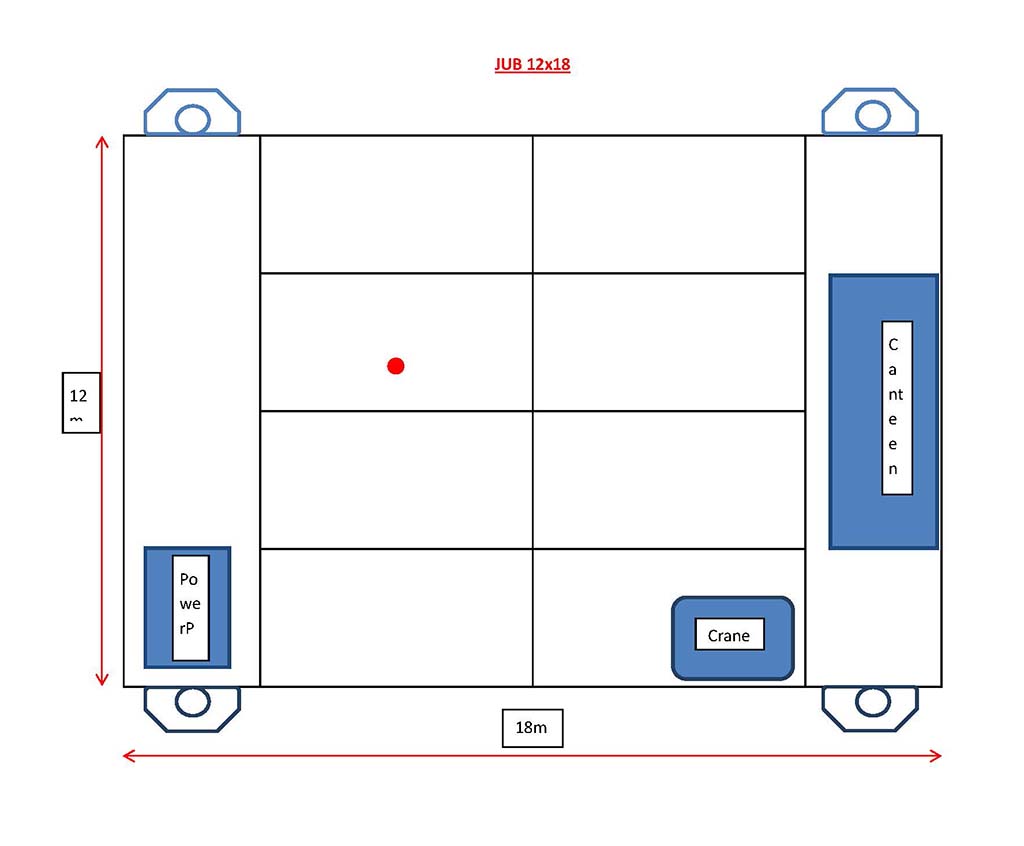

Deck space 18m x 12m
MODULE DIMENSIONS
Duo L 6.1m B 3.05 H 1.52 W 6.90 Ton
Quadra L12.2m B 3.05 H 1.52 W13.10 Ton
EQUIPMENT ON DECK
Power pack Deutz F6L912 air-cooled diesel engine
Canteen and workshop unit Chemical Toilet
Lifeboat
Palfinger telescopic Barge crane rated as follows:
Safe working load @ 3.6m 2100kg
Safe working load @ 7m 1000kg
ACCOMMODATION
New accommodation steel container of 6.2 x 2.4 metres.
Split into two equal sized units, a well equipped workshop and canteen with adequate seating and comfort for crew.
