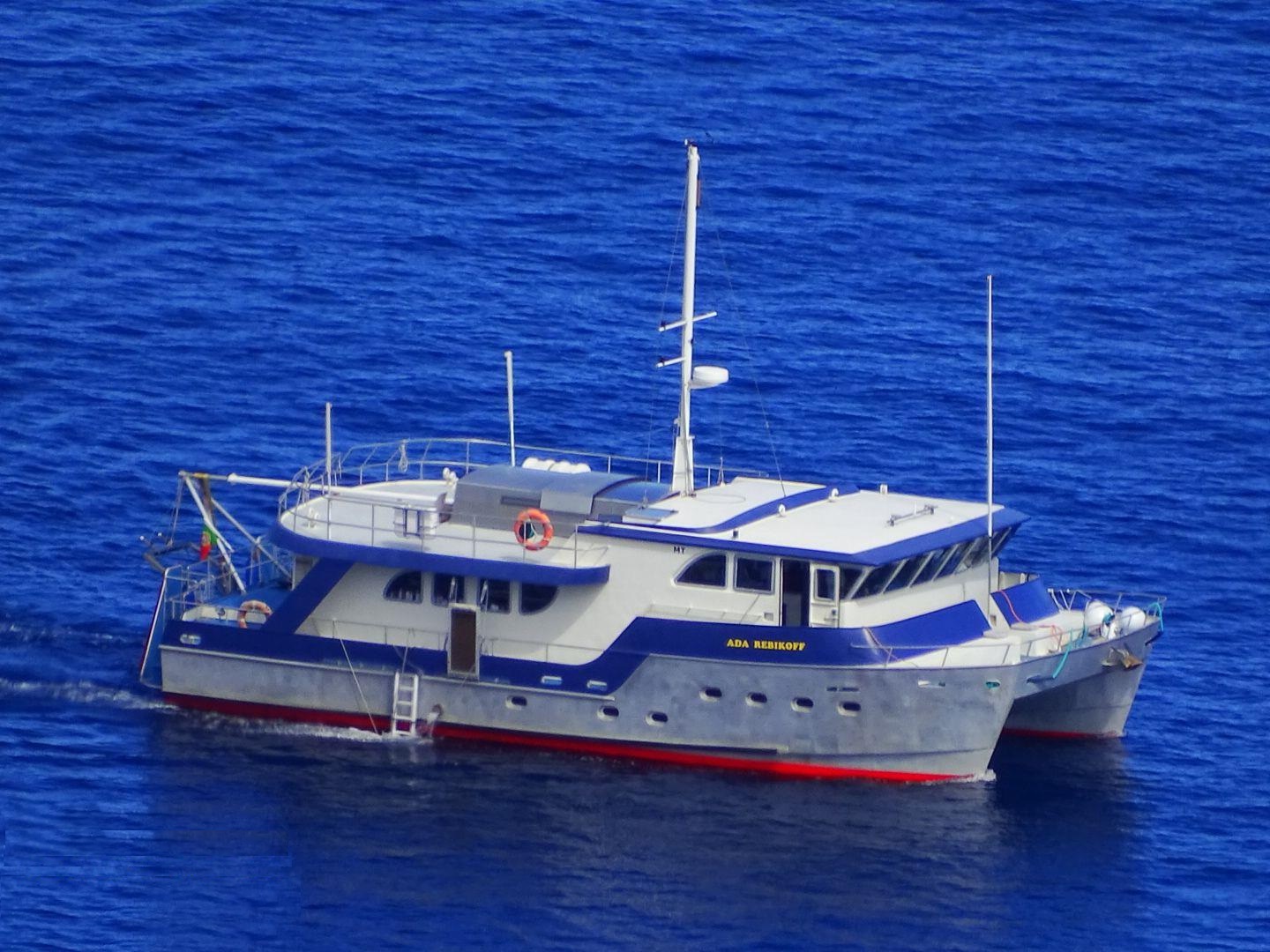

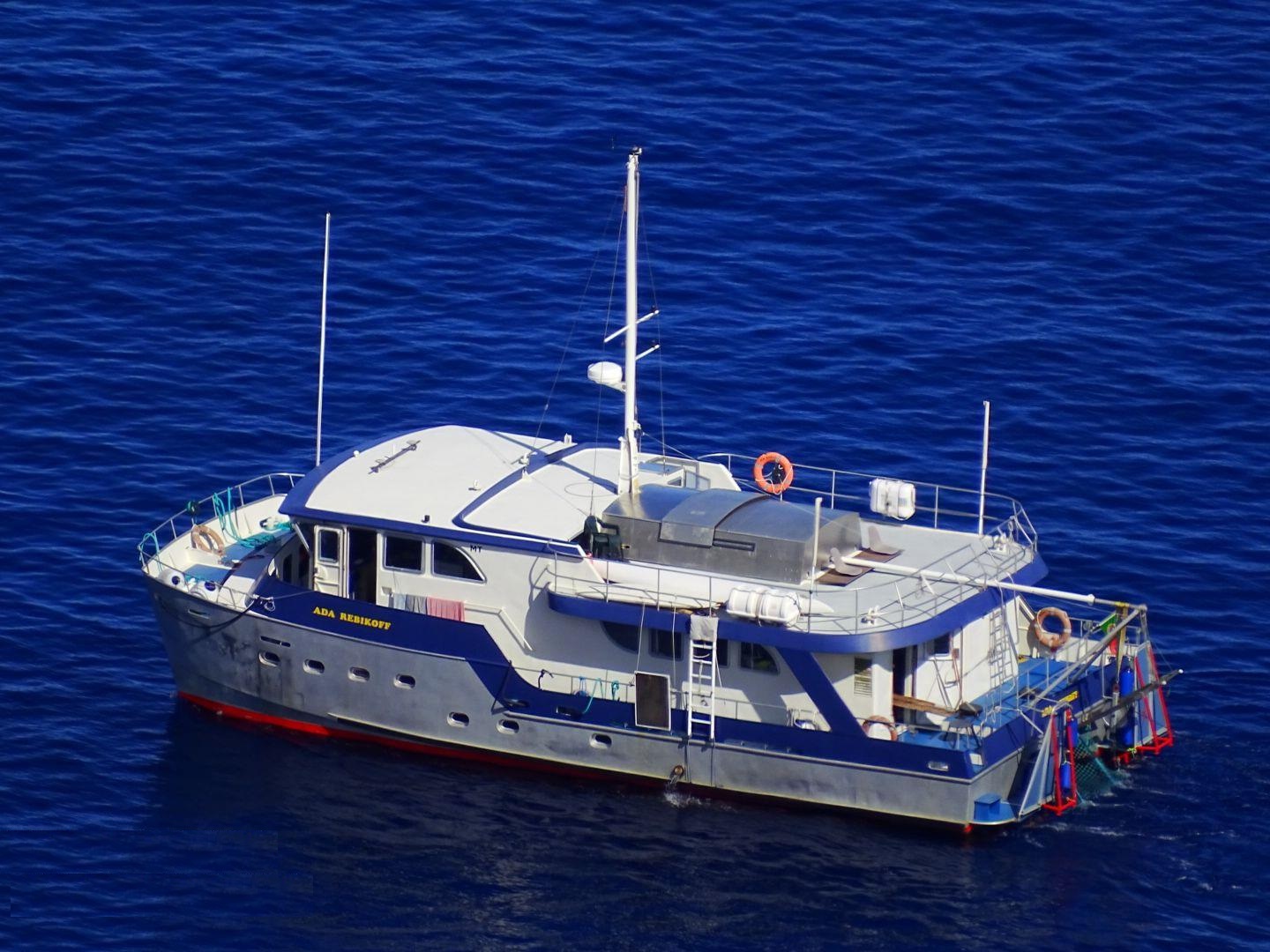

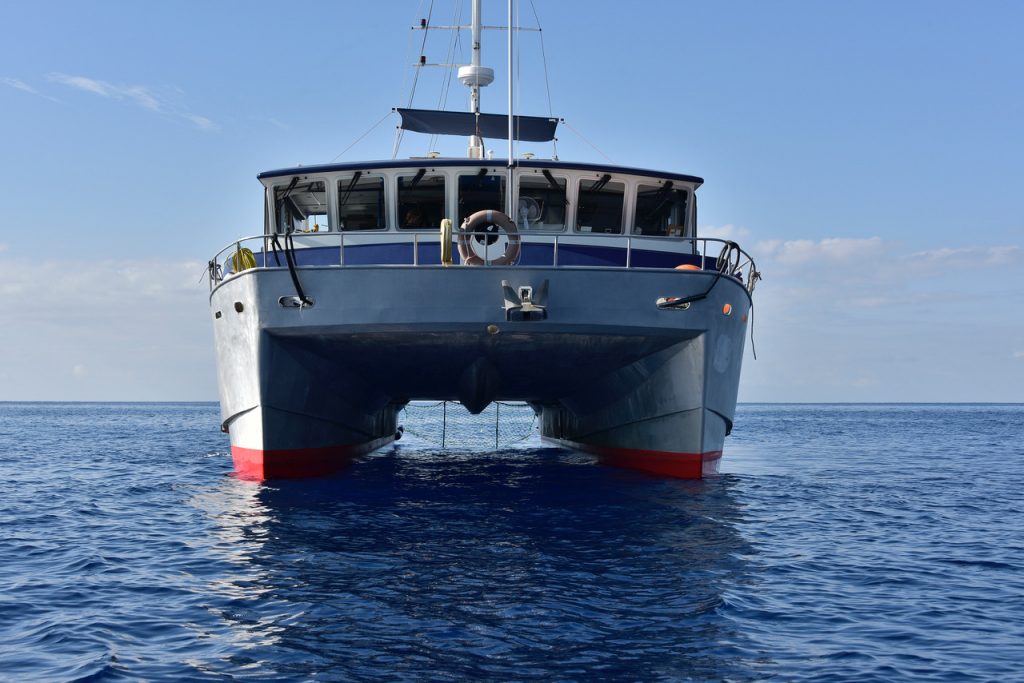

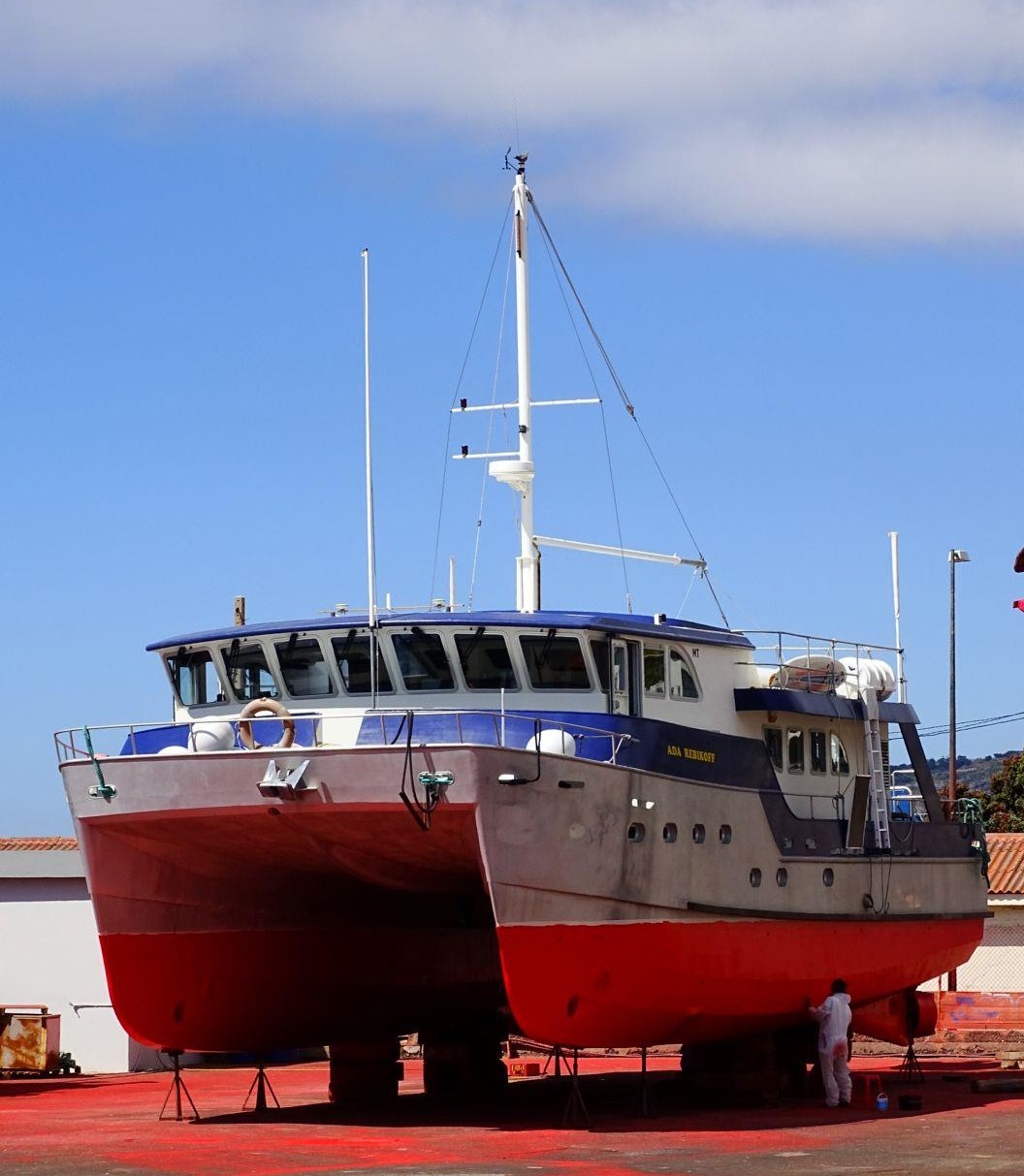

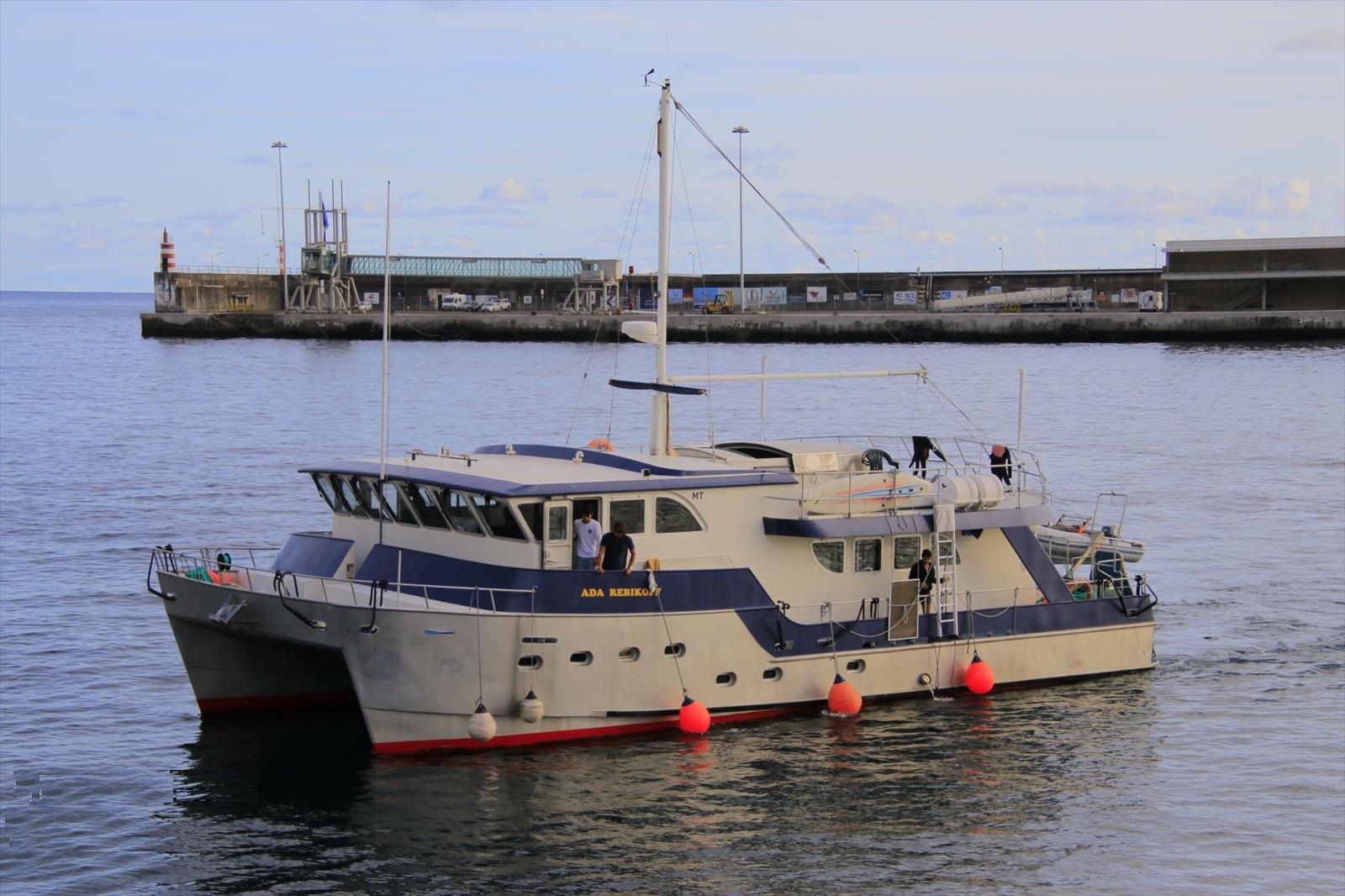

17m Catamaran Workboat

Listing ID - 4459
Description	17mt. Oceanographic Survey and Multi-Purpose Vessel
Date Launched	2008
Length	16.9m (55ft 5in)
Beam	7.5m (24ft 7in)
Draft	1.68m (5ft 6in)
Note	2x Vetus Deutz Engine
Location	Madeira, Portugal
Broker	Giuseppe Filippone
Price	EUR 900,000
View As PDF

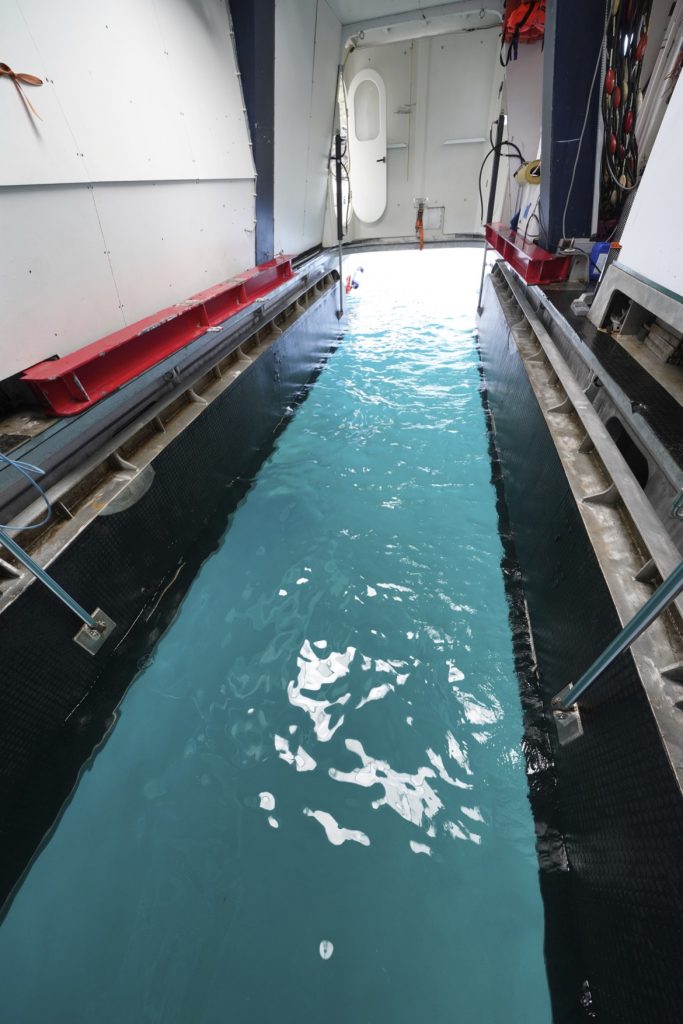

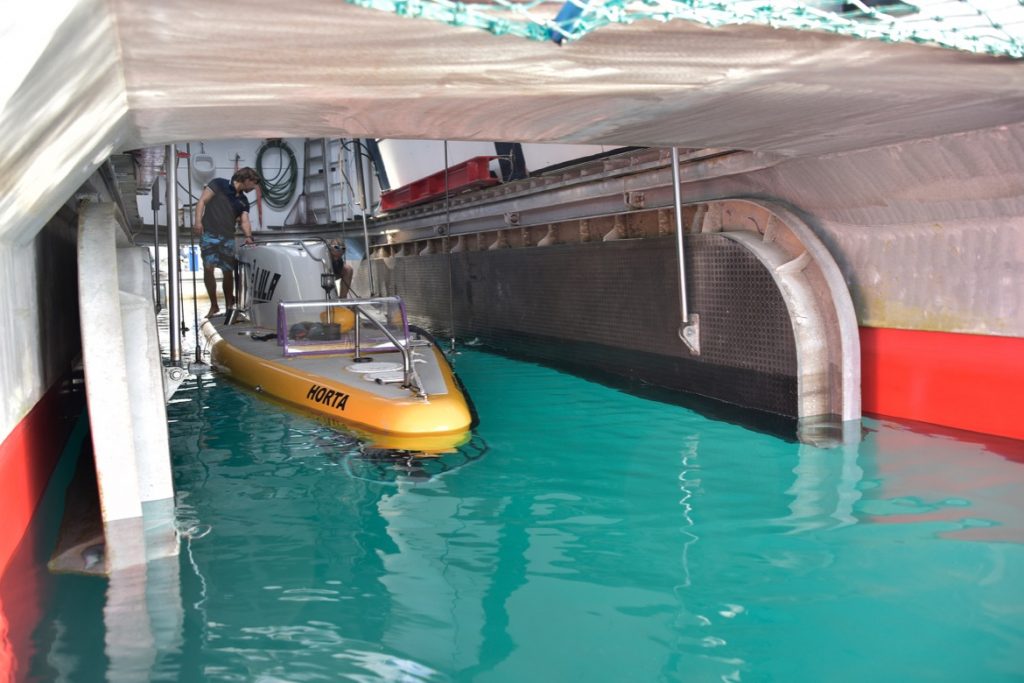

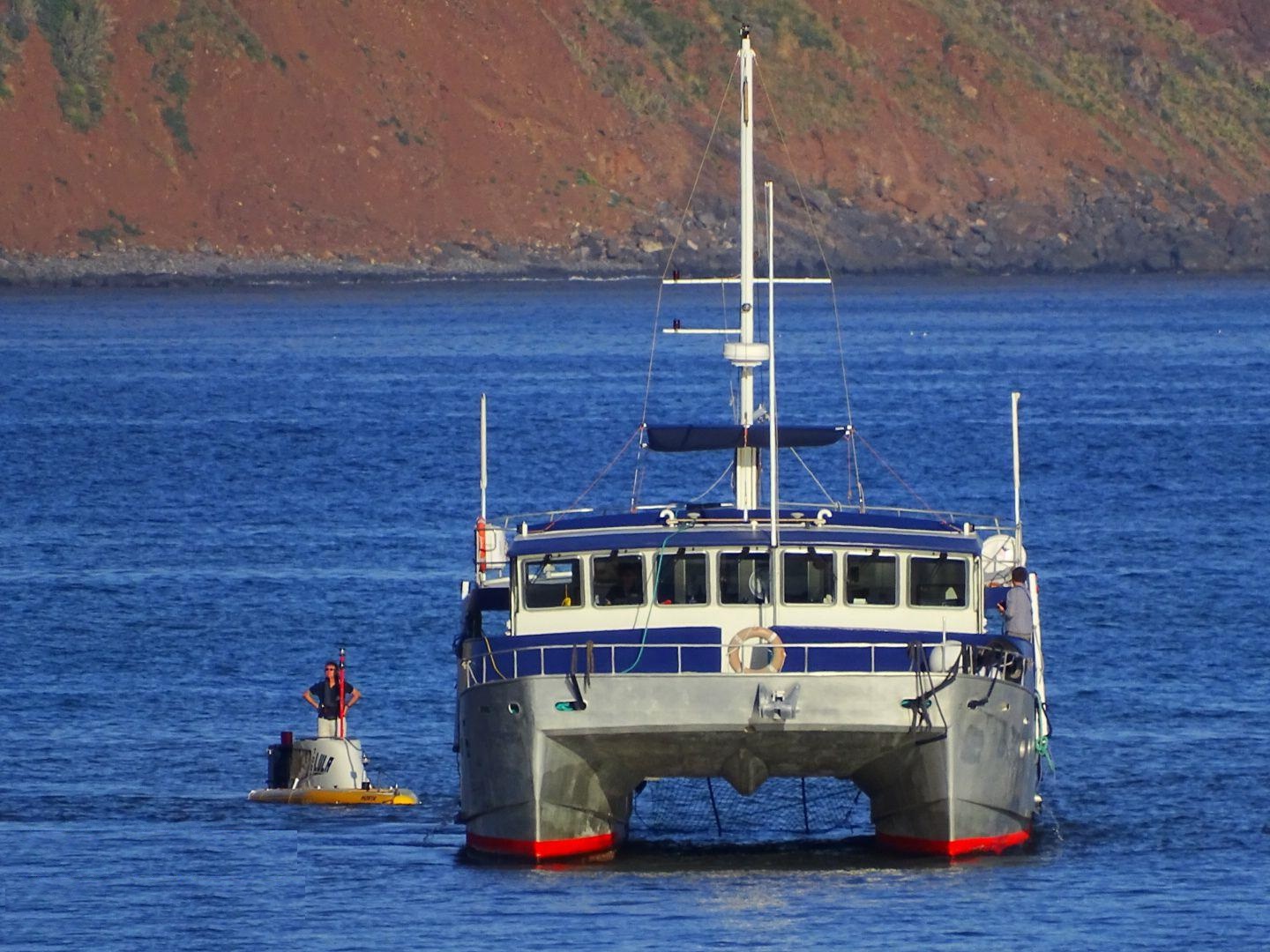

This vessel was specifically designed as a submarine carrier with moon pool between the hulls, mainly for lifting/deploying and transporting research submersible vehicles.

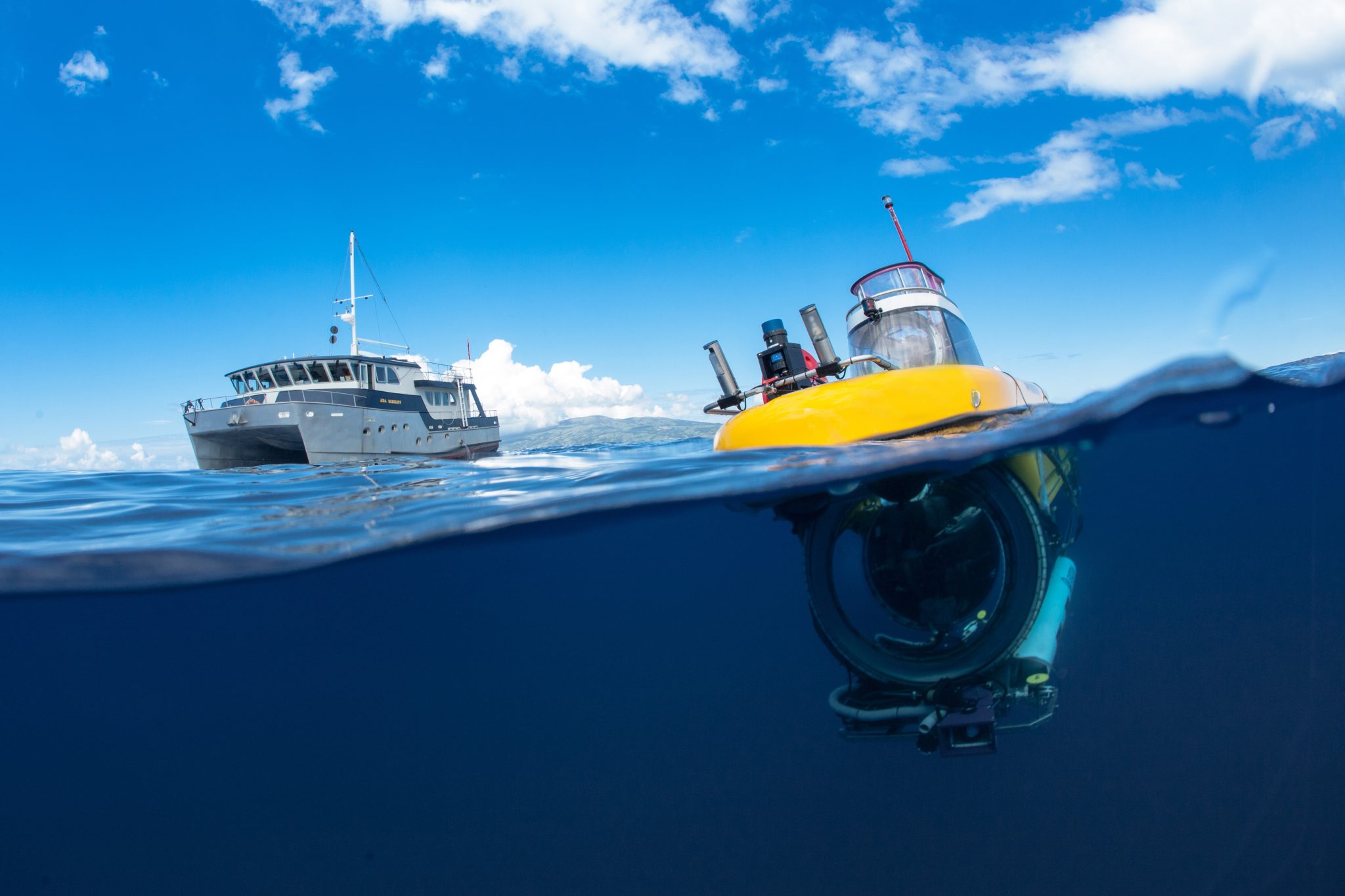

She has been regularly used as a bathymetric survey vessel and support vessel for manned submersible missions , as well as a platform for the necessary maintenance work on the sub..

Material: aluminium (Sealium 5383 H116)

Displacement: approx. 60 tons

Airdraft (approx.): 10,2m with mast, 5,3m lowered mast

Certificates: DNV/GL Hull 100 A5

CE Certification: A

Bathymetric survey equipment:

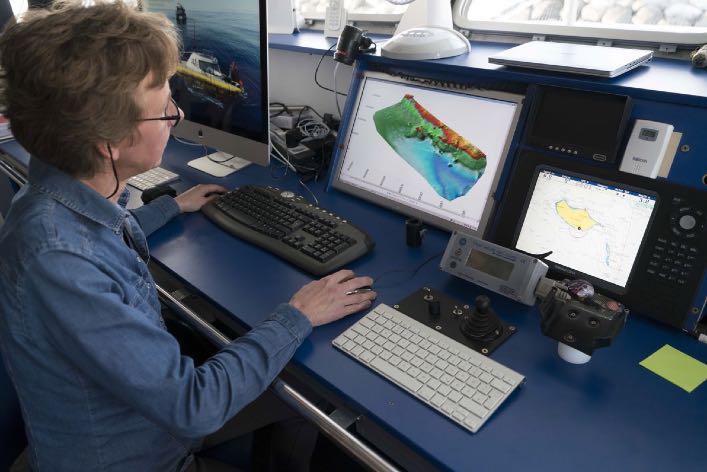

ELAC Multibeam Sonar SeaBeam 1050 & Hypack software

Coda Octopus F180 Motion Sensor

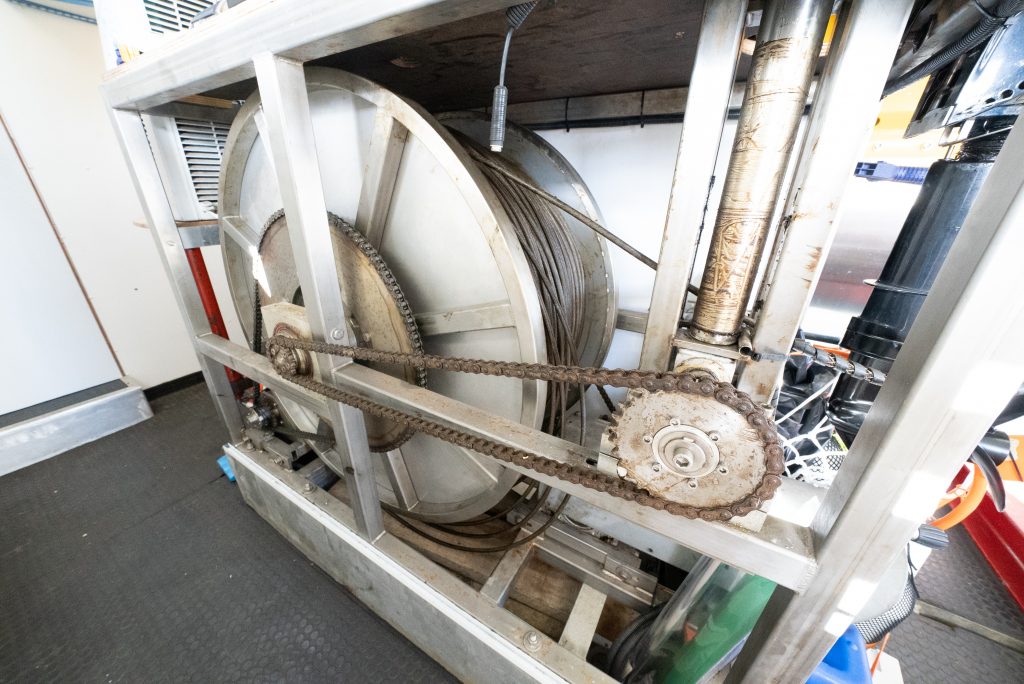

Klein 3000 Side Scan Sonar System with hydraulic winch and 2,200m cable

Marine Magnetics Magnetometer

Tracking/comms for diving vehicle:

USBL underwater tracking system LinkQuest 1500 HA with high power transponder

TN1510-AHR and Tracklink software

Underwater telephone (subphone 10 KHz)

Compressors: Bauer Oceanus air compressor 330bar (1 from 2014/200h, 1 from 2021/20h)

Lifting gear: 10 ton hydraulic crane for underwater vehicle (HOV, ROV, AUV)

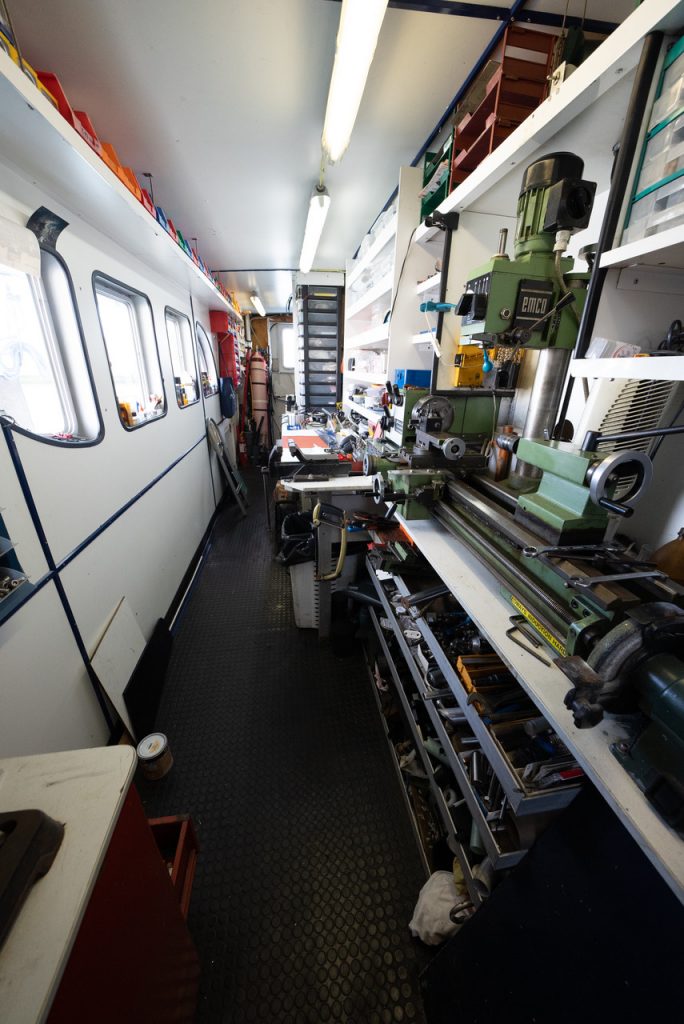

Workshop including lathe, milling machine, tools and spares/materials.

Technical information:

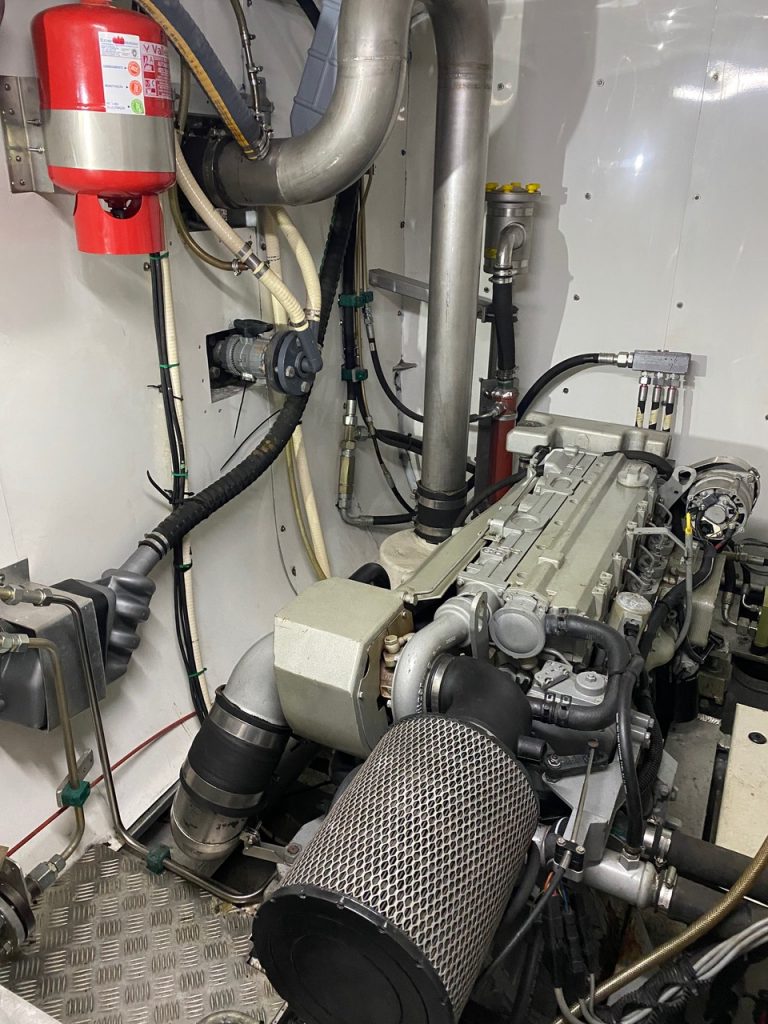

Engines: 2x Vetus Deutz 170 Hp (125 kW), 6 cylinders, 2300 rpm

Type: BF 6M 2012 – DT66635D

2x electric engine control system

Running hours (approx.): port engine: 3100h, starboard: 2600h

Fuel tanks (aluminium):

Forward tanks: 2 x 2740 l

Aft tanks: 2 x 2640 l

Day tanks: 2 x 370 l

Hydraulik tank: 200 l with temperature and level gauge

Cooling system: 2x intercooling, wet exhaust

Propulsion and steering:

2 x 5 blade propeller

water lubricated propeller shaft

2x Propeller Nozzle (Poseidon)

Steering system: hydraulic

2x Aquadrive B20 thrust bearings

Gearbox: 2x ZF 63A-2,5 hydraulic Hurth-Marine , reduction: 2,52

Speed (approx.): 7.5 knots cruising speed at 1700 RPM (without sub)

7.0 knots cruising speed at 1700 RPM (with 8 ton sub)

9 knots top speed

Bow thruster: 2x 13 Kw hydraulic bow thruster MAX-Power Series 225HYD

Electric system:

12/24 VDC

230/400 VAC

400 Volt shore power connection

Batteries:

2x 24V, 70 Ah starter battery port engine

2x 24V, 70 Ah starter battery stb engine

1x 12V/58Ah Ah starter battery generator I.

1x 12V/58Ah Ah starter battery generator II.

1x 24V, 400 Ah domestic batterie (2x2 12V/200Ah Mastervolt)

Battery charger:

2 x Victron MultiPlus combi inverter/charger 24/3000

2 x Victron VE.Bus Multi Control

Isolation transformer: 6 kW isolation transformer 400Volt WALCHER 6,3

50m shorecable 400V

Earth-leakage breaker: present

Generator I: Paguro 8500 whisper set (main generator), 8,5 kVA 230 VAC @ 1500 RPM

Generator II: Paguro 1800 whisper set (submersible battery charge and Bauer air compressor 330bar), 18 kVA 400 VAC @ 3500 RPM

Inverter: 2 x Victron MultiPlus combi inverter/charger 24/3000

Air conditioning: 1 Portable

Fresh water tank (Aluminium): 2 x 1040 l

Water pressure system: electric water pump with pressure holding tank

Hot water system: 60 l boiler/water heater 230 Volt

Diesel water separator/filter (2 x SEPAR double unit):

Bilge pump: 4x electric pump 24V, 2x submersible pump 230V

Gas system: present

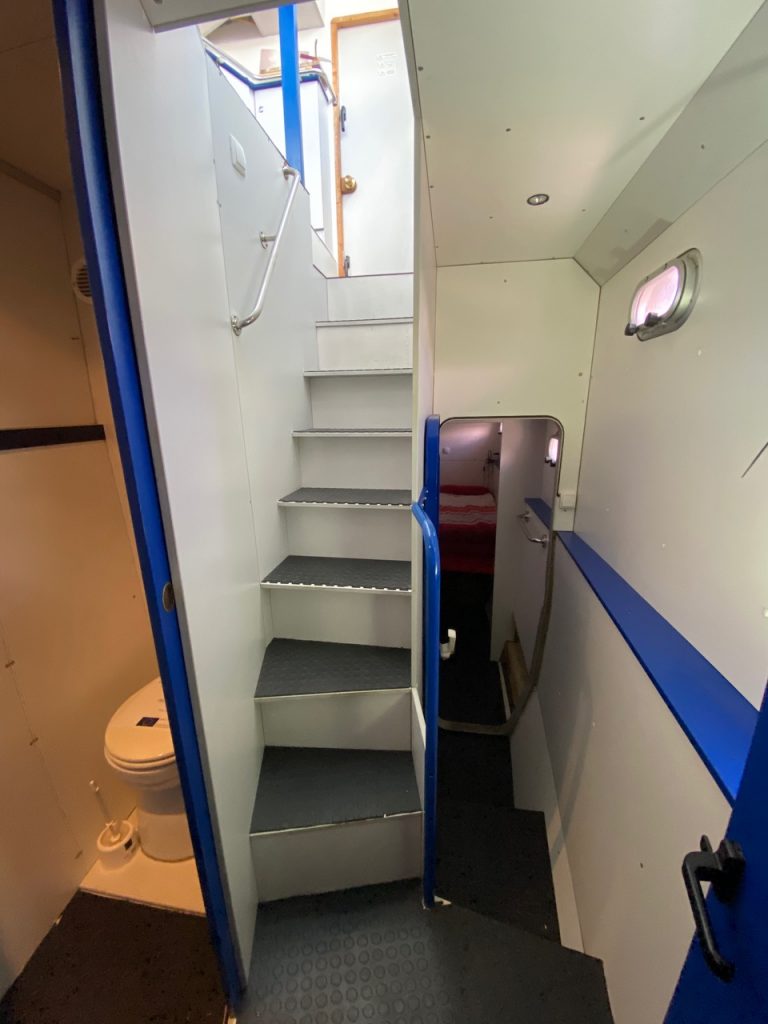

Accommodation

4 cabins

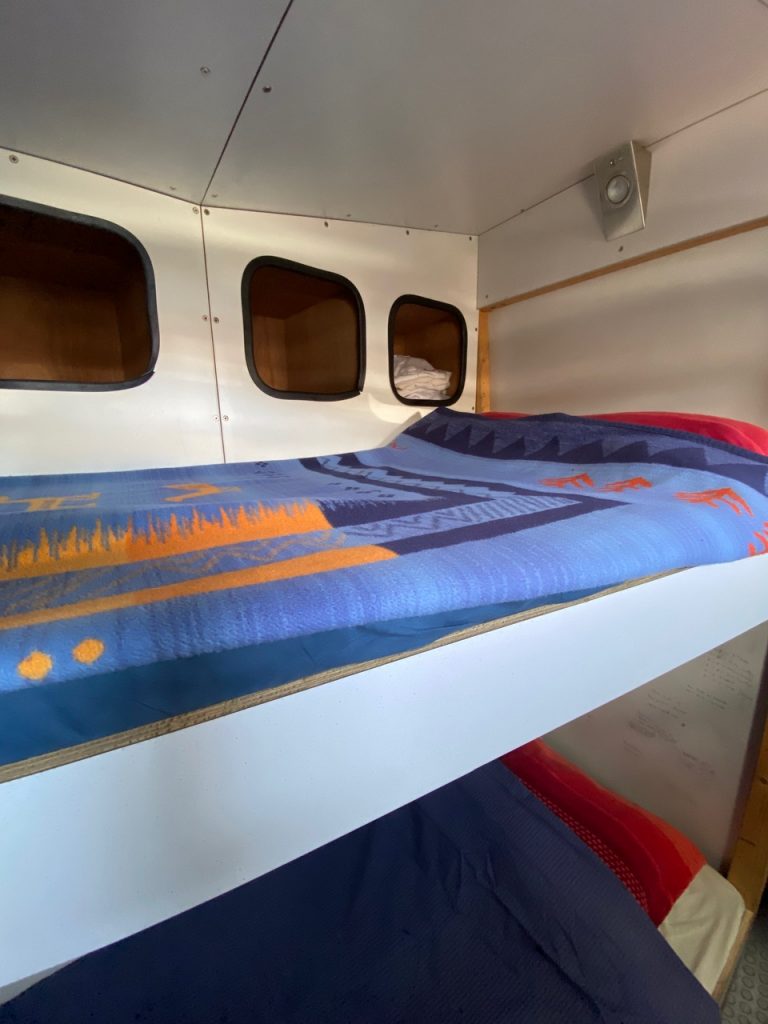

Berths:

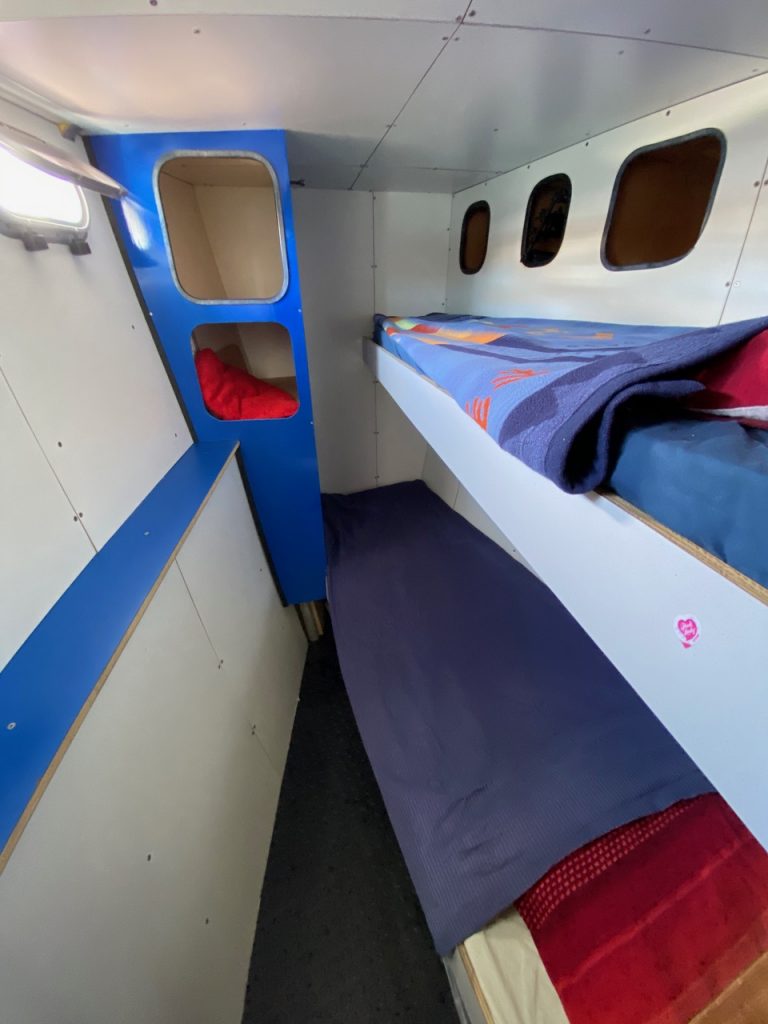

2 forward: 2 x 1 pers

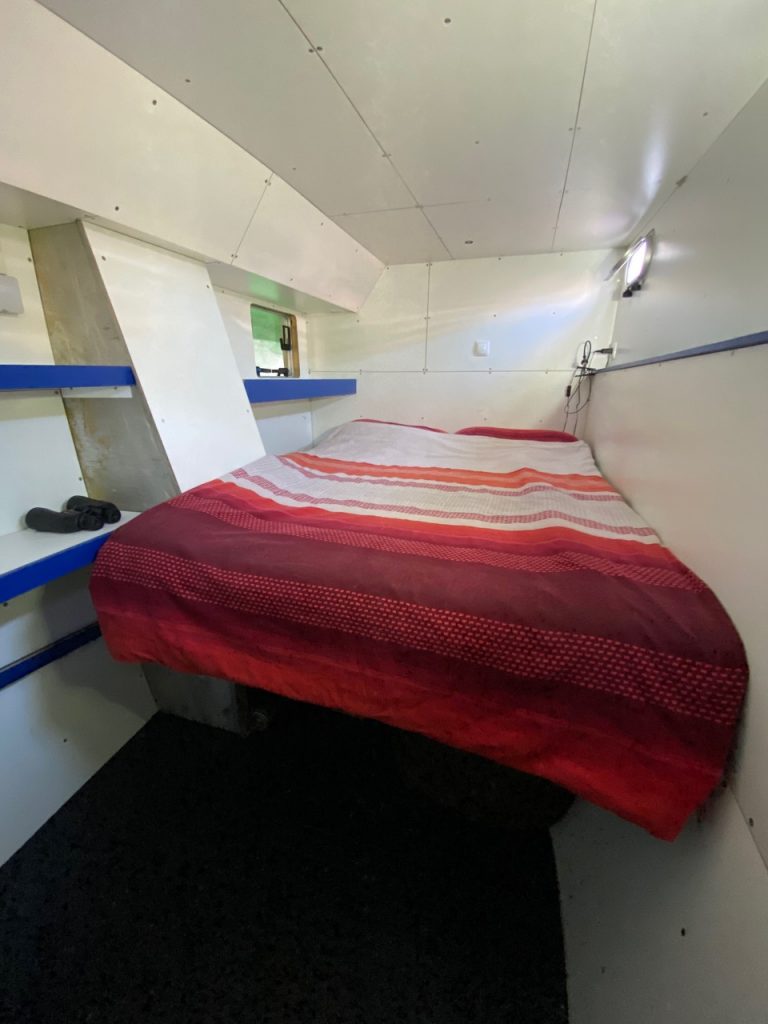

2 aft: 1 x 2 pers

Insulation:

80mm PU foamed insulation in living, working and storage space

80mm mineral wool in engine rooms (good sound insulation)

good quality sound dampening wall plates in engine rooms

Bathroom:

2x shower

hot & cold running water

wash basin with hot & cold running water

Toilet / Heads:

2x flush toilet, 24V Johnson silent Aqua T

washbasin with cold running water

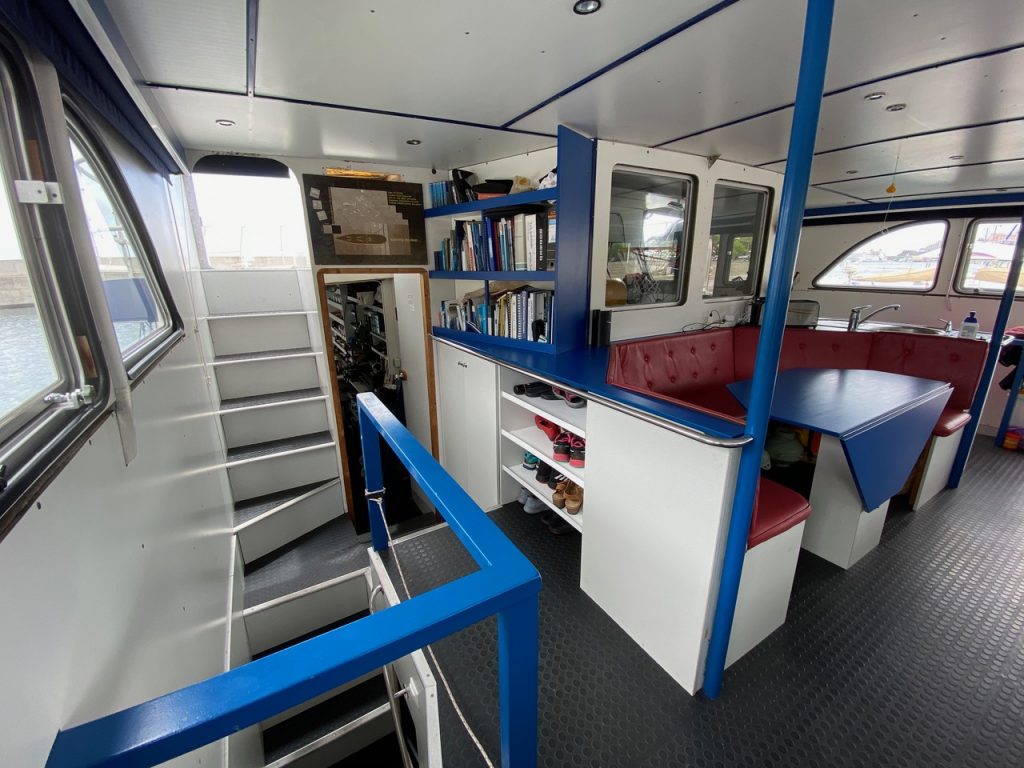

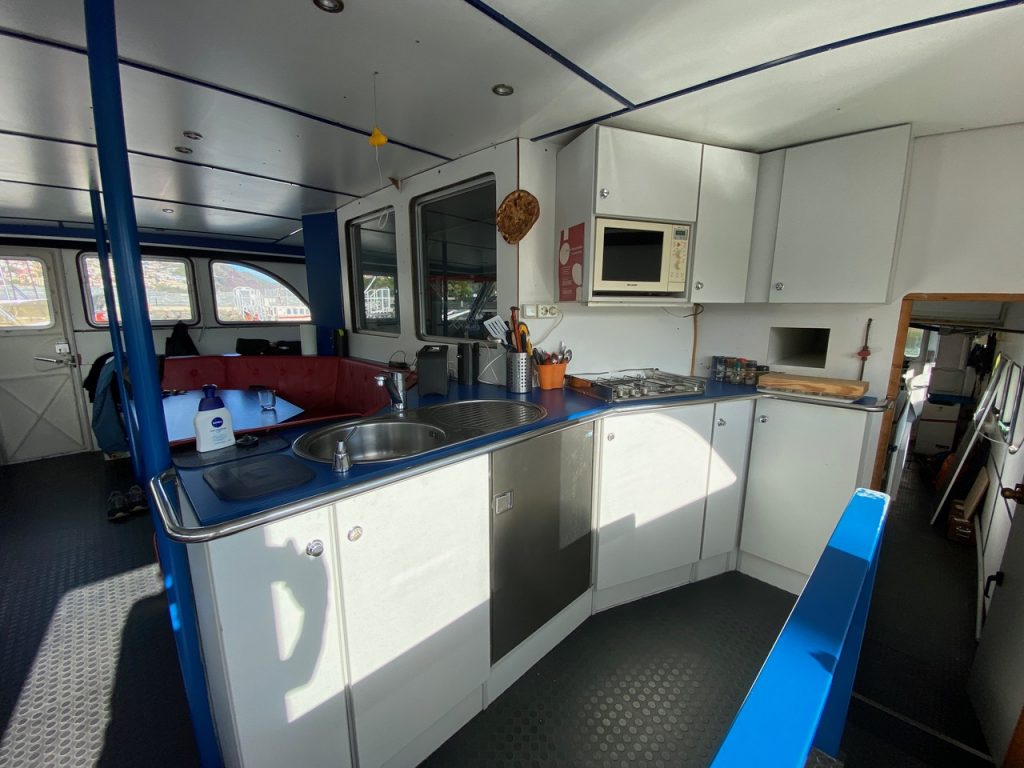

Galley: in wheelhouse

Cooker: gas, 3-burner hob, stainless steel

Oven: Syndrox electric oven, 230V

Microwave: Sharp R-677D

Fridge / Refrigerator: INDEL 130 l/24 Volt

Freezer: Severin 45 l/230 Volt

Worktop: 14-17mm plywood with laminated surface (Formica type)

Wash basin: stainless steel sink

Water tap: hot & cold running water

Headroom:

Wheelhouse: 200cm

Workshop: 210cm

Work area: 210/285cm

Cabins: 185/202cm

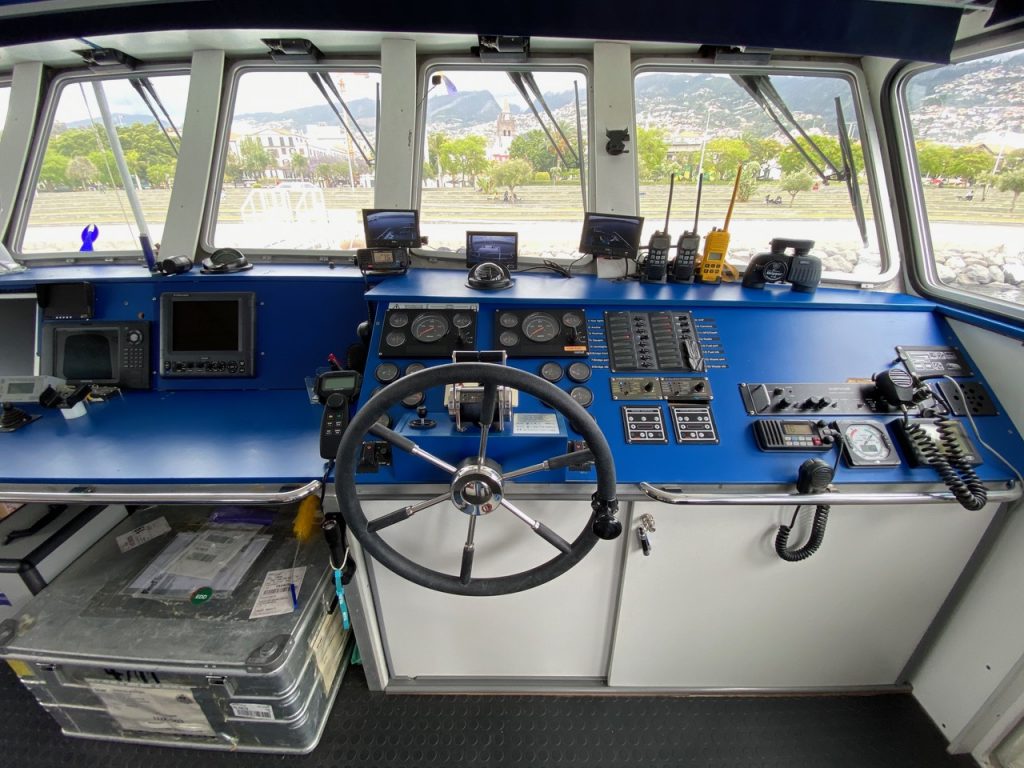

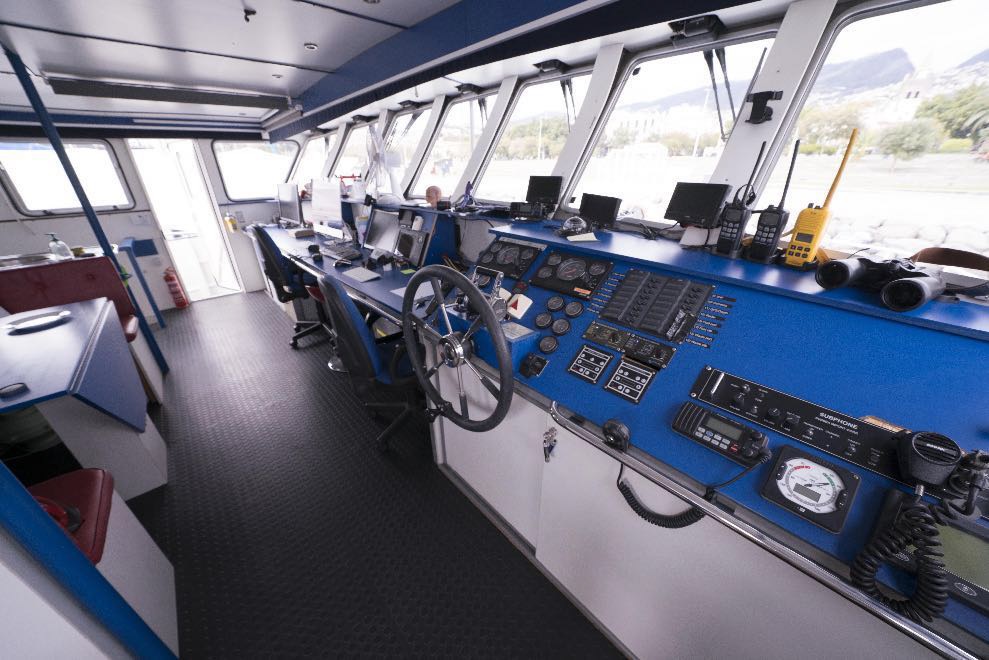

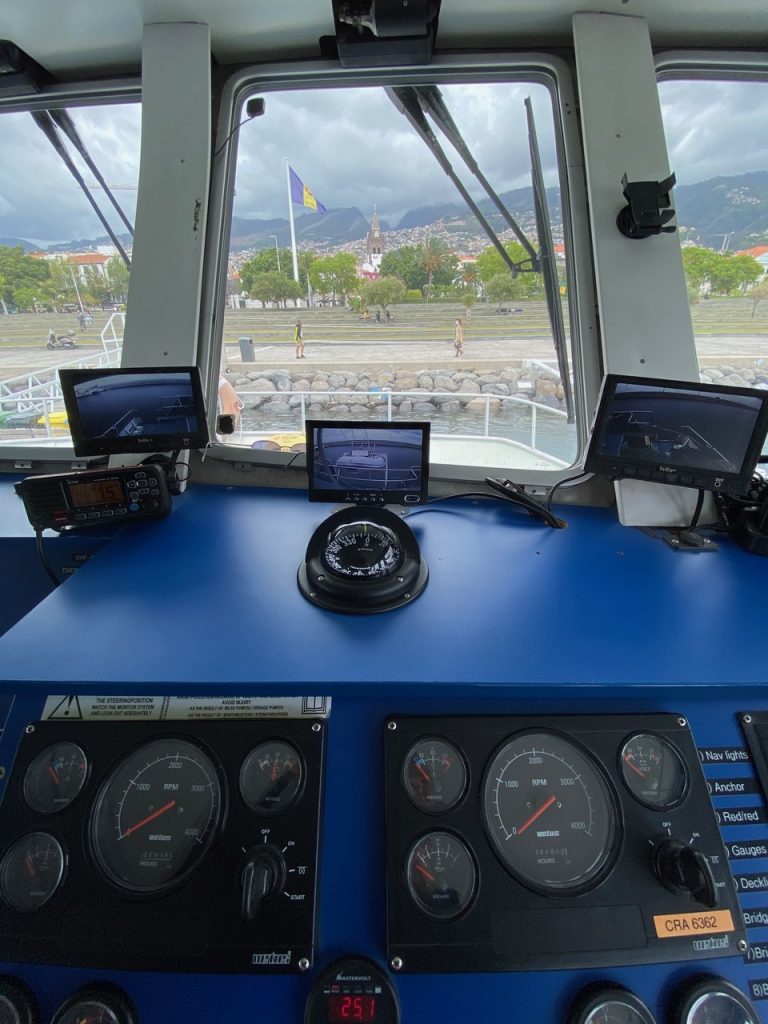

Navigation equipment:

Furuno FCV-295 depth/echosounder with 50khz transducer

Simrad chartplotter/GPS CX44

Icom IC-M421 VHF with DSC

Icom IC-M330 VHF with DSC

Clipper Navtex

Simrad autopilot AP21

Simrad radar

Simrad windset IS20

1x compass analog: Ritchie

2x compass digital: Robertson + KVH-Azimuth1000

3x camera monitor system stern looking view

Icom GMDSS

2x Icom portable VHF

Equipment :

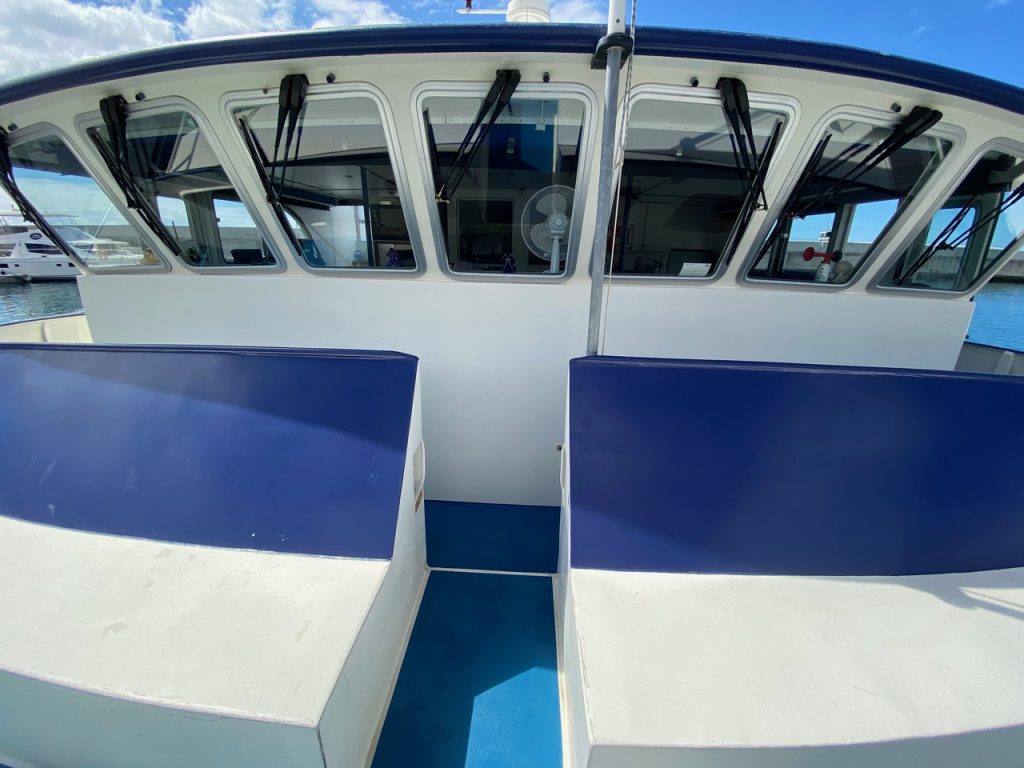

7x window wiper EXALTO KK-HD

navigation lights

radar reflector

Mast: aluminium mast

Boom: aluminium, extendable for lifting use (test load: 1t at 90° port and stb)

Equipment:

Anchor equipment: electric anchor winch THOR HR4000 with remote control

1x Pool main anchor

1x stern anchor

70 m anchor chain

bow roller

Boarding ladder: present

2 work (swimming) platforms with antislip

Dinghy: Aluminium RIB HIGHFIELD 310 (2018)

Yamaha outboard engine 15 Hp (2019)

Steering console with steering wheel and controls

Davits:

A-frame with electric winch (Superwinch C1000, 24V), remote control

Safety:

2x automatic fire extinguishing system engine rooms

6 fire extinguishers

4 life buoys

flares

10 pax liferaft (2020) with certificate

life jackets

Additional information:

deck shower

deck lights

gangway port and stb
