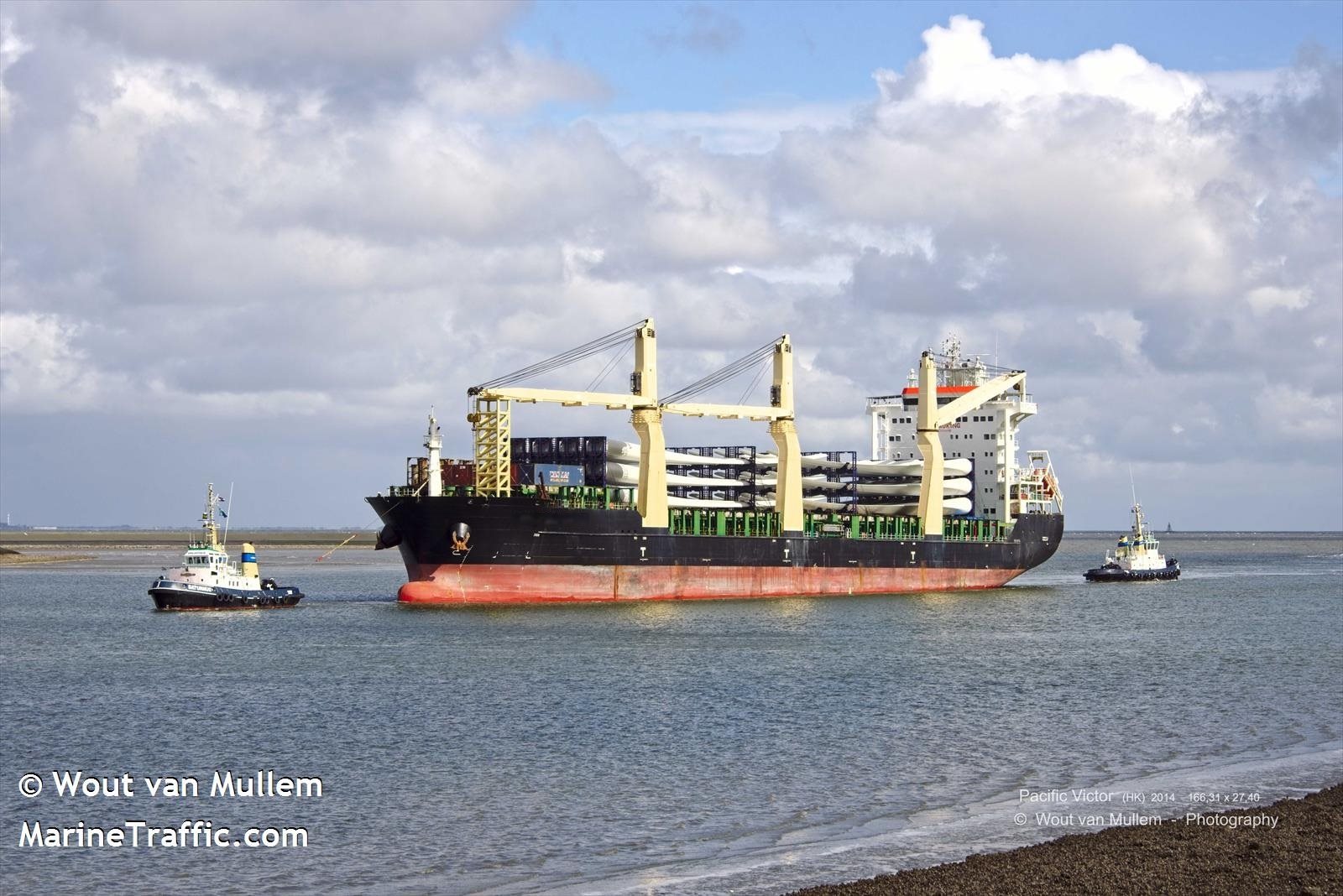

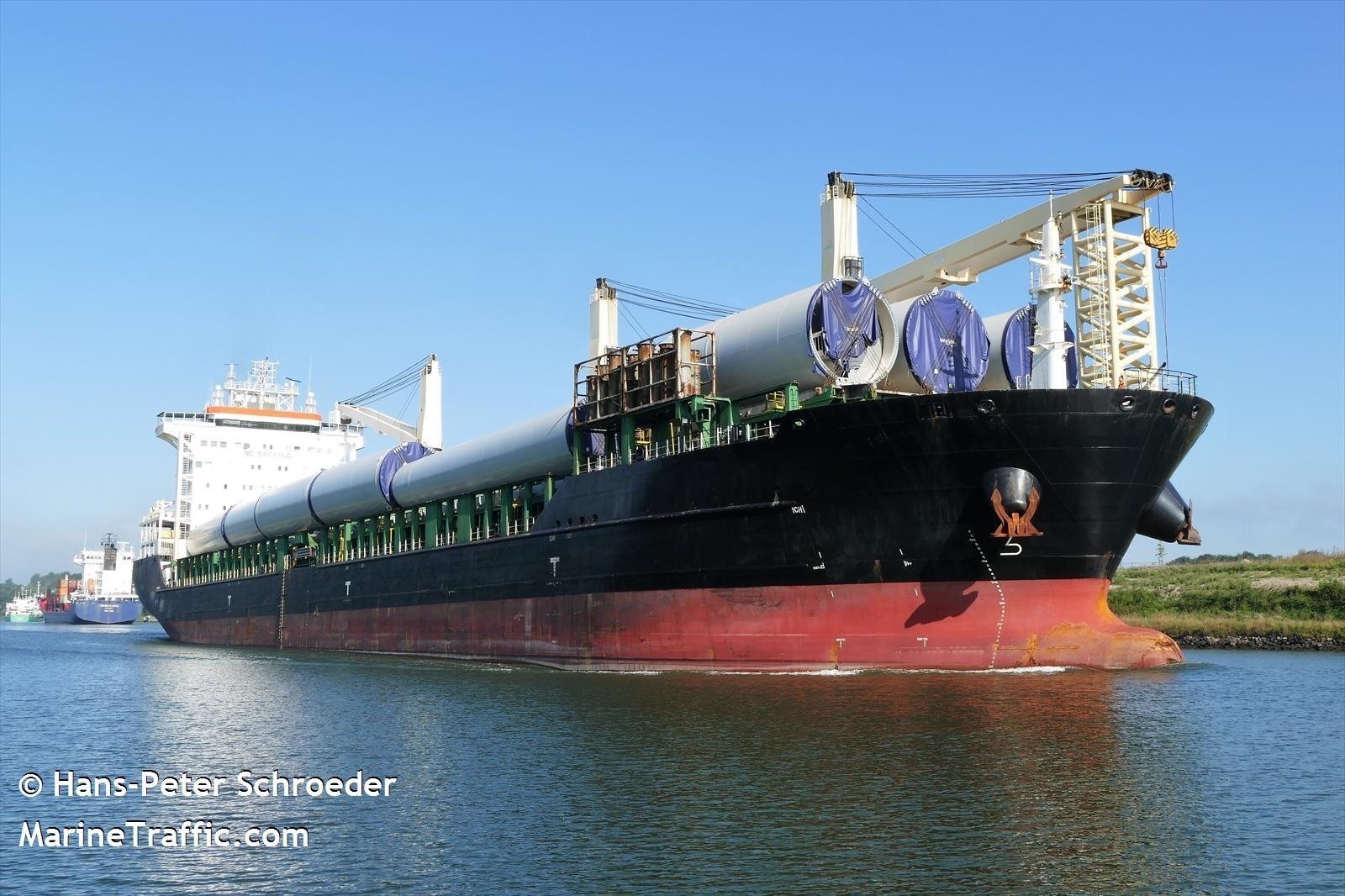

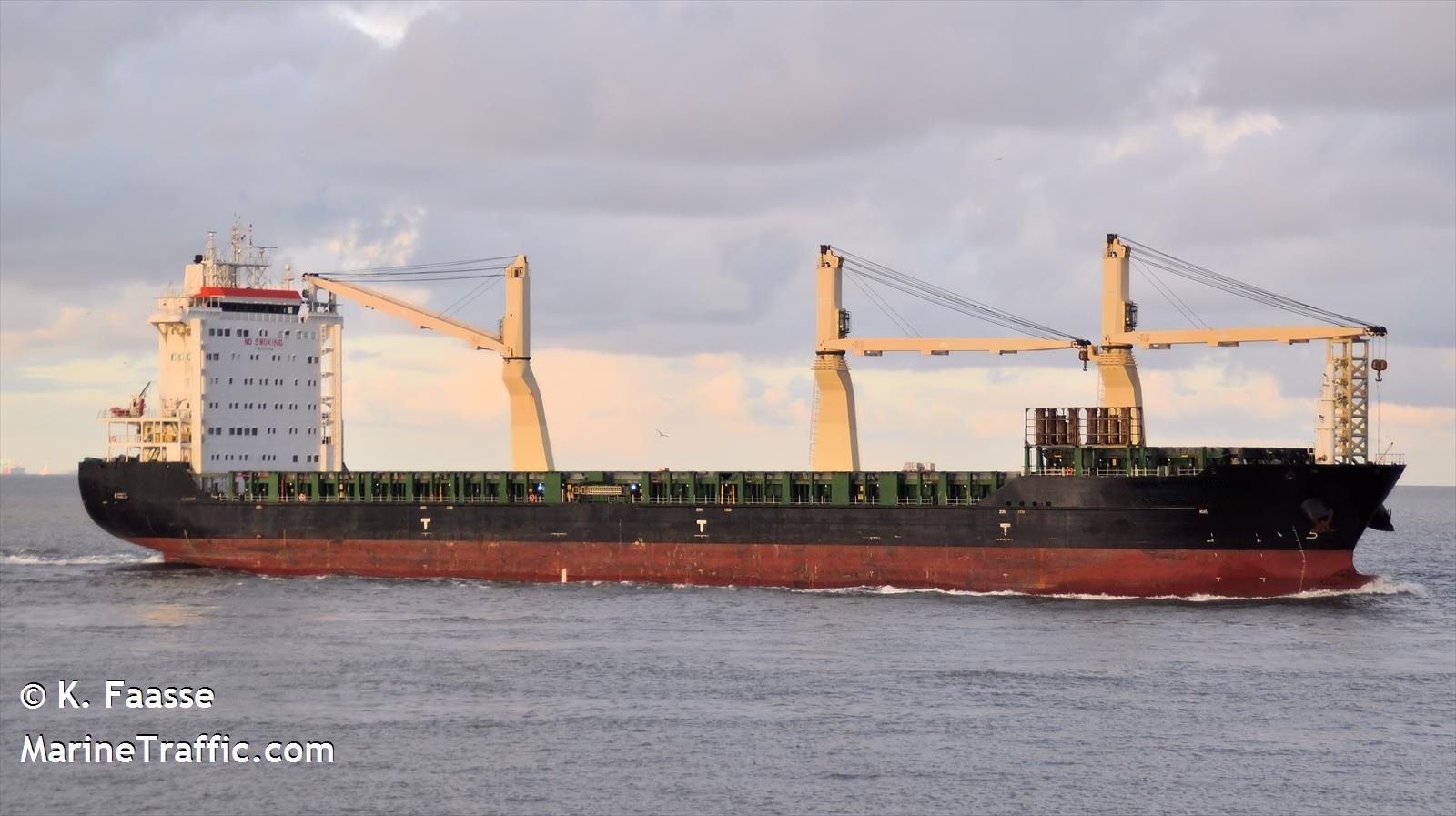

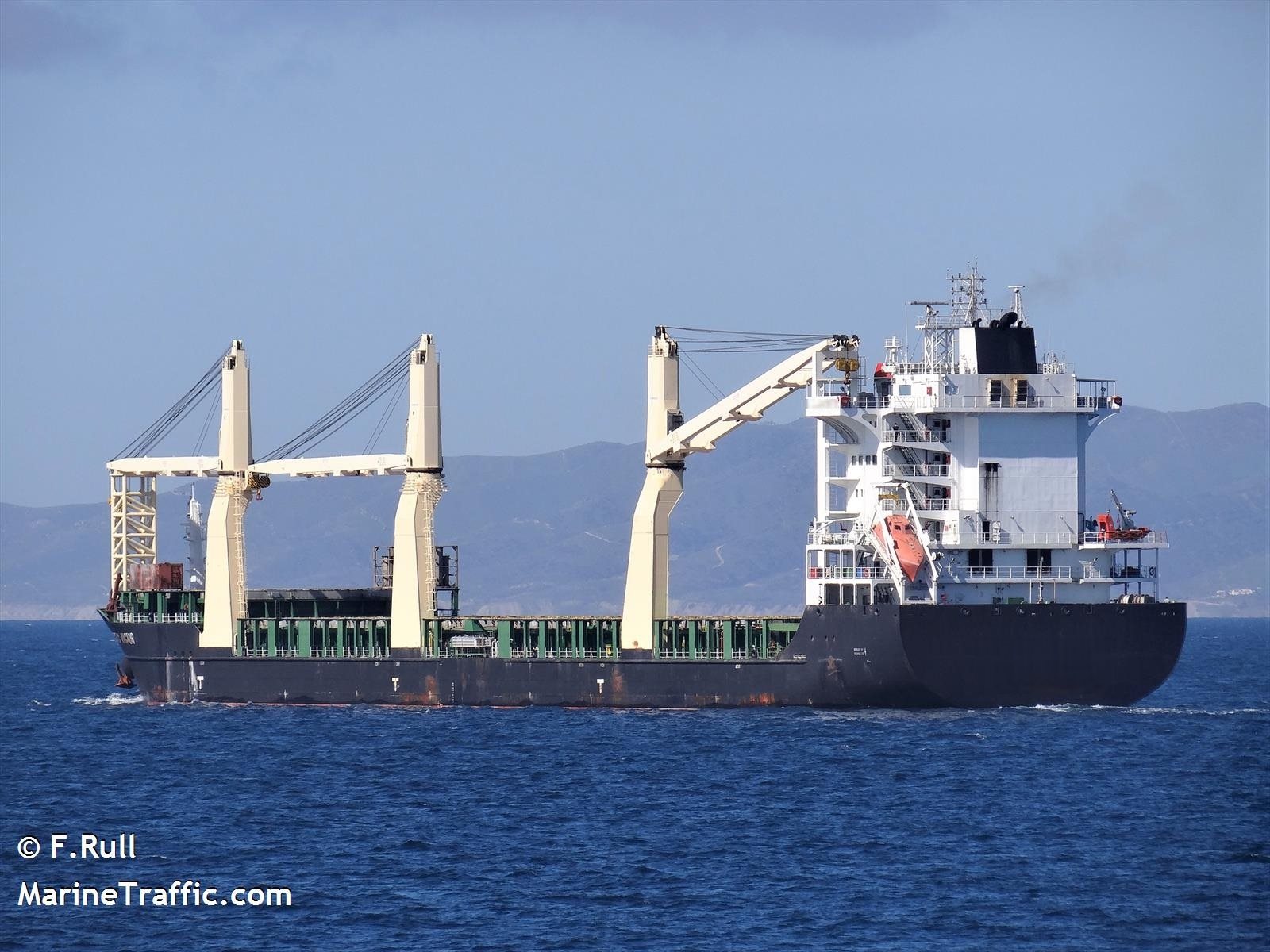

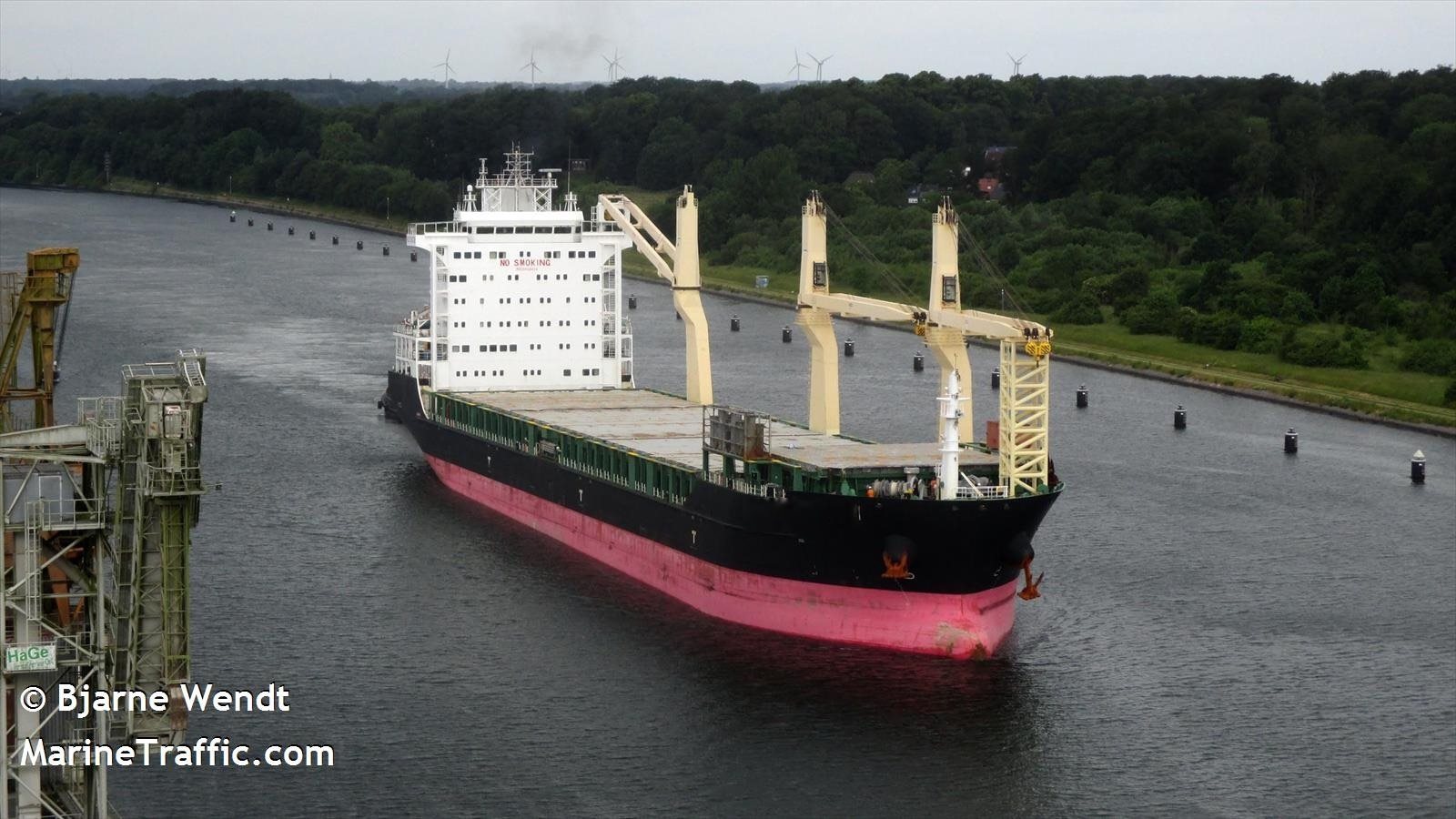

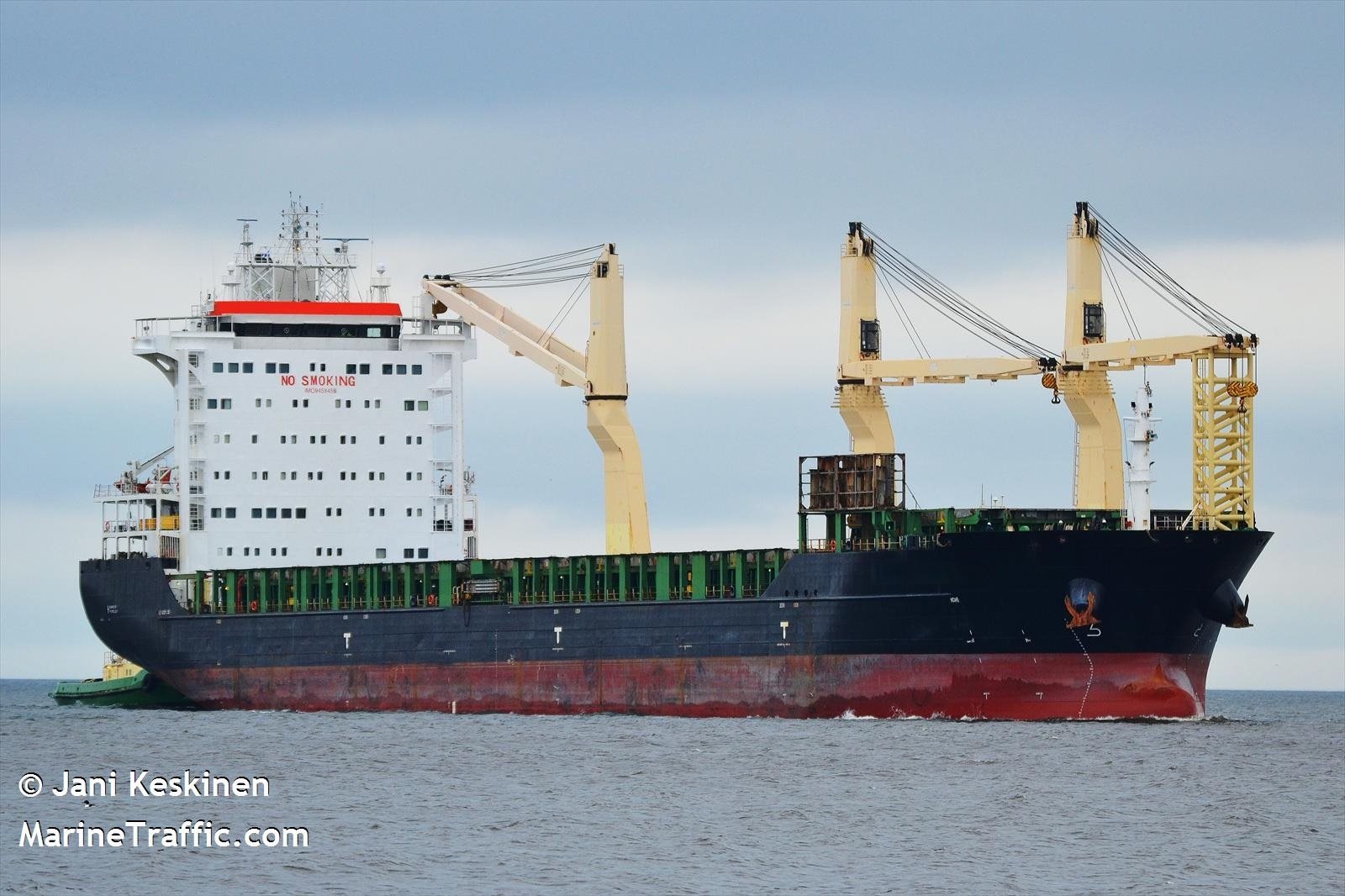

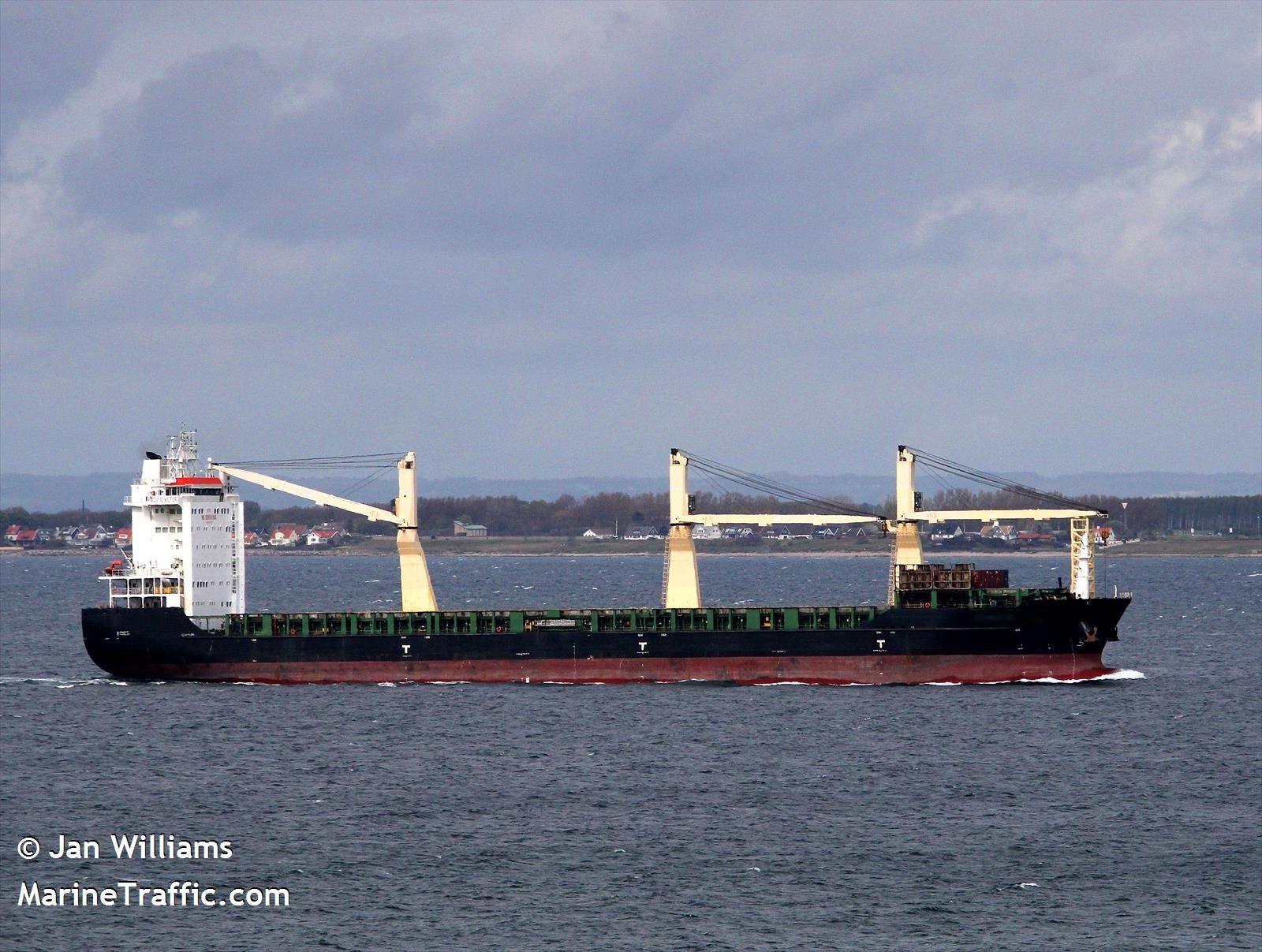

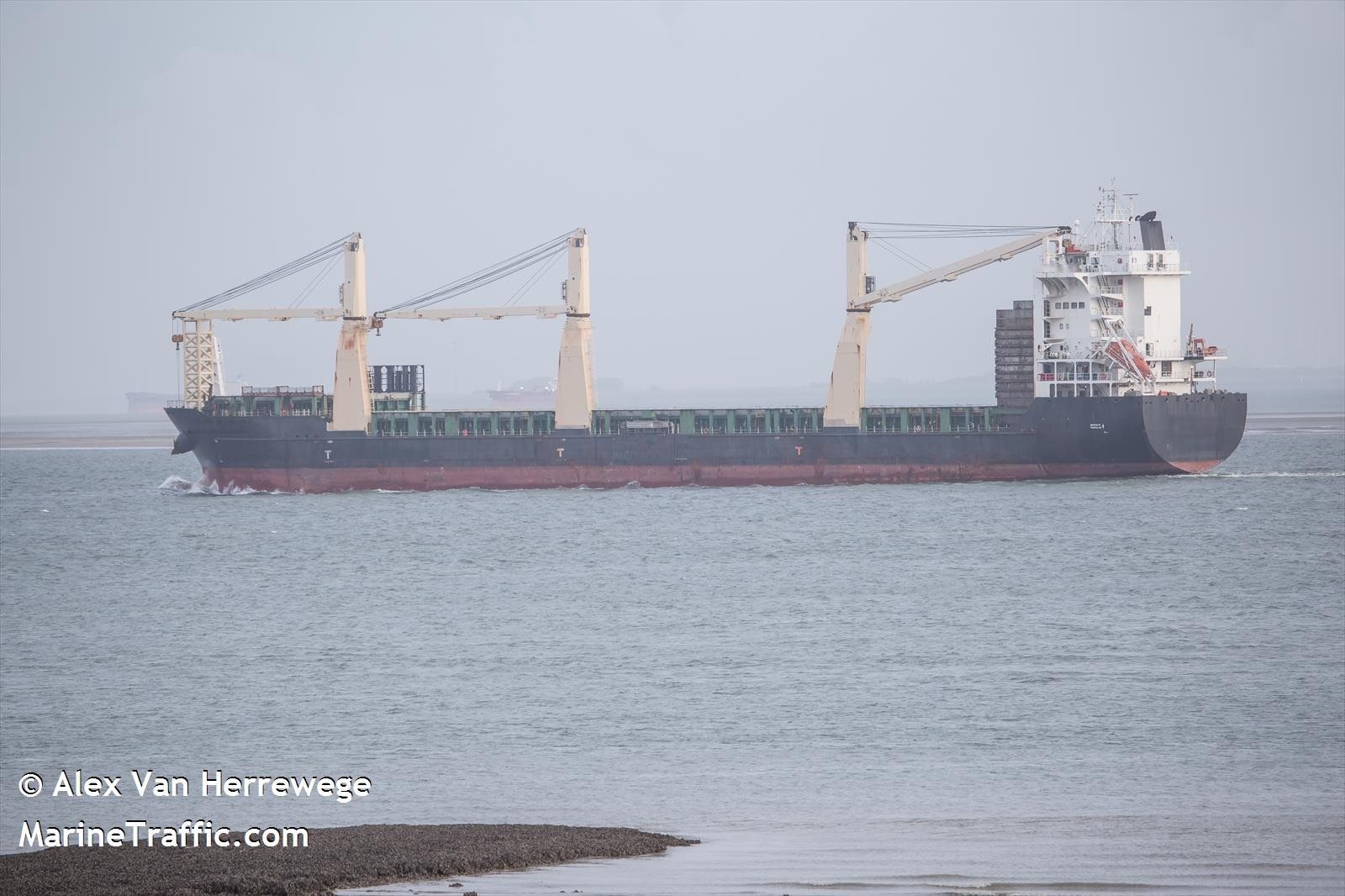

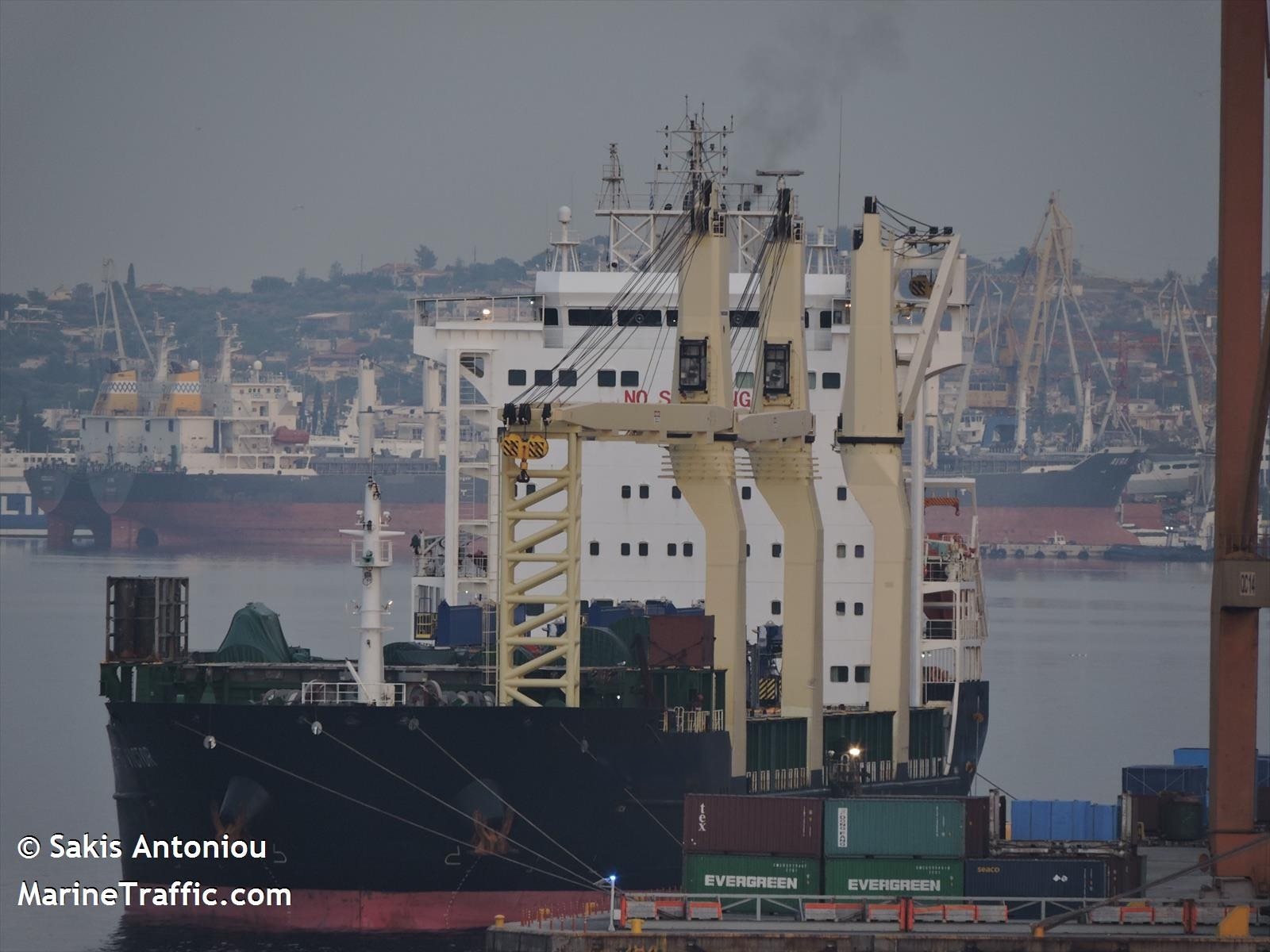

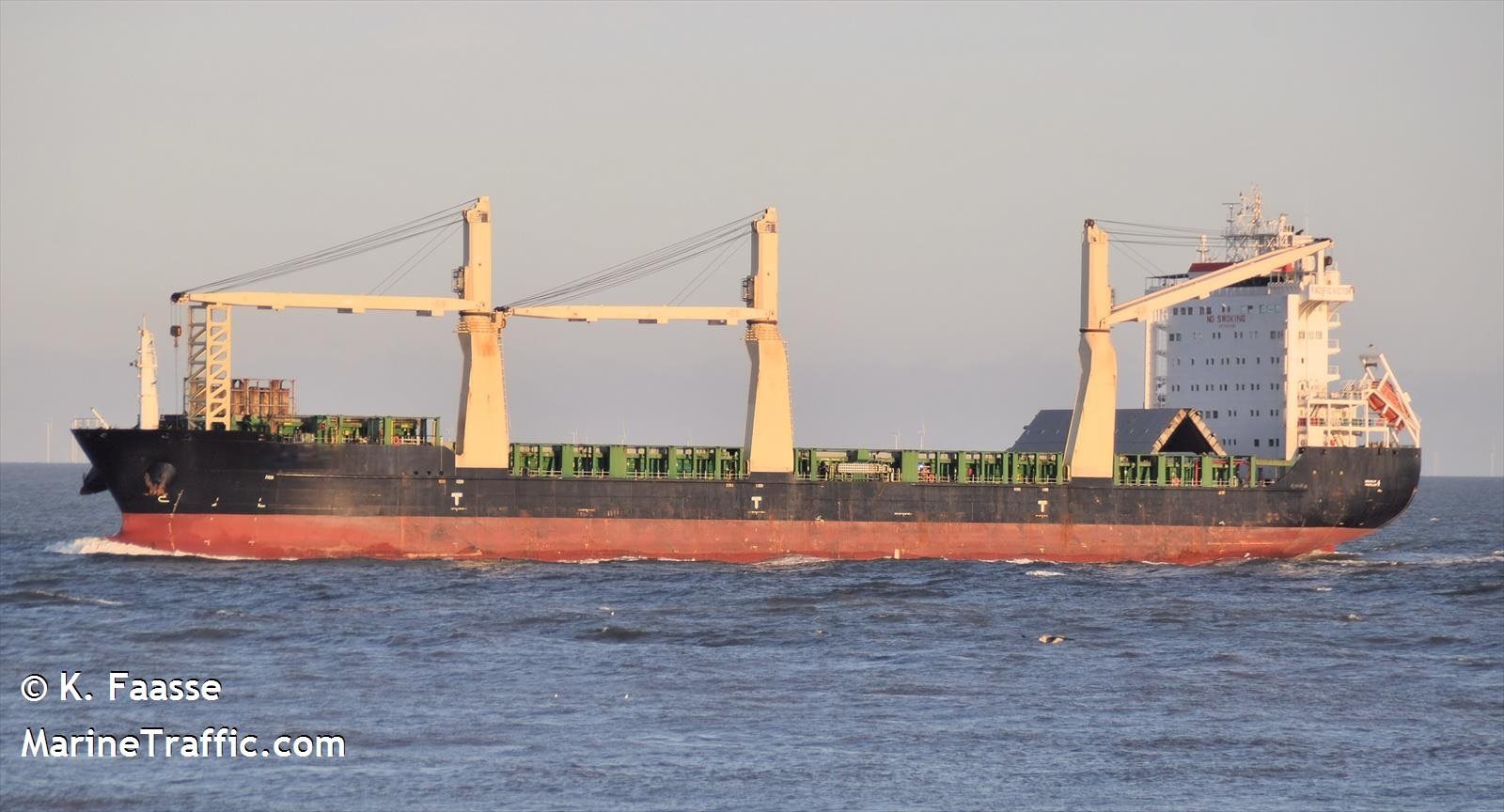

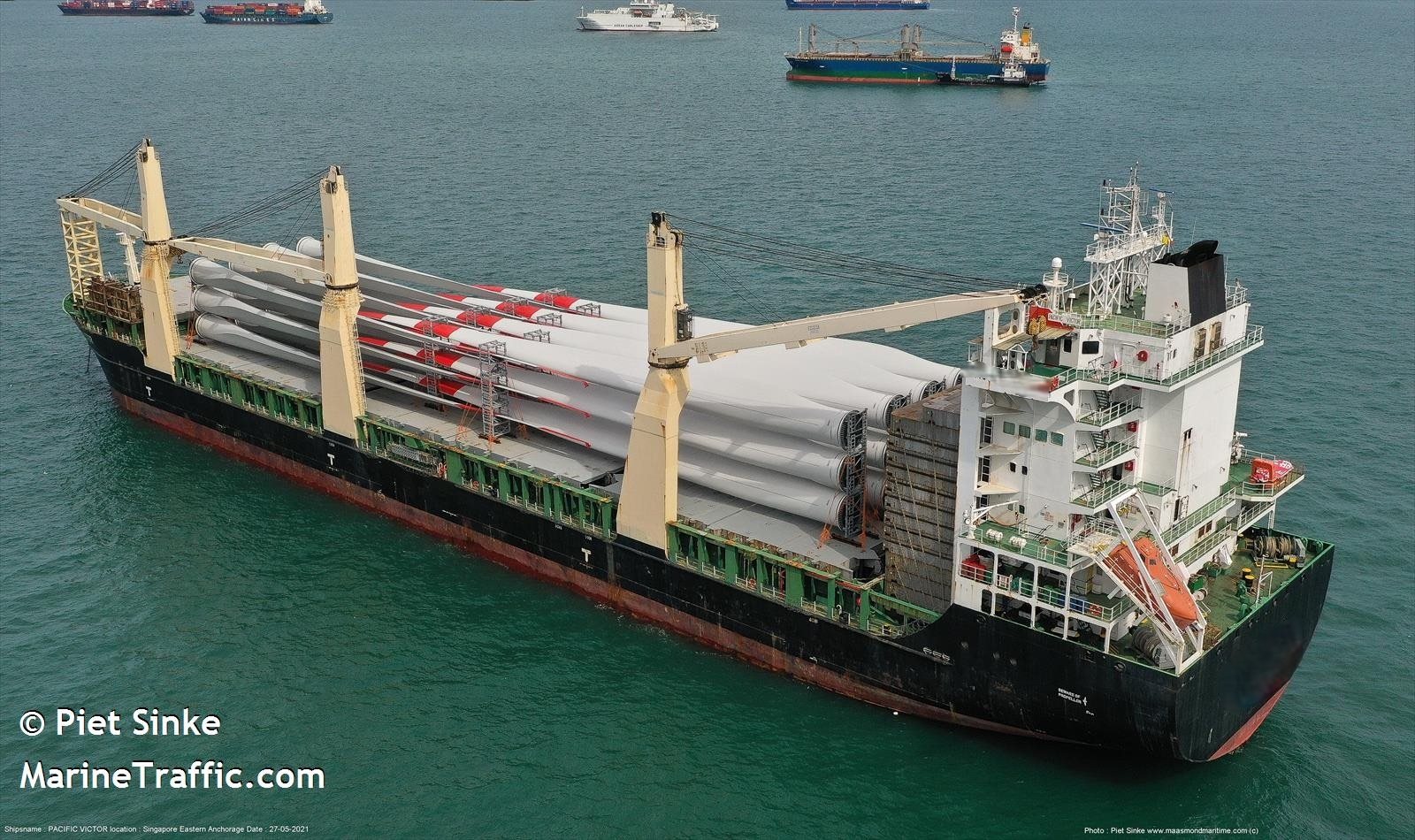

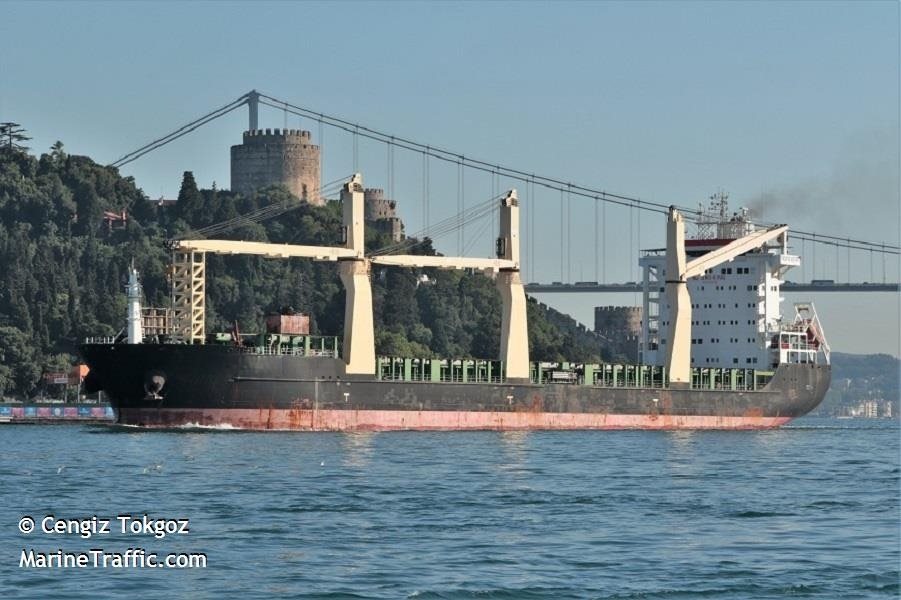

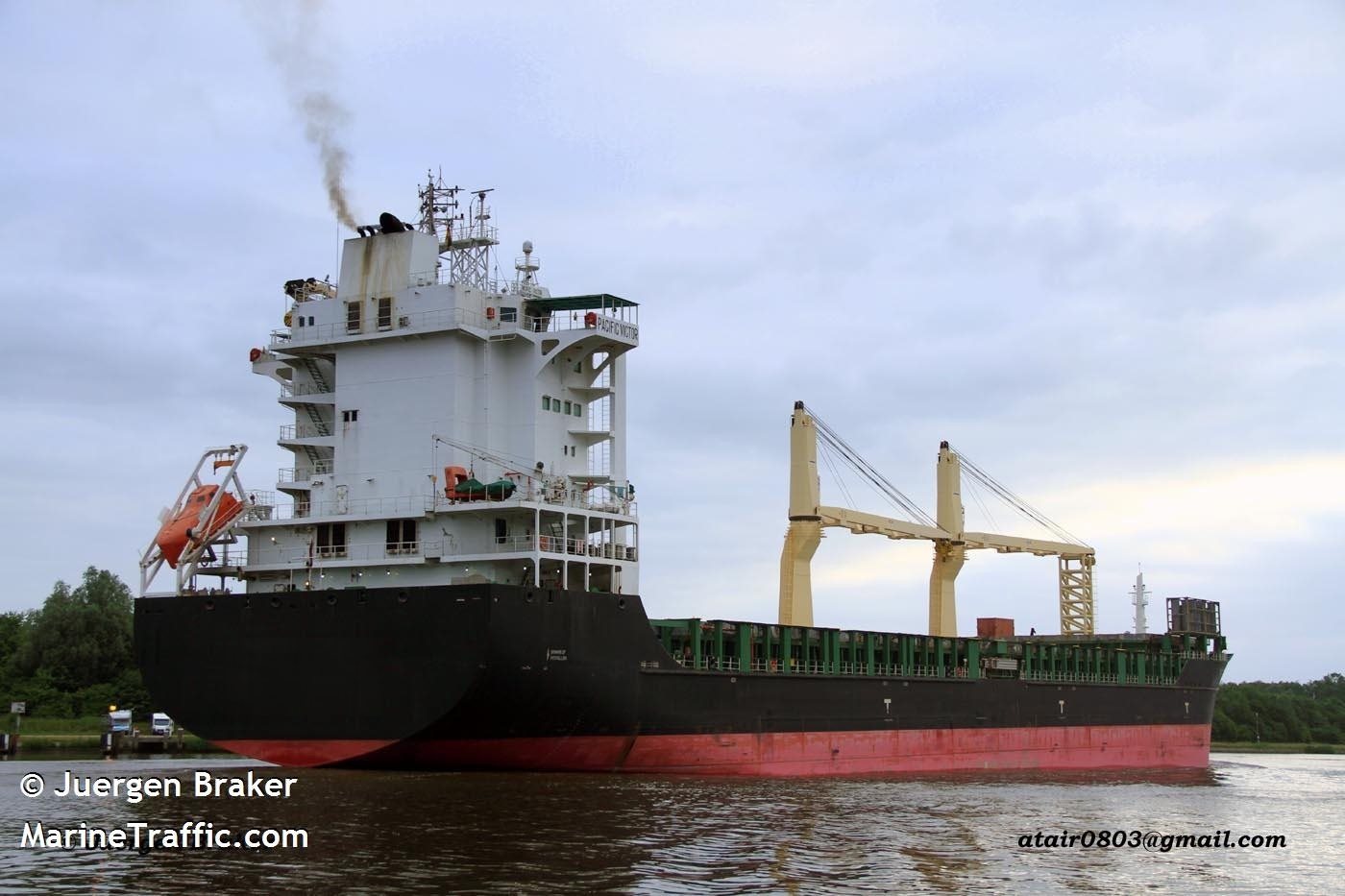

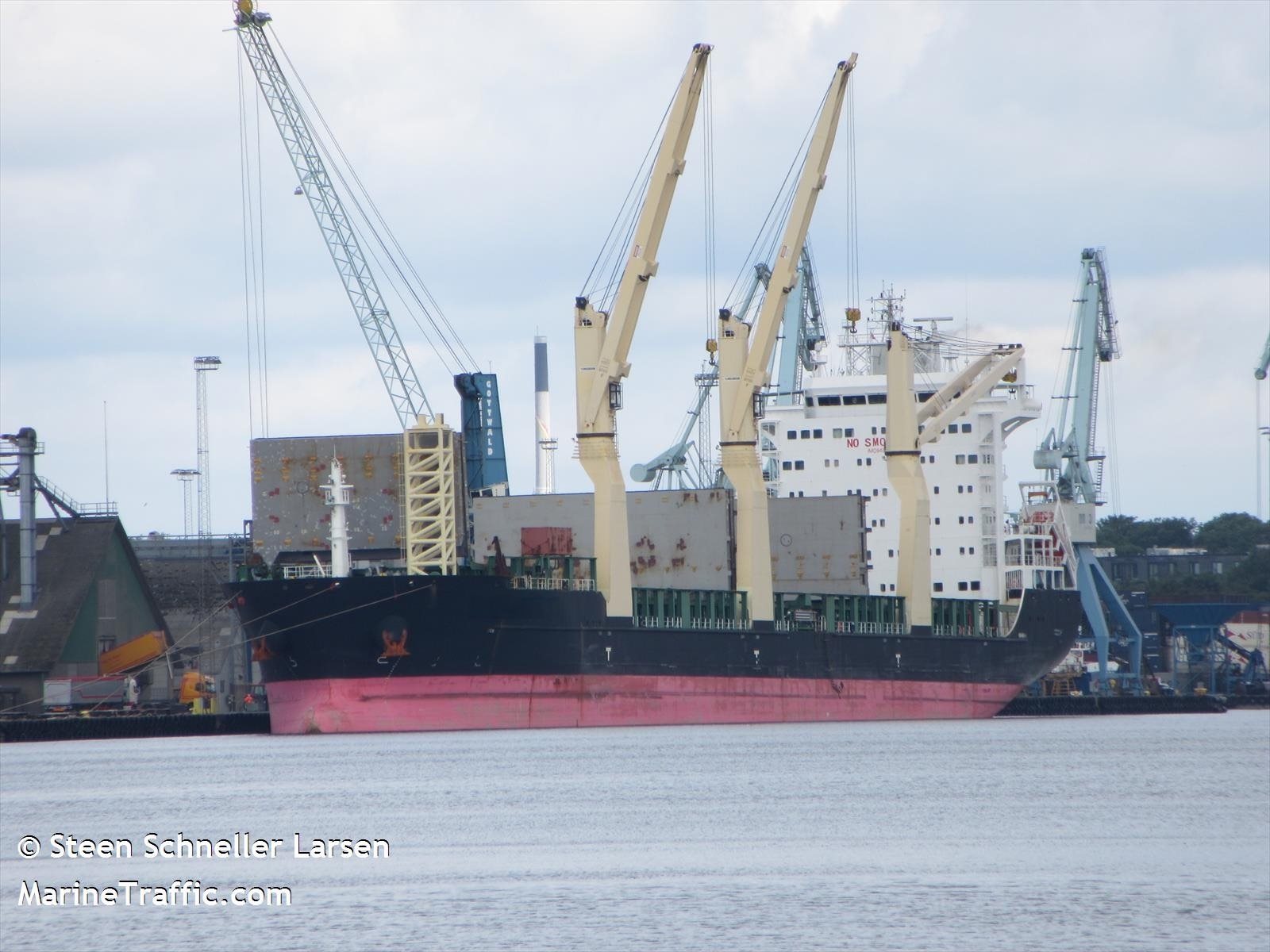

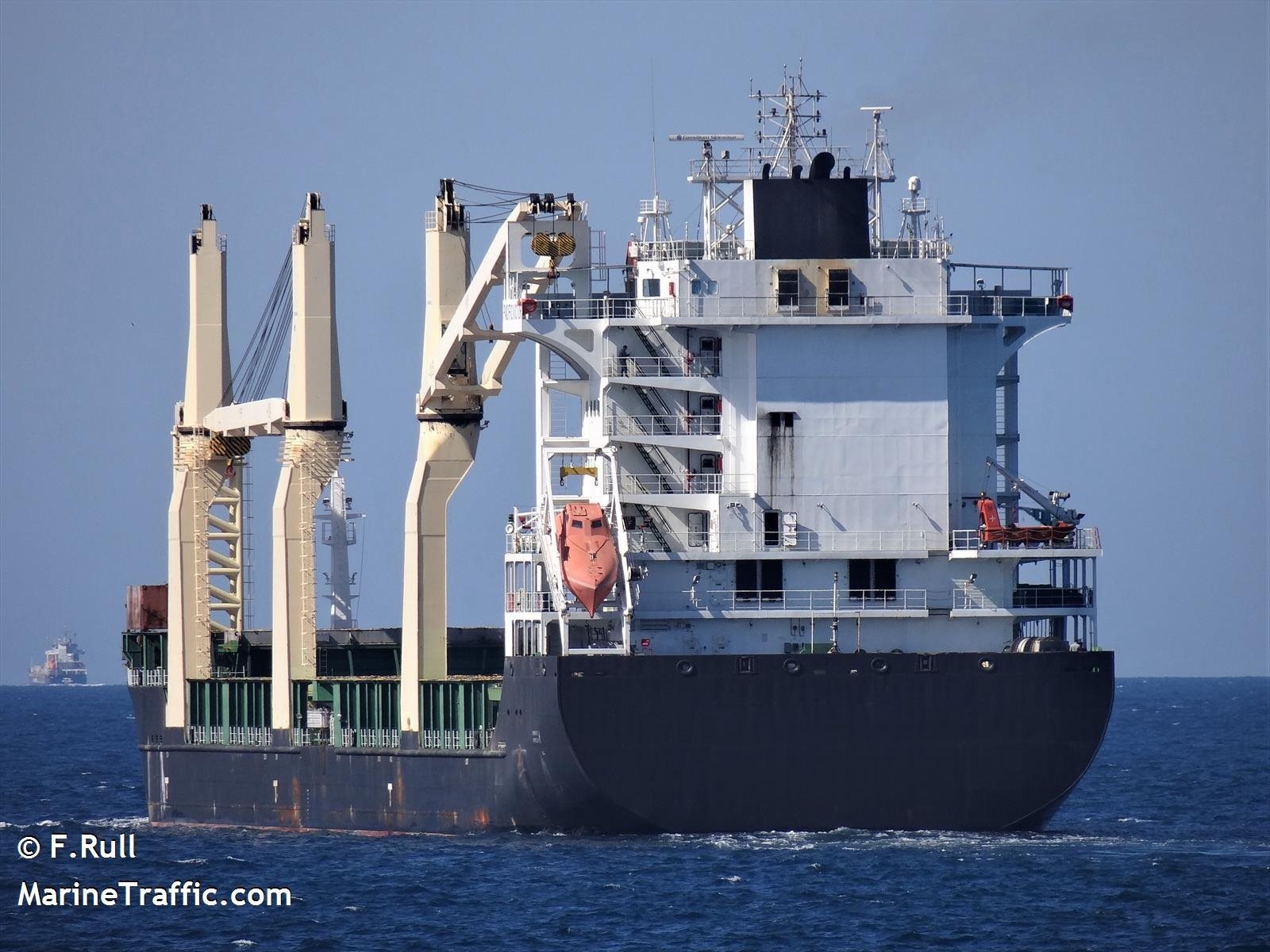

166.495m General Cargo (Single Deck)

Listing ID - 4724
Description	166.495m General Cargo (Single Deck)
Date Launched	2014
Length	166.495m (546ft 2in)
Beam	27.4m (89ft 10in)
Draft	10.10m (33ft 1in)
Note	1 x MAN Engine
Location	Algeria
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
Price	POA
View As PDF

Built (Delivered): 06.06.2014

Builder: Huanghai Ship Building Co. Ltd, Rongcheng, PRC

Keel Laid: 17.17.2008

Flag: Hongkong

Port of Registry: Hong Kong

Class Society: BV

Classification: HULL MACH CPS(WBT), AUT-UMS, ICE CLASS IC, INWATER SURVEY

Classification Type: General Cargo Ship, Equipped for Carriage Heavy Cargo

Dimensions

LOA: 166.495m

LBP: 158.32m

Beam: 27.4m

Draft: 10.10m

Depth to Main Deck: 14.20m

Construction Height: 14.35m (keel – upper main deck)

Constant: 300

Distance (keel to top mast): 49.4m

Tonnage

Gross Tonnage

International: 20682

Panama Canal: as per PC/UMS

Suez Canal: 21,629.77

Net Tonnage

International: 10263

Panama Canal: 18,218

Suez Canal: 18,595.34

Engine

Type of Propulsion: Single fixed pitch propeller (RH)

Main Engine: Single fixed pitch propeller (RH)

Engine Model: MAN 6S40ME-B9.1

Engine Power: 6810KW @146 RPM

Auxiliary Engine: DAIHATSU (3PCS)

Engine Model: DE618Z2886/7/8

Generators: 750kVA/speed 900 / 60 Hz

Emy. Generator: 750kVA/speed 900 / 60 Hz

Boiler Type: Jangjiagang Greens Shazhou,LYF1.2/240-0.7 Composite,1200/1150Kg/h x 0.7Mpa

Auxiliaries

Evaporator: SHANGHAI HANSUN,FWG-20, 20 M3/DAY

Ballast Pumps: 450 m3/hr. 2 SETS

Bunker Hose Lifter: 2 x Bunker davits,SWL-0.9/0.5T-3.5M

Provision Crane: ZhenJiang Machinery,SAFC-21, SWL- 1.5T-7.3M

Bow thruster: N/A

Steering Gear: Yoowon Industries,Ele-Hyd,2Ram -4Cyl.577kN-m

Anchor / Chain: Port(11 shots) Stbd (12 shots)

Lifesaving Equipment

1 free fall life boat (cap 30 pers)

1 RESCUE BOAT (cap 6 pers)

2 Rafts (port) x 15 pers

2 Rafts (stbd) x 15 pers/ 1 Raft x fwd. 6pers

Weights
Light Ship: 9819.055

Displacement: 38110.000

Summer DWT: 28290.945

Maneuvering Criteria - Ahead Rpm / Speed in Blst / Loaded

Full: RPM 136 / 14.2 / 13.9

Half: RPM 112 / 11.7 / 11.3

Slow: RPM 87 / 9.2 / 8.9

Dead Slow: RPM 50 / 5.2 / 5

Maneuvering Criteria - Astern

DS AST: 32 RPM

Slow AST: 78 RPM

Half AST: 107 RPM

Full AST: 127 RPM

Service Speed: 14.2 KT - 25 mt / 24h

TPC: 42.33 mt

Fresh Water allowance: 225 mm

Load Lines

Draft

TR Fresh Water: 10.535

Fresh Water: 10.325

Tropical: 10.310

Summer (All seasons): 10.100

Winter: 9.890

Freeboard (mm)

TR Fresh Water: 3.191

Fresh Water: 3.401

Tropical: 3.416

Summer (All seasons): 3.626

Winter: 3.836

Displacement (mt)

TR Fresh Water: 38,984.488

Fresh Water: 38,112.683

Tropical: 39001.600

Summer (All seasons): 38110.000

Winter: 37222.800

DWT (mt)

TR Fresh Water: 29,165.43

Fresh Water: 28,293.63

Tropical: 29,182.55

Summer (All seasons): 28,290.95

Winter: 27,403.75

Capacities

Hold #1

Length: 19.75m

Depths: 17.8m

Frame No.: 168 – 193

Grain / Bale: 6082.669

Cranes: #1 (MacGregor) 80 mts @ 22 m

Hold #2

Length: 35.55m

Depths: 15m

Frame No.: 121 - 166

Grain / Bale: 12196.351

Cranes: #2 (MacGregor) 80 mts @ 22 m

Hold #3

Length: 35.55m

Depths: 15m

Frame No.: 72 - 117

Grain / Bale: 12196.350

Cranes: #3 (MacGregor) 80 mts @ 22 m

Hold #4

Length: 25.28m

Depths: 15m

Frame No.: 36-66

Grain / Bale: 8626.655

Tween Deck

The vessel is fitted with 14 lift away TWD pontoons to make the complete TWD through the hold # 2-4. Tween deck can be arranged at 2 levels: 5600 mm & 8200 mm from tanktop

Load Strength

Holds tank top 20 t/m2

Holds TWD pontoon 4 t/m2

Hatch covers 2.5 t/m2

Tank Capacities

IFO @ 0.96 mt/m³, 1484.56 m3 / 100% Full

MDO @ 0.87 mt/m³, 161.72 m3 / 100% Full

Lubricating Oils @ 0.90 mt/m³, 111.91 m3 / 100% Full

Water Ballast 1.025 mt/m³, 10334.68 m3

Freshwater 290.66 m3

Drain Tanks / Sludge & Bilge Tanks 23.597 m3 / 56.861 m3

Remarks

Heights:

Top of FWD Mast: 28.90 m

Highest Mast Top: 49.40 m

Nav Bridge Deck: 35.11 m

No.1 / (2-4) Hatch Cover Top: 20.38 / 17.71 m

No.2,3 & 4 Hatch Cover Top(Up): 17.80 m

Distances:

Bridge FWD To Bow: 152 m

Bridge FWD To Aft: 14 m

Hatch Cover Dimensions:

No.1 FWD L 11.06 X B 18.0 No.2 33.575 M X 23 M

No.1 AFT L 17.38 X B 23.00 No.4 24.885 M X 23 M

No.2 L 80.58 X B 23.00

Containers Capability

TEUS in hold 733

TEUS on deck 1009

TEUS total 1742

Reefers plugs total 100 points

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
