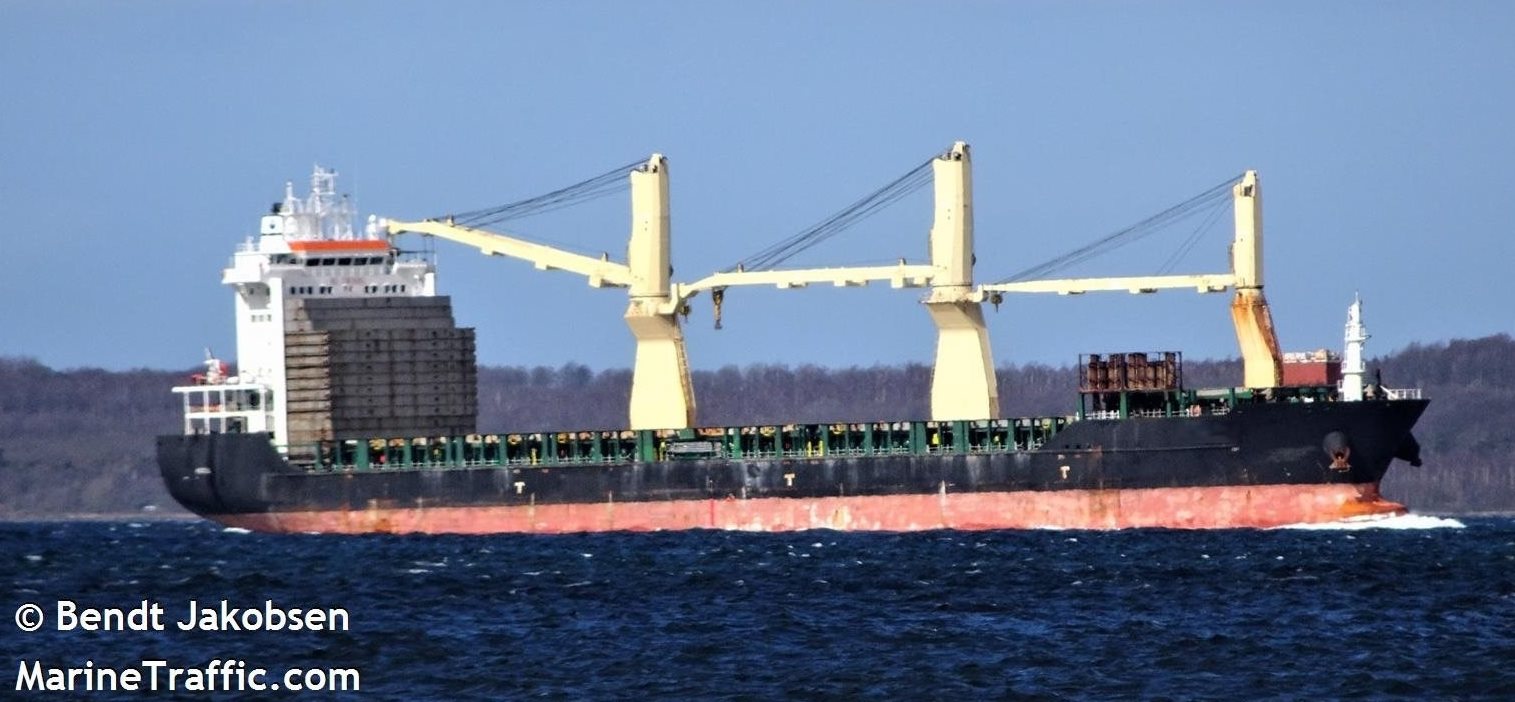

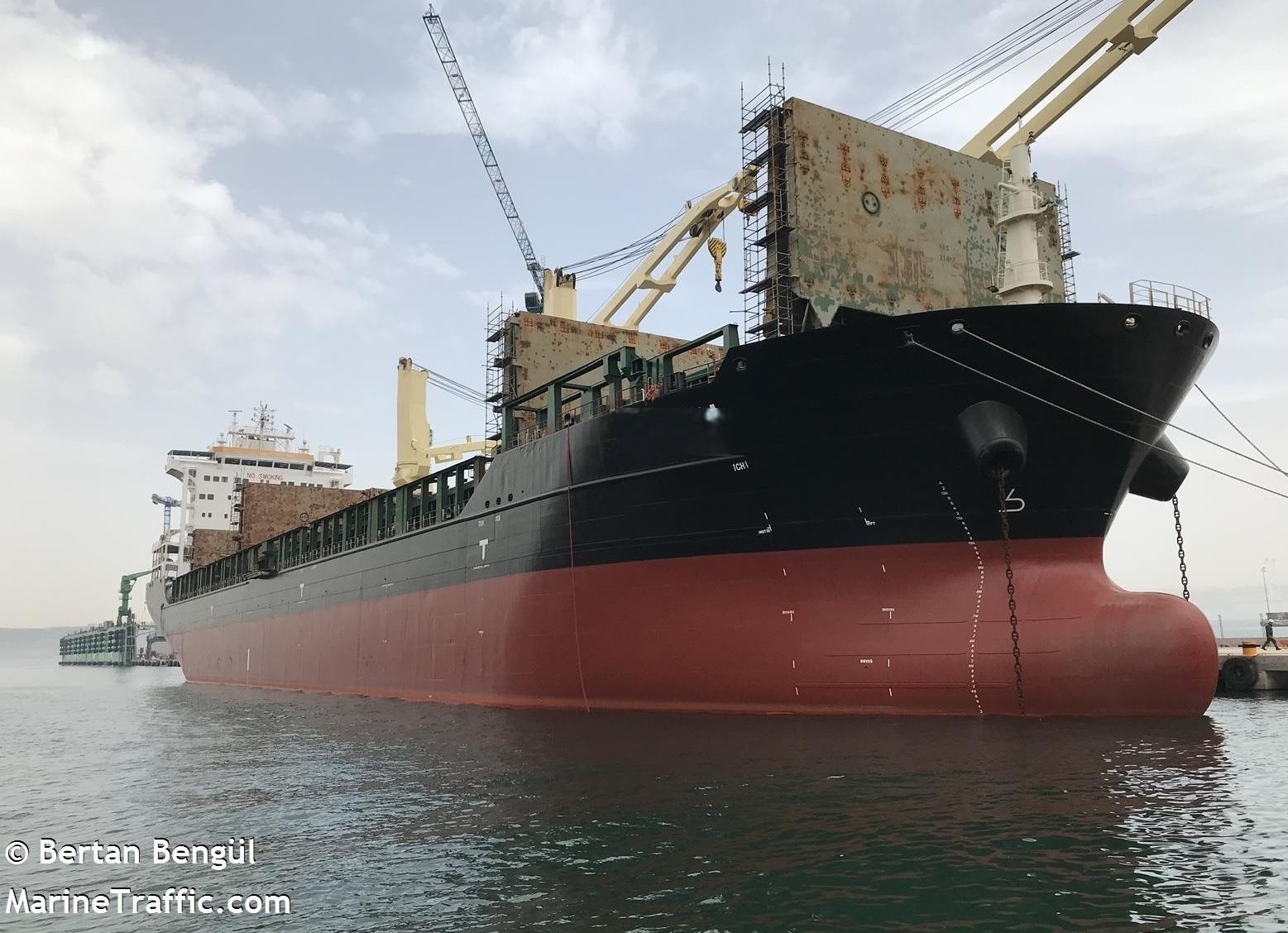

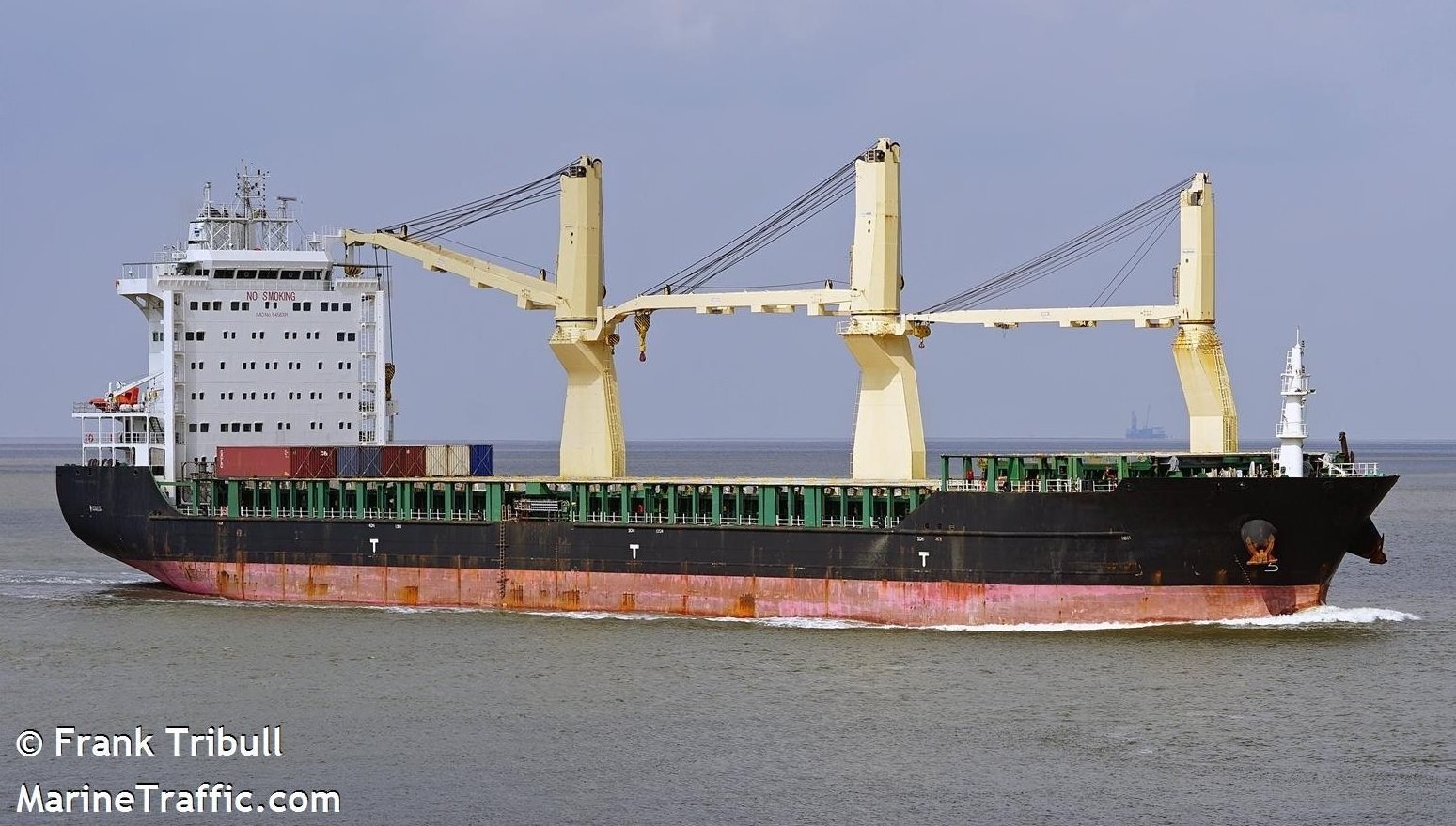

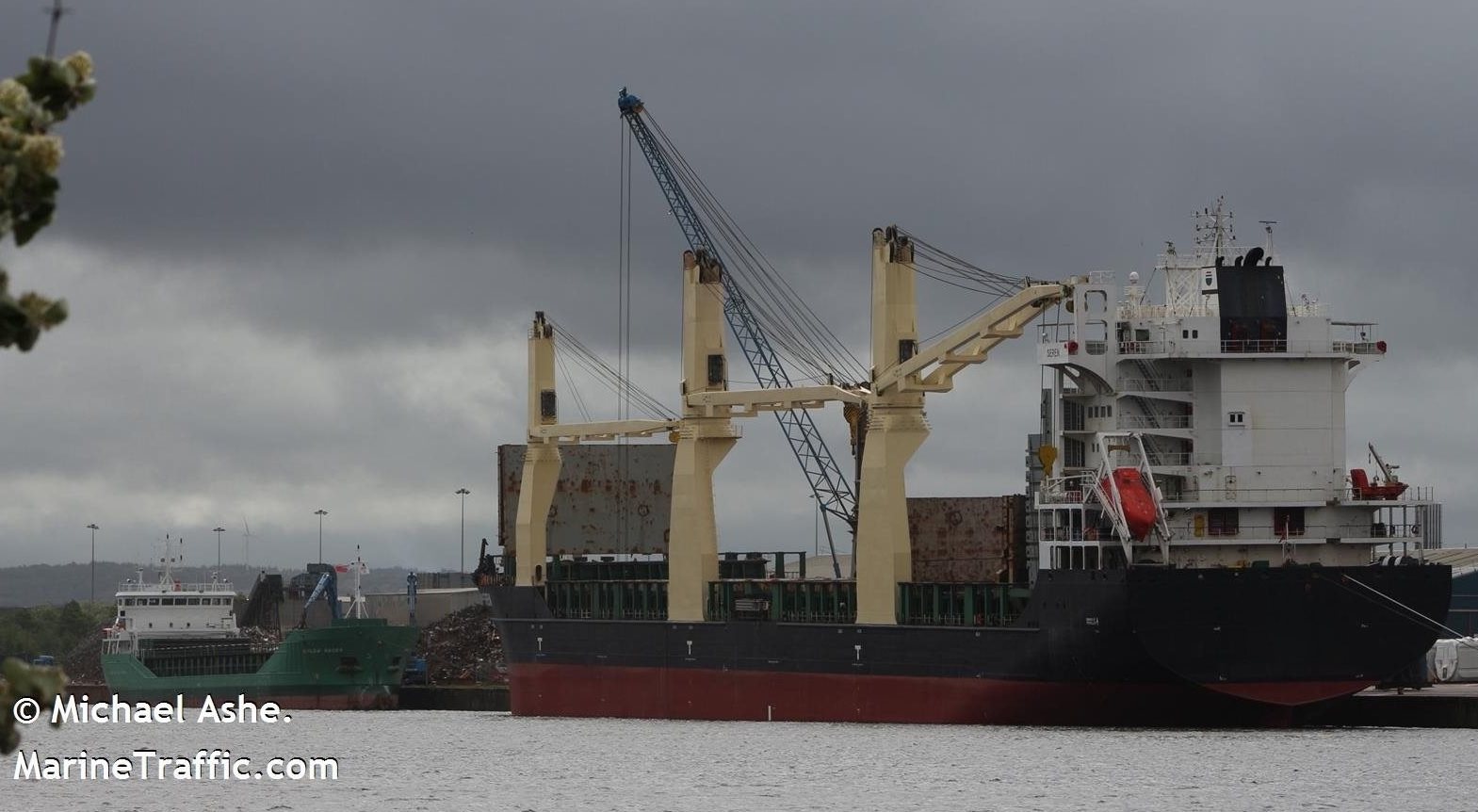

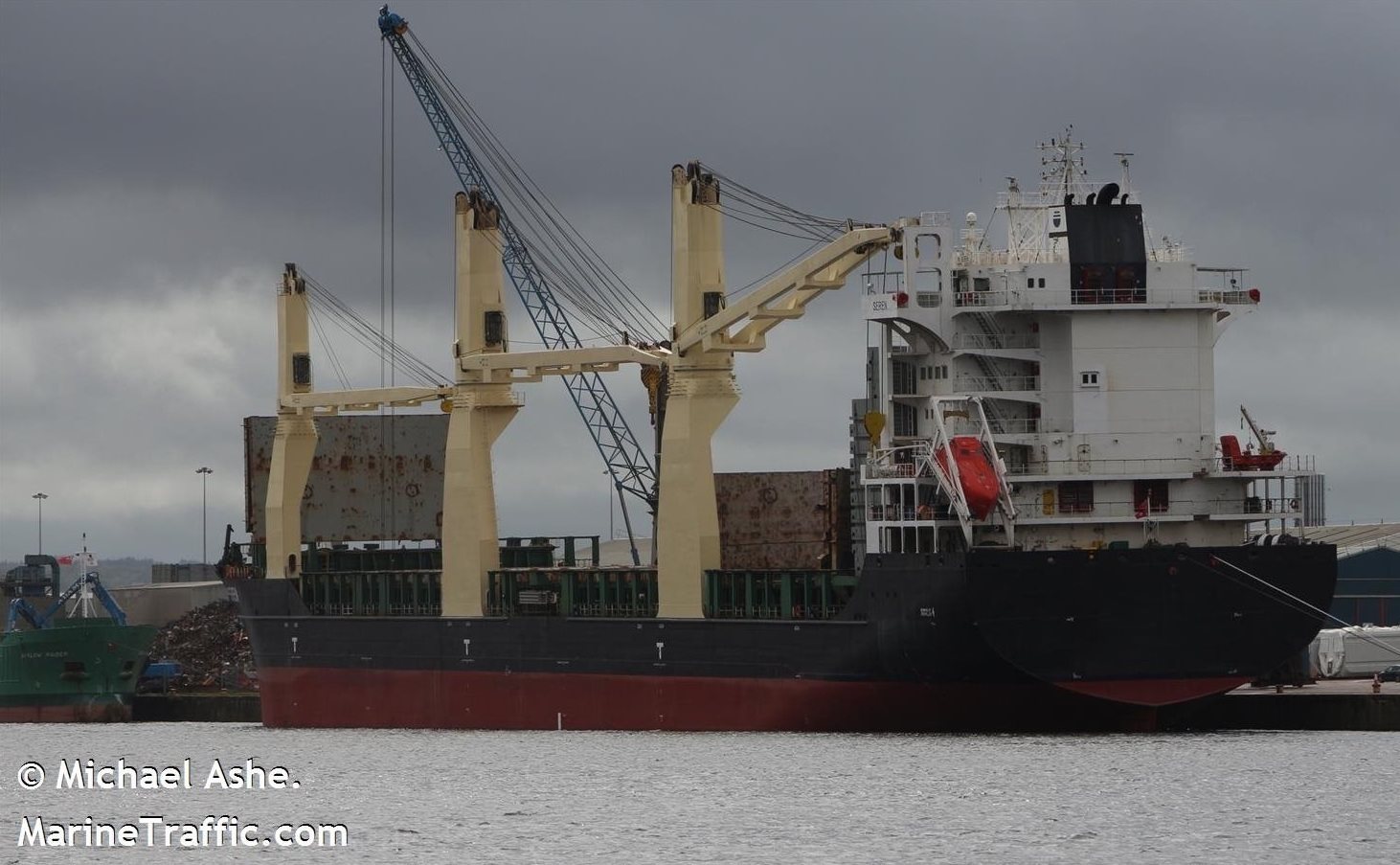

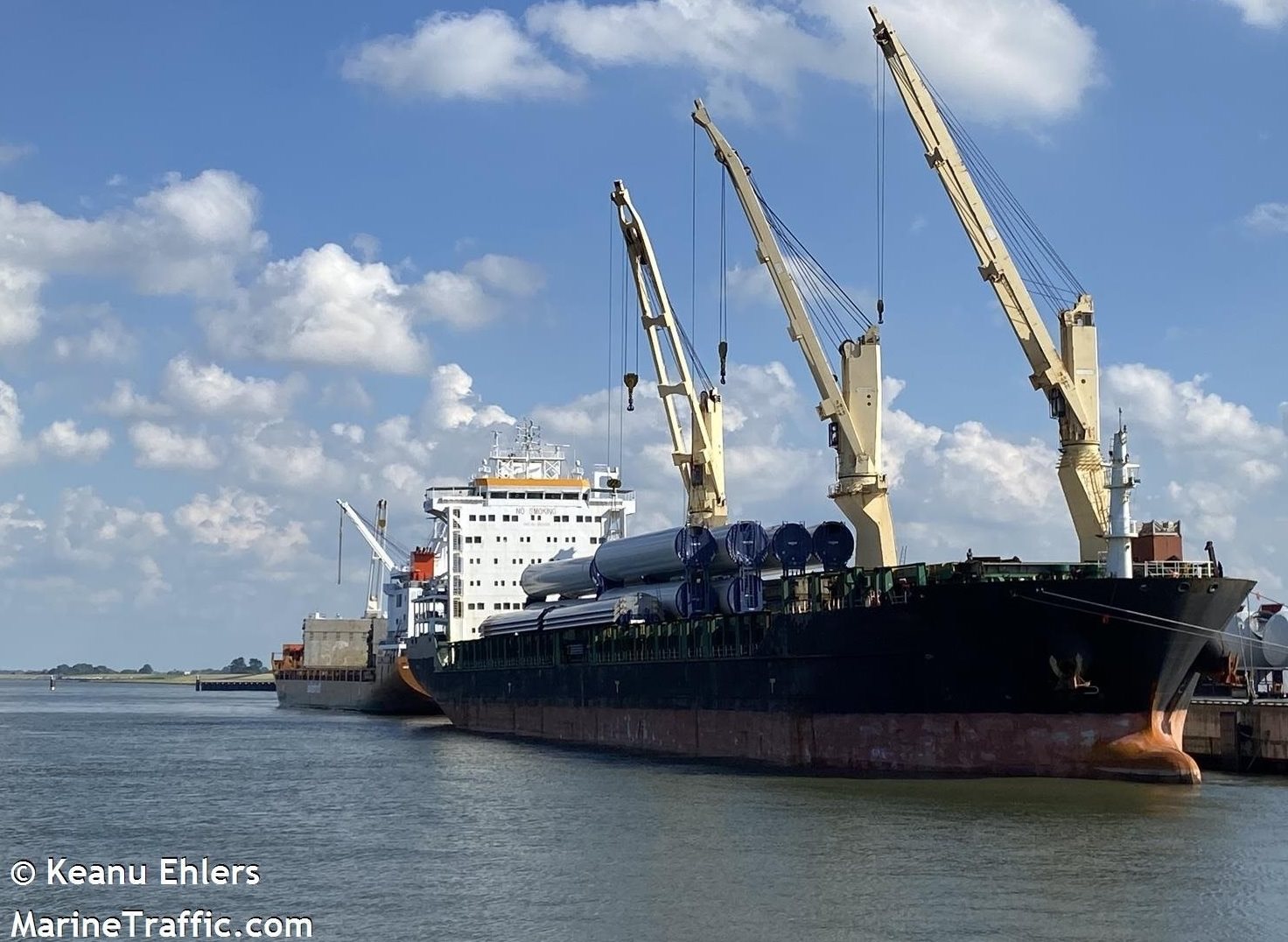

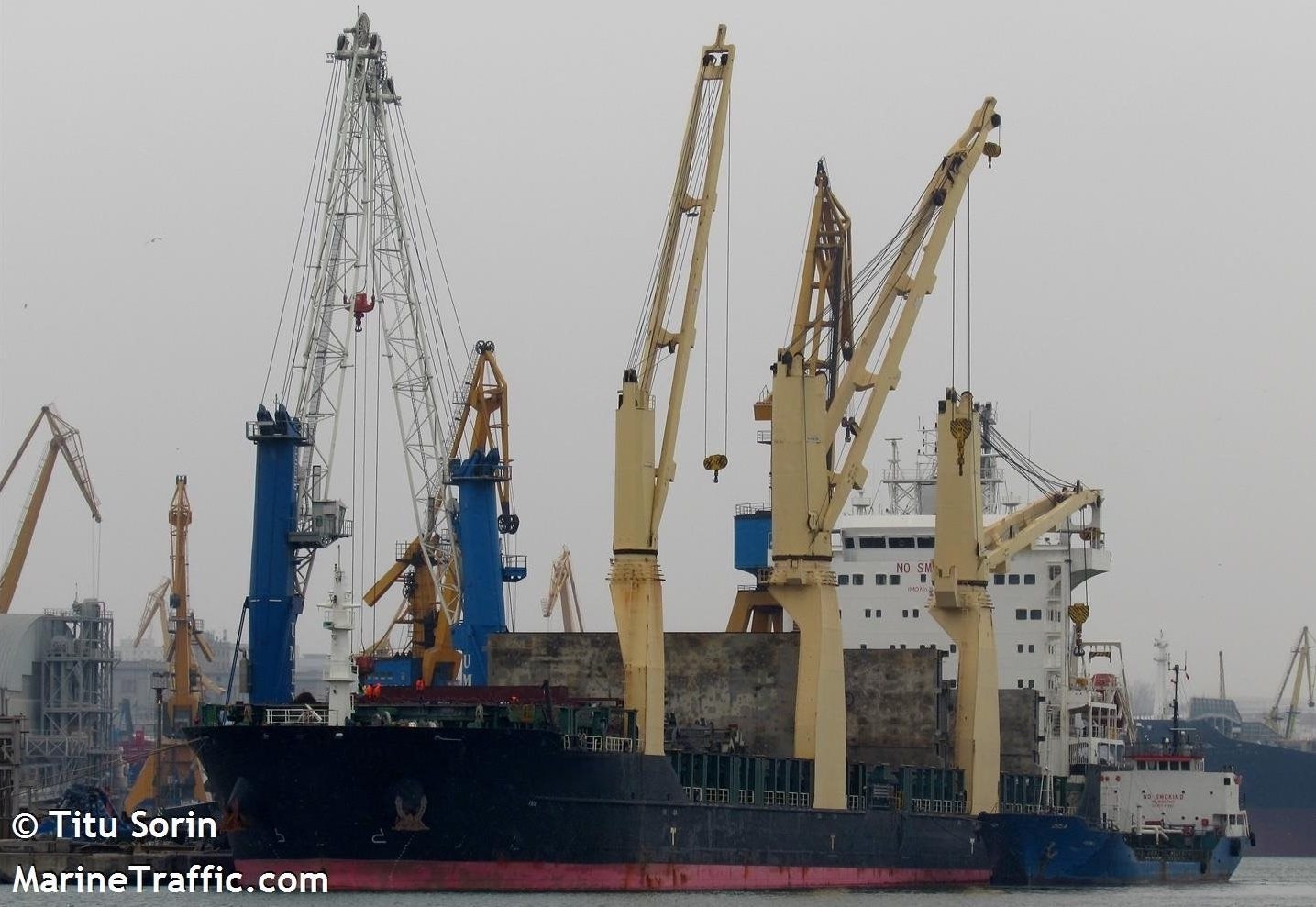

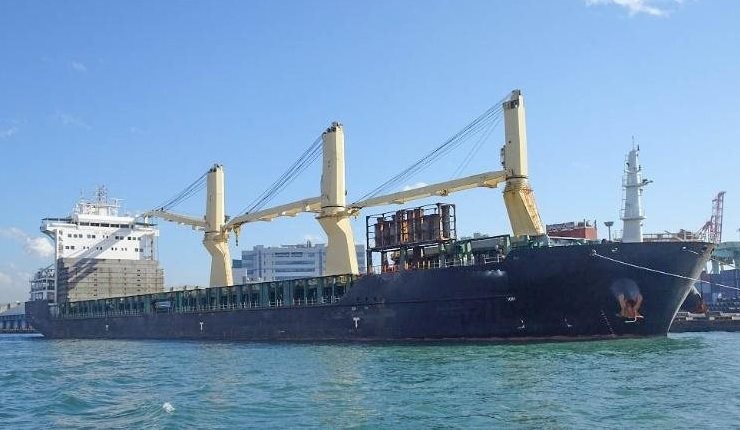

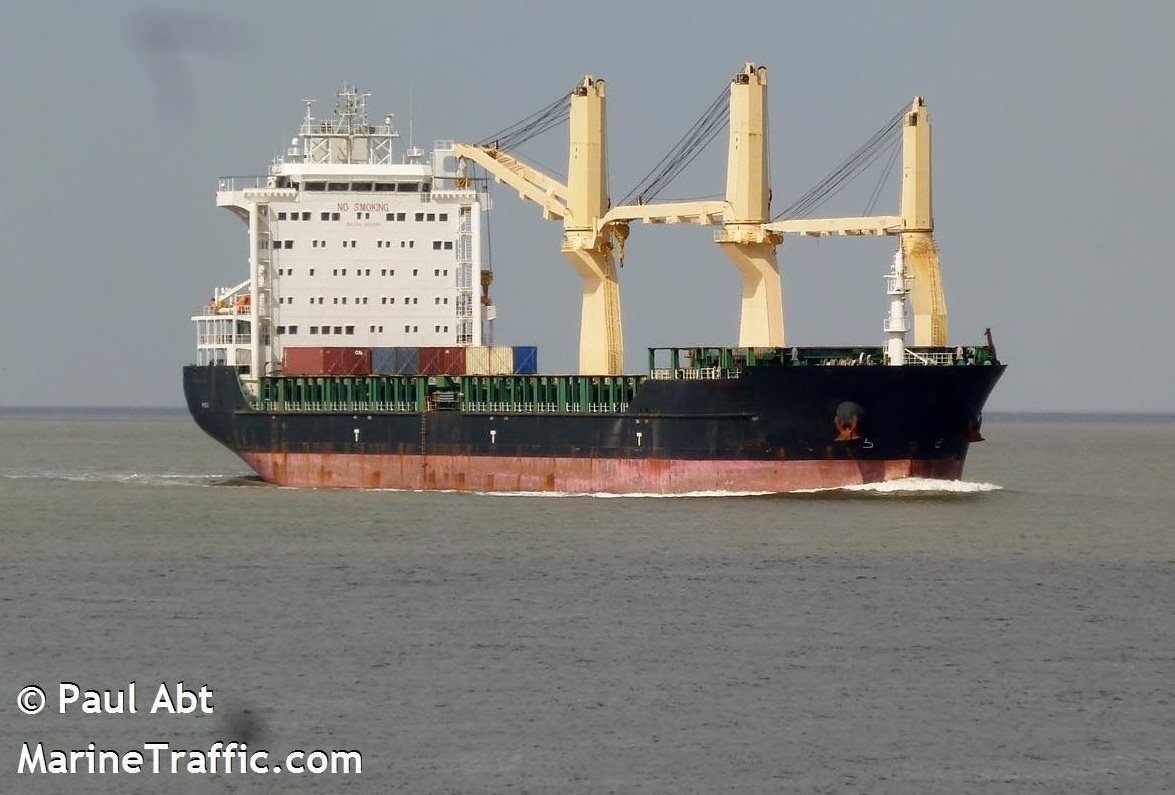

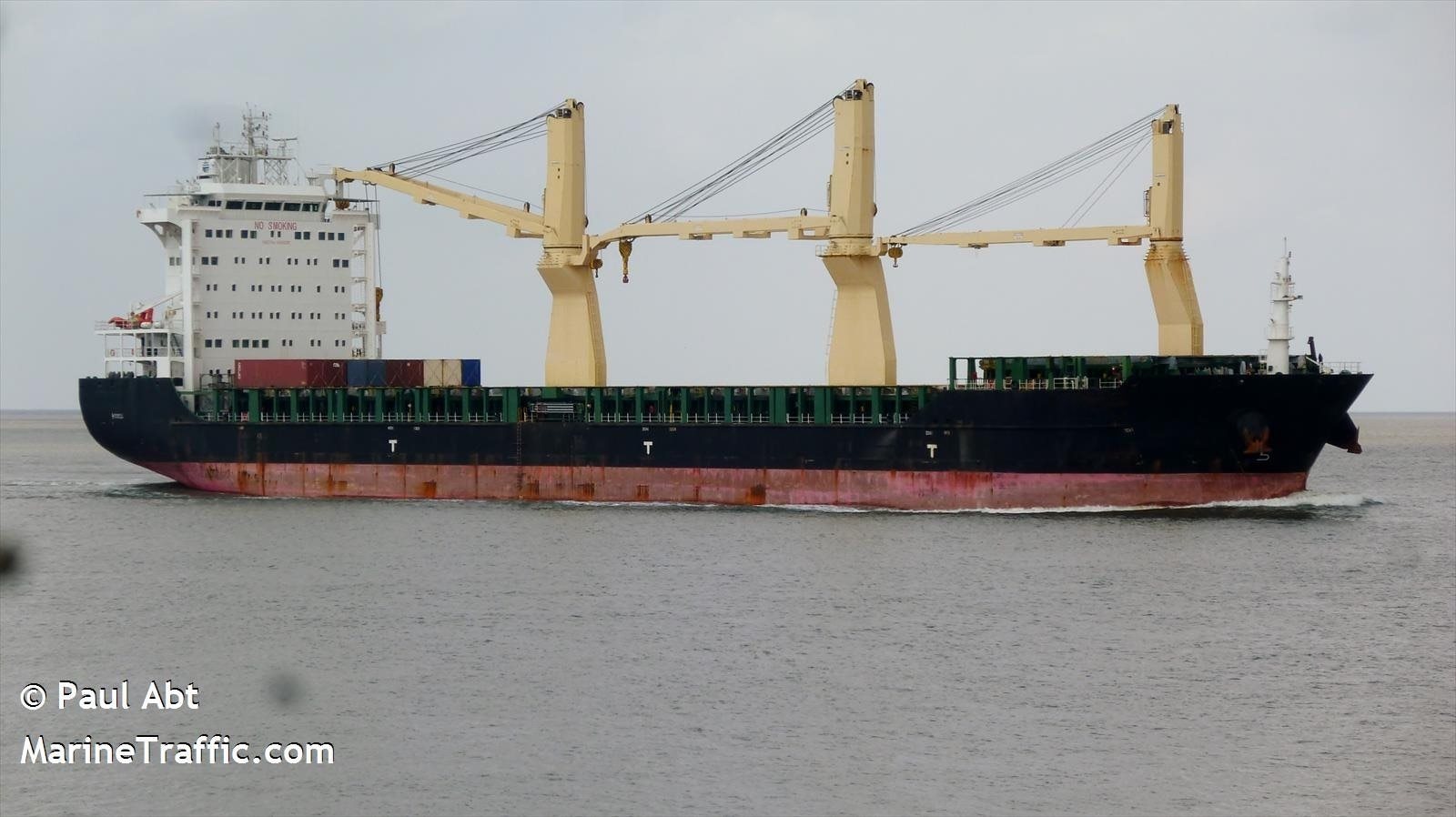

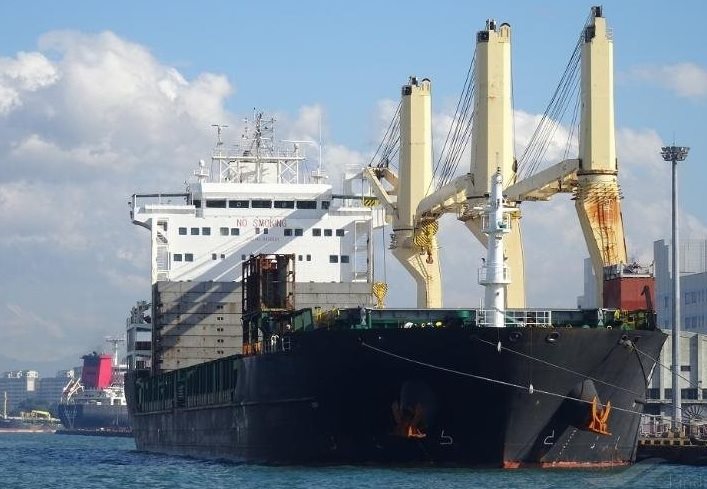

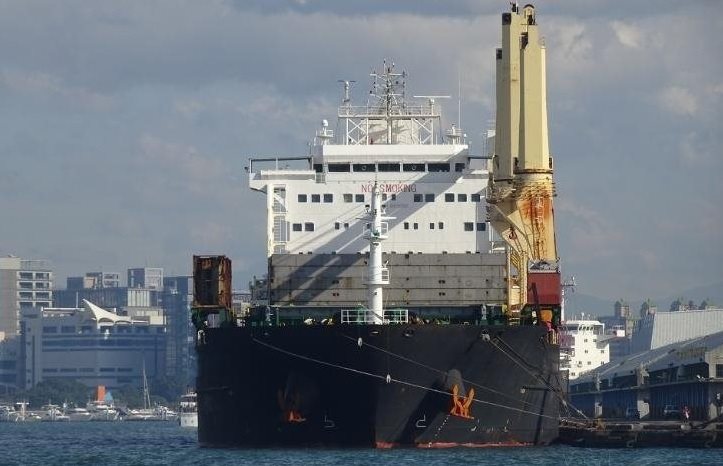

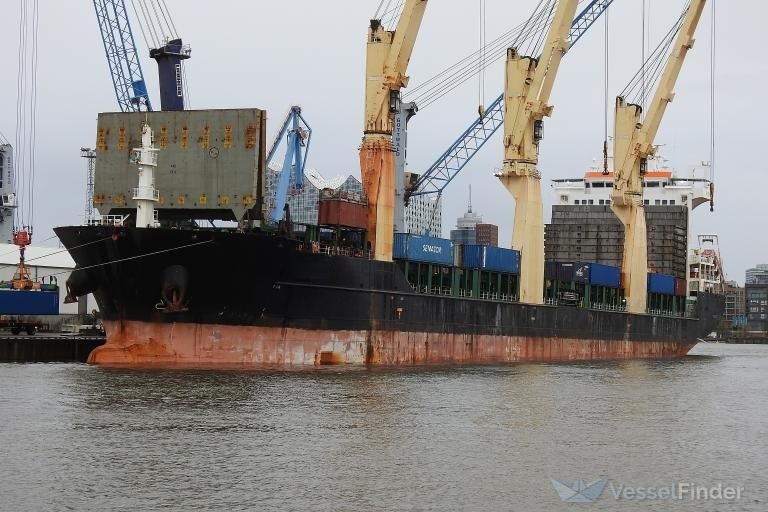

166.31m Multipurpose Dry Cargo Ship

Listing ID - 4723
Description	166.31m Multipurpose Dry Cargo Ship
Date Launched	2011
Length	166.31m (545ft 7in)
Beam	27.4m (89ft 10in)
Draft	10.10m (33ft 1in)
Location	Australia
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
Price	22.15 MIO
View As PDF

Built (Delivered): 2011 (07.12.2011)

Builder: Huanghai Ship Building Co. Ltd, Rongcheng, PRC

Keel Laid: 24.12.2008

Flag: Hongkong

Port of Registry: Hong Kong

Class Society: GL

Classification: 100 A5 E1 G IW SOLAS-11-2, REG.19 DBC, MC E1 AUT

Classification Type: Multi-Purpose Dry Cargo Ship, Equipped for Carriage of Containers, Strengthened for

Class Notation: 100 A5 E1 Multipurpose dry cargo ship Equipped for carriage of containers DBC SOLAS II2,Reg.19 G IW Strengthened for heavy cargo

Heavy Cargo

Dimensions

LOA: 166.31m

LBP: 158.32m

Beam: 27.4m

Draft: 10.10m

Depth to Main Deck: 14.2m

Construction Height: 14.4m (keel – upper main deck)

Constant: 300

Distance (keel to top mast): 47.45m

Tonnage

Gross Tonnage

International: 20965

Suez Canal: 21,290

Net Tonnage

International: 10262

Panama Canal: 17,541

Suez Canal: 18531.65

Engine

Type of Propulsion: Right handed fixed propeller

Main Engine: Diesel engine, Two stroke

Engine Model: STX, 6S40ME-B9-1001-GL

Engine Power: 6810 kW / BHP at 146 RPM

Auxiliary Engine: Yanmar Marine Diesel Engine

Engine Model : 6EY18AL

Generators: Taiyo, 750 KVA, 962 A @900 rpm

Emy. Generator: Consilium, 6CTA8-3-D(M), 150 KVA, 450 V, 60 Hz 1800 RPM

Boiler Type: Aalborg Industries, Mission TM OC.

Auxiliaries

Evaporator: AFGU-1-E-25

Ballast Pumps: 450 m3/hr. 2 SETS

Bunker Hose Lifter: 2

Provision Crane: 1 NOS, SWL 1.5T

Bow thruster: N/A

Steering Gear: Mitsubishi Heavy Ind. Ltd, 06V-FH2B,3B-MK

Anchor / Chain: Port(11 shots) Stbd (12 shots)

Lifesaving Equipment

1 free fall life boat (cap 30 pers)

1 RESCUE BOAT (cap 6 pers)

2 Rafts (port) x 15 pers

2 Rafts (stbd) x 15 pers/ 1 Raft x fwd. 6pers

Weights
Light Ship: 10027.02

Displacement: 38,112

Summer DWT: 28085

Maneuvering Criteria - Ahead Rpm / Speed in Blst / Loaded

Full: Rpm 120 / 11.8 Kts / 11.6 KTS

Half: RPM 95 / 9.5 KTS / 11.8 KTS

Slow: RPM 75 / 7.0 KTS / 6.8 KTS

Dead Slow: RPM 45 / 3.5 KTS / 3.3 KTS

Maneuvering Criteria - Astern

DS AST: 45 RPM

Slow AST: 75RPM

Half AST: 90 RPM

Full AST:115 RPM

TPC: 42.33 mt

Fresh Water allowance: 210 mm

Service Speed

Ballast: 15.5 KT - 146 RPM / 29.9 MT

Laden: 14.8 KT- 146 RPM / 34.5 MT

Load Lines

Draft

TR Fresh Water: 10.535

Fresh Water: 10.325

Tropical: 10.31

Summer (All seasons): 10.10

Winter: 9.89

Freeboard (mm)

TR Fresh Water: 3.697

Fresh Water: 3.907

Tropical: 3.916

Summer (All seasons): 4.126

Winter: 4.336

Displacement (mt)

TR Fresh Water: 39935.500

Fresh Water: 39041.800

Tropical: 39003.500

Summer (All seasons): 38112.000

Winter: 37224.900

DWT (mt)

TR Fresh Water: 29,908.50

Fresh Water: 29,014.70

Tropical: 28,976.50

Summer (All seasons): 28,085.00

Winter: 27,197.90

Capacities

Hold #1

Length: 19.750m

Depths: 17.740m

Frame No.: 169 – 193

Grain: 6082.669

Bale: 5887.159

Cranes: No 1 Crane SWL 45T

Hold #2

Length: 35.550m

Depths: 15.070m

Frame No.: 122.5 - 165

Grain: 12196.351

Bale: 12000.841

Cranes: No 2 Crane SWL 200T

Hold #3

Length: 35.550m

Depths: 15.070m

Frame No.: 73.5 - 116

Grain: 12196.351

Bale: 12000.841

Cranes: No 3 Crane SWL 200T

Hold #4

Length: 25.280m

Depths: 15.070m

Frame No.: 67.5 - 36

Grain: 8626.655

Bale: 8431.145

Cranes: No 2 & 3 fitted with hook 45mts

Tween Deck

The vessel is fitted with 15 lift away pontoons

to make the complete TWD through the hold # 2, 3 & 4.

In hold #2 could be arranged 6 TWD

In hold #3 could be arranged 5 TWD

In hold #4 could be arranged 4 TWD

Load Strength

Holds tank top 20 t/m2

Holds TWD pontoon 3.2 t/m2

Hatch covers 3.0 t/m2

Tank Capacities

IFO @ 0.96 mt/m³, 1425.18 MT / 100% Full

MDO @ 0.87 mt/m³, 135.85 MT / 100% Full

Lubricating Oils @ 0.90 mt/m³, 100.72 MT / 100% Full

Water Ballast 1.025 mt/m³, 10593.05 MT

Freshwater 1.000M3, 290 MT

Drain Tanks / Bilge Water, 22.6 m3

Remarks

Heights:

Top of FWD Mast: 28.70 m

Highest Mast Top: 47.40 m

Nav Bridge Deck: 35.70 m

No.1 Hatch Cover Top(Up): 20.40 m

No.2,3 & 4 Hatch Cover Top(Up): 17.80 m

Distances:

Bridge FWD To Bow: 152 m

Bridge FWD To Aft: 14 m

Hatch Cover Dimensions:

No.1 18.960 M X 18.0 M

No.2 33.575 M X 23 M

No.3 33.575 M X 23 M

No.4 24.885 M X 23 M

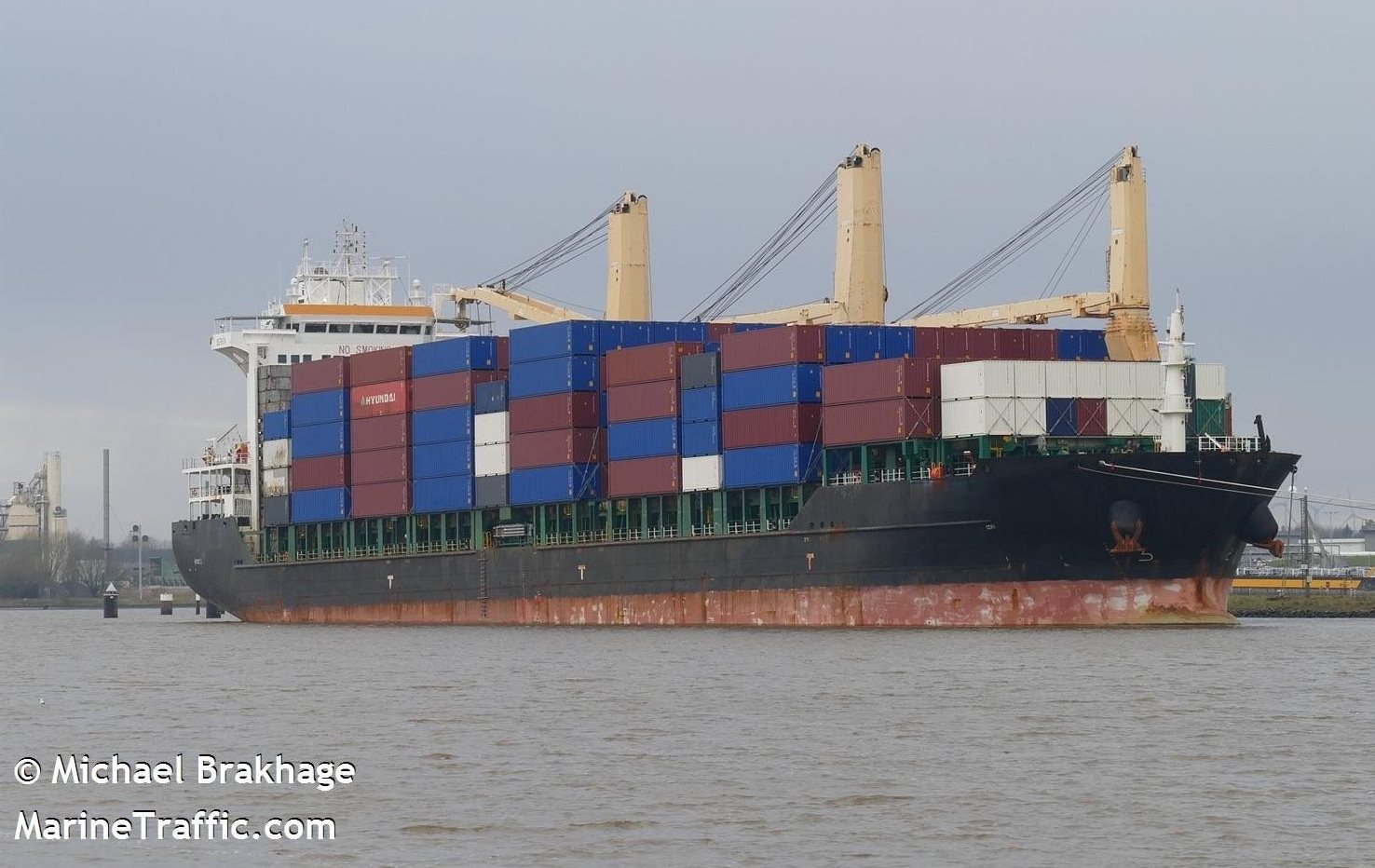

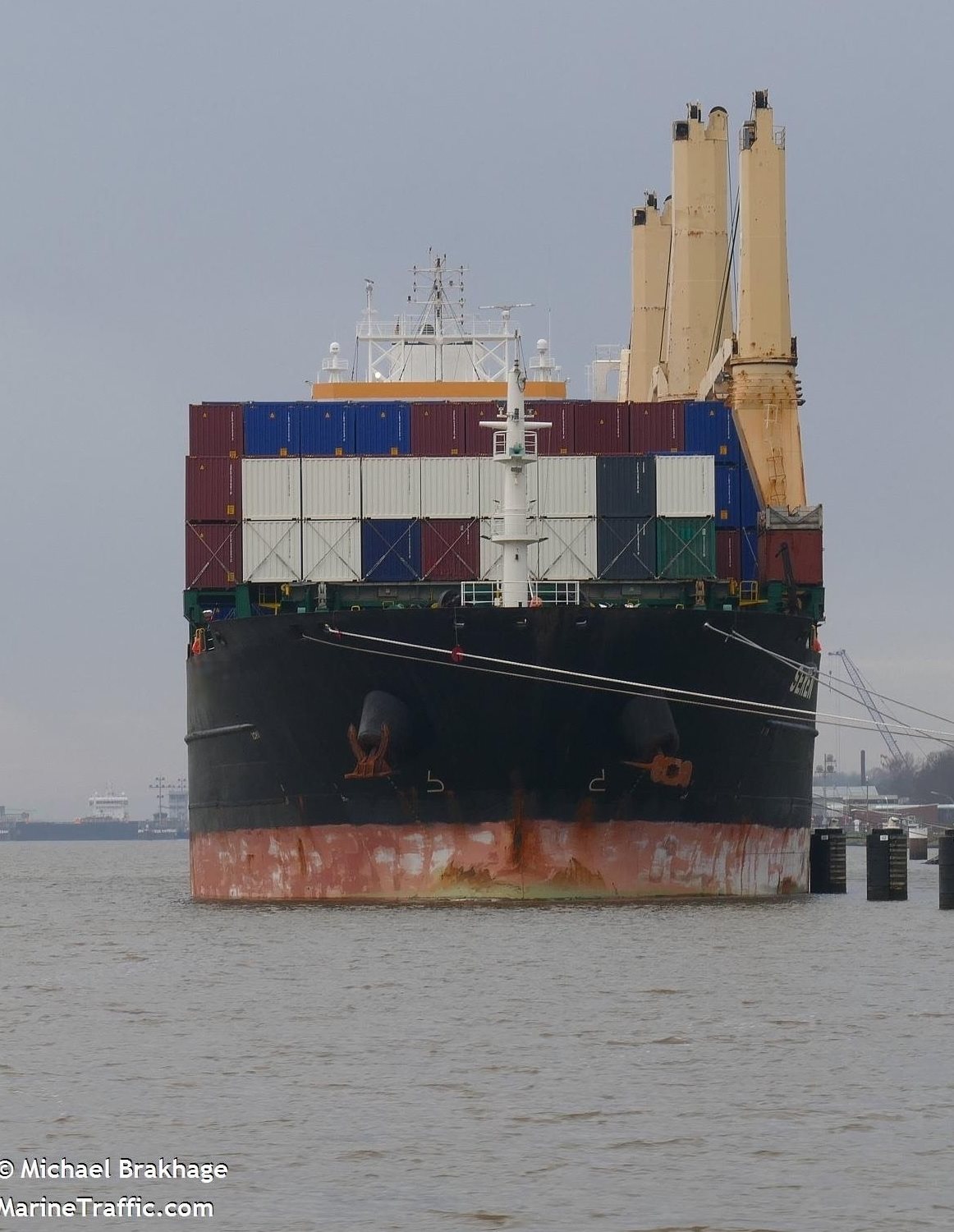

Containers Capability

TEUS in hold 738

TEUS on deck 1008

TEUS total 1746

Reefers plugs total 100 points

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
