100m Accommodation Barge

Listing ID - 3888
Description	100m Accommodation Barge
Date Launched	2008
Length	100m (328ft 1in)
Beam	30.50m (100ft)
Draft	5.5m (18ft)
Location	West Africa
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
View As PDF

Year Built: 2008

Flag: Republic of Cyprus

Port of Registry: Limasol

LOA: 100m

Beam Moulded: 30.50m

Depth Moulded: 7.62m

Maximum Draft: 5.5m

Deckhouse Height: 3m

Anti-Rolling Tanks: FWD 1375.4m3, AFT 1458.7m3

GRT: 10413

NT: 3124

Classifications: ABS

Class Notation: Work bargebuilt to MODU code for unrestricted service

Clear deck space: 1600m2

Deck strength: 15T/m2

MACHINERY

Main diesel generators: 5 x Caterpillar 3412,500kw

Emergency generators: 1 x Caterpillar c4.4 DITA 84 KW 415 V3, 50 Hz

Air Compressors: 2 x 30 bars – TANABE and 1x7 Bars – COMPARE

CAPACITIES

Fuel Oil: 1715 m3

Fresh Water: 2704.2 m3

Ballast capacity: 6190 m3

Ballast Pumps: 2 x 5 m3/h

DISCHARGE RATES

Fresh Oil: 2 x 45 m3/h@45m head

Fresh Water: 2 x 30 m3/h@35m head

Ballast Water: 2 x 500 m3/h@30m head

ACCOMMODATION

Main deck I: Doctor’s cabin Total of beds: 301

“C” deck: 48x4 men cabin

“D” deck: 4x1 man suite, 8x1 man cabin, 12x2 men cabin, 18x4 men cabin

Total Complement: 300 berths, fully air-conditioned, Comply to ILO 92, IMO Resolution A468 (xII)

RADIO & NAVIGATIONAL EQUIPMENT

1 x Furuno

1 x Furuno 8800S VHF Semi Duplex

1 x Air band radio ICA 200

1 x Nautel Radio beacon transmitter ND 500

1 x Furuno FS-2570 MF/HF radio

1 x Furuno DMC5 watch Receivers

6 x Icom VX-800D Walkie talkies

1 x radio beacon cospas Sarsat

1 x Epirb

1 x Furuno NX-700 (B) Navtex

1 x Nera worldphonem Mini M

1 x GP-320B GPS

1 x RM young 05103-5B Anemometer

1 x Furuno VX 1934c Navnet (cmap)

1 x Furuno FCV-1100L Echo sounder

200m working depth

1 x Furuno Felcom 15 Inmarsat – C

FIRE FIGHTING & SURVIVAL EQUIPMENT

Main FIFI pump: 1 x 160 m3/hr@100m head

Emergency FIFI pump: 1 x 60 m3/hr@65m head

Fire water monitors: 2 units 100 m3/hr@50m/hr

Foam Monitors: 2 units

Fire Hose/Station: 8 x 40mm-22x65mm

Portable Fire: 35x4.5kg dry powder: 2 x 45kg dry powder

3x6.8kg co2:31x9L Liquid Chemical

Fire Alarm/ Central: 1 Central panel w/41 manual points

CO2 System: 28 bottles (engine, 4winch-rom-compartments, workshop)

Life rafts: 42

Stretcher: 1

Rescue Boat: 1 x 6 persons rigid rescue boat c/w davit

DECK EQUIPMENT

Mooring system

Anchor weight: 7000kg

Anchor Wire: 1500m x diameter 46

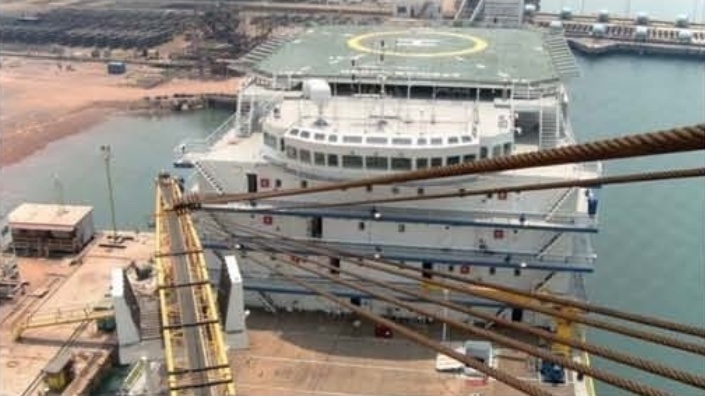

Helideck: 25m x23m 58t/m2 loading

Inner Area: Strength suitable for Sikorsky s92 helicopter

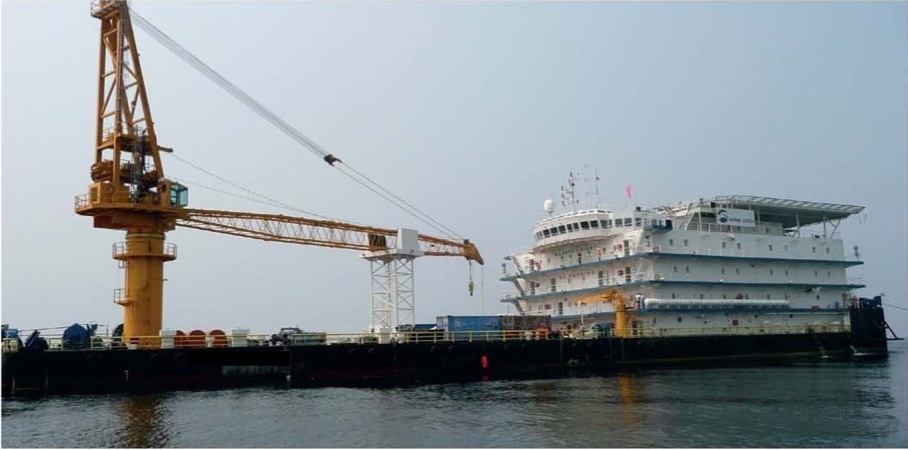

Main Crane: AMCLYDE 35000HD

Provision Crane: 3t x 10m haean

OTHET FACILITIES

Hospital: 1 x 3 bed w/lockers, toilets

Galley: 1 w/cooking utensils, fridges etc. On “B” deck

Paramedic room: 1 on main deck

Messroom: Up to 100 persons w/tables, chairs

Radio/Central Room: 1 x radio equipment on “Office” deck

Office: 4 on “office” deck & 1 each on main and “B” deck

TV/Video Room: 1 smoke/nonsmoker sections, on “B” deck

Video Room: 1 w/ sofa & armchair on main deck

Prayer Room: 1 room Surau / Christian each on “B” deck

Sewage Treatment: 2 x 150 men capacity

Water maker: 2 x 50 T/day Reverse Osmosis

Gymnasium: 1 w/Gym Equipment

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
