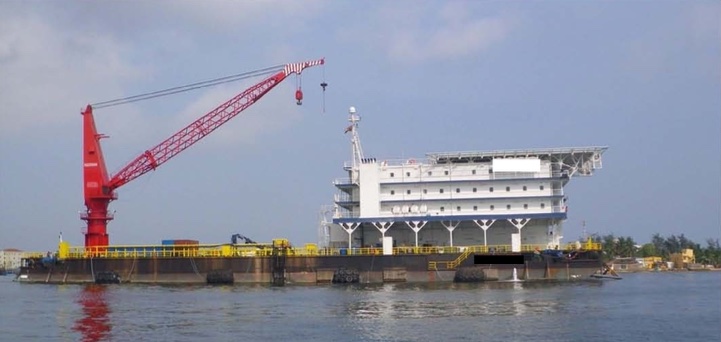

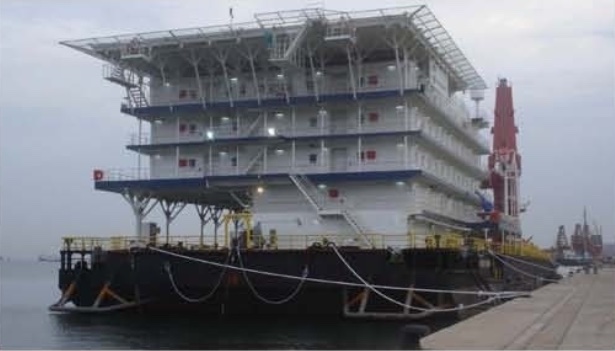

100.58m Accommodation Barge

Listing ID - 3896
Description	100.58m Accommodation Barge
Date Launched	2009
Length	100.58m (329ft 11in)
Beam	31.70m 9104ft)
Draft	4.50m (14ft 9in)
Location	West Africa
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
View As PDF

Built: 2009, Batam

Flag: Cyprus

LOA: 100.58m

Beam Moulded: 31.70m

Depth Moulded: 7.31m

Maximum Draft: 4.50m

GRT: 9462 tonnes

NT: 2838 tonnes

Classifications: ABS

Class Notation: ABS + AI Work Barge

ACCOMMODATION

Single Berths: 8 x 1 berth

Double berths: 14 x 2 berth

4 men berths: 66 x 4 berth

Total Complement: 300 berth

All cabins fully air-conditioned, comply to ILO 92, IMO Resolution A468 (XII)

MACHINERY

Generator: 5 x 620kW, 1800 rpm Caterpillar 3412, DITA c/w Leroy Somer LSAM49.1 M6 rated at 580 kw/440V73 Ph/60 Hz

Emergency generators: 1 x 99 KW, 1800 rpm Caterpillar 3056 DITA c/w Leroy Somer LL3024F rated at 99kw/440V73 ph/60 Hz

Provision Crane: 1 x 2.2mt SWL pedestral hydraulic crane, Palfinger marine

Forklift truck: 1 x 4mt SWL Mitsubishi-Japan

CARGO CAPACITIES

Deadweight: 8608 tons

Deck Strength: 12.5T/sq.m

Clear Deck Area: 1300 sq.m

Fuel Oil: 1740 m3

Fresh Water: 1840 m3

Ballast water: 4430 m3

Drill Water: 1060 m3

Liquid Mud: 770 m3

Cement tank: Nil

Freezer / Chiller: 50 m3/55m3

Foam / Detergent: I m3/ Nil

RADIO & NAVIGATIONAL EQUIPMENT

GMDSS: Area 2 comprising

SSB: 1 x Furuno FS-1570T

Inmarsat F: 1 x Furuno Felcom 70

VHF Radio: 2 x Furuno FM 3000 with built in DSC

Navtex Receiver: 1 x Furuno NX 700A

SART: 2 x Mc Murdo S4

EPIRB: 1 x Kannad Marine

Portable VHF Radios: 3 x Mc Murdu R2

Portable Marine Radios: 12 x ICOM M23

VHF Air Band Treceiver: 1 x ICOM IC-A200

1 x ICOM IC-A6 (HLO)

Satellite Mini-M: 1 x Sailor Trane

VHF for Crane: 1 x Simrad RT62

Radio Beacon T’mitter: Nautel ND 500II

Radar: 1 x Furuno 1932MK2

Echo Sounder: 1 x Furuno FE700

GPS: 1 x Furuno GP90

Satellite Compass: 1 x Furuno SC502

Weather Fax: 1 x Furuno FAX 207

AIS: 1 x JRC JHS-183

Weather station: 1 x AIRMAX WX200

Barge also fitted with Vongtor PA Talkbalk System and Sound

Power Telephones

DECK EQUIPMENT

8-Point Mooring: 8 x single drum electro-hydraulic; Mentrade HMW-90t

c/w tension sensors, wire lenth counter

16 vertical sheaves & 8 universal fairleaders

Drum: suit for 1400m (L) x 52 mm SWR

Rated Pull: 85 mt @ 0-12 m/min! I st layer (1^st speed)

Brake capacity: 150mt static @ 1^st layer

Anchor Wire: 8 x 1400m (L) x 52 mm SWR

Anchors: 4 x 7000 kg flipper Delta Anchors

Pennant Buoy: 10 x 2.45m (L) x 1.83 foam filled type

Capstan: 4 x 10 mt@ 20m/min electric; mentrade HVC-10T

Tugger winch: 2 x 15 @ 20m/min electro-hydraulic; Mentrade HUW-15T

Helideck: Suitable M18

Outer area: 25.62m x 25.62m

Deck Crane: 1 x 300mt Huismn pedestal-mounted offshore crane c/w 46m jib and flyjib

Main Host

Static load cap: 300 mt / 9 falls @ 10m radius

76mt/ 9 falls @ 44m radius

Dynamic load cap: 240 mt/9 falls @ 12m radius

48 mt/9 falls @44 m radius

Auxiliary Hoist: 30mt single line at all radius

FIRE FIGHTING & SURVIVAL EQUIPMENT

Fire Pump: 1 x 150 m3/hr @ 110m/head Azcue

Fire Monitors: 2 x 73.5 m3/hr @7 bar; skum FJM-80

Emergency fire pump: 1 x 150m3/hr @ 110m/ head Azcue

Life Rafts: 24x25 man solas approved

Fast rescue boat

(work boat): FR 30 Zheanjiang Marine with launching davit

Rescue Boat: 1 x 6 persons SOLAS Approved Narwhal SV480 c7w launching davit

Fire detection system in all enclosed spaces.

Fixed CO2 system for generator room, paint store and galley duct.

Fixed automatic water sprinkler system for whole accommodation spaced included store & workshop

Hospital: 1 x double berth hospital with attached paramedic room

Galley: 1 w/cooking utensils, refrigerator etc

Offices: Total 6;3 on main deck, 1 on deck 1, 2 on deck 3

Conference rooms: 1 with seating capacity for 30 men

Messrooms: 1 x officers mess with seating capacity for 20 men

1 x main mess with seating capacity for 150 men

Recreation rooms: 1 x main room with seating capacity for 80 men

1 for officers with seating capacity for 15 men

TV/Video room: 1 with seating capacity for 30 men

MISCELLANEOUS

Oil water Separator: 1 x 1 m3/hr c/w 15ppm alarm; Oilchief

Sewage treatment: 2 x 50 men/day; Biomaster

Water maker: 2 x 50 m3/day reverse osmosis; seanly Tech

B&P water maker: 1 x 300 m3/day

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
